Select Data from SharePoint List using OData Service

Dec 07, 2012 Blogs | WCF with C#
Today, in this article let’s play around with one of the interesting and most useful concept in OData.

Introduction

Today, in this article let's play around with one of the interesting and most useful concept in OData.

Question: What is select data from SharePoint list using OData Service?

In simple terms "It provides flexibility to pull out the data with helps of data services from SharePoint list".

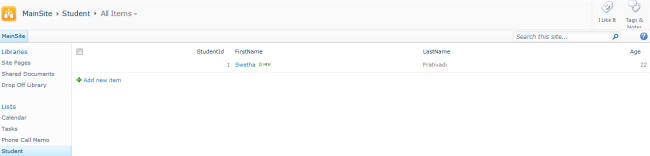

Step 1: Create a new custom list on SharePoint site


Step 2: Browse the OData Service .svc on SharePoint

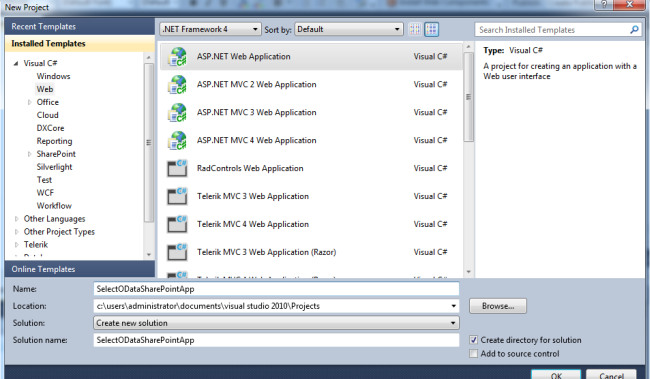

Step 3: Create a new web application to existing application

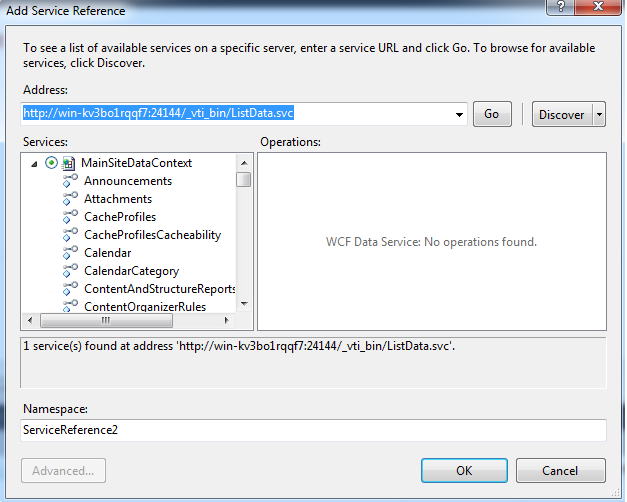

Step 4: Add a service reference to the newly created web application



Step 5: The complete code of WebForm1.aspx looks like this

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="SelectODataSPApp.WebForm1" %>



<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <style type="text/css">

        .grid

        {

            margin-top: 50px;

        }

    </style>

    <title></title>

</head>

<body>

    <form id="form1" runat="server">

    <center>

        <div>

            <table>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Label ID="Label1" runat="server" Text="Select Data from SharePoint List using OData Service"

                            Font-Bold="true" Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Button ID="Button1" runat="server" Text="Select Data" Font-Names="Verdana" Width="213px"

                            BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <asp:GridView ID="GridView1" runat="server" BackColor="#DEBA84" BorderColor="#DEBA84"

                            BorderStyle="None" BorderWidth="1px" CellPadding="3" CellSpacing="2" EnableModelValidation="True"

                            AutoGenerateColumns="False">

                            <FooterStyle BackColor="#F7DFB5" ForeColor="#8C4510" />

                            <HeaderStyle BackColor="#A55129" Font-Bold="True" ForeColor="White" />

                            <PagerStyle ForeColor="#8C4510" HorizontalAlign="Center" />

                            <RowStyle BackColor="#FFF7E7" ForeColor="#8C4510" />

                            <SelectedRowStyle BackColor="#738A9C" Font-Bold="True" ForeColor="White" />

                            <Columns>

                                <asp:BoundField DataField="ID" HeaderText="Student Id" ReadOnly="true" SortExpression="Id" />

                                <asp:BoundField DataField="FirstName" HeaderText="First Name" ReadOnly="true" />

                                <asp:BoundField DataField="LastName" HeaderText="Last Name" ReadOnly="true" />

                                <asp:BoundField DataField="Age" HeaderText="Age" ReadOnly="true" />

                            </Columns>

                        </asp:GridView>

                    </td>

                </tr>

            </table>

        </div>

    </center>

    </form>

</body>

</html>

Step 6: The complete code of WebForm1.aspx.cs looks like this


using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

using SelectODataSPApp.ServiceReference1;

namespace SelectODataSPApp

{

    public partial class WebForm1 : System.Web.UI.Page

    {

        protected void Page_Load(object sender, EventArgs e)

        {

        }

        protected void Button1_Click(object sender, EventArgs e)

        {

            MainSiteDataContext objContext = new MainSiteDataContext(new Uri("http://win-kv3bo1rqqf7:24144/_vti_bin/ListData.svc"));

            objContext.Credentials = System.Net.CredentialCache.DefaultCredentials; GridView1.DataSource = objContext.Student.ToList();

            GridView1.DataBind();

        }

    }

}

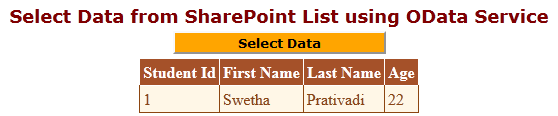

Step 7: The output of the application looks like this


Step 8: The selected data output of the application looks like this
