How to Use Mobile Service in HTML/JavaScript Application

Posted by Naren Chejara Articles | Windows Azure April 08, 2013
This article helps you to get a basic idea of how to use the Windows Azure Mobile Service in HTML/JavaScript applications.
Reader Level:

The Windows Azure Mobile Service is a back end tool for mobile applications. It supports various platforms, such as Windows Store, Windows Phone 8, iOS and Android. The Windows Azure Mobile service can also support HTML/JavaScript. This article helps you to get a basic idea of how to use the Windows Azure Mobile Service in HTML/JavaScript applications.

Let us start with a Quick startup project provided by Microsoft. A Quick startup is a simple demo project that can help us to understand how to use the Windows Azure Mobile Service with HTML/JavaScript. So let's start from the Quick startup project.

Login into in the Windows Azure portal and use the following procedure.

This article assumes you already have a Windows Azure account and the mobile service is enabled in your account.

1. Create a new Windows Azure Mobile Service

Click on the +New button from the left corner and select Compute -> Mobile Service and then click on the "Create" button.

Mobile Service in HTML 1.jpg

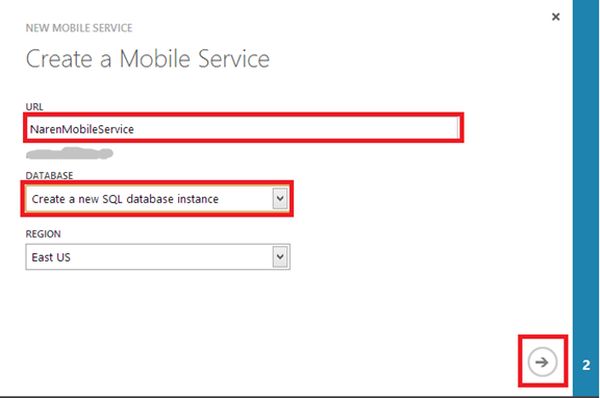

The Windows Azure portal popup creates a mobile service wizard when you click the Create button. Windows Azure asks you to enter the mobile service name as shown in the following image:

Mobile Service in HTML 2.jpg

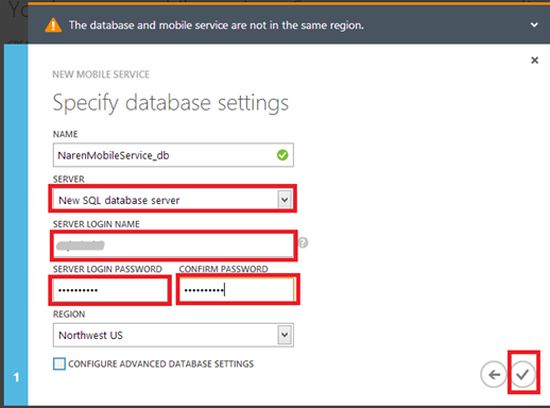

Select the database options and region for your mobile service and click on the "Next" button.

Mobile Service in HTML 3.jpg

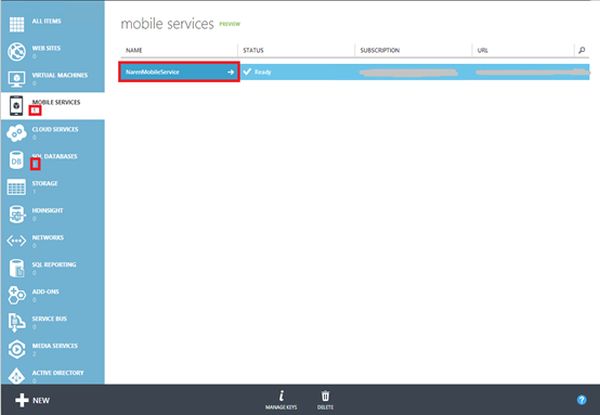

Once your mobile service is successfully created, the portal will show all your mobile services as shown in the following images.

Mobile Service in HTML 4.jpg

Ok! We have created a new mobile service successfully. Let's move to our subsequent steps.

1. Quick startup Project

As we all know, the Windows Azure Mobile Service can support many platforms such as Windows Store, Windows Phone 8, iOS, Android and HTML/JavaScript. This article only tells us about the new HTML/JavaScript platform that is recently added to the Windows Azure Mobile Service.

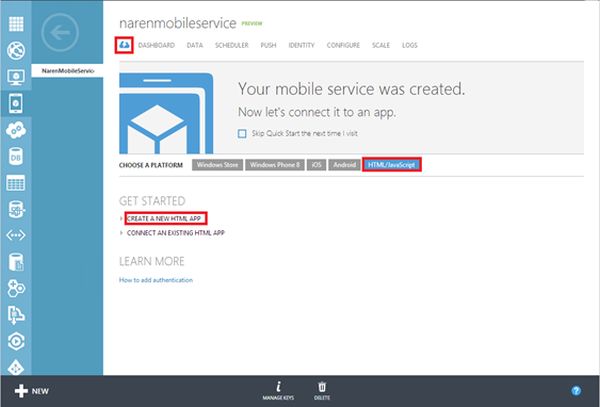

Mobile Service in HTML 5.jpg

In the image above, we are in the quick startup page where the Windows Azure Mobile Service allows the user to choose their platform. I have selected the HTML/JavaScript Platform.

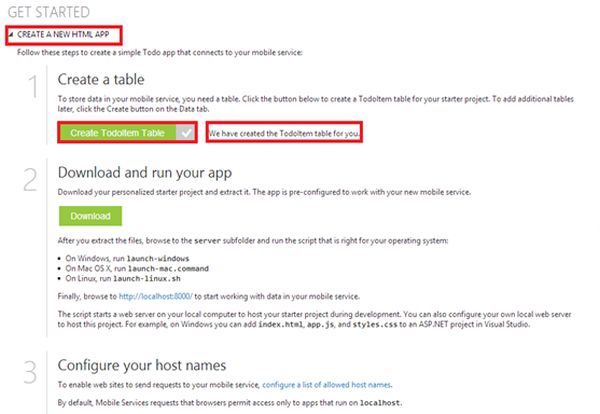

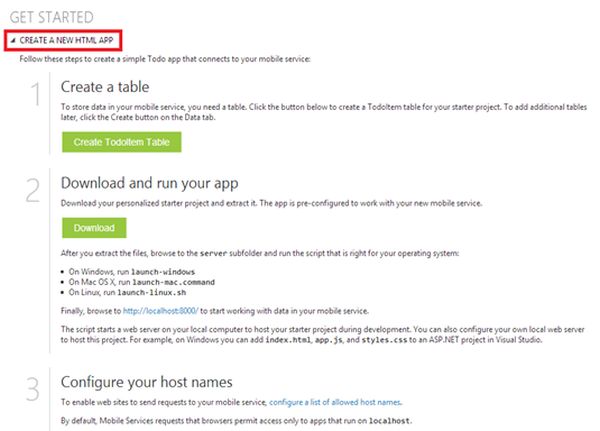

Mobile Service in HTML 6.jpg

In the image above, we found 3 quick steps that can allow us to run a HTML/JavaScript sample project.

1. Create Table: In this step the user needs to create a table that can used by the sample project, once you hit the create TodoItem Table button. The Portal will create a TodoItem table in your mobile service. You can check this table by clicking on the data tab(menu).

Mobile Service in HTML 7.jpg

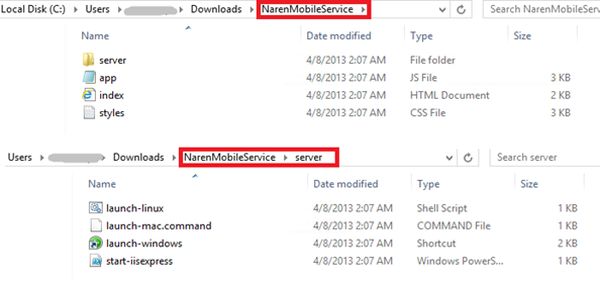

2. Download and run your app: In this step the user needs to download the Quick startup project that is provided by the Windows Azure portal. Click on the "Download" button and download the project. You will see the following files in the quick startup project.

Mobile Service in HTML 8.jpg

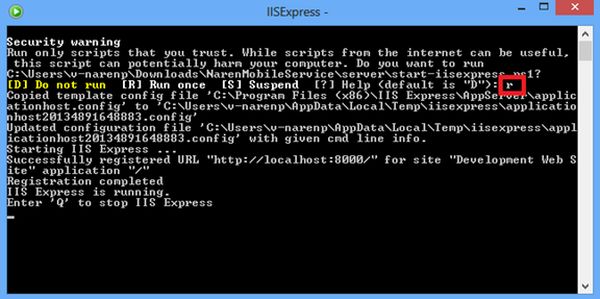

The Server folder contains some files to setup this project locally. The user should run the file from the server folder corresponding to their OS. I am using Windows OS so I ran the lanch-windwos file to setup this project locally in IISExpress.

Mobile Service in HTML 9.jpg

Press r and enter the key, you will see IISExpress started. Do not close this Windows and open your browser and request the http://localhost:8000/ page.

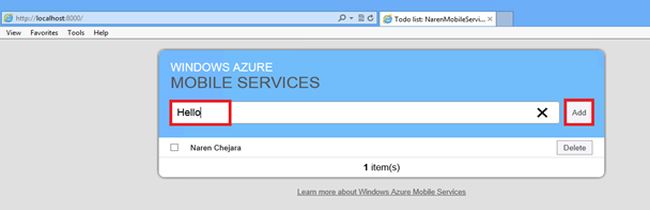

Mobile Service in HTML 10.jpg

Enter the Item name and click on the add button. Your Item will be added to the TodoItem table.

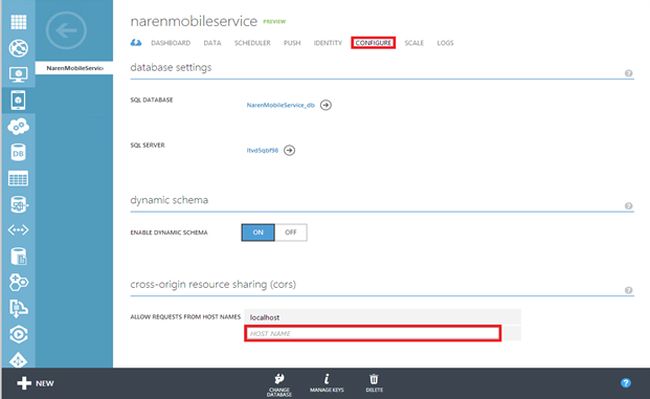

3. Configure your host name: This step is a very important step for any HTML/JavaScript application that uses the Windows Azure Mobile Service. In this step the user must register their website name in the Cross-origin resource sharing (CORS). By default, "localhost" is added by the Windows Azure Mobile Service so your quick startup project can run without making any CORS setting changes. The user can add their website domain name by clicking on the configure tab (menu).

Mobile Service in HTML 11.jpg

The user can add as many website domain names as needed.

Coming Soon: CURD Operations in HTML/JavaScript using Windows Azure Mobile Service.
