Polar and Radar Charts in ASP.Net

Background

ASP.Net Chart is a powerful control that creates interactive charts. Today we will discuss the Polar and Radar charts of ASP.Net. So let us start to learn about these chart type controls step-by-step.

Now let us learn about the properties of the Polar and Radar charts. A polar and Radar chart type has the following common properties:

  • AlternetText: Sets the alternate text when the image is not available.

  • Annotation: Stores the chart annotations.

  • AntiAliasing: Sets a value that determines whether anti-aliasing is used when text and graphics are drawn.

  • BackGradientStyle: Sets the orientation for the background gradient for the Chart control. Also determines whether a gradient is used, the default is None.

  • Backcolor: Sets the background color for a chart, the default color is White.

  • BackImage: Sets the background image for the chart control.

  • BackHatchStyle: Sets the hatching style for the chart control, the default is None.

  • Height: Sets the height for the chart control.

  • Width: Sets the width for the chart control.

  • Palette: Sets the style with the color for the chart control, the default style is Chocolate.

  • PaletteCustomColors: Sets the custom color for the chart control.

  • Series: Sets the series collection for the chart control.

  • Legends: Sets the series of legends to the chart.
Now let us show the preceding explanation with a practical example by creating a simple web application.
Step 1

Use the following script to create and insert data into the table for the chart:
  1. SET ANSI_NULLS ON
  2. GO
  3. SET QUOTED_IDENTIFIER ON
  4. GO
  5. SET ANSI_PADDING ON
  6. GO
  7. CREATE TABLE [dbo].[orderdet](
  8.     [id] [int] IDENTITY(1,1) NOT NULL,
  9.     [Month] [varchar](50) NULL,
  10.     [Orders] [intNULL,
  11.  CONSTRAINT [PK_Order TablePRIMARY KEY CLUSTERED
  12. (
  13.     [id] ASC
  14. )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ONON [PRIMARY]
  15. ON [PRIMARY]
  16.
  17. GO
  18. SET ANSI_PADDING OFF
  19. GO
  20. SET IDENTITY_INSERT [dbo].[orderdet] ON
  21.
  22. GO
  23. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (1, N'Jan', 0)
  24. GO
  25. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (2, N'Feb', 5)
  26. GO
  27. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (3, N'March', 20)
  28. GO
  29. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (4, N'April', 40)
  30. GO
  31. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (5, N'May', 15)
  32. GO
  33. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (6, N'Jun', 60)
  34. GO
  35. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (7, N'July', 75)
  36. GO
  37. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (8, N'Aug', 80)
  38. GO
  39. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (9, N'Sep', 85)
  40. GO
  41. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (10, N'Oct', 100)
  42. GO
  43. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (11, N'Nov', 2)
  44. GO
  45. INSERT [dbo].[orderdet] ([id], [Month], [Orders]) VALUES (12, N'Dec', 90)
  46. GO
  47. SET IDENTITY_INSERT [dbo].[orderdet] OFF
  48. Go
After running the preceding script the records in the table will look as follows:


Step 2

Create a Stored Procedure to fetch the records from the database.
  1. Create procedure [dbo].[GetCharData]
  2. (
  3. @id int =null
  4.
  5. )
  6. as
  7. begin
  8. Select Month,Orders from Orderdet
  9. End
Step 3

Create a Web Application. Create the website with:
  1. "Start" - "All Programs" - "Microsoft Visual Studio 2010".

  2. "File" - "New Project" - "C#" - "Empty Website" (to avoid adding a master page).

  3. Provide the project a name such as "PolarAndRadar" or another as you wish and specify the location.

  4. Then right-click on the Solution Explorer and select "Add New Item" then select Default.aspx page.

  5. Drag and Drop a Chart control from the ToolBox onto the Default.aspx page.
Now the Default.aspx source code will be as follows:
  1. <%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default.aspx.cs" Inherits="_Default" %>
  2.
  3. <%@ Register Assembly="System.Web.DataVisualization, Version=4.0.0.0, Culture=neutral, PublicKeyToken=31bf3856ad364e35"
  4.     Namespace="System.Web.UI.DataVisualization.Charting" TagPrefix="asp" %>
  5. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  6. <html xmlns="http://www.w3.org/1999/xhtml">
  7. <head runat="server">
  8.     <title>Article by Vithal Wadje</title>
  9. </head>
  10. <body bgcolor="blue">
  11.     <form id="form1" runat="server">
  12.     <h4 style="color: White;">
  13.         Article for C#Corner
  14.     </h4>
  15.     <asp:Chart ID="Chart1" runat="server" BackColor="64, 64, 0"
  16.         BackGradientStyle="LeftRight" Height="370px" Palette="None"
  17.         PaletteCustomColors="Maroon" Width="370px">
  18.         <Series>
  19.             <asp:Series Name="Series1" ChartType="Radar">
  20.             </asp:Series>
  21.         </Series>
  22.         <ChartAreas>
  23.             <asp:ChartArea Name="ChartArea1" >
  24.             </asp:ChartArea>
  25.         </ChartAreas>
  26.         <BorderSkin BackColor="" PageColor="192, 64, 0" />
  27.     </asp:Chart>
  28.
  29.
  30.     </form>
  31. </body>
  32. </html>
Step 4

Create a method to bind the chart control.

Now, open the default.aspx.cs page and create the following function named Bindchart to bind the Chart Control as in the following:
  1. private void Bindchart()
  2. {
  3.      connection();
  4.      query = "select *from Orderdet";//not recommended this i have written just for example,write stored procedure for security
  5.      com = new SqlCommand(query, con);
  6.      SqlDataAdapter da = new SqlDataAdapter(query, con);
  7.      DataSet ds = new DataSet();
  8.      da.Fill(ds);
  9.
  10.      DataTable ChartData=ds.Tables[0];
  11.
  12.      //storing total rows count to loop on each Record
  13.      string[] XPointMember = new string[ChartData.Rows.Count];
  14.      int[] YPointMember = new int[ChartData.Rows.Count];
  15.
  16.      for (int count = 0; count < ChartData.Rows.Count;count++ )
  17.      {
  18.           //storing Values for X axis
  19.           XPointMember[count] = ChartData.Rows[count]["Month"].ToString();
  20.           //storing values for Y Axis
  21.           YPointMember[count] = Convert.ToInt32(ChartData.Rows[count]["Orders"]);
  22.
  23.
  24.      }
  25.      //binding chart control
  26.      Chart1.Series[0].Points.DataBindXY(XPointMember, YPointMember);
  27.
  28.      //Setting width of line
  29.      Chart1.Series[0].BorderWidth = 2;
  30.      //setting Chart type
  31.      //  Chart1.Series[0].ChartType = SeriesChartType.Polar ;
  32.      Chart1.Series[0].ChartType = SeriesChartType.Radar;
  33.      // Chart1.ChartAreas["ChartArea1"].AxisX.MajorGrid.Enabled = false;
  34.      //Chart1.ChartAreas["ChartArea1"].AxisY.MajorGrid.Enabled = false;
  35.
  36.      //Chart1.ChartAreas["ChartArea1"].Area3DStyle.Enable3D = true;
  37.
  38.
  39.      con.Close();
  40.

Now, call the preceding function on page load as in the following
  1. protected void Page_Load(object sender, EventArgs e)
  2.     {
  3.         if (!IsPostBack)
  4.         {
  5.             Bindchart();
  6.
  7.         }
  8.     }
The entire code of the default.aspx.cs page will look as follows:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using System.Data.SqlClient;
  8. using System.Configuration;
  9. using System.Data;
  10. using System.Web.UI.DataVisualization.Charting;
  11.
  12. public partial class _Default : System.Web.UI.Page
  13. {
  14.     private SqlConnection con;
  15.     private SqlCommand com;
  16.     private string constr, query;
  17.     private void connection()
  18.     {
  19.         constr = ConfigurationManager.ConnectionStrings["getconn"].ToString();
  20.         con = new SqlConnection(constr);
  21.         con.Open();
  22.
  23.     }
  24.     protected void Page_Load(object sender, EventArgs e)
  25.     {
  26.         if (!IsPostBack)
  27.         {
  28.             Bindchart();
  29.
  30.         }
  31.     }
  32.
  33.
  34.     private void Bindchart()
  35.     {
  36.         connection();
  37.         query = "select *from Orderdet";//not recommended this i have written just for example,write stored procedure for security
  38.         com = new SqlCommand(query, con);
  39.         SqlDataAdapter da = new SqlDataAdapter(query, con);
  40.         DataSet ds = new DataSet();
  41.         da.Fill(ds);
  42.
  43.         DataTable ChartData=ds.Tables[0];
  44.
  45.         //storing total rows count to loop on each Record
  46.         string[] XPointMember = new string[ChartData.Rows.Count];
  47.         int[] YPointMember = new int[ChartData.Rows.Count];
  48.
  49.         for (int count = 0; count < ChartData.Rows.Count;count++ )
  50.         {
  51.             //storing Values for X axis
  52.             XPointMember[count] = ChartData.Rows[count]["Month"].ToString();
  53.             //storing values for Y Axis
  54.             YPointMember[count] = Convert.ToInt32(ChartData.Rows[count]["Orders"]);
  55.
  56.
  57.         }
  58.       //binding chart control
  59.         Chart1.Series[0].Points.DataBindXY(XPointMember, YPointMember);
  60.
  61.         //Setting width of line
  62.         Chart1.Series[0].BorderWidth = 2;
  63.         //setting Chart type
  64.       //  Chart1.Series[0].ChartType = SeriesChartType.Polar ;
  65.        Chart1.Series[0].ChartType = SeriesChartType.Radar;
  66.      // Chart1.ChartAreas["ChartArea1"].AxisX.MajorGrid.Enabled = false;
  67.        //Chart1.ChartAreas["ChartArea1"].AxisY.MajorGrid.Enabled = false;
  68.
  69.      Chart1.ChartAreas["ChartArea1"].Area3DStyle.Enable3D = true;
  70.
  71.
  72.         con.Close();
  73.     }

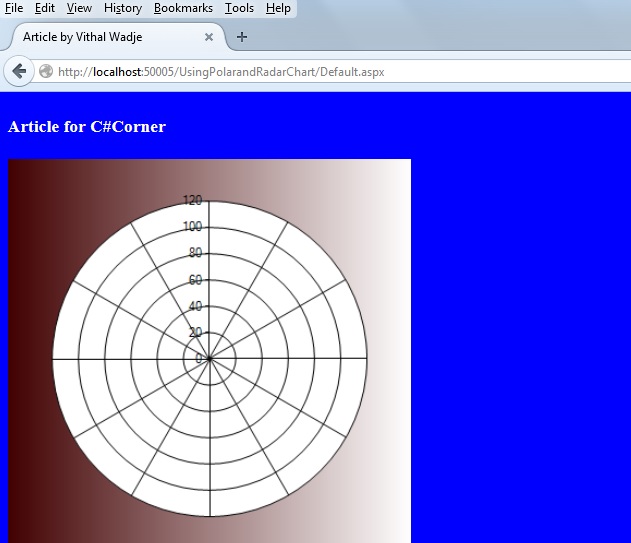

Now, we have the entire logic to bind the chart from the database, let us run the application. The Polar Chart will look as follows:


The preceding is the Normal Polar chart. Now let us enable the 3D style as in the following:
  1. //Enable 3D
  2.     Chart1.ChartAreas["ChartArea1"].Area3DStyle.Enable3D = true

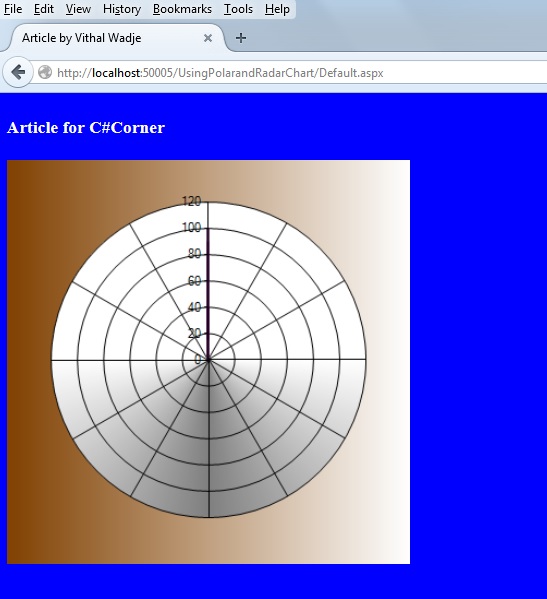

Now run the application and the Polar 3D chart will look as follows:



Now let us switch to a Radar chart as in the following:
  1. Chart1.Series[0].ChartType = SeriesChartType.Radar;

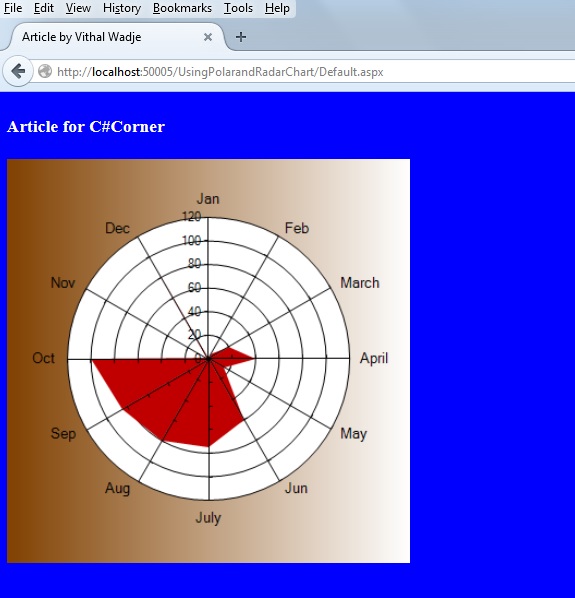

Now run the application. The Radar chart will look such as follows:


The preceding is the Normal Radar chart. Now let us enable the 3D style as in the following:
  1. //Enable 3D
  2.     Chart1.ChartAreas["ChartArea1"].Area3DStyle.Enable3D = true

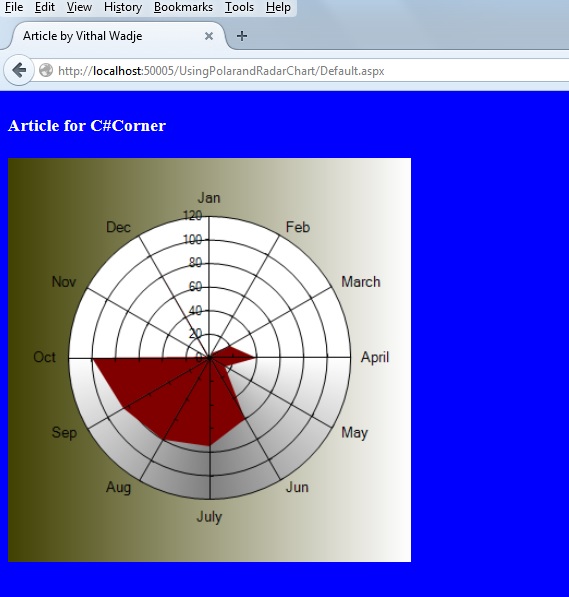

Now run the application. The Radar Chart will look as follows:

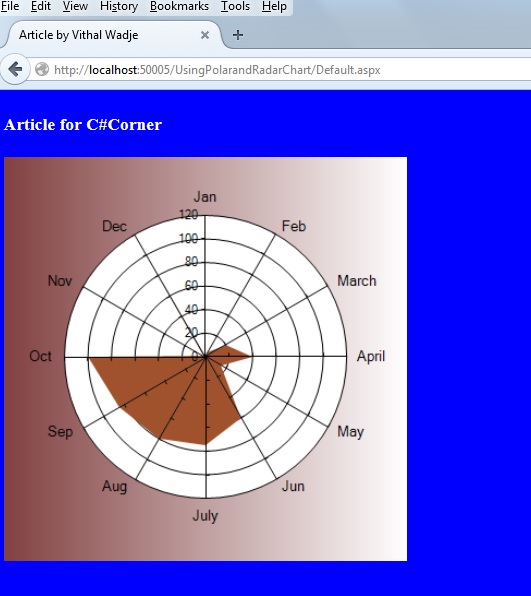

Now change the background style then the chart will look as follows:


Now from all the preceding explanations we saw how to create and use Polar and Radar charts.

Notes
  • Download the Zip file from the attachment for the full source code of the application.

  • Change the connection string in the web.config file to specify your server location.
Summary

My next article explains another chart type of ASP.Net. I hope this article is useful for all readers, if you have any suggestion then please contact me including beginners also.
