Design Patterns: Composite

The Composite Design Pattern consists of the allowing software that executes an operation in a collection of primitive and composite objects. The easiest example to think of is a file system, you can have a directory and it may have more directories and also files in them.

One example of a composite pattern structure would be:

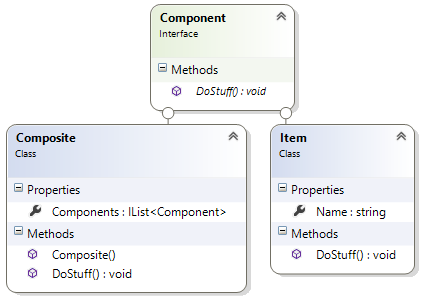

Figure 1: Composite Pattern Structure

The following code prints elements on the screen in a hierarchical format without having to worry about the type of the object (for example, you could print a directory and file names without being concerned with whether the object is a directory or a file).

  1. public interface Component
  2. {
  3. void DoStuff(int indent);
  4. }
  5. public class Item : Component
  6. {
  7. public string Name { get; set; }
  8. public void DoStuff(int indent)
  9. {
  10. Console.Write(new String(' ', indent));
  11. Console.WriteLine(Name);
  12. }
  13. }
  14. public class Composite : Component
  15. {
  16. public Composite()
  17. {
  18. Components = new List
  19. <Component>();
  20. }
  21. public IList
  22.     <Component> Components { get; set; }
  23. public void DoStuff(int indent)
  24. {
  25. Console.Write(new String(' ', indent));
  26. Console.WriteLine("
  27.         <Group>");
  28. foreach (var component in Components)
  29. {
  30. component.DoStuff(indent + 2);
  31. }
  32. }
  33. }
Results:
  1. <Group>
  2. First
  3. Second
  4. <Group>
  5. Third
  6. <Group>
  7. Fourth
In games it could be used to generate a skill tree or used to calculate some sort of composite attack. I found one example of it being used in the attributes system of a RPG game.
