MenuFlyout Control For Windows 10

Introduction


Flyout represents a control that displays lightweight UI that is either information or requires user interaction. Unlike a dialog, a Flyout can be lightly dismissed by clicking or tapping outside of it, pressing the device’s back button, or pressing the ‘Esc’ key. While a MenuFlyout represents a Flyout that displays a menu of commands.

Step 1

Open a blank app and copy the following XAML code into your grid which will add a Button with MenuFlyout to your plane.
  1. <TextBlock Text="Flyout Menu" FontSize="25"></TextBlock>
  2.    <StackPanel>
  3.       <StackPanel Margin="10,80,0,0" Orientation="Horizontal">
  4.          <TextBlock Text="Flyout Menu" VerticalAlignment="Center" ></TextBlock>
  5.          <Button Name="flyoutMenuButton" Content="FlyoutMenu"  Margin="10,0,0,0">
  6.          <Button.Flyout>
  7.          <MenuFlyout Placement="Bottom">
  8.             <MenuFlyoutItem Text="Item 1" Click="MenuFlyoutItem_Click"/>
  9.             <MenuFlyoutItem Text="Item 2" Click="MenuFlyoutItem_Click"/>
  10.             <MenuFlyoutItem Text="Item 3" Click="MenuFlyoutItem_Click"/>
  11.                <MenuFlyoutSubItem Text="Item 4">
  12.                <MenuFlyoutItem Text="Item 5" Click="MenuFlyoutItem_Click"/>
  13.             </MenuFlyoutSubItem>
  14.             <MenuFlyoutSubItem Text="Item 6">
  15.             <MenuFlyoutItem Text="Item 7" Click="MenuFlyoutItem_Click"/>
  16.             <MenuFlyoutItem Text="Item 8" Click="MenuFlyoutItem_Click"/>
  17.             </MenuFlyoutSubItem>
  18.             <MenuFlyoutItem Text="Item 9" Click="MenuFlyoutItem_Click"/>
  19.          </MenuFlyout>
  20.          </Button.Flyout>
  21.          </Button>
  22.       </StackPanel>
  23.       <TextBlock Name="selectedItem" Foreground="Green" Margin="10,10,0,0"></TextBlock>
  24. </StackPanel>

Step 2

Copy and paste the following code to the MenuFlyoutItem_Click event on the cs page.
  1. MenuFlyoutItem selectedItemFlyout = sender as MenuFlyoutItem;
  2. selectedItem.Text = "Selected item is " + selectedItemFlyout.Text.ToString();
Step 3

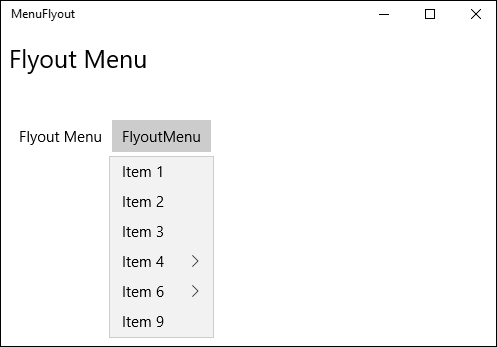

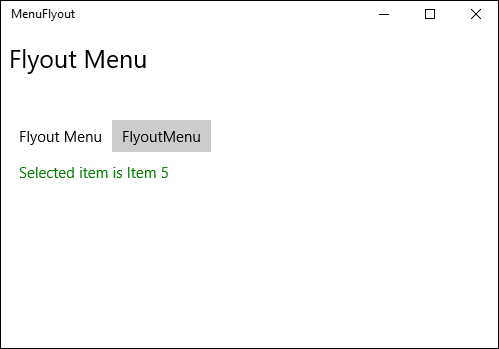

Run your application and clicking on any the corresponding item content will be shown in our assigned Textblock.






Summary


In this article, we learned about MenuFlyout Control For Windows 10.
