Draw Line Using Web Application In TypeScript

In this article, we draw a line using a web application in TypeScript.

First we download some files in the following attachment:

  1. Kinect.d.ts

  2. Kinectic.min.js

These file are added to the project then the following procedure is used.

Step 1

Open Visual Studio 2012 and click "File" -> "New" -> "Project...". A window is opened. In this window, click "HTML Application for TypeScript" under Visual C#.

Give the name of your application as "Draw_Line" and then click Ok.

Step 2

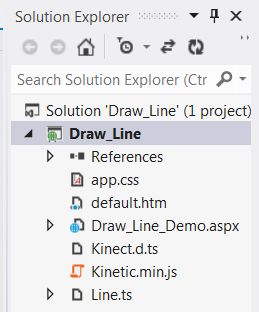

After this session the project has been created; a new window is opened on the right side. This window is called the Solution Explorer. The Solution Explorer contains the ts file, js file and css file and aspx page.



Coding

Line.ts

/// <reference path="Kinect.d.ts" />

class Draw_Line

{

    Line()

    {

        var stage = new Kinetic.Stage({

            container: 'content',

            width: 578,

            height: 200

        });



        var layer = new Kinetic.Layer();



        var redLine = new Kinetic.Line({

            points: [73, 70, 340, 23, 450, 60, 500, 20],

            stroke: '#339966',

            strokeWidth: 15,

            lineCap: 'round',

            lineJoin: 'round'

        });



        // dashed line

        var greenLine = new Kinetic.Line({

            points: [73, 70, 340, 23, 450, 60, 500, 20],

            stroke: '#3333FF',

            strokeWidth: 2,

            lineJoin: 'round',

            dashArray: [33, 10]

        });



        // complex dashed and dotted line

        var blueLine = new Kinetic.Line({

            points: [73, 70, 340, 23, 450, 60, 500, 20],

            stroke: '#993333',

            strokeWidth: 10,

            lineCap: 'round',

            lineJoin: 'round',

            dashArray: [29, 20, 0.001, 20]

        });



        greenLine.move(0, 5);

        blueLine.move(0, 55);

        redLine.move(0, 105);



        layer.add(redLine);

        layer.add(greenLine);

        layer.add(blueLine);

        stage.add(layer);

    }

}

window.onload = () =>

{

    var obj = new Draw_Line();

    obj.Line();

};



Draw_Line_Demo.aspx

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Draw_Line_Demo.aspx.cs" Inherits="Draw_Line.Draw_Line_Demo" %>

<!DOCTYPE html>

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <title></title>

    <script src="Line.js"></script>

    <script src="Kinetic.min.js" type="text/javascript"></script>

</head>

<body>

    <form id="form1" runat="server">

    <div>

    <h3>Line In TypeScript Using Web Application</h3>

        <div id="content"></div>

    </div>

    </form>

</body>

</html>



Line.js

/// <reference path="Kinect.d.ts" />

var Draw_Line = (function () {

    function Draw_Line() { }

    Draw_Line.prototype.Line = function () {

        var stage = new Kinetic.Stage({

            container: 'content',

            width: 578,

            height: 200

        });

        var layer = new Kinetic.Layer();

        var redLine = new Kinetic.Line({

            points: [

                73,

                70,

                340,

                23,

                450,

                60,

                500,

                20

            ],

            stroke: '#339966',

            strokeWidth: 15,

            lineCap: 'round',

            lineJoin: 'round'

        });

        // dashed line

        var greenLine = new Kinetic.Line({

            points: [

                73,

                70,

                340,

                23,

                450,

                60,

                500,

                20

            ],

            stroke: '#3333FF',

            strokeWidth: 2,

            lineJoin: 'round',

            dashArray: [

                33,

                10

            ]

        });

        // complex dashed and dotted line

        var blueLine = new Kinetic.Line({

            points: [

                73,

                70,

                340,

                23,

                450,

                60,

                500,

                20

            ],

            stroke: '#993333',

            strokeWidth: 10,

            lineCap: 'round',

            lineJoin: 'round',

            dashArray: [

                29,

                20,

                0.001,

                20

            ]

        });

        greenLine.move(0, 5);

        blueLine.move(0, 55);

        redLine.move(0, 105);

        layer.add(redLine);

        layer.add(greenLine);

        layer.add(blueLine);

        stage.add(layer);

    };

    return Draw_Line;

})();

window.onload = function () {

    var obj = new Draw_Line();

    obj.Line();

};

//@ sourceMappingURL=Line.js.map

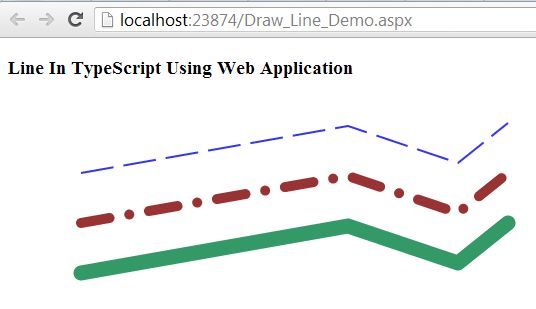

Output




For more information, download the attached sample application.
