CheckBoxFor Helper in MVC

Introduction

This article shows how to use a CheckBoxFor helper in MVC applications.

Create an ASP.Net Web Application as in Figure 1.



Figure 1: Web application

Choose MVC template as in Figure 2.



Figure 2: MVC template

Add an Employee Controller as in Figures 3, 4 and 5.



Figure 3: Add controller

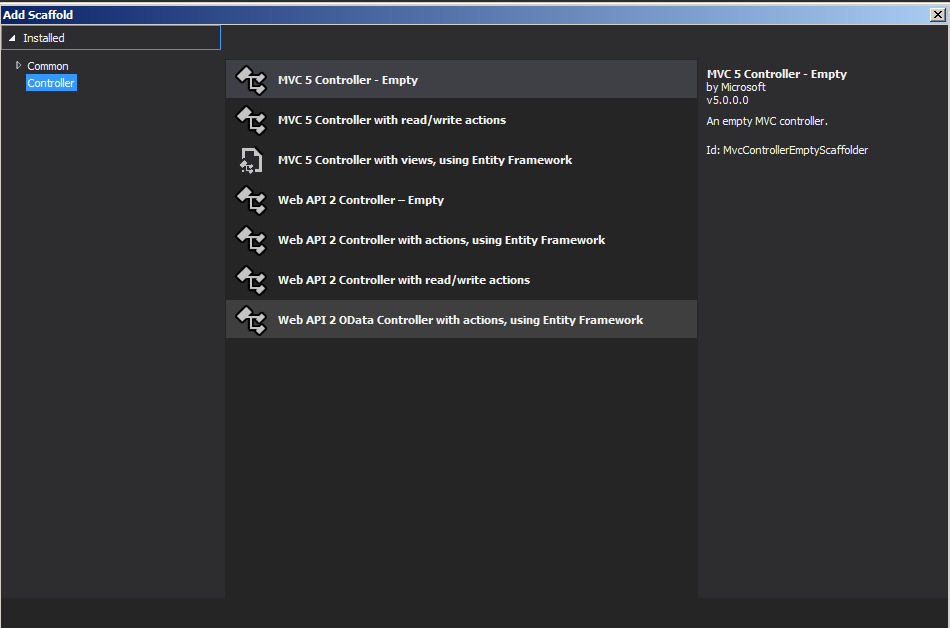

Figure 4: MVC controller - empty

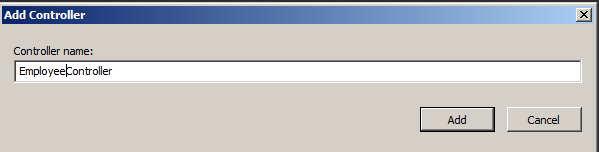

Figure 5: EmployeeController

EmployeeController.cs

  1. using CheckBoxForMVC_App.Models;
  2. using System;
  3. using System.Collections.Generic;
  4. using System.Linq;
  5. using System.Web;
  6. using System.Web.Mvc;
  7.
  8. namespace CheckBoxForMVC_App.Controllers
  9. {
  10.     public class EmployeeController : Controller
  11.     {
  12.         EmployeeEntities db = new EmployeeEntities();
  13.         //
  14.         // GET: /Employee/
  15.         public ActionResult Index()
  16.         {
  17.             return View(db.Departments.ToList());
  18.         }
  19.     }
  20. }
Set up Entity Framework as in Figures 6, 7 and 8.


Figure 6: Add an ADO.Net Entity Framework.

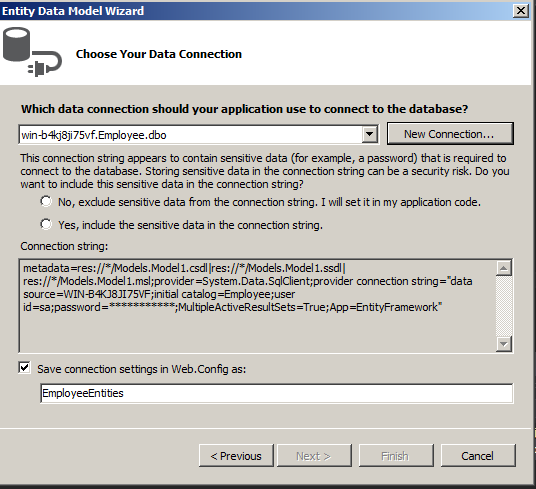

Figure 7: Connection setting.



Figure 8: Select tables

Add the View as in Figures 9 and 10.

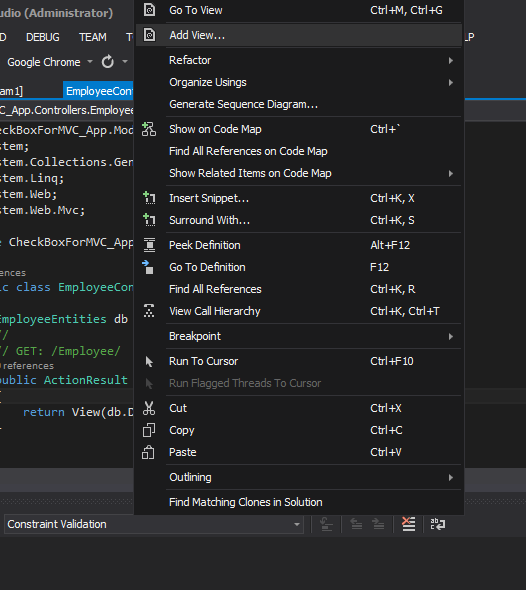

Figure 9: Add View



Figure 10: Index View

Index.cshtml

  1. @model IEnumerable<CheckBoxForMVC_App.Models.Department>
  2.
  3. @{
  4.     ViewBag.Title = "Index";
  5. }
  6.
  7. <h2>Index</h2>
  8.
  9. @foreach (var item in Model)
  10. {
  11.     @Html.CheckBoxFor(model => item.IsSelected)@item.DepartmentName
  12.     <br />
  13. }
The output of the application is as in the following.


Figure 11: Index

Summary

In this article we saw how to use a CheckBoxFor helper in MVC applications. Happy coding!
