Create Pull Insert XML Data Out From Scratch

By Vijay Prativadi on October 16, 2012
Today, in this article let’s play around with one of the interesting and most useful concepts in XM in C#.
  • 0
  • 0
  • 3438

Introduction

Today, in this article let's play around with one of the interesting and most useful concepts in XML in C#.

Question: What is create/pull/insert XML data out from scratch?

In simple terms "It provides flexibility to create a new XML structure, select the data from the created structure and insert new elements to that structure."

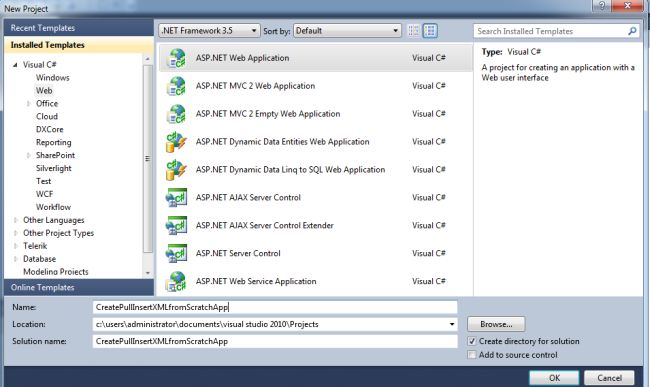

Step 1: Create a new "ASP.NET Web Application", as in:




Step 2: Add a new XML file item to the project and name it as Employee.xml.



Step 3: The complete code of Default.aspx looks like this:



<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="Default.aspx.cs" Inherits="CreateXMLApp._Default" %>



<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">

<head id="Head1" runat="server">

    <title></title>

</head>

<body>

    <form id="form1" runat="server">

    <center>

        <div>

            <table>

                <tr>

                    <td colspan="2">

                        <asp:Label ID="Label1" runat="server" Text="Create/Insert/Pull XML Data Out from scratch"

                            Font-Bold="true" Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Button ID="Button1" runat="server" Text="Create XML Data" Font-Names="Verdana"

                            Width="213px" BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" Style="margin-top: 5%" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <asp:Button ID="Button2" runat="server" Text="Select Data" Font-Names="Verdana" Width="213px"

                            BackColor="Orange" Font-Bold="True" OnClick="Button2_Click" Style="margin-top: 5%" />

                    </td>

                </tr>

                <tr>

                    <td colspan="2" align="center">

                        <br />

                        <asp:GridView ID="GridView1" runat="server" BackColor="LightGoldenrodYellow" BorderColor="Tan"

                            BorderWidth="1px" CellPadding="2" EnableModelValidation="True" ForeColor="Black"

                            GridLines="None" AutoGenerateColumns="False">

                            <AlternatingRowStyle BackColor="PaleGoldenrod"></AlternatingRowStyle>

                            <FooterStyle BackColor="Tan"></FooterStyle>

                            <HeaderStyle BackColor="Tan" Font-Bold="True"></HeaderStyle>

                            <PagerStyle HorizontalAlign="Center" BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue">

                            </PagerStyle>

                            <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite"></SelectedRowStyle>

                            <Columns>

                                <asp:BoundField DataField="Id" HeaderText="Id" ReadOnly="true" />

                                <asp:BoundField DataField="FirstName" HeaderText="First Name" />

                                <asp:BoundField DataField="LastName" HeaderText="Last Name" />

                                <asp:BoundField DataField="Age" HeaderText="Age" />

                            </Columns>

                        </asp:GridView>

                    </td>

                    <td colspan="3">

                        <fieldset>

                            <legend>Insert XML Data</legend>

                            <table>

                                <tr>

                                    <td colspan="2" align="center">

                                        <asp:Label ID="Label2" runat="server" Text="Insert XML Data" Font-Bold="true" Font-Size="Large"

                                            Font-Names="Verdana" ForeColor="Maroon"></asp:Label>

                                    </td>

                                </tr>

                                <tr>

                                    <td>

                                        <asp:Label ID="Label7" runat="server" Text="Please Enter Id" Font-Size="Large" Font-Names="Verdana"

                                            Font-Italic="true"></asp:Label>

                                    </td>

                                    <td>

                                        <asp:TextBox ID="TextBox4" runat="server"></asp:TextBox>

                                    </td>

                                </tr>

                                <tr>

                                    <td>

                                        <asp:Label ID="Label3" runat="server" Text="Please Enter FirstName" Font-Size="Large"

                                            Font-Names="Verdana" Font-Italic="true"></asp:Label>

                                    </td>

                                    <td>

                                        <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>

                                    </td>

                                </tr>

                                <tr>

                                    <td>

                                        <asp:Label ID="Label4" runat="server" Text="Please Enter LastName" Font-Size="Large"

                                            Font-Names="Verdana" Font-Italic="true"></asp:Label>

                                    </td>

                                    <td>

                                        <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>

                                    </td>

                                </tr>

                                <tr>

                                    <td>

                                        <asp:Label ID="Label6" runat="server" Text="Please Enter Age" Font-Size="Large" Font-Names="Verdana"

                                            Font-Italic="true"></asp:Label>

                                    </td>

                                    <td>

                                        <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>

                                    </td>

                                </tr>

                                <tr>

                                    <td colspan="2" align="center">

                                        <asp:Button ID="Button3" runat="server" Text="Insert XML Data" Font-Names="Verdana"

                                            Width="213px" BackColor="Orange" Font-Bold="True" OnClick="Button3_Click" />

                                    </td>

                                </tr>

                            </table>

                        </fieldset>

                    </td>

                </tr>

                <tr>

                    <td colspan="4" align="center">

                        <asp:Label ID="Label5" runat="server" Font-Bold="true" Font-Names="Verdana"></asp:Label>

                    </td>

                </tr>

            </table>

        </div>

    </center>

    </form>

</body>

</html>



Step 4: The complete code of Default.aspx.cs looks like this:



using System;

using System.Collections.Generic;

using System.Linq;

using System.Web;

using System.Web.UI;

using System.Web.UI.WebControls;

using System.Xml;

using System.Xml.Linq;

namespace CreateXMLApp

{

    public partial class _Default : System.Web.UI.Page

    {

        protected void Page_Load(object sender, EventArgs e)

        {

        }

        protected void Button1_Click(object sender, EventArgs e)

        {

            XmlDocument xmlDoc = new XmlDocument();

            XmlDeclaration dec = xmlDoc.CreateXmlDeclaration("1.0", null, null); xmlDoc.AppendChild(dec);

            XmlElement rootEmployeesElement = xmlDoc.CreateElement("Employees");

            xmlDoc.AppendChild(rootEmployeesElement);

            XmlElement employeeElement = xmlDoc.CreateElement("Employee");

            XmlElement idElement = xmlDoc.CreateElement("Id");

            idElement.InnerText = "1"; XmlElement firstNameElement = xmlDoc.CreateElement("FirstName");

            firstNameElement.InnerText = "Vijay"; XmlElement lastNameElement = xmlDoc.CreateElement("LastName");

            lastNameElement.InnerText = "Prativadi";

            XmlElement ageElement = xmlDoc.CreateElement("Age");

            ageElement.InnerText = "26"; employeeElement.AppendChild(idElement);

            employeeElement.AppendChild(firstNameElement); employeeElement.AppendChild(lastNameElement);

            employeeElement.AppendChild(ageElement);

            rootEmployeesElement.AppendChild(employeeElement);

            xmlDoc.Save(@"c:\users\administrator\documents\visual studio 2010\Projects\CreateXMLApp\CreateXMLApp\Employee.xml");

            Label5.Text = "XML Created Sucessfully"; Label5.ForeColor = System.Drawing.Color.Green;

        }

        protected void Button2_Click(object sender, EventArgs e)

        {

            XDocument document = XDocument.Load(@"C:\Users\Administrator\documents\visual studio 2010\Projects\CreateXMLApp\CreateXMLApp\Employee.xml");

            var query = from r in document.Descendants("Employee") select new

            {

                Id = r.Element("Id").Value, LastName = r.Element("LastName").Value, FirstName = r.Element("FirstName").Value, Age = r.Element("Age").Value };

            GridView1.DataSource = query;

            GridView1.DataBind();

        }

        protected void Button3_Click(object sender, EventArgs e)

        {

            if (string.IsNullOrEmpty(TextBox4.Text) || string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text) || string.IsNullOrEmpty(TextBox3.Text))

            {

                Label5.Text = "Please Enter Some Values";

                Label5.ForeColor = System.Drawing.Color.Red;

            }

            else

            {

                XDocument document = XDocument.Load(Server.MapPath("Employee.xml"));

                document.Element("Employees").Add(new XElement("Employee", new XElement("Id", TextBox4.Text), new XElement("FirstName", TextBox1.Text), new XElement("LastName", TextBox2.Text), new XElement("Age", TextBox3.Text)));

                document.Save(Server.MapPath("Employee.xml")); Label5.Text = "Data Inserted Successfully";

                Label5.ForeColor = System.Drawing.Color.Green;

                TextBox4.Text = string.Empty;

                TextBox1.Text = string.Empty;

                TextBox2.Text = string.Empty;

                TextBox3.Text = string.Empty;

            }

        }

    }

}

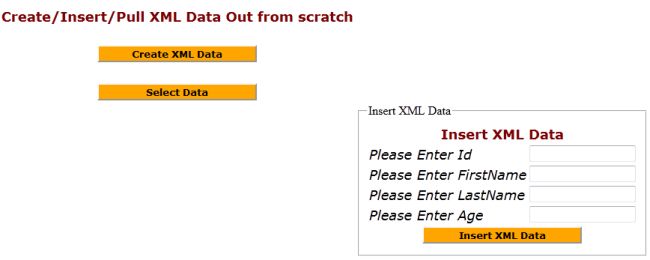

Step 5: The output of the application looks like this:

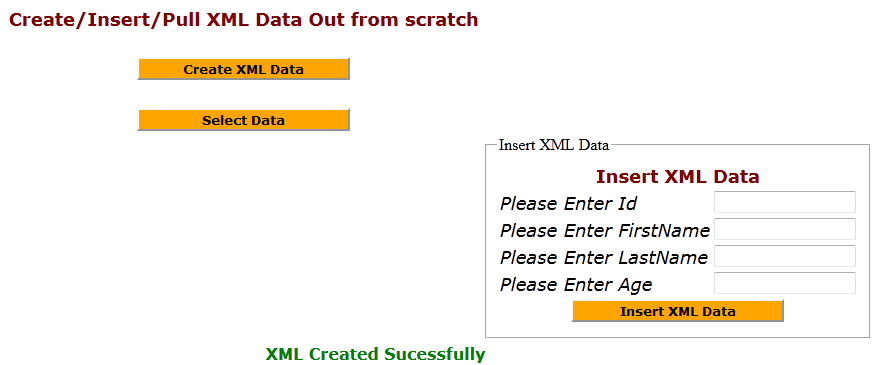

Step 6: The output of creating new XML structure looks like this:




Step 7: The output of created new XML structure looks like this:



<?xml version="1.0"?>

<Employees>

  <Employee>

    <Id>1</Id>

    <FirstName>Vijay</FirstName>

    <LastName>Prativadi</LastName>

    <Age>26</Age>

  </Employee>

</Employees>

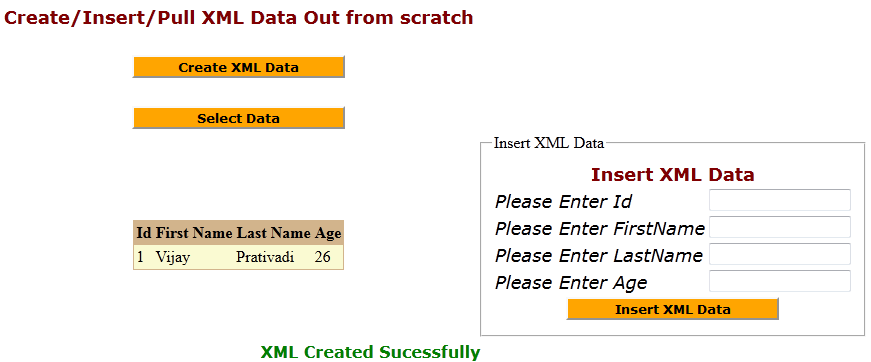

Step 8: The output of selecting data from XML structure looks like this:

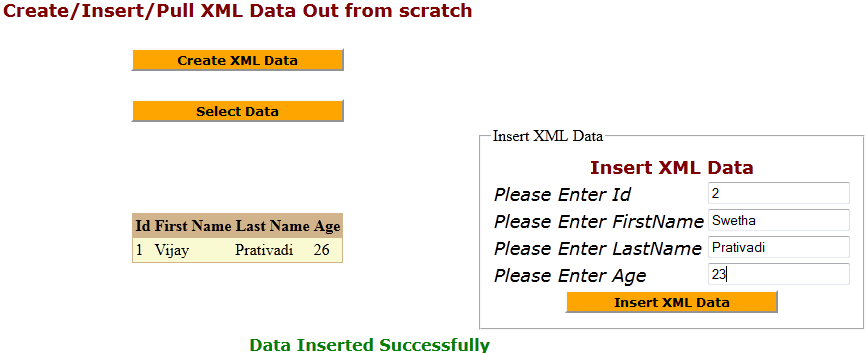

Step 9: The output of inserting data to XML structure looks like this:




Step 10: The output of selecting data from XML structure looks like this:




Step 11: The output of inserted data to XML structure looks like this:



<?xml version="1.0" encoding="utf-8"?>

<Employees>

  <Employee>

    <Id>1</Id>

    <FirstName>Vijay</FirstName>

    <LastName>Prativadi</LastName>

    <Age>26</Age>

  </Employee>

  <Employee>

    <Id>2</Id>

    <FirstName>Swetha</FirstName>

    <LastName>Prativadi</LastName>

    <Age>23</Age>

  </Employee>

</Employees>


I hope this article is useful for you.
