Insert Data Using Code First Approach Fluent API

Introduction

This article shows how to access a SQL Server database with the Entity Framework Code First Approach and later we will also perform an insert data operation.

Create ASP.Net web application



Employee.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5.
  6. namespace Insert_Data_CFA__Fluent_API
  7. {
  8.     public class Employee
  9.     {
  10.         public Employee()
  11.         {
  12.         }
  13.
  14.         public int Id { get; set; }
  15.         public string FirstName { get; set; }
  16.         public string LastName { get; set; }
  17.         public int Age { get; set; }
  18.     }
  19. }

Employeecontext.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Data.Entity;
  4. using System.Linq;
  5. using System.Web;
  6.
  7. namespace Insert_Data_CFA__Fluent_API
  8. {
  9.     public class EmployeeContext : DbContext
  10.     {
  11.         public EmployeeContext()
  12.             : base("EmployeeConn")
  13.         {
  14.             Database.SetInitializer<EmployeeContext>(new CreateDatabaseIfNotExists<EmployeeContext>());
  15.         }
  16.
  17.         protected override void OnModelCreating(DbModelBuilder modelBuilder)
  18.         {
  19.             //Set primary key to Employee table
  20.             modelBuilder.Entity<Employee>().HasKey(m => m.Id).Property(m => m.Id).IsRequired();
  21.
  22.             //First Name is required and Max Length is 50
  23.             modelBuilder.Entity<Employee>().Property(p => p.FirstName).IsRequired().HasMaxLength(50);
  24.
  25.             //Last Name is required and Max Length is 50
  26.             modelBuilder.Entity<Employee>().Property(p => p.LastName).IsRequired().HasMaxLength(50);
  27.
  28.             //Age is required
  29.             modelBuilder.Entity<Employee>().Property(p => p.Age).IsRequired();
  30.         }
  31.
  32.         public DbSet<Employee> Employees { get; set; }
  33.     }
  34. }

Web.config

  1. <connectionStrings>
  2.    <add name="EmployeeConn"
  3.    connectionString="Data Source=WIN-B4KJ8JI75VF;Initial Catalog=EmployeeDB;Integrated Security=true"
  4.    providerName="System.Data.SqlClient"/>
  5.  </connectionStrings>

Webform1.aspx

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="Insert_Data_CFA__Fluent_API.WebForm1" %>
  2.
  3. <!DOCTYPE html>
  4.
  5. <html xmlns="http://www.w3.org/1999/xhtml">
  6. <head runat="server">
  7.     <title></title>
  8. </head>
  9. <body>
  10.     <form id="form1" runat="server">
  11.         <div>
  12.             <table>
  13.                 <tr>
  14.                     <td>
  15.                         <asp:Label ID="Label1" runat="server" Text="Insert Data CFA - Fluent API" Font-Bold="true"></asp:Label>
  16.                     </td>
  17.                 </tr>
  18.             </table>
  19.             <br />
  20.             <br />
  21.             <table>
  22.                 <tr>
  23.                     <td>
  24.                         <asp:Label ID="Label2" runat="server" Text="Please Enter FirstName: " ForeColor="Brown"
  25.                             Font-Bold="true" Font-Italic="true"></asp:Label>
  26.                     </td>
  27.                     <td>
  28.                         <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
  29.                     </td>
  30.                 </tr>
  31.                 <tr>
  32.                     <td>
  33.                         <asp:Label ID="Label3" runat="server" Text="Please Enter LastName: " ForeColor="Brown"
  34.                             Font-Bold="true" Font-Italic="true"></asp:Label>
  35.                     </td>
  36.                     <td>
  37.                         <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>
  38.                     </td>
  39.                 </tr>
  40.                 <tr>
  41.                     <td>
  42.                         <asp:Label ID="Label4" runat="server" Text="Please Enter Age: " ForeColor="Brown"
  43.                             Font-Bold="true" Font-Italic="true"></asp:Label>
  44.                     </td>
  45.                     <td>
  46.                         <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
  47.                     </td>
  48.                 </tr>
  49.                 <tr>
  50.                     <td colspan="2">
  51.                         <asp:Button ID="Button1" runat="server" Text="Insert Data"
  52.                             BackColor="Orange" Font-Bold="true" OnClick="Button1_Click" />
  53.                         <br />
  54.                         <br />
  55.                     </td>
  56.                 </tr>
  57.             </table>
  58.             <br />
  59.             <br />
  60.             <table>
  61.                 <tr>
  62.                     <td colspan="3">
  63.                         <asp:Label ID="Label5" runat="server" ForeColor="Red" Font-Bold="true"></asp:Label>
  64.                     </td>
  65.                 </tr>
  66.             </table>
  67.         </div>
  68.     </form>
  69. </body>
  70. </html>

Webform1.aspx.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7.
  8. namespace Insert_Data_CFA__Fluent_API
  9. {
  10.     public partial class WebForm1 : System.Web.UI.Page
  11.     {
  12.         protected void Page_Load(object sender, EventArgs e)
  13.         {
  14.
  15.         }
  16.
  17.         protected void Button1_Click(object sender, EventArgs e)
  18.         {
  19.             Label5.Text = String.Empty;
  20.             EmployeeContext empContext = new EmployeeContext();
  21.             Employee emp = new Employee() { FirstName = TextBox1.Text, LastName = TextBox2.Text, Age = int.Parse(TextBox3.Text) };
  22.             empContext.Employees.Add(emp);
  23.             empContext.SaveChanges();
  24.             Label5.Text = "Data Inserted Successfully";
  25.         }
  26.     }
  27. }

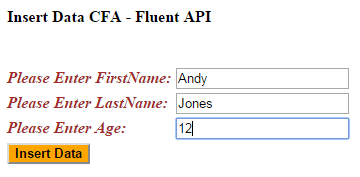

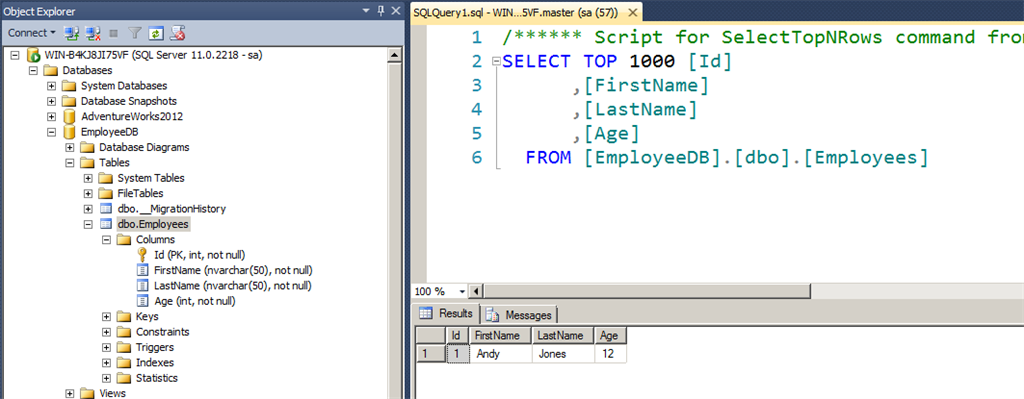

The following shows the output of the application:



Summary

In this article, we saw how to use a SQL Server database with Entity Framework Code First Approach and insert data.

Happy coding!
