Query Extender in ASP.NET

Introduction

This article demonstrates an interesting and very useful concept in ASP.NET.

Question: What is query extender?

In simple terms "It filters the data from a selected data source".

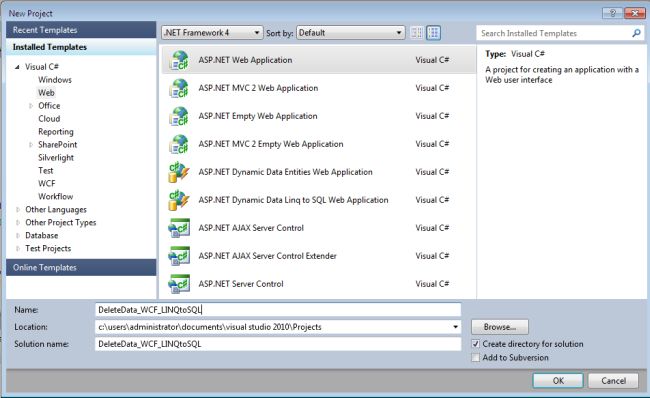

Step 1: Create a new web application

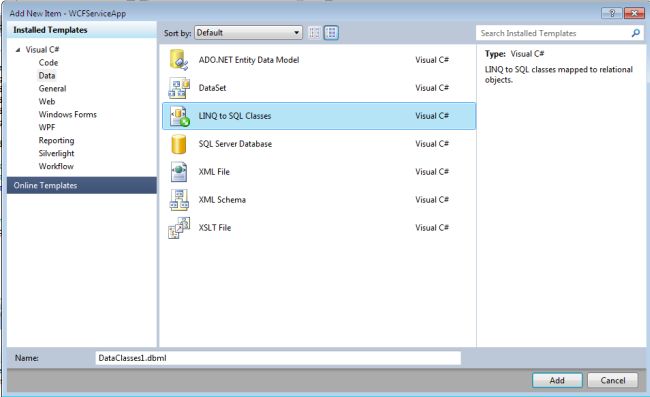

Step 2: Adding a new LINQ-to-SQL

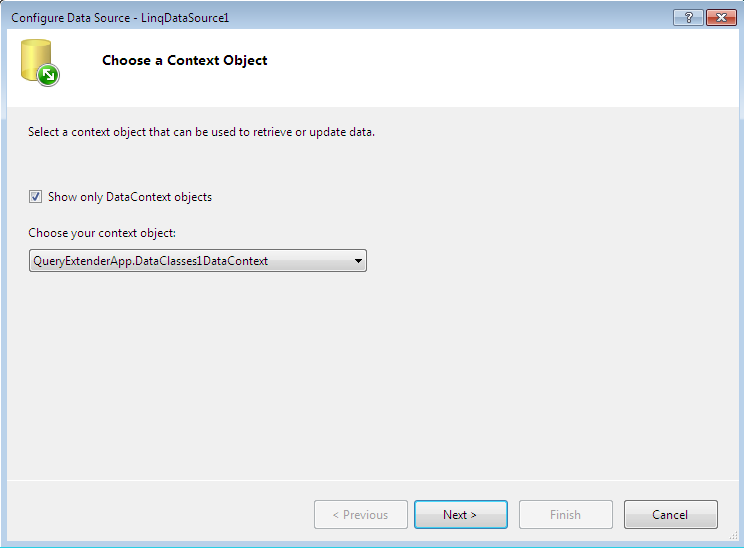

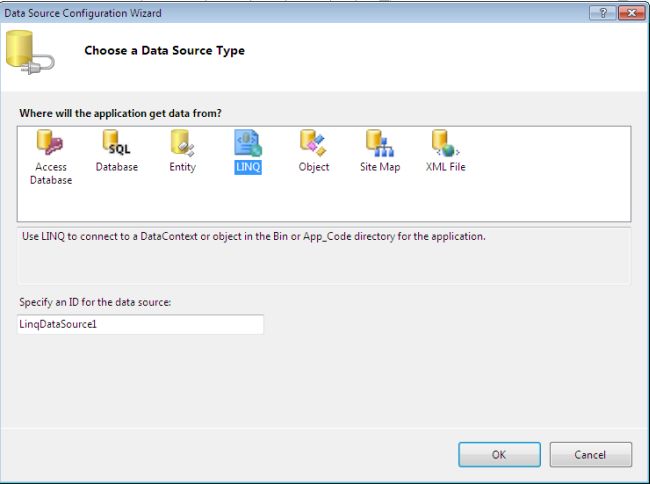

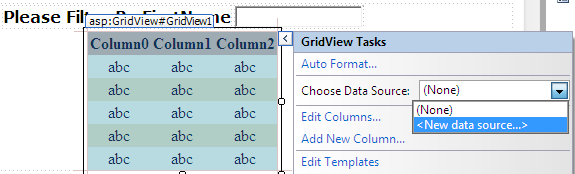

Step 3: Add new data source to GridView

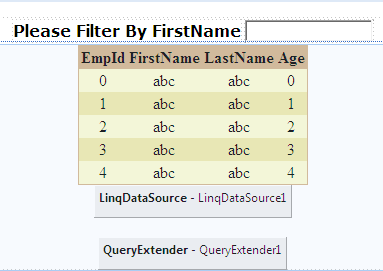

Step 4: The complete code of WebForm1.aspx is as in the following:

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="QueryExtenderApp.WebForm1" %>
  2. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html xmlns="http://www.w3.org/1999/xhtml">
  4. <head id="Head1" runat="server">
  5.     <title></title>
  6. </head>
  7. <body>
  8.     <form id="form1" runat="server">
  9.     <center>
  10.         <div>
  11.             <table>
  12.                 <tr>
  13.                     <td colspan="3" align="center">
  14.                         <asp:Label ID="Label2" runat="server" Text="Query Extender" Font-Bold="true" Font-Names="Verdana"
  15.                             Font-Size="Large"></asp:Label>
  16.                     </td>
  17.                 </tr>
  18.                 <tr>
  19.                     <td>
  20.                         <asp:Label ID="Label1" runat="server" Font-Names="Verdana" Font-Bold="true" Text="Please Filter By FirstName"></asp:Label>
  21.                     </td>
  22.                     <td>
  23.                         <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
  24.                     </td>
  25.                 </tr>
  26.             </table>
  27.         </div>
  28.         <div>
  29.             <asp:GridView ID="GridView1" runat="server" BackColor="LightGoldenrodYellow" BorderColor="Tan"
  30.                 BorderWidth="1px" CellPadding="2" ForeColor="Black" GridLines="None" AutoGenerateColumns="False"
  31.                 DataKeyNames="EmpId" DataSourceID="LinqDataSource1">
  32.                 <AlternatingRowStyle BackColor="PaleGoldenrod" />
  33.                 <Columns>
  34.                     <asp:BoundField DataField="EmpId" HeaderText="EmpId" InsertVisible="False" ReadOnly="True"
  35.                         SortExpression="EmpId" />
  36.                     <asp:BoundField DataField="FirstName" HeaderText="FirstName" SortExpression="FirstName" />
  37.                     <asp:BoundField DataField="LastName" HeaderText="LastName" SortExpression="LastName" />
  38.                     <asp:BoundField DataField="Age" HeaderText="Age" SortExpression="Age" />
  39.                 </Columns>
  40.                 <FooterStyle BackColor="Tan" />
  41.                 <HeaderStyle BackColor="Tan" Font-Bold="True" />
  42.                 <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />
  43.                 <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />
  44.                 <SortedAscendingCellStyle BackColor="#FAFAE7" />
  45.                 <SortedAscendingHeaderStyle BackColor="#DAC09E" />
  46.                 <SortedDescendingCellStyle BackColor="#E1DB9C" />
  47.                 <SortedDescendingHeaderStyle BackColor="#C2A47B" />
  48.             </asp:GridView>
  49.             <asp:LinqDataSource ID="LinqDataSource1" runat="server" ContextTypeName="QueryExtenderApp.DataClasses1DataContext"
  50.                 EntityTypeName="" TableName="Employees">
  51.             </asp:LinqDataSource>
  52.             <br />
  53.             <asp:QueryExtender ID="QueryExtender1" runat="server" TargetControlID="LinqDataSource1">
  54.                 <asp:SearchExpression DataFields="FirstName" SearchType="StartsWith">
  55.                     <asp:ControlParameter ControlID="TextBox1" />
  56.                 </asp:SearchExpression>
  57.             </asp:QueryExtender>
  58.         </div>
  59.     </center>
  60.     </form>
  61. </body>
  62. </html>

Step 5: The complete code of WebForm1.aspx.cs is as in the following:

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. namespace QueryExtenderApp
  8. {
  9.     public partial class WebForm1 : System.Web.UI.Page
  10.     {
  11.         protected void Page_Load(object sender, EventArgs e)
  12.         {
  13.         }
  14.     }
  15. }

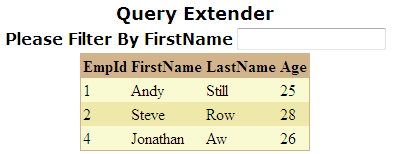

Step 6: The output of the application is as in the following:

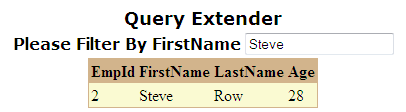

Step 7: The selected output of the application is as in the following:



I hope this article was useful for you.
