Select and Delete Data With LINQ Using XSD

By Vijay Prativadi on November 11, 2012
Today, in this article let's play around with one of the interesting and most useful concept of Select and Delete Data in LINQ.
  • 0
  • 0
  • 6250

Introduction

Question: What is select data with LINQ using XSD?

In simple terms "It enables selection of data using XSD with LINQ queries".

Step 1: Create a new webform project:


Step 2: Add a new XSD dataset item:


Step 3: Add a new employee table to the dataset:


Step 4: The complete code of webform1.aspx looks like this:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="LINQtoXSDSelectApp.WebForm1" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <style type="text/css">
        .grid
        {
            margin-top: 50px;
        }
    </style
>
    <title></title>
</head>
<
body>
    <form id="form1" runat="server">
    <center>
        <div>
            <table>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Label ID="Label1" runat="server" Text="Select Data with LINQ using XSD (DataSet)"
                            Font-Bold="true" Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Button ID="Button1" runat="server" Text="Select Data" Font-Names="Verdana" Width="213px"
                            BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" />
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:GridView ID="GridView1" runat="server" CssClass="grid" BackColor="LightGoldenrodYellow"
                            BorderColor="Tan" BorderWidth="1px" CellPadding="2" ForeColor="Black" GridLines="None">
                            <AlternatingRowStyle BackColor="PaleGoldenrod" />
                            <FooterStyle BackColor="Tan" />
                            <HeaderStyle BackColor="Tan" Font-Bold="True" />
                            <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />
                            <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />
                            <SortedAscendingCellStyle BackColor="#FAFAE7" />
                            <SortedAscendingHeaderStyle BackColor="#DAC09E" />
                            <SortedDescendingCellStyle BackColor="#E1DB9C" />
                            <SortedDescendingHeaderStyle BackColor="#C2A47B" />
                        </asp:GridView>
                    </td>
                </tr>
            </table>
        </div>
    </center>
    </form>
</body>
</
html>

Step 5: The complete code of webform1.aspx.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace
LINQtoXSDSelectApp
{
    public partial class WebForm1 : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
        }
        protected void Button1_Click(object sender, EventArgs e)
        {
            EmployeeDS.EmployeeDataTable objEmployeeTable = objAdapter.GetData();
            var query = from r in objEmployeeTable select new
            {
                FirstName = r.FirstName, LastName = r.LastName, Age = r.Age };
            GridView1.DataSource = query;
            GridView1.DataBind();
        }
        #region Instance MembersEmployeeDSTableAdapters.EmployeeTableAdapter
        objAdapter = new EmployeeDSTableAdapters.EmployeeTableAdapter();
        #endregion
    }
}

Step 6: The output of the application looks like this:


Step 7: The select output operation of the application looks like this:


Question: What is delete data with LINQ using XSD?

In simple terms "It enables data to be deleted using XSD with LINQ queries".

Step 1: Create a new webform project

Step 2: Add a new XSD dataset item

Step 3: Add a new employee table to the dataset:

Output3 (1).png

Step 4: The complete code of webform1.aspx looks like this:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="LINQtoXSDDeleteApp.WebForm1" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head id="Head1" runat="server">
    <style type="text/css">
        .grid
        {
            margin-top: 50px;
        }
    </style
>
    <title></title>
</head>
<
body>
    <form id="form1" runat="server">
    <center>
        <div>
            <table>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Label ID="Label1" runat="server" Text="Delete Data with LINQ using XSD (DataSet)"
                            Font-Bold="true" Font-Size="Large" Font-Names="Verdana" ForeColor="Maroon"></asp:Label>
                    </td>
                </tr>
                <tr>
                    <td>
                        <asp:Label ID="Label2" runat="server" Text="Please Enter Employee Id" ForeColor="Brown"
                            Font-Bold="true" Font-Size="Medium" Font-Names="Verdana"></asp:Label>
                    </td>
                    <td>
                        <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Button ID="Button1" runat="server" Text="Delete Data" Font-Names="Verdana" Width="213px"
                            BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" />
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:GridView ID="GridView1" runat="server" CssClass="grid" BackColor="LightGoldenrodYellow"
                            BorderColor="Tan" BorderWidth="1px" CellPadding="2" ForeColor="Black" GridLines="None">
                            <AlternatingRowStyle BackColor="PaleGoldenrod" />
                            <FooterStyle BackColor="Tan" />
                            <HeaderStyle BackColor="Tan" Font-Bold="True" />
                            <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />
                            <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />
                            <SortedAscendingCellStyle BackColor="#FAFAE7" />
                            <SortedAscendingHeaderStyle BackColor="#DAC09E" />
                            <SortedDescendingCellStyle BackColor="#E1DB9C" />
                            <SortedDescendingHeaderStyle BackColor="#C2A47B" />
                        </asp:GridView>
                    </td>
                </tr>
                <tr>
                    <td colspan="2" align="center">
                        <asp:Label ID="Label3" runat="server" Font-Bold="true" Font-Size="Medium" Font-Names="Verdana"></asp:Label>
                    </td>
                </tr>
            </table>
        </div>
    </center>
    </form>
</body>
</
html>

Step 5: The complete code of webform1.aspx.cs looks like this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace
LINQtoXSDDeleteApp
{
    public partial class WebForm1 : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
        }
        protected void Button1_Click(object sender, EventArgs e)
        {
            if (string.IsNullOrEmpty(TextBox1.Text))
            {
                Label3.Text = "Please Enter Some Values";
                Label3.ForeColor = System.Drawing.Color.Red;
            }

else
            {
                objAdapter.Delete(int.Parse(TextBox1.Text));
                EmployeeDS.EmployeeDataTable objEmployeeTable = objAdapter.GetData();
                var query = from r in objEmployeeTable select new
                {
                    FirstName = r.FirstName, LastName = r.LastName, Age = r.Age };

                    GridView1.DataSource = query;
                }
            GridView1.DataBind();
            Label3.Text = "Records Deleted Successfully";
            Label3.ForeColor = System.Drawing.Color.Green;T
                extBox1.Text = string.Empty;
        }
        }
        #region Instance MembersEmployeeDSTableAdapters.EmployeeTableAdapter
        objAdapter = new EmployeeDSTableAdapters.EmployeeTableAdapter();
        #endregion
    }
}

Step 6: The output of the application looks like this:

Output4 (1).png

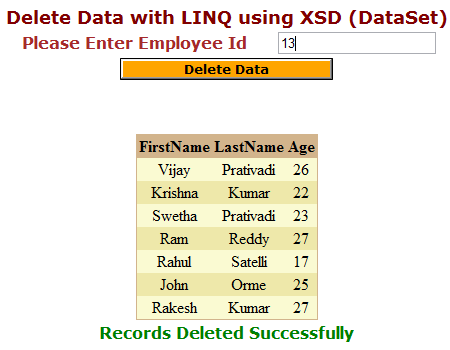

Step 7: The data deleted output of the application looks like this:


I hope this article is useful for you.. I look forward for your comments and feedback..Thanks Vijay Prativadi
