Select, Insert, Update and Delete Data Using Complex Type

Introduction

This article demonstrates an interesting and very useful concept in Entity Framework.

Question: What is a complex type?

In simple terms "Theey help to group a set of properties under a single complex type, that later can be used to get the specific property based on the requested complex type group".

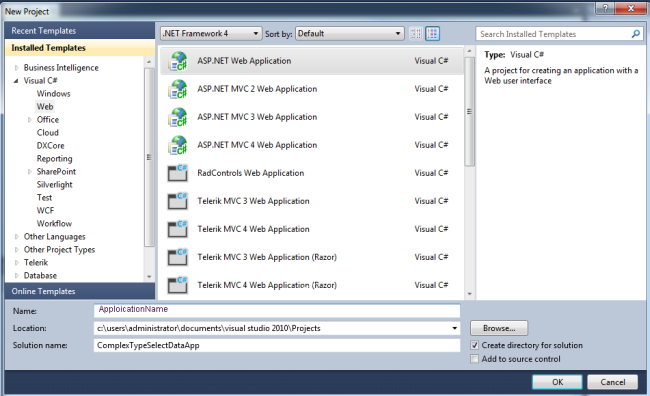

Step 1: Create a new web application

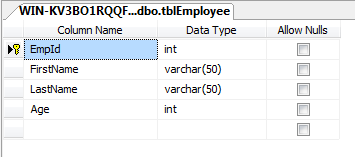

Step 2: New Employee Table is created

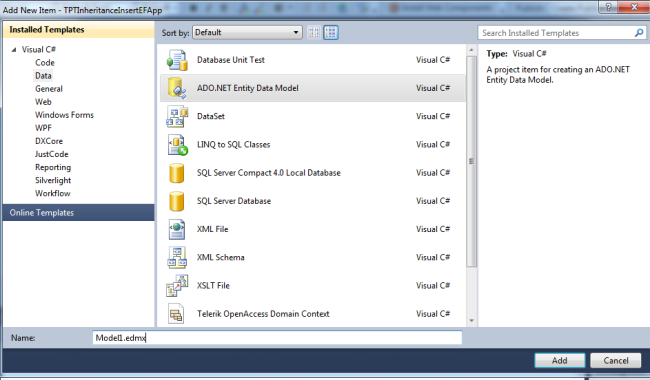

Step 3: Adding New Entity Data Model Framework

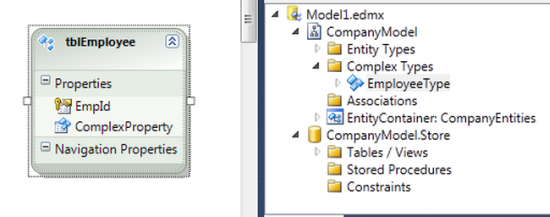

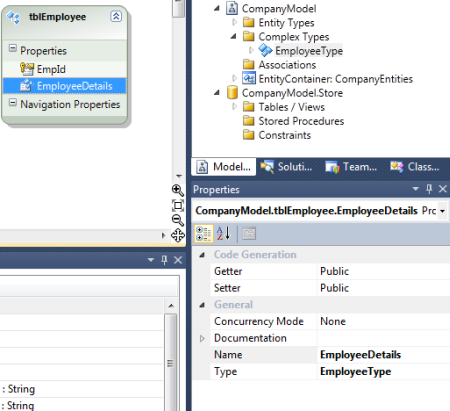

Step 4: Adding New Complex Type


For Select Operation

Step 1: The complete code of WebForm1.aspx looks as this:

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="ComplexTypeSelectDataApp.WebForm1" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<
html xmlns="http://www.w3.org/1999/xhtml">
<
head id="Head1" runat="server">
    <title></title>
</
head>
<
body>
    <form id="form1" runat="server">
        <div>
            <center>
                <table>
                    <tr>
                        <td colspan="2" align="center">
                            <asp:Label ID="Label1" runat="server" Text="Complex Type - Select Data" Font-Bold="true" Font-Size="Large" Font-Names="Verdana"
ForeColor="Maroon"></asp:Label></td>
                    </tr>
                    <tr>
                        <td colspan="2" align="center">
                            <asp:Button ID="Button1" runat="server" Text="Select Data" Font-Names="Verdana" Width="213px" BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" /></td>
                    </tr>
                    <tr>
                        <td colspan="2" align="center">

<asp:GridView ID="GridView1" runat="server" CssClass="grid" BackColor="LightGoldenrodYellow" BorderColor="Tan" BorderWidth="1px" CellPadding="2"ForeColor="Black" GridLines="None">
                                <AlternatingRowStyle BackColor="PaleGoldenrod" />
                                <FooterStyle BackColor="Tan" />
                                <HeaderStyle BackColor="Tan" Font-Bold="True" />
                                <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />
                                <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />
                                <SortedAscendingCellStyle BackColor="#FAFAE7" />
                                <SortedAscendingHeaderStyle BackColor="#DAC09E" />
                                <SortedDescendingCellStyle BackColor="#E1DB9C" />
                                <SortedDescendingHeaderStyle BackColor="#C2A47B" />
                                <EmptyDataTemplate>No Records Found!</EmptyDataTemplate>
                            </asp:GridView>
                        </td>
                    </tr>
                </table>
            </center>
        </div>
    </form>
</
body>
</
html>

Step 2: The complete code of WebForm1.aspx.cs looks as this:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
namespace
ComplexTypeSelectDataApp
{

public partial class WebForm1 : System.Web.UI.Page
    {

protected void Page_Load(object sender, EventArgs e)
        {
        }

protected void Button1_Click(object sender, EventArgs e)
        {

var query = from r in objEntities.tblEmployee select new
            { FirstName = r.EmployeeDetails.FirstName, LastName = r.EmployeeDetails.LastName, Age = r.EmployeeDetails.Age };
            GridView1.DataSource = query;GridView1.DataBind();
        }
        #region Instance MembersCompanyEntities objEntities = new CompanyEntities();
        #endregion
    }
}

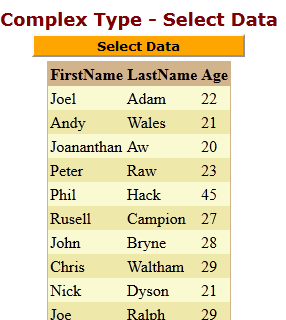

Step 3: The select data output of the application looks as this:


For Insert Operation

Step 1: The code of WebForm1.aspx looks as this:

<body>
    <form id="form1" runat="server">
        <div>
            <center>
                <table>
                    <tr>
                        <td>
                            <asp:Label ID="Label1" runat="server" Text="Complex Type - Insert Data" Font-Bold="true"></asp:Label></td>
                    </tr>
                </table>
                <br />
                <br />
                <table>
                    <tr>
                        <td>

<asp:Label ID="Label2" runat="server" Text="Please Enter FirstName: " ForeColor="Brown" Font-Bold="true" Font-Italic="true"></asp:Label></td>
                        <td>
                            <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox></td>
                    </tr>
                    <tr>
                        <td>
                            <asp:Label ID="Label3" runat="server" Text="Please Enter LastName: " ForeColor="Brown" Font-Bold="true" Font-Italic="true"></asp:Label></td>
                        <td>
                            <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox></td>
                    </tr>
                    <tr>
                        <td>
                            <asp:Label ID="Label4" runat="server" Text="Please Enter Age: " ForeColor="Brown" Font-Bold="true" Font-Italic="true"></asp:Label></td>
                        <td>
                            <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox></td>
                    </tr>
                    <tr>
                        <td colspan="2" align="center">

<asp:Button ID="Button1" runat="server" Text="Insert Data" OnClick="Button1_Click" BackColor="Orange" Font-Bold="true" /><br />
                            <br />
                        </td>
                    </tr>
                </table>
                <br />
                <br />
                <table>
                    <tr>
                        <td colspan="3">
                            <asp:Label ID="Label5" runat="server" Font-Bold="true"></asp:Label></td>
                    </tr>
                </table>
            </center>
        </div>
    </form>
</
body>

Step 2: The code of WebForm1.aspx.cs looks as this:

public partial class WebForm1 : System.Web.UI.Page
{

protected void Page_Load(object sender, EventArgs e)
    { }

protected void Button1_Click(object sender, EventArgs e)
    {

if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text) || string.IsNullOrEmpty(TextBox3.Text))
        {
            Label5.Text =
"Please Enter Some Values";
            Label5.ForeColor = System.Drawing.
Color.Red;
        }

else
        {
            objEmployee.EmployeeDetails.FirstName = TextBox1.Text;
            objEmployee.EmployeeDetails.LastName = TextBox2.Text;
            objEmployee.EmployeeDetails.Age =
int.Parse(TextBox3.Text);
            objEntities.AddTotblEmployee(objEmployee);
            objEntities.SaveChanges();
            Label5.Text =
"Data Inserted Successfully";
            Label5.ForeColor = System.Drawing.
Color.Green;
            TextBox1.Text = string.Empty;
            TextBox2.Text = string.Empty;
            TextBox3.Text = string.Empty;
        }
    }
    #region Instance MembersCompanyEntities objEntities = new CompanyEntities();
    tblEmployee objEmployee =
new tblEmployee();
    #endregion
}

Step 3: The select data output of the application looks as this:



For Update Operation

Step 1: The code of WebForm1.aspx looks as this:

<body>
    <form id="form1" runat="server">
        <center>
            <div>
                <table>
                    <tr>
                        <td colspan="2">
                            <asp:Label ID="Label1" runat="server" Text="Update Data - Complex Type" Font-Bold="true" Font-Size="Large" Font-Names="Verdana"
ForeColor="Maroon"></asp:Label></td>
                    </tr>
                    <tr>
                        <td>
                            <asp:Label ID="Label6" runat="server" Text="Please Enter Id" Font-Size="Large" Font-Names="Verdana" Font-Italic="true"></asp:Label></td>
                        <td>
                            <asp:TextBox ID="TextBox4" runat="server"></asp:TextBox></td>
                    </tr>
                    <tr>
                        <td>
                            <asp:Label ID="Label2" runat="server" Text="Please Enter First Name" Font-Size="Large" Font-Names="Verdana" Font-Italic="true"></asp:Label></td>
                        <td>
                            <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox></td>
                    </tr>
                    <tr>
                        <td>
                            <asp:Label ID="Label3" runat="server" Text="Please Enter Last Name" Font-Size="Large" Font-Names="Verdana" Font-Italic="true"></asp:Label></td>
                        <td>
                            <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox></td>
                    </tr>
                    <tr>
                        <td>
                            <asp:Label ID="Label4" runat="server" Text="Please Enter Age" Font-Size="Large" Font-Names="Verdana" Font-Italic="true"></asp:Label></td>
                        <td>
                            <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox></td>
                    </tr>
                    <tr>
                        <td colspan="2" align="center">
                            <asp:Button ID="Button1" runat="server" Text="Update" Font-Names="Verdana" Width="213px" BackColor="Orange" Font-Bold="True" OnClick="Button1_Click" /></td>
                    </tr>
                    <tr>
                        <td colspan="2" align="center">
                            <asp:Label ID="Label5" runat="server" Font-Bold="true" Font-Names="Verdana" ForeColor="Maroon"></asp:Label></td>
                    </tr>
                </table>
            </div>
        </center>
    </form>
</body>

Step 2: The code of WebForm1.aspx.cs looks as this:

public partial class WebForm1 : System.Web.UI.Page
{

protected void Page_Load(object sender, EventArgs e){ }

protected void Button1_Click(object sender, EventArgs e)
    {

if (string.IsNullOrEmpty(TextBox1.Text) || string.IsNullOrEmpty(TextBox2.Text) ||string.IsNullOrEmpty(TextBox3.Text) ||

string.IsNullOrEmpty(TextBox4.Text))
        {
            Label5.Text =
"Please Enter Some Data";
            Label5.ForeColor = System.Drawing.
Color.Red;
        }

else
        {

var id1 = Convert.ToInt32(TextBox4.Text);

var objEmployee = objEntities.tblEmployee.Where(a => a.EmpId == id1).FirstOrDefault();
            objEmployee.EmployeeDetails.FirstName = TextBox1.Text;
            objEmployee.EmployeeDetails.LastName = TextBox2.Text;
            objEmployee.EmployeeDetails.Age =
int.Parse(TextBox3.Text);
            objEntities.SaveChanges();
            Label5.Text =
"Data Updated Successfully";
            Label5.ForeColor = System.Drawing.
Color.Green;
            TextBox1.Text = string.Empty;TextBox2.Text = string.Empty;
            TextBox3.Text = string.Empty;TextBox4.Text = string.Empty;
        }
    }
    #region Instance MembersCompanyEntities objEntities = new CompanyEntities();
    #endregion
}

Step 3: The select data output of the application looks as this:



For Delete Operation

Step 1:
The code of WebForm1.aspx looks as this:

<body>
    <form id="form1" runat="server">
        <center>
            <div>
                <table>
                    <tr>
                        <td colspan="2" align="center">
                            <asp:Label ID="Label1" runat="server" Text="Delete Data - Complex Type App" Font-Bold="true" Font-Size="Large" Font-Names="Verdana"
ForeColor="Maroon"></asp:Label></td>
                    </tr>
                    <tr>
                        <td>
                            <asp:Label ID="Label2" runat="server" Text="Please Enter Employee FirstName" ForeColor="Brown" Font-Bold="true" Font-Size="Medium" Font
Names
="Verdana"></asp:Label></td>
                        <td>
                            <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox></td>
                    </tr>
                    <tr>
                        <td colspan="2" align="center">
                            <asp:Button ID="Button1" runat="server" Text="Delete Data" Font-Names="Verdana" Width="213px" BackColor="Orange" Font-Bold="True" OnClick="Button1_Click"
/></
td>
                    </tr>
                    <tr>
                        <td colspan="2" align="center">
                            <asp:Label ID="Label3" runat="server" Font-Bold="true" Font-Size="Medium" Font-Names="Verdana"></asp:Label></td>
                    </tr>
                </table>
            </div>
        </center>
    </form>
</body>

Step 2: The code of WebForm1.aspx.cs looks as this:

public partial class WebForm1 : System.Web.UI.Page
{

protected void Page_Load(object sender, EventArgs e){ }

protected void Button1_Click(object sender, EventArgs e)
    {

if (string.IsNullOrEmpty(TextBox1.Text))
        {
            Label3.Text =
"Please Enter Some Values";
            Label3.ForeColor = System.Drawing.
Color.Red;
        }

else
        {

var query = (from r in objEntities.tblEmployee where
                             r.EmployeeDetails.FirstName == TextBox1.Text
select r).Single();
            objEntities.DeleteObject(query);
            objEntities.SaveChanges();
            Label3.Text =
"Data Deleted Successfully";
            Label3.ForeColor = System.Drawing.
Color.Green;TextBox1.Text = string.Empty;
        }
    }
    #region Instance MembersCompanyEntities objEntities = new CompanyEntities();
    #endregion
}

Step 3: The select data output of the application looks as this:



I hope this article was useful for you. I look forward for your comments and feedback. Thanks Vijay.
