Single or Multi Click Functionality in SilverLight 5 Via WCF Service

Posted by Vijay Prativadi Articles | Silverlight with C# March 31, 2012
Today, in this article let’s concentrate on another interesting SilverLight application, whereby communicating with a WCF Service to perform some operation.
Reader Level:

Introduction

In this article let's concentrate on another interesting SilverLight application, whereby communicating with a WCF Service to perform some operation.

Question : What is Single or N-ClickCount Functionality?

In simple terms "SilverLight 5 provides one of the top feature, which enables user to perform some operation based on number of mouse click count calculations. It may range from 1 to n clicks".

Let's get this implemented practically for a better idea of this!!!

Step 1: The complete code of the IService1.cs looks like this.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace Wcf_SL_Click
{

// NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.
    [ServiceContract]
    public interface
IService1
    {
        [OperationContract]
        double add(double a, double b);
        [OperationContract]
        double sub(double a, double b);
        [OperationContract]
        double mul(double a, double b);
        [OperationContract]
        double div(double a, double b);
    }
}

Step 2: The complete code of the Service1.svc.cs looks like this.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
namespace Wcf_SL_Click
{

// NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.
    public class Service1 : IService1
    {
        public double add(double a, double b)
        {
            return a + b;
        }
        public double sub(double a, double b)
        {
            return a - b;
        }
        public double mul(double a, double b)
        {
            return a * b;
        }
        public double div(double a, double b)
        {
            return a / b;
        }
    }
}

Step 3
: The complete code of the Web.Config looks like this.

<?xml version="1.0"?>
<
configuration>

<system.web>
        <compilation debug="true" targetFramework="4.0" />
    </system.web>
   <system.serviceModel>
       <behaviors>
            <serviceBehaviors>
                <behavior>
                    <!-- To avoid disclosing metadata information, set the value below to false and remove the metadata endpoint above before deployment -->
                    <serviceMetadata httpGetEnabled="true"/>
                    <!-- To receive exception details in faults for debugging purposes, set the value below to true.  Set to false before deployment to avoid disclosing exception information -->
                    <serviceDebug includeExceptionDetailInFaults="false"/>
                </behavior>
            </serviceBehaviors>
        </behaviors>
        <serviceHostingEnvironment multipleSiteBindingsEnabled="true" />
    </system.serviceModel>
    <system.webServer>
        <modules runAllManagedModulesForAllRequests="true"/>
    </system.webServer>
</
configuration>

Step 4: The complete code of the Clientaccesspolicy.xml looks like this (to avoid cross domain problem in SilverLight).

<?xml version="1.0" encoding="utf-8"?>
<
access-policy>
    <cross-domain-access>
        <policy>
            <allow-from http-request-headers="SOAPAction">
                <domain uri="*"/>
            </allow-from>

       <grant-to>
             <resource path="/" include-subpaths="true"/>
            </grant-to>
        </policy>
    </cross-domain-access>
</
access-policy>

Step 5:
The complete code of the MainPage.xaml looks like this.

<UserControl x:Class="Rad_SL_Count.MainPage"
              xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
              xmlns:x
="http://schemas.microsoft.com/winfx/2006/xaml"
              xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
              xmlns:mc
="http://schemas.openxmlformats.org/markup-compatibility/2006"
              xmlns:telerik="http://schemas.telerik.com/2008/xaml/presentation"
              mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="800">


<Grid x:Name="LayoutRoot">
        <TextBlock Height="23"
                   HorizontalAlignment="Left"
                   Margin="30,34,0,0"
                   Name="textBlock1"
                   Text="Please Enter First Number: "
                   FontFamily="Verdana"
                   FontSize="22"
                   VerticalAlignment
="Top" />

        <TextBlock FontFamily="Verdana"
                  FontSize="22" Height="23"
                   HorizontalAlignment="Left"
                   Margin="20,104,0,0"
                   Name="textBlock2"
                   Text="Please Enter Second Number: "
                   VerticalAlignment
="Top" />


<TextBox Height="43"
                 HorizontalAlignment="Left"
                 Margin="431,25,0,0"
                 Name="textBox1"
                 VerticalAlignment="Top"
                 Width
="150" />

        <TextBox Height="43"
                HorizontalAlignment="Left"
                 Margin="431,95,0,0"
                 Name="textBox2"
                 VerticalAlignment="Top"
                 Width
="150" />

        <Border BorderBrush="Silver"
                BorderThickness="3"
                Background="DarkGray"
                Height="100"
                Name="border1"
                Width
="200"
                Margin="42,169,398,211"
               MouseLeftButtonDown="button1_MouseLeftButtonDown">


<TextBlock Text="Click To Arthmetic"
                       FontFamily="Verdana"
                       FontSize="17"
                       Foreground="LightCyan"
                       FontWeight="Bold"
                       HorizontalAlignment="Stretch"
                       VerticalAlignment="Center"
                       Width="178"
                       Height
="22" />
        </Border>
    </Grid>
</
UserControl>

Step 6: The complete code of the MainPage.xaml.cs looks like this.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using Rad_SL_Count.ServiceReference1;
namespace Rad_SL_Count
{
    public partial class MainPage :
UserControl
    {
        public MainPage()
        {
            InitializeComponent();
        }
        private void add_Call(object sender, addCompletedEventArgs e)
        {
            MessageBox.Show("Addition Result is: " + e.Result.ToString(), "Click Count -SL5 via WCF Service", MessageBoxButton.OKCancel);
        }
        private void sub_Call(object sender, subCompletedEventArgs e)
        {
            MessageBox.Show("Subtraction Result is: " + e.Result.ToString(), "Click Count -SL5 via WCF Service", MessageBoxButton.OKCancel);
        }
        private void mul_Call(object sender, mulCompletedEventArgs e)
        {
            MessageBox.Show("Multiplication Result is: " + e.Result.ToString(), "Click Count -SL5 via WCF Service", MessageBoxButton.OKCancel);
        }
        private void div_Call(object sender, divCompletedEventArgs e)
        {
            MessageBox.Show("Division Result is: " + e.Result.ToString(), "Click Count -SL5 via WCF Service", MessageBoxButton.OKCancel);
        }
        private void button1_MouseLeftButtonDown(object sender, MouseButtonEventArgs e)
        {
          if (string.IsNullOrEmpty(textBox1.Text) || string.IsNullOrEmpty(textBox2.Text))
            {
                MessageBox.Show("Please Enter Some Values", "Click Count - SL 5 via WCF", MessageBoxButton.OKCancel);
            }

else
            {
               if (e.ClickCount == 1)
                {
                    objClient.addCompleted += new EventHandler<addCompletedEventArgs>(add_Call);
                    objClient.addAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                }
                else if (e.ClickCount == 2)
                {
                    objClient.subCompleted += new EventHandler<subCompletedEventArgs>(sub_Call);
                    objClient.subAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                }
                else if (e.ClickCount == 3)
                {
                    objClient.mulCompleted += new EventHandler<mulCompletedEventArgs>(mul_Call);
                    objClient.mulAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                }
                else if (e.ClickCount == 4)
                {
                    objClient.divCompleted += new EventHandler<divCompletedEventArgs>(div_Call);
                    objClient.divAsync(Convert.ToDouble(textBox1.Text), Convert.ToDouble(textBox2.Text));
                }
                else if (e.ClickCount > 4)
                {
                    MessageBox.Show("Click Count Exceed--Nothing Performed", "Click Count - SL5 via WCF", MessageBoxButton.OKCancel);
                }
                textBox1.Text = "";
                textBox2.Text = "";
            }
        }

        #region
Instance Variables
        Service1Client objClient = new Service1Client();
        #endregion
    }
}

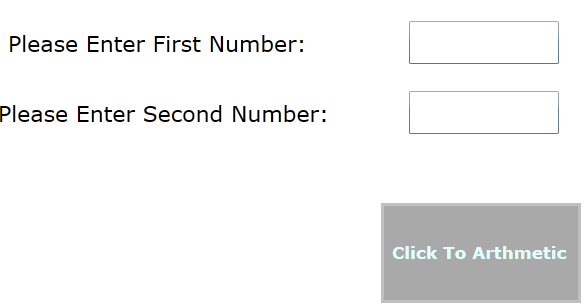

Step 7:
The output of the application looks like this.

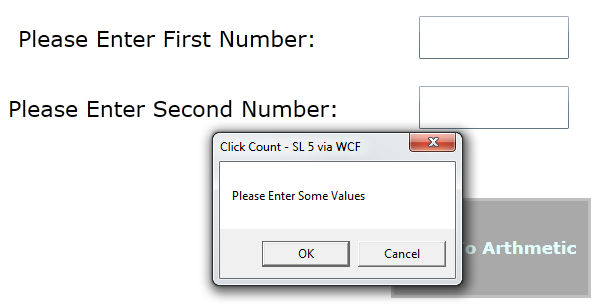

Step 8: The output of the Nothing Entered Application looks like this.

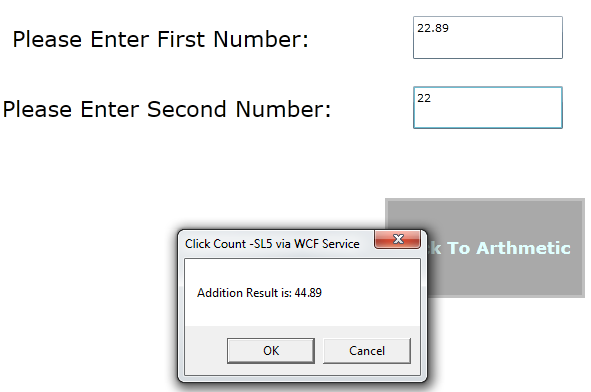

Step 9: The output of the Addition Operation Application looks like this.

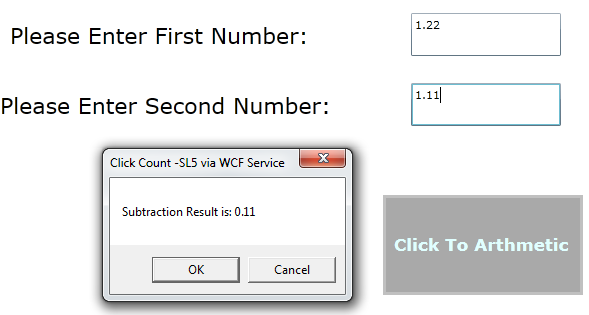

Step 10: The output of the Subtraction Operation Application looks like this.





I hope this article is useful for you ...I look forward to your comments and feedback....Thanks.
