Media Player Events in Windows Store Apps

By Deepak Middha on Nov 08, 2012
In this app I described Media events in Windows Store Apps using JavaScript.

Introduction

In this article I describe how to create a Windows Store App for a Media event using JavaScript. This scenario demonstrates how to register for media events from hardware media transport controls

I assume you can create a simple Windows Store App using JavaScript. For more help visit Simple Windows Store Apps using JavaScript.

To start the creation of the app, add one JavaScript page by right-clicking on the js folder in the Solution Explorer and select Add > new item > JavaScript Page and then give an appropriate name. In the same way, add one HTML page to your project.

Write the following code in default.html:

<!DOCTYPE html>

<html>

<head>

    <meta charset="utf-8" />

    <title>app</title>

    <link rel="stylesheet" href="//Microsoft.WinJS.1.0/css/ui-light.css" />

    <script src="//Microsoft.WinJS.1.0/js/base.js"></script>

    <script src="//Microsoft.WinJS.1.0/js/ui.js"></script>

    <link rel="stylesheet" href="/css/default.css" />

    <script src="/js/script1.js"></script>

    <script src="/js/default.js"></script>

</head>

<body role="application" style="background-color: lightgrey">

    <div id="rootGrid">

        <center><div id="content">

            <h1 id="featureLabel"></h1>

            <div id="contentHost"></div>

        </div>

    </div>

    </center>

</body>

</html>

Write the following code in default.js:


(function () {

    "use strict";

    var appTitle = "";

    var pages = [

        { url: "page.html" }

    ];

    function activated(eventObject) {

        if (eventObject.detail.kind === Windows.ApplicationModel.Activation.ActivationKind.launch) {

            eventObject.setPromise(WinJS.UI.processAll().then(function () {

                var url = WinJS.Application.sessionState.lastUrl || pages[0].url;

                return WinJS.Navigation.navigate(url);

            }));

        }

    }

    WinJS.Navigation.addEventListener("navigated", function (eventObject) {

        var url = eventObject.detail.location;

        var host = document.getElementById("contentHost");

        host.winControl && host.winControl.unload && host.winControl.unload();

        WinJS.Utilities.empty(host);

        eventObject.detail.setPromise(WinJS.UI.Pages.render(url, host, eventObject.detail.state).then(function () {

            WinJS.Application.sessionState.lastUrl = url;

        }));

    });

    WinJS.Namespace.define("App", {

        appTitle: appTitle,

        pages: pages

    });

    WinJS.Application.addEventListener("activated", activated, false);

    WinJS.Application.start();

})();


Write the following code in page.html:


<!DOCTYPE html>

<html>

<head>

    <title></title>

    <link rel="stylesheet" href="/css/page1.css" />

    <script src="/js/script.js"></script>

</head>

<body>

    <div data-win-control="App.pageInput">

        <button id="button1">Select</button>

        <br />

        <br />

    </div>

    <div data-win-control="App.pageOutput">

        <audio id="audiotag" controls="controls" msaudiocategory="backgroundcapablemedia" />

        <img id="albumart" />

    </div>

</body>

</html>


Write the following code in script.js:


(function () {

    "use strict";

    var mediaControls;

    var currentSongIndex = 0;

    var playlist = [];

    var playlistCount;

    var nextRegistered = false;

    var previousRegistered = false;

    var thumbnailName = null;

    function song() {

        this.URLObject;

        this.file;

    }

    var page = WinJS.UI.Pages.define("page.html", {

        ready: function (element, options) {

            document.getElementById("button1").addEventListener("click", doSomething1, false);

            mediaControls = Windows.Media.MediaControl;

            mediaControls.addEventListener("playpausetogglepressed", playPause, false);

            mediaControls.addEventListener("playpressed", play, false);

            mediaControls.addEventListener("stoppressed", stop, false);

            mediaControls.addEventListener("pausepressed", pause, false);

            mediaControls.addEventListener("fastforwardpressed", fastForward, false);

            mediaControls.addEventListener("rewindpressed", rewind, false);

            mediaControls.addEventListener("channeluppressed", channelUp, false);

            mediaControls.addEventListener("channeldownpressed", channelDown, false);

            mediaControls.addEventListener("recordpressed", record, false);

            id("audiotag").addEventListener("playing", playing, false);

            id("audiotag").addEventListener("pause", paused, false);

            id("audiotag").addEventListener("ended", songEnded, false);

            mediaControls.isPlaying = false;

        }

    });

    function id(elementId) {

        return document.getElementById(elementId);

    }

    function createPlaylist(files) {

        var file;

        if (files.size > 0) {

            playlistCount = files.size;

            if (nextRegistered) {

                mediaControls.removeEventListener("nexttrackpressed", nextTrack, false);

                nextRegistered = false;

            }

            if (previousRegistered) {

                mediaControls.removeEventListener("previoustrackpressed", previousTrack, false);

                previousRegistered = false;

            }

            currentSongIndex = 0;

            playlist = [];

            if (playlistCount > 1) {

                if (!nextRegistered) {

                    mediaControls.addEventListener("nexttrackpressed", nextTrack, false);

                    nextRegistered = true;

                }

            }

            for (var fileIndex = 0; fileIndex < files.size; fileIndex++) {

                var tempSong = new song;



                file = files[fileIndex];

                tempSong.URLObject = URL.createObjectURL(file, { oneTimeOnly: false });

                tempSong.file = file;

                playlist[fileIndex] = tempSong;

            }

        }



    }

    function setCurrentPlaying(index) {

        id("audiotag").src = playlist[index].URLObject;

        if (mediaControls.isPlaying === true) {

            id("audiotag").play();

        }

        setMetaData(index);

    }

    function setMetaData(songIndex) {

        try {

            var thumbnailMode = Windows.Storage.FileProperties.ThumbnailMode.musicView;

            var thumbnailOptions = Windows.Storage.FileProperties.ThumbnailOptions.ResizeThumbnail;

            var file = playlist[songIndex].file;

            file.getThumbnailAsync(thumbnailMode, 96, thumbnailOptions).done(function (thumbnail) {

                if (thumbnail) {

                    var inputStream = thumbnail.getInputStreamAt(0);

                    var reader = new Windows.Storage.Streams.DataReader(inputStream);

                    var size = thumbnail.size;

                    if (size > 0) {

                        reader.loadAsync(size).done(function () {

                            var buffer = new Array(size);

                            reader.readBytes(buffer);

                            thumbnail.close();

                            reader.close();

                            var tempFolder = Windows.Storage.ApplicationData.current.temporaryFolder;

                            if (thumbnailName === null || thumbnailName === "thumbnail2.jpg") {

                                thumbnailName = "thumbnail.jpg";

                            } else {

                                thumbnailName = "thumbnail2.jpg";

                            }

                            tempFolder.createFileAsync(thumbnailName, Windows.Storage.CreationCollisionOption.replaceExisting).done(function (imageFile) {

                                Windows.Storage.FileIO.writeBytesAsync(imageFile, buffer).done(function () {

                                    playlist[songIndex].file.properties.getMusicPropertiesAsync().done(function (musicProperties) {

                                        setAlbumArt(thumbnailName, musicProperties);

                                    });

                                });

                            });

                        });

                    } else {

                        WinJS.log("Thumbnail is empty", "app", "error");

                        thumbnail.close();

                        reader.close();

                        inputStream.close();

                    }

                } else {

                    WinJS.log(getTimeStampedMessage("Song Art Work not available for " + storageFile.path), "app", "error");

                    mediaControls.albumArt = "";

                }

            });

        } catch (ex) {

            WinJS.log("Error in GetThumbnail(): " + ex.description, "app", "error");

        }

    }

    function setAlbumArt(fileName, musicProperties) {

        try {

            var uri = new Windows.Foundation.Uri("ms-appdata:///temp/" + fileName);

            mediaControls.albumArt = uri;

            mediaControls.trackName = musicProperties.title;

            mediaControls.artistName = musicProperties.artist;

        } catch (ex) {

            WinJS.log("Error in setAlbumArt(): " + ex, "app", "error");

        }

    }

    function doSomething1() {

        var openPicker = new Windows.Storage.Pickers.FileOpenPicker();

        openPicker.fileTypeFilter.replaceAll([".mp3", ".mp4", ".wma", ".m4a"]);

        openPicker.suggestedStartLocation = Windows.Storage.Pickers.PickerLocationId.musicLibrary;



        openPicker.pickMultipleFilesAsync().done(function (files) {

            if (files.length > 0) {

                createPlaylist(files);

                setCurrentPlaying(currentSongIndex);

            }

        });

    }

    function getTimeStampedMessage(eventCalled) {

        var timeformat = new Windows.Globalization.DateTimeFormatting.DateTimeFormatter("longtime");

        var time = timeformat.format(new Date());

        var message = eventCalled + "\t\t" + time;

        return message;

    }

    function playing() {

        mediaControls.isPlaying = true;

    }

    function paused() {

        mediaControls.isPlaying = false;

    }

    function songEnded() {

        nextTrack();

    }

    function playPause() {

        if (mediaControls.isPlaying === false) {

            WinJS.log(getTimeStampedMessage("Play/Pause - Play Received"), "app", "status");

            id("audiotag").play();

        }

        else {

            WinJS.log(getTimeStampedMessage("Play/Pause - Pause Received"), "app", "status");

            id("audiotag").pause();

        }

    }

    function play() {

        WinJS.log(getTimeStampedMessage("Play Received"), "app", "status");

        id("audiotag").play();

    }

    function stop() {

        WinJS.log(getTimeStampedMessage("Stop Received"), "app", "status");

        id("audiotag").pause();

        id("audiotag").currentTime = 0;

    }

    function pause() {

        WinJS.log(getTimeStampedMessage("Pause Received"), "app", "status");

        id("audiotag").pause();

    }

    function nextTrack() {

        WinJS.log(getTimeStampedMessage("Next Track Received"), "app", "status");

        if (currentSongIndex < (playlistCount - 1)) {

            currentSongIndex++;

            setCurrentPlaying(currentSongIndex);

            if (currentSongIndex > 0) {

                if (!previousRegistered) {

                    mediaControls.addEventListener("previoustrackpressed", previousTrack, false);

                    previousRegistered = true;

                }

            }

            if (currentSongIndex === (playlistCount - 1)) {

                if (nextRegistered) {

                    mediaControls.removeEventListener("nexttrackpressed", nextTrack, false);

                    nextRegistered = false;

                }

            }

        }

    }

    function previousTrack() {

        WinJS.log(getTimeStampedMessage("Prev Track Received"), "app", "status");

        if (currentSongIndex > 0) {

            if (currentSongIndex === (playlistCount - 1)) {

                if (!nextRegistered) {

                    mediaControls.addEventListener("nexttrackpressed", nextTrack, false);

                    nextRegistered = true;

                }

            }

            currentSongIndex--;



            if (currentSongIndex === 0) {

                if (previousRegistered) {

                    mediaControls.removeEventListener("previoustrackpressed", previousTrack, false);

                    previousRegistered = false;

                }

            }

            setCurrentPlaying(currentSongIndex);

        }

    }

    function fastForward() {

        WinJS.log(getTimeStampedMessage("Fast Forward Received"), "app", "status");

    }

    function rewind() {

        WinJS.log(getTimeStampedMessage("Rewind Received"), "app", "status");

    }

    function channelUp() {

        WinJS.log(getTimeStampedMessage("Channel Up Received"), "app", "status");

    }

    function channelDown() {

        WinJS.log(getTimeStampedMessage("Channel Down Received"), "app", "status");

    }

    function record() {

        WinJS.log(getTimeStampedMessage("Record Received"), "app", "status");

    }

})();

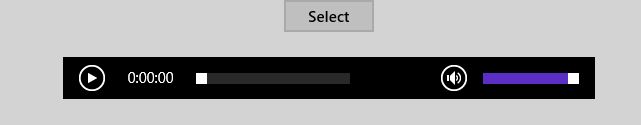

Output:


Summary

In this app I described Media events in Windows Store Apps using JavaScript. I hope this article has helped you to understand this topic. Please share if you know more about this. Your feedback and constructive contributions are welcome.
