Bind SharePoint List Items in a Gridview

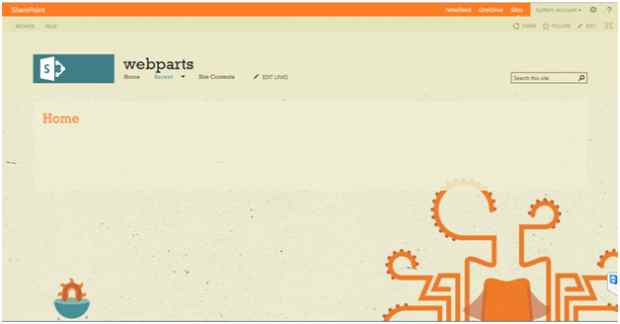

Open the team site.

team site

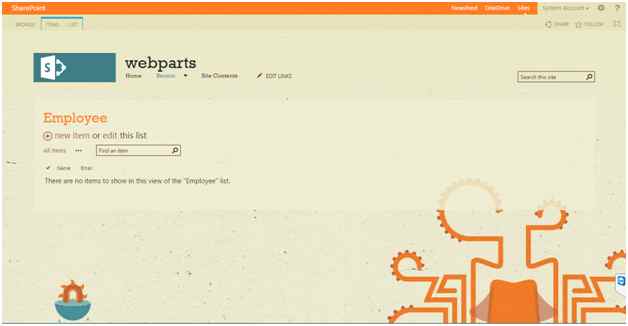

Create a sample list “Employee”.

Open the team site

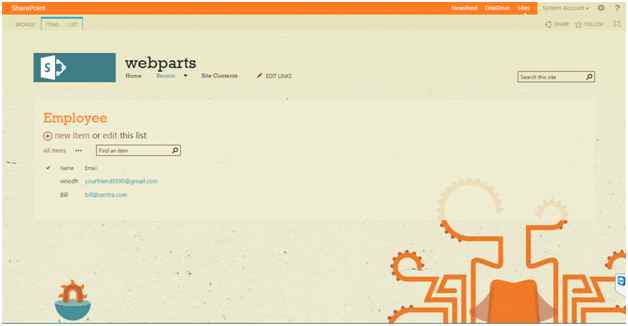

Add some values into the list.

Employee

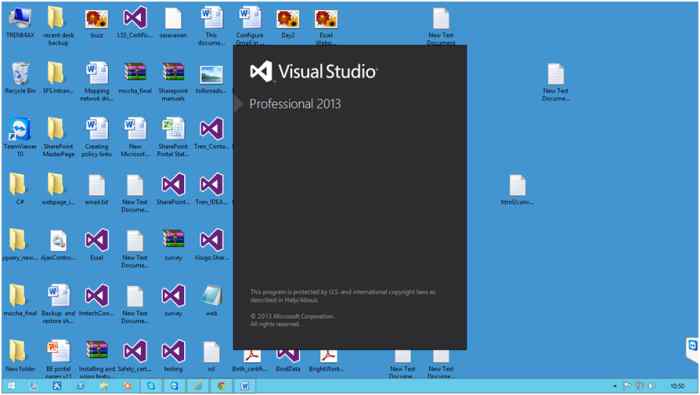

Open Visual Studio then create a new Visual Webpart.

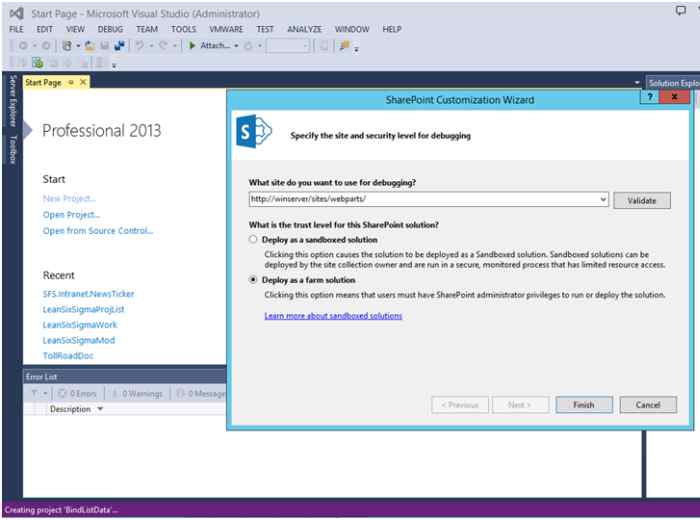

Enter a valid site URL then select Deploy as a Farm solution.

new visual webpart

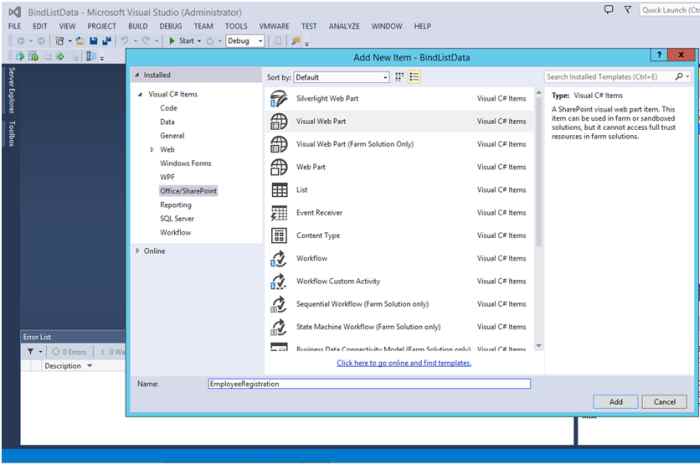

Create a new Visual Webpart in the project.

Select Deploy as a farm solution

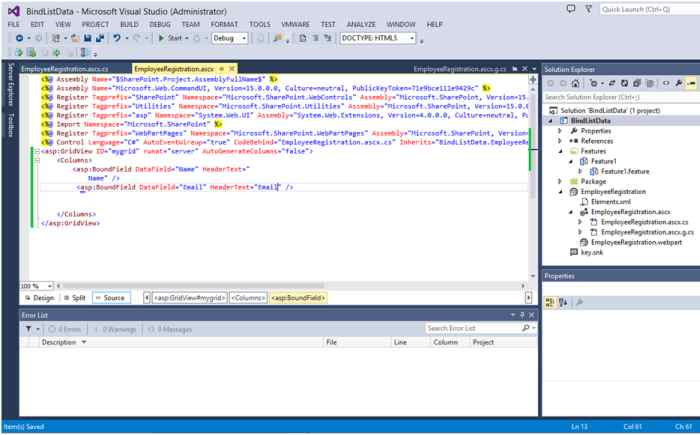

Now open EmployeeRegistration.ascx.

Create a GridView.

Create a new visual webpart

Code

  1. <asp:GridView ID="mygrid" runat="server" AutoGenerateColumns="false">
  2.     <Columns>
  3.         <asp:BoundField DataField="Name" HeaderText="
  4.             Name" />
  5.          <asp:BoundField DataField="Email" HeaderText="Email" />
  6.
  7.
  8.     </Columns>
  9. </asp:GridView>
Create a GridView

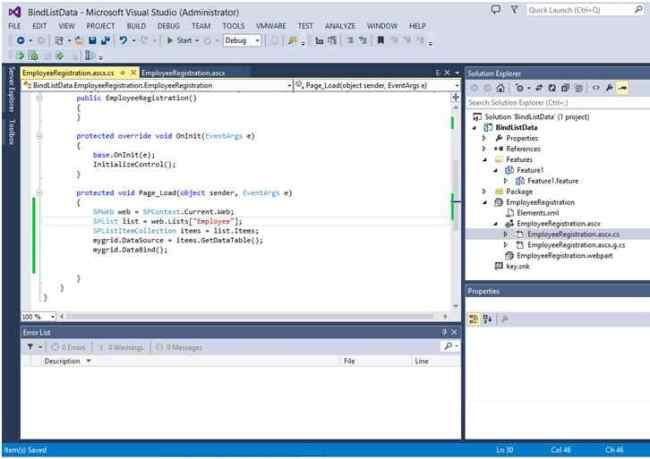

Now open EmployeeRegistration.ascx.cs.

Code
  1. using System;
  2. using System.ComponentModel;
  3. using System.Web.UI.WebControls.WebParts;
  4. using Microsoft.SharePoint;
  5. using System.Data;
  6.
  7. namespace BindListData.EmployeeRegistration
  8. {
  9.     [ToolboxItemAttribute(false)]
  10.     public partial class EmployeeRegistration : WebPart
  11.     {
  12.         // Uncomment the following SecurityPermission attribute only when doing Performance Profiling on a farm solution
  13.         // using the Instrumentation method, and then remove the SecurityPermission attribute when the code is ready
  14.         // for production. Because the SecurityPermission attribute bypasses the security check for callers of
  15.         // your constructor, it's not recommended for production purposes.
  16.         // [System.Security.Permissions.SecurityPermission(System.Security.Permissions.SecurityAction.Assert, UnmanagedCode = true)]
  17.         public EmployeeRegistration()
  18.         {
  19.         }
  20.
  21.         protected override void OnInit(EventArgs e)
  22.         {
  23.             base.OnInit(e);
  24.             InitializeControl();
  25.         }
  26.
  27.         protected void Page_Load(object sender, EventArgs e)
  28.         {
  29.             SPWeb web = SPContext.Current.Web;
  30.             SPList list = web.Lists["Employee"];
  31.             SPListItemCollection items = list.Items;
  32.             mygrid.DataSource = items.GetDataTable();
  33.             mygrid.DataBind();
  34.
  35.
  36.         }
  37.     }
  38. }

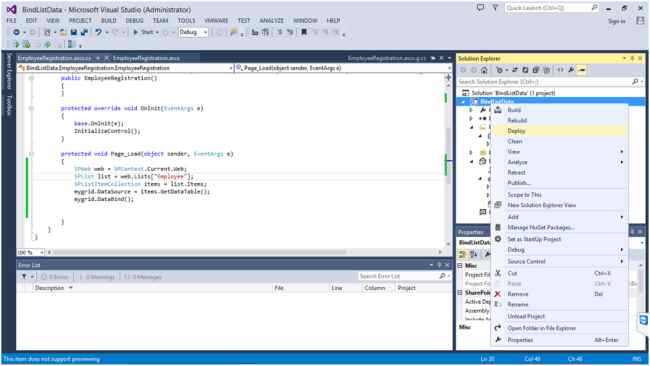

Now deploy the webpart.

Deploy

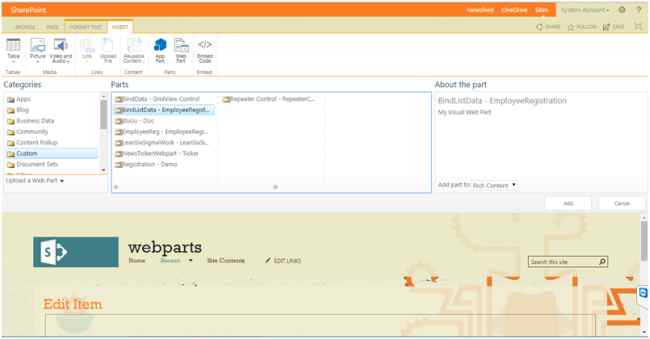

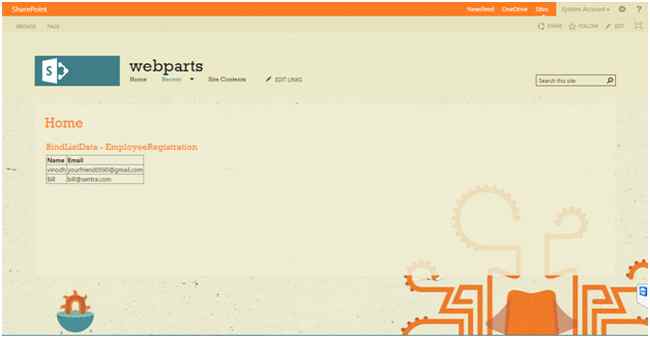

Now the result.

result

output

Happy SharePointing!

Regards: Vinodh.N (SharePoint developer / administrator).
