How to Use Canvas in HTML5

Posted by Aditya Gaur Articles | HTML 5 May 31, 2012
This article describes the canvas element in HTML5 by use of of an example.
  • 0
  • 0
  • 3046

Introduction

In this article we will learn about the canvas element in HTML5 by using an example. The <canvas> element is used to draw graphics, on the fly, via a scripting language like JavaScript.

Create a Canvas

A Canvas drawable region is defined in HTML code with height and width attributes by specifying id, width and height of the <canvas> element.

<
canvasid="mygame"width="1500"height="900">
</
canvas>

Canvas Drawing

The <canvas> element has no drawing abilities of its own so all drawing must be done inside JavaScript and JavaScript uses the id to find the <canvas> element.

In our example we use two variables, a and b, to define the axis. We create a function Sphere and pass color, radius, da and db as parameters. These parameters are used to create Spheres of different size, color and direction.

<
scripttype="text/javascript">
    var a = 40;
    var b = 50;
    function Sphere(color, radius, da, db) {
        this.canvas = canvas;
        this.context = canvas.getContext('2d');
        this.radius = radius;
        this.a = a;
        this.b = b;
        this.da = da;
        this.db = db;
        this.color = color;
    }
    Sphere.prototype.form = function () {
        this.context.beginPath();
        this.context.fillStyle =this.color;
        this.context.arc(this.a,this.b, this.radius, 0, Math.PI * 2, false);
        this.context.fill();
    }
    Sphere.prototype.Jump = function () {
        if (this.a >= (canvas.width - this.radius) ||this.a <= this.radius) this.da *= -1;
        if (this.b >= (canvas.height - this.radius) ||this.b <= this.radius) this.db *= -1;
    }
    function init() {
        canvas = document.getElementById("mygame")
        context = canvas.getContext('2d');
        // form an arry to store the Sphere info
        Spheres = [];
        Spheres.push(new Sphere('Olive', 40, 1, 3));
        Spheres.push(new Sphere('Silver', 40, 2, 3));
        Spheres.push(new Sphere('Lime', 40, 3, 4));
        Spheres.push(new Sphere('Grey', 40, 4, 1));
        Spheres.push(new Sphere('Pink', 40, 2, 4));
        Spheres.push(new Sphere('Navy', 50, 3, 3));
        Spheres.push(new Sphere('Teal', 40, 3, 5));
        Spheres.push(new Sphere('Blue', 30, 4, 3));
        Spheres.push(new Sphere('Black', 30, 3, 9));
        Spheres.push(new Sphere('Red', 30, 1, 6));
        Spheres.push(new Sphere('Blue', 40, 2, 8));
        Spheres.push(new Sphere('Green', 40, 3,8));
        Spheres.push(new Sphere('Orange', 30, 4, 4));
        Spheres.push(new Sphere('Yellow', 40 , 4, 9));
        setInterval(form, 20);
    }
    function form() {
        context.clearRect(0, 0, 2000, 1000);
        for (iin Spheres) {
            Spheres[i].a += Spheres[i].da;
            Spheres[i].b += Spheres[i].db;
            Spheres[i].Jump();
            Spheres[i].form();
        }
    }
  </script>

Canvas 2D API

The canvas element has no drawing abilities of its own and is a rectangular area where you can control every pixel using scripting. We use canvas.getContext('2d') to create a Sphere shape and getContext("2d") object has methods to draw lines, boxes, circles, and more.

setInterval Method

The setInterval method is used to call a function or evaluate an expression at specified intervals (in milliseconds), like this:

setInterval(code,millisec,lang)

The Complete code look like this:

<!DOCTYPEhtml PUBLIC"-//W3C//DTD XHTML 1.0 Transitional//EN""http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<
html xmlns="http://www.w3.org/1999/xhtml">
<
head>
    <title>Canvas Game</title>
<
script type="text/javascript">
    var a = 40;
    var b = 50;
    function Sphere(color, radius, da, db) {
        this.canvas = canvas;
        this.context = canvas.getContext('2d');
        this.radius = radius;
        this.a = a;
        this.b = b;
        this.da = da;
        this.db = db;
        this.color = color;
    }
    Sphere.prototype.form = function () {
        this.context.beginPath();
        this.context.fillStyle =this.color;
        this.context.arc(this.a,this.b, this.radius, 0, Math.PI * 2, false);
        this.context.fill();
    }
    Sphere.prototype.Jump = function () {
        if (this.a >= (canvas.width - this.radius) ||this.a <= this.radius)this.da *= -1;
        if (this.b >= (canvas.height - this.radius) ||this.b <= this.radius)this.db *= -1;
    }
    function init() {
        canvas = document.getElementById("mygame")
        context = canvas.getContext('2d');
        // form an arry to store the Sphere info
        Spheres = [];
        Spheres.push(new Sphere('Olive', 40, 1, 3));
        Spheres.push(new Sphere('Silver', 40, 2, 3));
        Spheres.push(new Sphere('Lime', 40, 3, 4));
        Spheres.push(new Sphere('Grey', 40, 4, 1));
        Spheres.push(new Sphere('Pink', 40, 2, 4));
        Spheres.push(new Sphere('Navy', 50, 3, 3));
        Spheres.push(new Sphere('Teal', 40, 3, 5));
        Spheres.push(new Sphere('Blue', 30, 4, 3));
        Spheres.push(new Sphere('Black', 30, 3, 9));
        Spheres.push(new Sphere('Red', 30, 1, 6));
        Spheres.push(new Sphere('Blue', 40, 2, 8));
        Spheres.push(new Sphere('Green', 40, 3,8));
        Spheres.push(new Sphere('Orange', 30, 4, 4));
        Spheres.push(new Sphere('Yellow', 40 , 4, 9));
        setInterval(form, 20);
    }
    function form() {
        context.clearRect(0, 0, 2000, 1000);
        for (i in Spheres) {
            Spheres[i].a += Spheres[i].da;
            Spheres[i].b += Spheres[i].db;
            Spheres[i].Jump();
            Spheres[i].form();
        }
    }
  </script>
</
head>
<
body onLoad="init();">
<
canvas id="mygame" width="1500"height="900"></canvas>
</
body>
</
html>

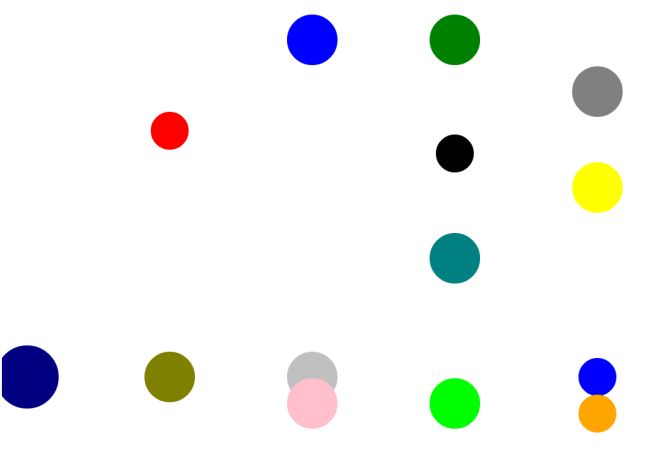

Output







Article Extensions
Contents added by Mike Gold on Jun 03, 2012

Here is the equivalent in CoffeeScript (CoffeeScript compiles into JavaScript and can be plugged into Visual Studio via a codeplex add in called Chirpy).  Note it forms much cleaner classes and cleaner code in general than JavaScript as far as readability





Here is the HTML/JQuery that calls the generated JavaScript:

<!DOCTYPE html>

<html>

<head>

    <title>Canvas Game</title>

    <script src="Scripts/jquery-1.4.1.js" type="text/javascript"></script>

    <script src="Scripts/BouncingBalls.js" type="text/javascript"></script>

    <script type="text/javascript">

        $(document).ready(function () {

            canvas = $("#mygame").get(0);

            context = canvas.getContext('2d');

            document.initBouncingBall(canvas, context);

        });

    </script>

</head>

<body>

<canvas id="mygame" width="1500"height="900"></canvas>

</body>

</html>
