Chapter 1: Workflow Program

Posted by Packt Publishing Free Book | WF October 15, 2010
In this chapter we will see how to create WF program with different methods.

Running a WF program asynchronously

In the previous tasks, we used the WorkflowInvoker.Invoke method to start a Workflow instance on the same thread as the main program. It is easy to use; however, in most real applications, a Workflow should run on an independent thread. In this task, we will use WorkflowApplication to run a Workflow instance.

How to do it...

  1. Create a Workflow project:
    Create a new Workflow Console Application under the Chapter01 solution and name the project as UseWorkflowApplication.

  2. Author a Workflow:

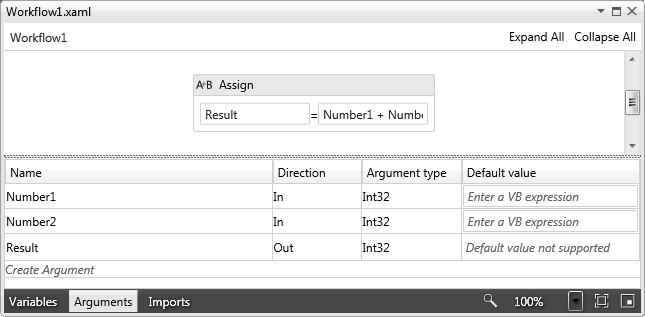

    In the opening Workflow1.xaml designer, click on Arguments, create two Int32 InArguments for Number1 and Number2. Create an Int32 OutArgument for Result. Add an Assign activity to the Workflow designer panel. In the Assign activity, type Result=Number1+Number2.



  3. Write code to host the Workflow:
    Open Program.cs file and change code as follow:

    using System;

    using System.Activities;

    using System.Activities.Statements;

    using System.Threading;

    using System.Collections.Generic;

    namespace UseWorkflowApplication

    {

        class Program

        {

            static void Main(string[] args)

            {

                AutoResetEvent syncEvent = new AutoResetEvent(false);

                IDictionary<string, object> input =

                    new Dictionary<string, object>()

                    {

                    {"Number1",123},

                    {"Number2",456}

                    };

                IDictionary<string,object> output=null;

                WorkflowApplication wfApp =

                    new WorkflowApplication(new Workflow1(),input);

                wfApp.Completed =

                    delegate(WorkflowApplicationCompletedEventArgs e)

                    {

                        Console.WriteLine("Workflow thread id:"+

                            Thread.CurrentThread.ManagedThreadId);

                        output = e.Outputs;

                        syncEvent.Set();

                    };

                wfApp.Run();

                syncEvent.WaitOne();

                Console.WriteLine(output["Result"].ToString());

                Console.WriteLine("Host thread id:"+Thread.

                    CurrentThread.ManagedThreadId);

            }

        }

    }

  4. Run it:
    Set UseWorkflowApplication as Startup project. Press Ctrl+F5 to build and run the Workflow without debugging. The application should run in a console window and print the following message:

How it works...

The function of this Workflow is adding two InArgument Numbers and assigning the result to an OutArgument Result.

AutoResetEvent syncEvent = new AutoResetEvent(false);

As the Workflow thread runs simultaneously with the caller thread, the caller thread may terminate before the Workflow thread. To prevent this unexpected program quit, we need to use AutoResetEvent to synchronize caller and Workflow thread.

syncEvent.WaitOne();

The caller thread will wait there, until syncEvent is set.

            wfApp.Completed =

                delegate(WorkflowApplicationCompletedEventArgs e)

                {

                    output = e.Outputs;

                    syncEvent.Set();

                };

When the Workflow completes, syncEvent.Set() is invoked. After that, the caller can continue running to its end.

Another thing we should be aware of is how we get the result when the Workflow ends. Unlike the WorkflowInvoker.Invoker method , in a WorkflowApplication-style caller, we get
dictionary output from WorkflowApplicationCompletedEventArgs's Outputs property; see the preceding code snippet.
