Perform queries using LINQ in VB.NET

Posted by Ajay Articles | Visual Basic .NET November 08, 2012
In this article I will show you how to extract data from SQL Server using LINQ.
  • 0
  • 0
  • 5811
Download Files:


In this article I will show you how to extract data from SQL Server using LINQ.

From MSDN:

LINQ is a set of extensions to the .NET Framework that encompass language-integrated query, set, and transform operations. It extends C# and Visual Basic with native language syntax for queries and provides class libraries to take advantage of these capabilities.


The sample database I am using for this article has the following table


Open Visual Studio and create a windows application. Here I have named the application LINQaaplinVB.

For any database application, the first step is to create connection with the database.  Open "Server Explorer" from the View menu and create a connection. The steps for creating the connection is shown below:

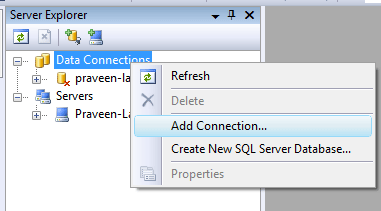

1. Right click "Data Connections" and select "Add Connection".

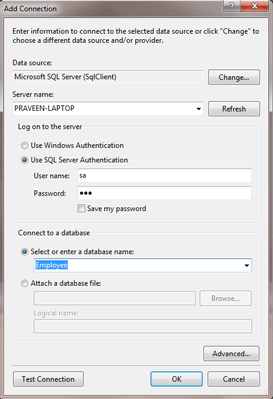

2. In connection wizard supply the exact values as you supplied during SQL Server installation process. Select the database you want to use for the application.


You can also test the connection from this wizard. If everthing is OK, move to the next step.

Now we are done with the connection and let's move to our application.

Add "LINQ to SQL Classes" template by right clicking the project and then select "Add New Item". Name your template. The name of my template is Employee.dbml.

Now you are provided with Object Relational Designer (O/R Desinger) for this template file.

Next step is to add the database tables to the designer. For this expand the connection you created earlier and select the tables from the list of tables. Drag the table "Employee" to the designer. In my case, I am using just a single table for demonstation. You can add more tables to the  O/R designer. One thing to note that the designer automatically takes the relations between the tables.

Don't forget to save the project.

One thing to note here that, when we added tables to the O/R designer we are provided with DataContext object for our project. The name of the object will be same as your tamplate file you created earlier.

Now we can use the DataContext object and try to extact records from our database table.

In my application, I added a listbox for showing the names of the employees.

Now in the form_load we will see how to get records from the table to the listbox

Private
 Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        Dim db As New EmployeeDataContext

        Dim employee = From emp In db.emp_masters _

                       Select emp.Empname

        ListBox1.DataSource = employee

        'DataGridView1.DataSource = employee
End Sub

In next example, I am showing how to get the number of employess in each department. For this I have added a DataGridView.

The code is as follows:

Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
        Dim db As New EmployeeDataContext

        Dim employee = From emp In db.emp_masters _

                       Group emp By emp.EmpDept Into g = Group _

                       Select New With {EmpDept, .noofemp = g.Count()}



        DataGridView1.DataSource = employee
End Sub

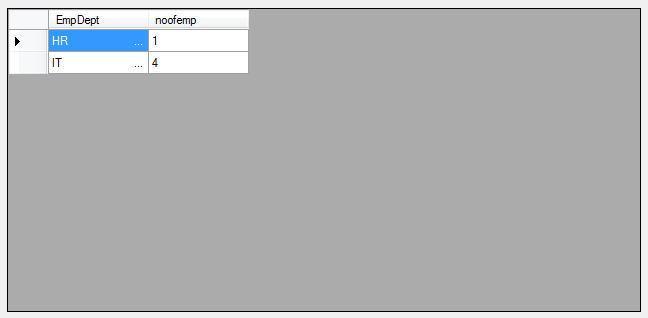

The result of the above code is as follows:


In our next example, I am showing a query with where clause.

Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load

        Dim db As New EmployeeDataContext



        Dim employee = From emp In db.emp_masters _

                               Where emp.EmpAdd = "New Delhi" _

                               Select emp.Empname, emp.EmpDesg, emp.EmpPhone



        DataGridView1.DataSource = employee
End Sub

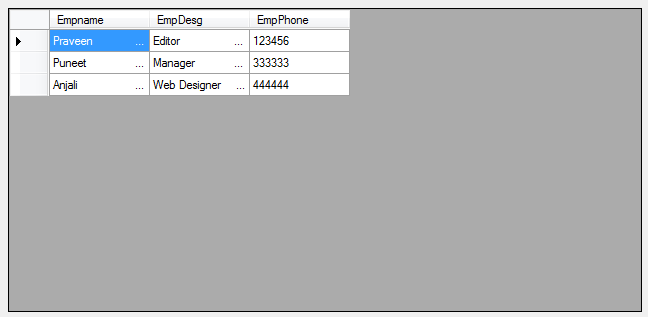

Output:


Also I take liberty to select the number of table columns I want to display rather than whole. For displaying all columns write "Select emp" in the query above.

Conclusion:

Here in this article we have seen how to query the database using LINQ. In later articles we will see more of LINQ.
