HTML5 Canvas Advanced: Part 3

Introduction


HTML5 Canvas Basic Composite.png

Welcome back to my "HTML5 Canvas Advanced" article series. In my previous article series, I explained the basic and advanced parts of transformation, you can read about them here:
In this article, we will learn about State Stacks, Shadows and some basics of composites.


State Stack


In an HTML5 Canvas, we can save and restore transformation states in a canvas context using the "save()" and "restore()" methods of it. These methods come from a concept known as a stack, it works like a container of objects where the objects are inserted and removed using a LIFO (Last-In-First-Out) process. In a similar way, the "save()" method adds an element to the top of the stack and the "restore()" method removes the item from the top. Let's use as an example a stack of books where you can remove only the top book from the stack and if you want to add a new book just put it on the top of the stack. [Reference Link]

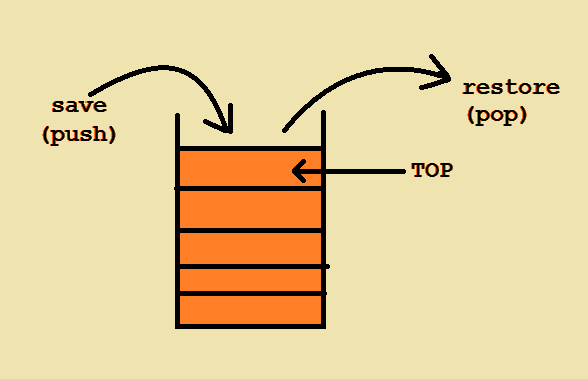

HTML5 Canvas Stack.png

Example
  1. <body>
  2.     <form id="form1" runat="server">
  3.         <div>
  4.             <canvas id="drawCanvas" width="500" height="450"></canvas>
  5.             <script>
  6.                 var drawCanvas = document.getElementById('drawCanvas');
  7.                 var ctx = drawCanvas.getContext('2d');
  8.                 gridDraw(ctx, '#333', 15, 15);
  9.
  10.                 ctx.save();
  11.                 //push 1 - orange
  12.                 ctx.translate(250, 150);
  13.
  14.                 ctx.save();
  15.                 //push 2 - blue
  16.                 ctx.rotate(Math.PI / 4);
  17.
  18.                 ctx.save();
  19.                 //push 3 - red
  20.                 ctx.scale(1, 2.5);
  21.
  22.                 ctx.globalAlpha = 0.6;
  23.                 ctx.fillStyle = "green";
  24.                 ctx.fillRect(0, 0, 150, 100);
  25.                 ctx.fill();
  26.
  27.                 ctx.restore();
  28.                 //pop 3
  29.                 ctx.fillStyle = "red";
  30.                 ctx.fillRect(0, 50, 150, 100);
  31.                 ctx.fill();
  32.
  33.                 ctx.restore();
  34.                 //pop 2
  35.                 ctx.fillStyle = "blue";
  36.                 ctx.fillRect(0, 0, 150, 100);
  37.                 ctx.fill();
  38.
  39.                 ctx.restore();
  40.                 //pop 1
  41.                 ctx.fillStyle = "#a51";
  42.                 ctx.fillRect(0, 0, 150, 100);
  43.                 ctx.fill();
  44.             </script>
  45.         </div>
  46.     </form>
  47. </body>
Output

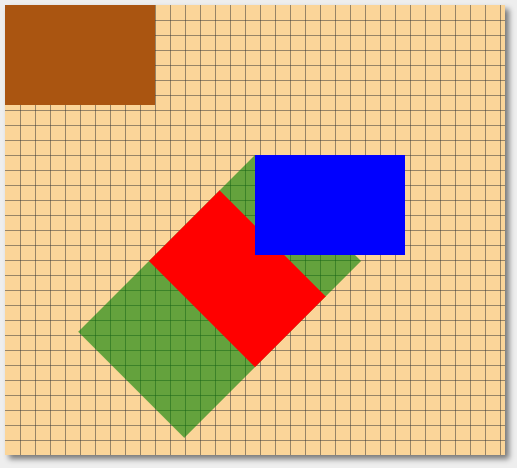

HTML5 Canvas State Stack.PNG


Drawing an Oval


In an HTML5 Canvas, we can create an oval by saving the context state, then stretch the context vertically, now draw a circle,  restore the canvas state that you saved, and finally apply to style to it. Let's see an example.

Example:
  1. <body>
  2.     <form id="form1" runat="server">
  3.         <div>
  4.             <canvas id="drawCanvas" width="450" height="500"></canvas>
  5.
  6.             <script>
  7.                 var drawCanvas = document.getElementById('drawCanvas');
  8.                 var ctx = drawCanvas.getContext('2d');
  9.                 gridDraw(ctx, '#333', 15, 15);
  10.
  11.                 // save context state
  12.                 ctx.save();
  13.
  14.                 // it translate the context
  15.                 ctx.translate(220, 250);
  16.
  17.                 // it scales context vertically
  18.                 ctx.scale(1, 2);
  19.
  20.                 ctx.beginPath();
  21.                 ctx.arc(0, 0, 100, 0, Math.PI * 2, false);
  22.
  23.                 // it will restore back to its initial state
  24.                 ctx.restore();
  25.
  26.                 // it apply style to circle
  27.                 ctx.fillStyle = '#f00';
  28.                 ctx.fill();
  29.
  30.                 // it apply style to stroke
  31.                 ctx.lineWidth = 8;
  32.                 ctx.strokeStyle = 'blue';
  33.                 ctx.stroke();
  34.             </script>
  35.         </div>
  36.     </form>
  37. </body>
Output

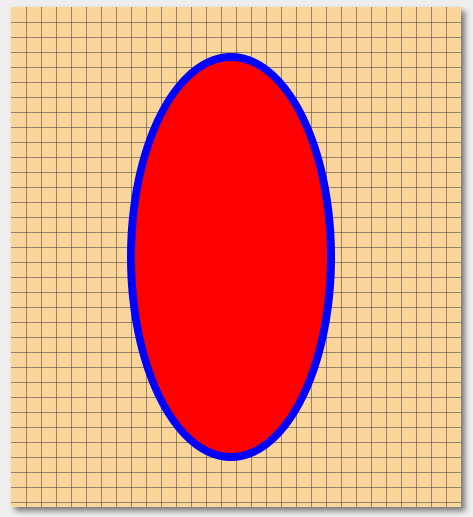

HTML5 Canvas Draw an Oval.PNG


HTML5 Canvas, Basic Composites



Shadow


In HTML5 Canvas, we can add shadows with the canvas context using the following four properties:
  • shadowColor
  • shadowBlur
  • shadowOffsetX
  • shadowOffsetY
  1. <body>
  2.     <form id="form1" runat="server">
  3.         <div>
  4.             <input type="button" id="button" value="Shadow-Mode" onclick="effect()" /> <br />
  5.             <canvas id="drawCanvas" width="450" height="400"></canvas>
  6.
  7.             <script>
  8.                 var drawCanvas = document.getElementById('drawCanvas');
  9.                 var ctx = drawCanvas.getContext('2d');
  10.                 gridDraw(ctx, '#333', 15, 15);
  11.
  12.                 ctx.rect(100, 125, 260, 150);
  13.                 ctx.fillStyle = '#0f0';
  14.                 ctx.fill();
  15.
  16.                 var effect = function () {
  17.                     ctx.rect(100, 125, 260, 150);
  18.                     ctx.shadowColor = '#333';
  19.                     ctx.shadowBlur = 20;
  20.                     ctx.shadowOffsetX = 20;
  21.                     ctx.shadowOffsetY = 20;
  22.                     ctx.fill();
  23.                 }
  24.             </script>
  25.         </div>
  26.     </form>
  27. </body>
Output

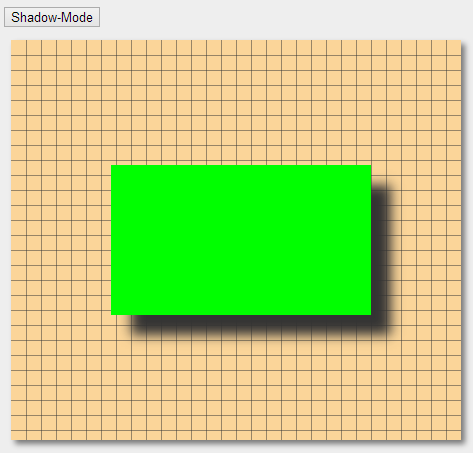

HTML5 Canvas Shadow.PNG


Global Alpha


In HTML5 Canvas, we can set the opacity of other elements with the canvas context using the "globalAlpha" property of it. We can set the property of the canvas context to a real number between 0 and 1. Here, 0 is fully transparent and 1 is fully opaque.

  1. <body>
  2.     <form id="form1" runat="server">
  3.         <div>
  4.             <input type="button" id="button" value="Global AlphaSh-Mode" onclick="effect()" /> <br />
  5.             <canvas id="drawCanvas" width="450" height="400"></canvas>
  6.
  7.             <script>
  8.                 var drawCanvas = document.getElementById('drawCanvas');
  9.                 var ctx = drawCanvas.getContext('2d');
  10.                 gridDraw(ctx, '#333', 15, 15);
  11.
  12.                 ctx.beginPath();
  13.                 ctx.rect(150, 120, 150, 150);
  14.                 ctx.fillStyle = '#0f1';
  15.                 ctx.fill();
  16.
  17.                 var effect = function () {
  18.                     ctx.globalAlpha = 0.4;
  19.                     ctx.beginPath();
  20.                     ctx.arc(140, 125, 65, 0, 2 * Math.PI, false);
  21.                     ctx.fillStyle = '#0af';
  22.                     ctx.fill();
  23.
  24.                     ctx.globalAlpha = 0.5;
  25.                     ctx.beginPath();
  26.                     ctx.arc(300, 125, 65, 0, 2 * Math.PI, false);
  27.                     ctx.fillStyle = '#00f';
  28.                     ctx.fill();
  29.
  30.                     ctx.globalAlpha = 0.6;
  31.                     ctx.beginPath();
  32.                     ctx.arc(140, 270, 65, 0, 2 * Math.PI, false);
  33.                     ctx.fillStyle = '#a0f';
  34.                     ctx.fill();
  35.
  36.                     ctx.globalAlpha = 0.7;
  37.                     ctx.beginPath();
  38.                     ctx.arc(300, 270, 65, 0, 2 * Math.PI, false);
  39.                     ctx.fillStyle = '#f00';
  40.                     ctx.fill();
  41.                 }
  42.             </script>
  43.         </div>
  44.     </form>
  45. </body>
Output

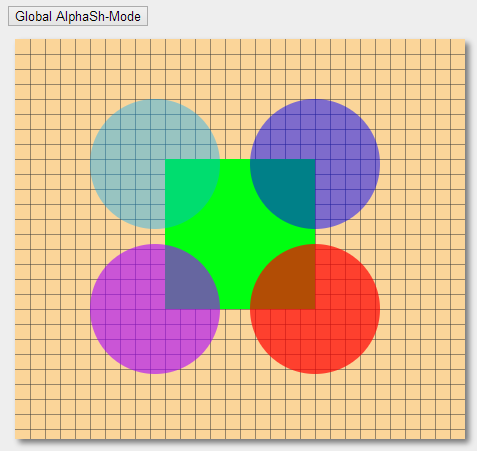

HTML5 Canvas Global Alpha.PNG
