Use Google Maps in Android Phone

Introduction

We can use Google Maps in our Android application using some APIs and libraries. Google provides their maps applicaiton for use by us in any Android app and we can modify it depending on our requirements.

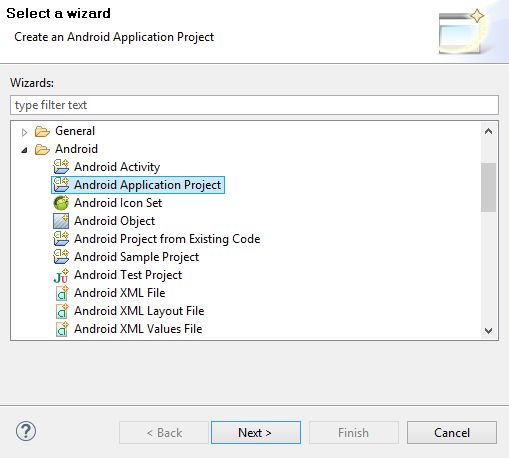

First create an Android Activity Project on Eclipse. For that, go to File, then New and select Android Application Project.

android application progract

Next:

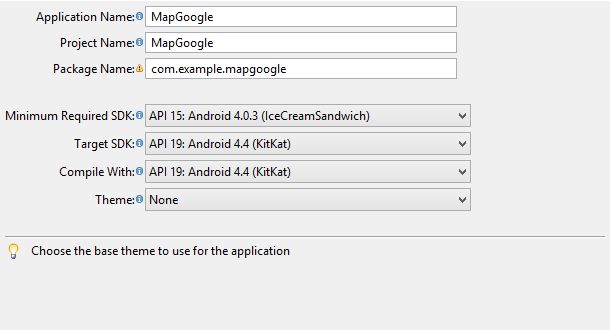

type application name

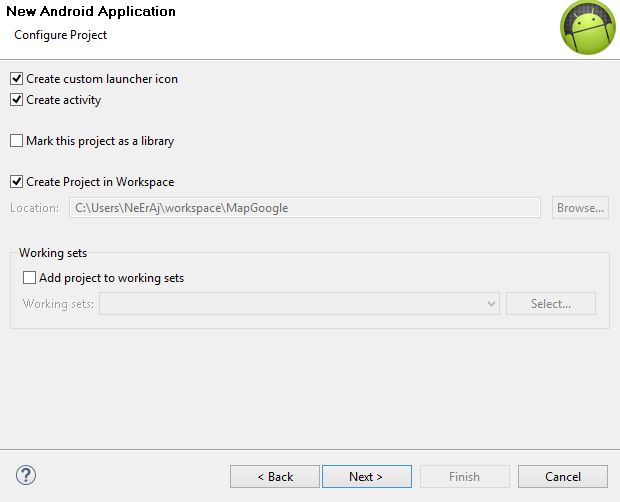

Set the SDK depending on your app, then click Next:

Set SDK

Next:

click next

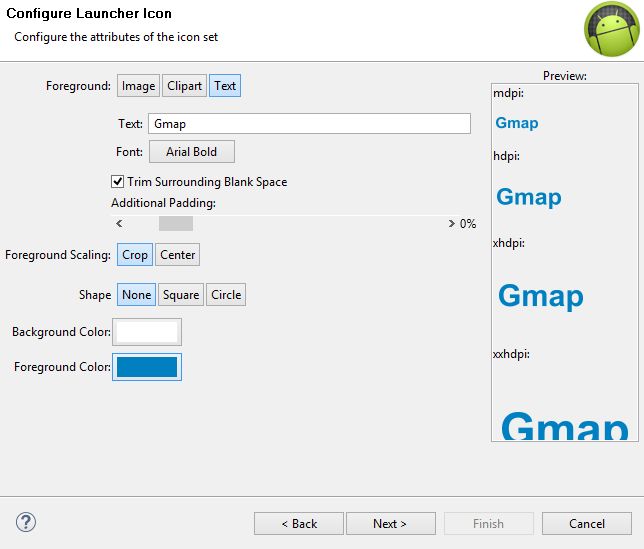

Next, set the Icon of the Android Application.

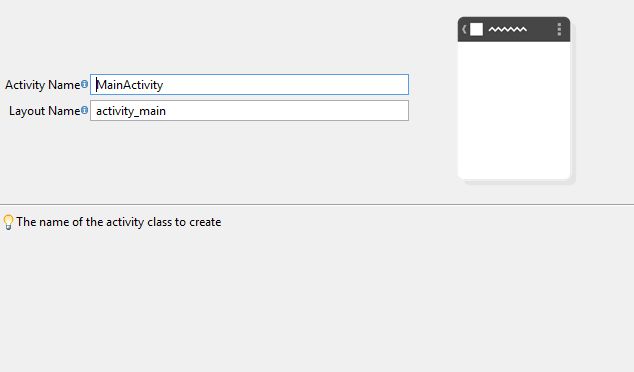

activity name

Finished.

Then import Google Play services from the SDK.

Location: <sdk>extras\Google \Google _play_services\libproject\Google -play-services_lib </sdk>

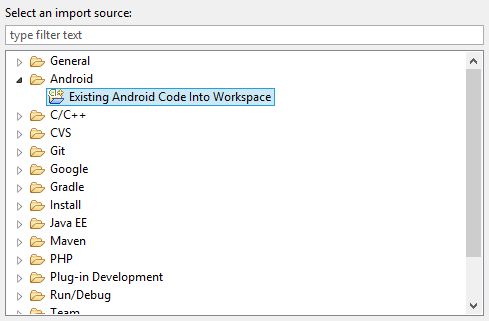

Right-click on the project and select Import.

Import

Next

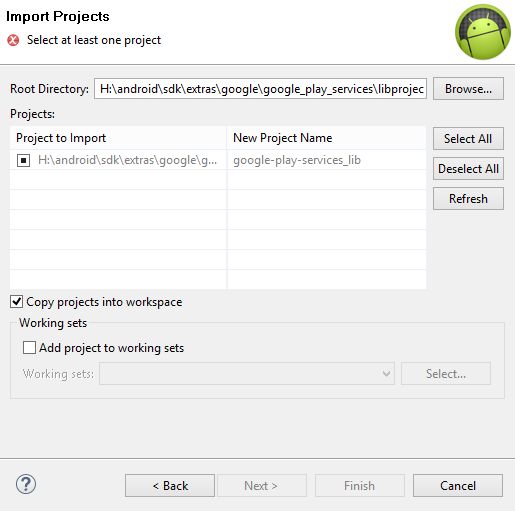

reboot directory

Click on Finish. I’ve already Imported the Google Play library. Therefore the Finish button is not shown as Enabled.

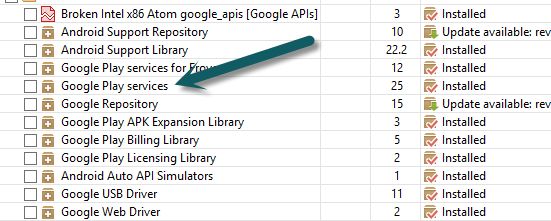

If you do not find the Google Play service library then open the Android SDK Manager and download it as in the following:

Google play service

After download, add the Google Play service to your project:

  • Add the Google Play service to your project.

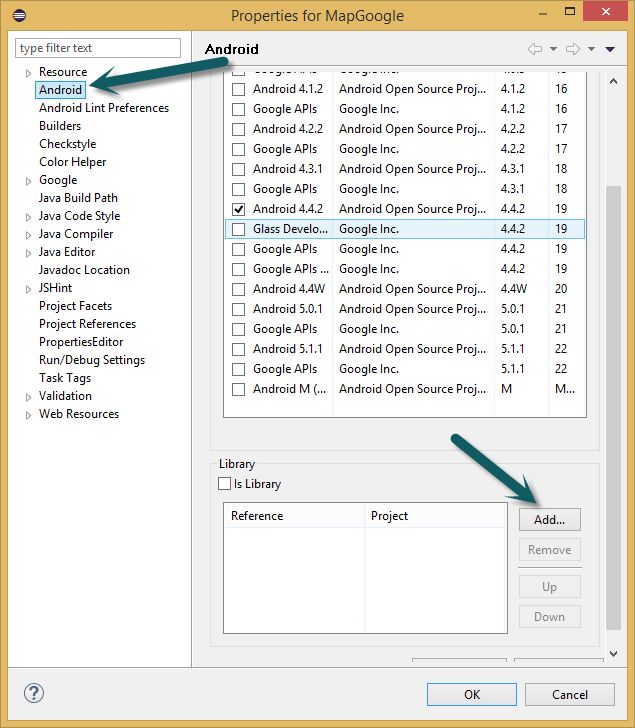

  • Right-click on the project and go to Properties.
  • Go to the Android menu and click the Add button.

android

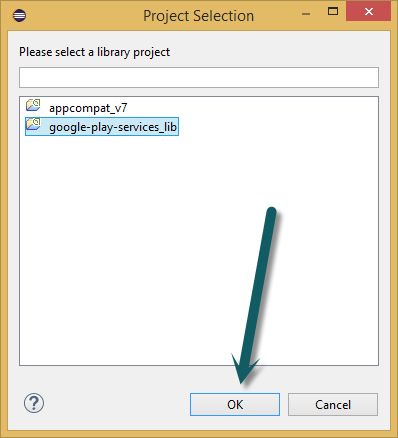

Select Google -play-service_lib and OK.

clock ok

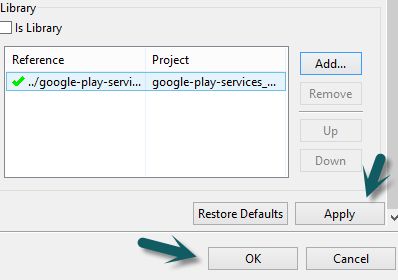

Click on Apply, then Ok.

apply

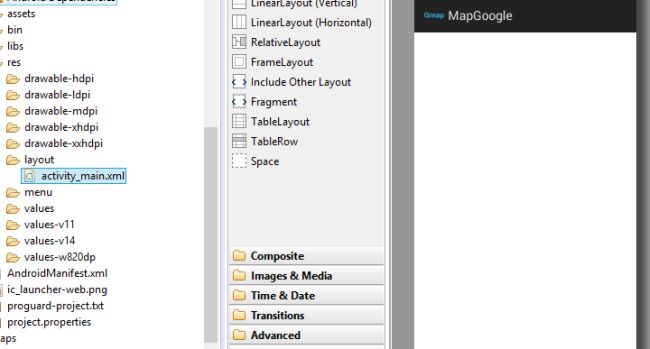

Open the activity_main.xml file.

xml

Then drag the Fragmant layout into the app screen.

A popup screen will show.

Select MapFragment and then OK.

Go to the activity_main.xml code part and change the property of width and height and replace “wrap_content” with “fill_parent”.

This is for showing the full screen map.

Open the AndroidManifest.xml code file and paste the code above the <application> tag:

  1. <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
  2. <uses-permission android:name="android.permission.INTERNET" />
  3. <uses-permission android:name="com.Google .android.providers.gsf.permission.READ_GSERVICES" />
  4. <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
  5. <uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION" />
  6. <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
  7. <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
  8. <uses-permission android:name="com.example.goglemap.permission.MAPS_RECEIVE" />
  9. <permission
  10. android:name="com.example.Google map.MAPS_RECEIVE"
  11. android:protectionLevel="signature" />

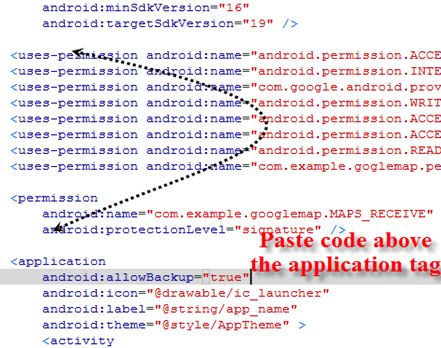

It is shown in the following figure:

program code

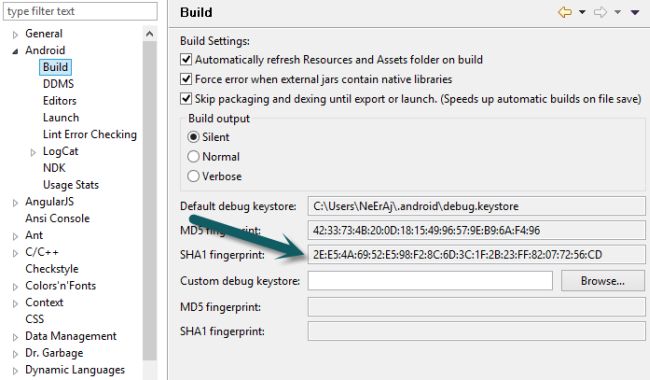

Then go to the Window tab, then Preferences and select Android menu. Then click Build.

Build

Copy SHA1 fingerprint:

And go to website.

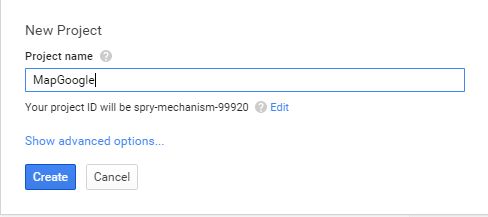

Create the project, then provide the name of the project.

Create Project

You can decide any name depending on your choice.

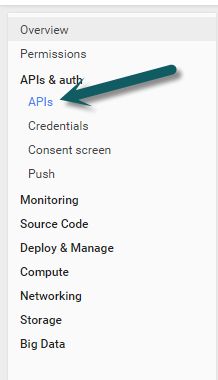

After clicking on the project then go to to the APIs submenu.

APIs

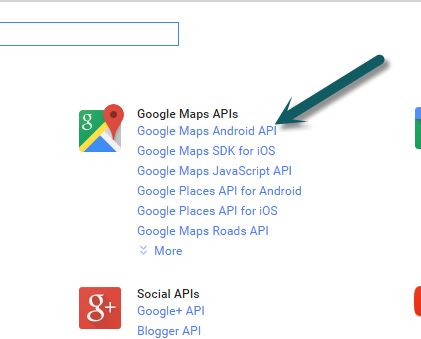

Choose Google Maps Android API.

Google Maps Android AP

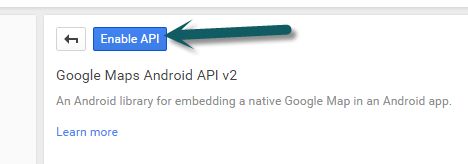

Enable Google Maps Android API v2.

Enable Google Maps Android API

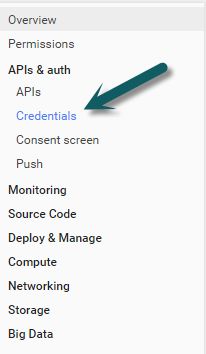

Go to the Credentials submenu.

Credentials

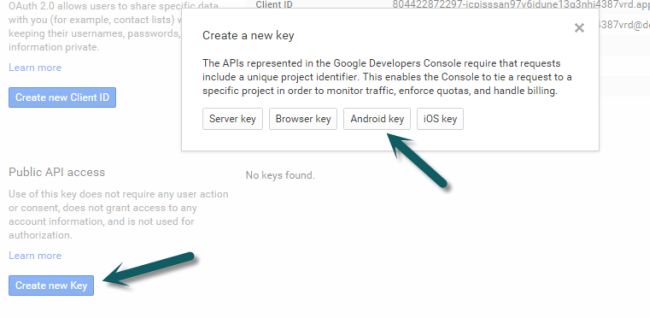

Click on first Create new Key, then a pop-up screen will be visible. Now choose Android Key.

create new key

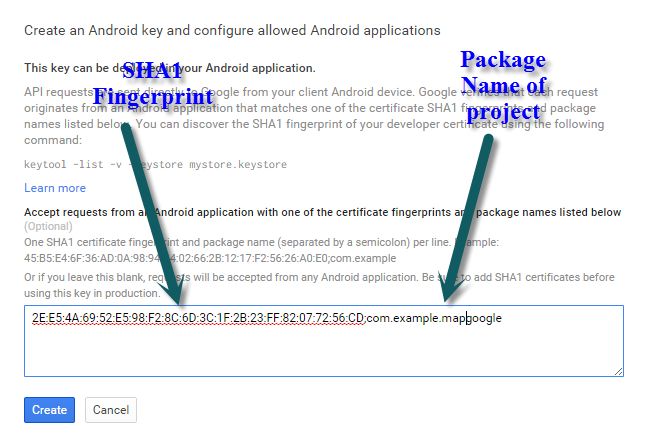

Copy the SHA1 Fingerprint in the text area and add a “;” (semicolon) and provide your project's package name.

SHA1 Fingerprint

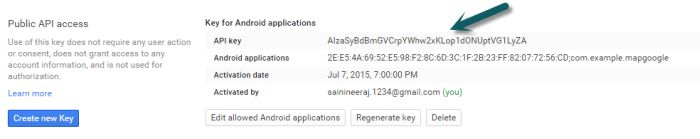

Click on Create and Copy API Key.

API Key

Then process again go to the AndroidManifest.xml code file and and add the following code between the <Activity> tags.
  1. <meta-data
  2.    android:name="com.Google .android.gms.version"
  3.    android:value="@integer/Google _play_services_version"/>
  4. <meta-data
  5.    android:name="com.Google .android.maps.v2.API_KEY"
  6.    android:value="API_KEY"/>

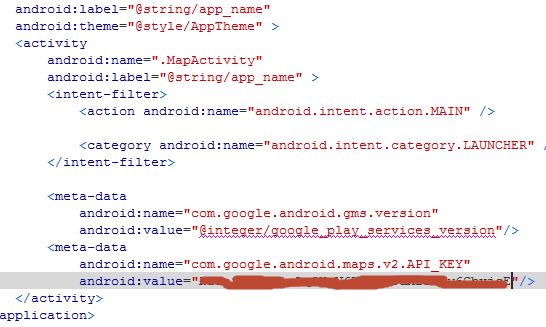

Like the following figure:

code

Paste your Client Key into the value of Android android:value="API_KEY", then open MainActivity.java and import the following two classes:
  1. import com.Google .android.gms.maps.Google Map;
  2. import com.Google .android.gms.maps.MapFragment;

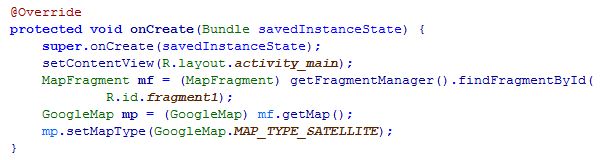

Write the following code in the onCreate() method:
  1. MapFragment mf=(MapFragment)getFragmentManager().findFragmentById(R.id.fragment1);
  2. Google Map mp=(Google Map)mf.getMap();
  3. mp.setMapType(Google Map.MAP_TYPE_SATELLITE);
code in onCreate Method

Then run your project for the first time in AVD to build the .apk file, then move it into Android and install it.
