Create Form Using HTML 5 and CSS

Posted by Manoj Rajput Articles | HTML 5 July 30, 2012
How to create a form using HTML 5 and CSS
  • 0
  • 0
  • 7047


Introduction

HTML5 has been with us for a while now, roughly ten years. And, it hasn't really seen a major update. Sure there's XHTML, but that did little more than make things slightly stricter - making you write better quality code if you were at all concerned with compliance. HTML 5 does more than that. For one thing, it adds a few new features. Not a huge amount, but the ones that it does add are very useful.

Work on HTML 5 started way back in 2004, and now it's starting to get interesting. Browser support is increasing, and the element I'm most interested in - CANVAS - is supported by four out of the major five browsers. It is, however, not really feasible to use it since MSIE doesn't have any support for it.

Step 1: Open Macromedia Dreamweaver

Click Start button -> Macromedia Dreamweaver

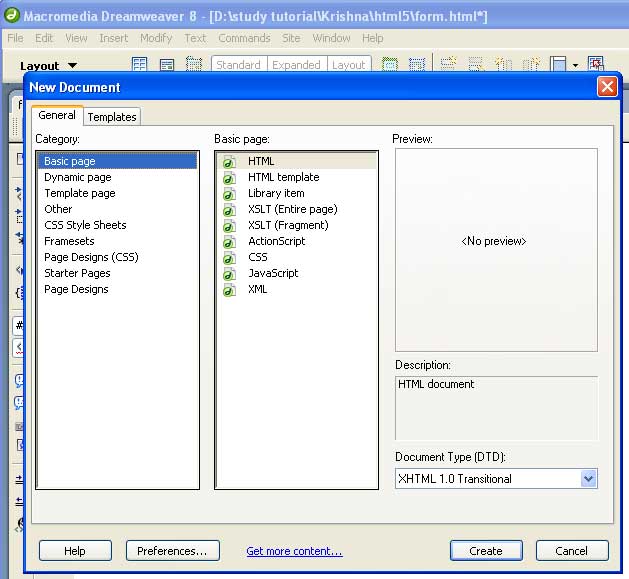

Step 2: Create a new document

Click File Menu -> New Document

Click the Create button.



Step 3:- HTML 5 Doctype:

<!DOCTYPE html>
<html dir="ltr" lang="en" xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta charset=utf-8 />
<title>Title </title>

</head>
<body>
Create Text here

</body>
</html>

 Step 4 : Define the body part and set the content of the Payment form.

Code

<h1>Payment form</h1>
<form id=payment>
  <fieldset>
  <legend>Your details</legend>
  <ol>
    <li>
      <label for=name>Name</label>
      <input id=name name=name type=text placeholder="First and last name" required autofocus>
    </li>
    <li>
      <label for=email>Email</label>
      <input id=email name=email type=email placeholder="example@domain.com" required>
    </li>
    <li>
      <label for=phone>Phone</label>
      <input id=phone name=phone type=tel placeholder="Eg. +447500000000" required>
    </li>
  </ol>
  </fieldset>
  <fieldset>
  <legend>Delivery address</legend>
  <ol>
    <li>
      <label for=address>Address</label>
      <textarea id=address name=address rows=5 required></textarea>
    </li>
    <li>
      <label for=postcode>Post code</label>
      <input id=postcode name=postcode type=text required>
    </li>
    <li>
      <label for=country>Country</label>
      <input id=country name=country type=text required>
    </li>
  </ol>
  </fieldset>
  <fieldset>
  <legend>Card details</legend>
  <ol>
    <li>
      <fieldset>
      <legend>Card type</legend>
      <ol>
        <li>
          <input id=visa name=cardtype type=radio>
          <label for=visa>VISA</label>
        </li>
        <li>
          <input id=amex name=cardtype type=radio>
          <label for=amex>AmEx</label>
        </li>
        <li>
          <input id=mastercard name=cardtype type=radio>
          <label for=mastercard>Mastercard</label>
        </li>
      </ol>
      </fieldset>
    </li>
    <li>
      <label for=cardnumber>Card number</label>
      <input id=cardnumber name=cardnumber type=number required>
    </li>
    <li>
      <label for=secure>Security code</label>
      <input id=secure name=secure type=number required>
    </li>
    <li>
      <label for=namecard>Name on card</label>
      <input id=namecard name=namecard type=text placeholder="Exact name as on the card" required>
    </li>
  </ol>
  </fieldset>
  <fieldset>
  <button type=submit>Submit</button>
  </fieldset>
</form>

Step 5 : Apply the Stylesheet of the form

Code

<style>
html, body, h1, form, fieldset, legend, ol, li {
margin: 0;
padding: 0;
}

body {
background: #ffffff;
color: #111111;
font-family: Georgia, "Times New Roman", Times, serif;
padding: 20px;
}

h1 {
    font-size: 28px;
    margin-bottom: 20px;
    }

form#payment {
    background: #9cbc2c;
    -moz-border-radius: 5px;
    -webkit-border-radius: 5px;
    -khtml-border-radius: 5px;
    border-radius: 5px;
    counter-reset: fieldsets;
    padding: 20px;
    width: 400px;
    }

form#payment fieldset {
border: none;
margin-bottom: 10px;
}

form#payment fieldset:last-of-type {
margin-bottom: 0;
}

form#payment legend {
color: #384313;
font-size: 16px;
font-weight: bold;
padding-bottom: 10px;
text-shadow: 0 1px 1px #c0d576;
}

form#payment > fieldset > legend:before {
content: "Step " counter(fieldsets) ": ";
counter-increment: fieldsets;
}

form#payment fieldset fieldset legend {
color: #111111;
font-size: 13px;
font-weight: normal;
padding-bottom: 0;
}

form#payment ol li {
background: #b9cf6a;
background: rgba(255,255,255,.3);
border-color: #e3ebc3;
border-color: rgba(255,255,255,.6);
border-style: solid;
border-width: 2px;
-moz-border-radius: 5px;
-webkit-border-radius: 5px;
-khtml-border-radius: 5px;
border-radius: 5px;
line-height: 30px;
list-style: none;
padding: 5px 10px;
margin-bottom: 2px;
}

form#payment ol ol li {
background: none;
border: none;
float: left;
}

form#payment label {
float: left;
font-size: 13px;
width: 110px;
}

form#payment fieldset fieldset label {
background:none no-repeat left 50%;
line-height: 20px;
padding: 0 0 0 30px;
width: auto;
}

form#payment label[for=visa] {
background-image: url(visa.gif);
}
form#payment label[for=amex] {
background-image: url(amex.gif);
}
form#payment label[for=mastercard] {
background-image: url(mastercard.gif);
}

form#payment fieldset fieldset label:hover {
cursor: pointer;
}

form#payment input:not([type=radio]),
form#payment textarea {
background: #ffffff;
border: none;
-moz-border-radius: 3px;
-webkit-border-radius: 3px;
-khtml-border-radius: 3px;
border-radius: 3px;
font: italic 13px Georgia, "Times New Roman", Times, serif;
outline: none;
padding: 5px;
width: 200px;
}

form#payment input:not([type=submit]):focus,
form#payment textarea:focus {
background: #eaeaea;
}

form#payment input[type=radio] {
float: left;
margin-right: 5px;
}

form#payment button {
background: #384313;
border: none;
-moz-border-radius: 20px;
-webkit-border-radius: 20px;
-khtml-border-radius: 20px;
border-radius: 20px;
color: #ffffff;
display: block;
font: 18px Georgia, "Times New Roman", Times, serif;
letter-spacing: 1px;
margin: auto;
padding: 7px 25px;
text-shadow: 0 1px 1px #000000;
text-transform: uppercase;
}

form#payment button:hover {
background: #1e2506;
cursor: pointer;
}

</style>


Step 6 : Write the complete code for the developed simple Payment form that uses the HTML 5 tools. The complete application is given below.

Code:


<!DOCTYPE html>
<html dir="ltr" lang="en" xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta charset=utf-8 />
<title>Form HTML 5 </title>
<style>
html, body, h1, form, fieldset, legend, ol, li {
margin: 0;
padding: 0;
}

body {
background: #ffffff;
color: #111111;
font-family: Georgia, "Times New Roman", Times, serif;
padding: 20px;
}

h1 {
    font-size: 28px;
    margin-bottom: 20px;
    }

form#payment {
    background: #9cbc2c;
    -moz-border-radius: 5px;
    -webkit-border-radius: 5px;
    -khtml-border-radius: 5px;
    border-radius: 5px;
    counter-reset: fieldsets;
    padding: 20px;
    width: 400px;
    }

form#payment fieldset {
border: none;
margin-bottom: 10px;
}

form#payment fieldset:last-of-type {
margin-bottom: 0;
}

form#payment legend {
color: #384313;
font-size: 16px;
font-weight: bold;
padding-bottom: 10px;
text-shadow: 0 1px 1px #c0d576;
}

form#payment > fieldset > legend:before {
content: "Step " counter(fieldsets) ": ";
counter-increment: fieldsets;
}

form#payment fieldset fieldset legend {
color: #111111;
font-size: 13px;
font-weight: normal;
padding-bottom: 0;
}

form#payment ol li {
background: #b9cf6a;
background: rgba(255,255,255,.3);
border-color: #e3ebc3;
border-color: rgba(255,255,255,.6);
border-style: solid;
border-width: 2px;
-moz-border-radius: 5px;
-webkit-border-radius: 5px;
-khtml-border-radius: 5px;
border-radius: 5px;
line-height: 30px;
list-style: none;
padding: 5px 10px;
margin-bottom: 2px;
}

form#payment ol ol li {
background: none;
border: none;
float: left;
}

form#payment label {
float: left;
font-size: 13px;
width: 110px;
}

form#payment fieldset fieldset label {
background:none no-repeat left 50%;
line-height: 20px;
padding: 0 0 0 30px;
width: auto;
}

form#payment label[for=visa] {
background-image: url(visa.gif);
}
form#payment label[for=amex] {
background-image: url(amex.gif);
}
form#payment label[for=mastercard] {
background-image: url(mastercard.gif);
}

form#payment fieldset fieldset label:hover {
cursor: pointer;
}

form#payment input:not([type=radio]),
form#payment textarea {
background: #ffffff;
border: none;
-moz-border-radius: 3px;
-webkit-border-radius: 3px;
-khtml-border-radius: 3px;
border-radius: 3px;
font: italic 13px Georgia, "Times New Roman", Times, serif;
outline: none;
padding: 5px;
width: 200px;
}

form#payment input:not([type=submit]):focus,
form#payment textarea:focus {
background: #eaeaea;
}

form#payment input[type=radio] {
float: left;
margin-right: 5px;
}

form#payment button {
background: #384313;
border: none;
-moz-border-radius: 20px;
-webkit-border-radius: 20px;
-khtml-border-radius: 20px;
border-radius: 20px;
color: #ffffff;
display: block;
font: 18px Georgia, "Times New Roman", Times, serif;
letter-spacing: 1px;
margin: auto;
padding: 7px 25px;
text-shadow: 0 1px 1px #000000;
text-transform: uppercase;
}

form#payment button:hover {
background: #1e2506;
cursor: pointer;
}

</style>
</head>
<body>
<h1>Payment form</h1>
<form id=payment>
  <fieldset>
  <legend>Your details</legend>
  <ol>
    <li>
      <label for=name>Name</label>
      <input id=name name=name type=text placeholder="First and last name" required autofocus>
    </li>
    <li>
      <label for=email>Email</label>
      <input id=email name=email type=email placeholder="example@domain.com" required>
    </li>
    <li>
      <label for=phone>Phone</label>
      <input id=phone name=phone type=tel placeholder="Eg. +447500000000" required>
    </li>
  </ol>
  </fieldset>
  <fieldset>
  <legend>Delivery address</legend>
  <ol>
    <li>
      <label for=address>Address</label>
      <textarea id=address name=address rows=5 required></textarea>
    </li>
    <li>
      <label for=postcode>Post code</label>
      <input id=postcode name=postcode type=text required>
    </li>
    <li>
      <label for=country>Country</label>
      <input id=country name=country type=text required>
    </li>
  </ol>
  </fieldset>
  <fieldset>
  <legend>Card details</legend>
  <ol>
    <li>
      <fieldset>
      <legend>Card type</legend>
      <ol>
        <li>
          <input id=visa name=cardtype type=radio>
          <label for=visa>VISA</label>
        </li>
        <li>
          <input id=amex name=cardtype type=radio>
          <label for=amex>AmEx</label>
        </li>
        <li>
          <input id=mastercard name=cardtype type=radio>
          <label for=mastercard>Mastercard</label>
        </li>
      </ol>
      </fieldset>
    </li>
    <li>
      <label for=cardnumber>Card number</label>
      <input id=cardnumber name=cardnumber type=number required>
    </li>
    <li>
      <label for=secure>Security code</label>
      <input id=secure name=secure type=number required>
    </li>
    <li>
      <label for=namecard>Name on card</label>
      <input id=namecard name=namecard type=text placeholder="Exact name as on the card" required>
    </li>
  </ol>
  </fieldset>
  <fieldset>
  <button type=submit>Submit</button>
  </fieldset>
</form>
</body>
</html>

Output:
