Working With Delegates in C#

Posted by Richa Garg Articles | C# Language May 11, 2012
In this article I explain delegates and how we use them.
  • 0
  • 0
  • 5189

INTRODUCTION

Delegates are function pointers. Delegates can be chained together; for example, multiple methods can be called on a single event. There are two types of delegates.

  • Single Cast Delegate
  • Multi Cast Delegates

A Singlecast delegate can return any datatype and contain the address of one function. It is derived from the System.Delegate class. It contains the reference of one method at a time. A Multicast delegate does not return any value and contains addresses of multiple functions. It is derived from the System.MulticastDelegate class.

The foillowing steps are used to create delegates.

Step 1: Open Visual Studio 2010 and click on file->new->project->and click console application.

Step 2: Write the following code for a Singlecast delegate.

namespace ConsoleApplication2

{

    class Program

    {

        static void Main(string[] args)

        {

            singlecast ob = new singlecast(abc.mul);//delegate instantiation

            int a = ob(4, 2);

            Console.WriteLine("The multiplication is"+a);

             ob = new singlecast(abc.add);

            int b = ob(10, 2);

            Console.WriteLine("The addition is:" + b);

            ob = new singlecast(abc1.div);

            int c = ob(6, 3);

            Console.WriteLine("The division is:"+b);

        }

    }

    delegate int singlecast(int x, int y); //Delegate declaration

    class abc

    {

      internal static int add(int a,int b)//return type should be match with the delegate return type.and same number of arguments as in the delegates.

       {

          return a+b;

       }

       internal static int mul(int a,int b)

       {

          return a*b;

       }

     }

     class abc1

     {

       internal static int div(int a,int b)

       {

         return a/b;

       }

     }

  }

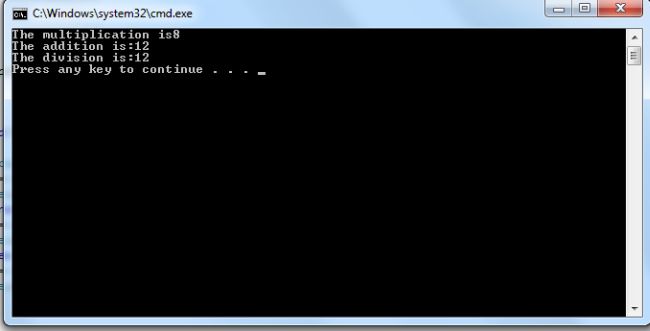

Step 3: Now to run the program by pressing Ctrl+F5, and the output is as:


Step 4: Add the following code for a multicast delegate:

delegate void Notifier(int i,int j); //declare delegate

class calculation

{

    public void add(int a, int b) //method declaration

    {

        Console.WriteLine("Addition is " + (a + b));

    }



    public void substraction(int x, int y)

    {

        Console.WriteLine("substraction is " + (x - y));

    }

}

class MTest

{

    public static void Main()

    {

        calculation obj = new calculation();

        Notifier number;

        number = new Notifier(obj.add);

        number += new Notifier(obj.substraction);

        number(10, 2);

        number -= new Notifier(obj.substraction);

        number(4, 2);

        Console.ReadLine();

    }

}

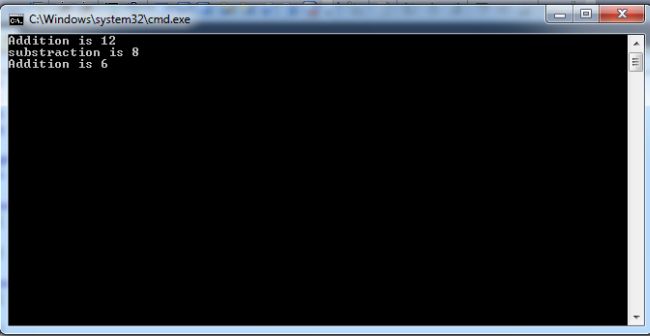

Step 5: Run the application by pressing F5 and the output is as:



Summary: In this article I explain the singlecast delegate and the multicast delegate. I hope this will be helpful for you.
