Cropping and Saving Image to Web Page Programmatically Using System.Drawing

Posted by Lajapathy Arun Articles | ASP.NET Programming April 21, 2012
In this article we are going to see how to crop and save the image to the web programmatically.
  • 0
  • 0
  • 11156

In this article we are going to see how to crop and save the image to the web programmatically.

Saving Mechanism:


Step 1: The namespaces used:

using System.Drawing;
using System.Drawing.Imaging;
using System.Web;

Step 2: Usage:

protected void Page_Load(object sender, EventArgs e)
{
   SaveImageTOBrowser();
}

Step 3: Saving image to browser:

public void SaveImageTOBrowser()
{
    //Set the Local image
    Bitmap bitmap = new Bitmap(Server.MapPath("scenary.jpg"));

    //Get the current response
    HttpResponse response = GetHttpResponse();

    //Set the ContentType
    response.ContentType = "image/jpeg";

    //Saving Bitmap Image to
    bitmap.Save(response.OutputStream, ImageFormat.Jpeg);
}

Step 4: Getting current response:

public static HttpResponse GetHttpResponse()
{
    return HttpContext.Current.Response;
}

Step 5: Full Code Snippet:

using System;
using System.Drawing;
using System.Drawing.Imaging;
using System.Web;

namespace SampleApplication
{
    public partial class DrawingManupulation : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
            SaveImageTOBrowser();
        }
        //Save Image to Browser
        public void SaveImageTOBrowser()
        {
            //Set the Local image
            Bitmap bitmap = new Bitmap(Server.MapPath("scenary.jpg"));

            //Get the current response
            HttpResponse response = GetHttpResponse();

            //Set the ContentType
            response.ContentType = "image/jpeg"

            //Saving Bitmap Image to
            bitmap.Save(response.OutputStream, ImageFormat.Jpeg);
        }
        //USed to get the current response.
        public static HttpResponse GetHttpResponse()
        {
            return HttpContext.Current.Response;
        }
    }
}

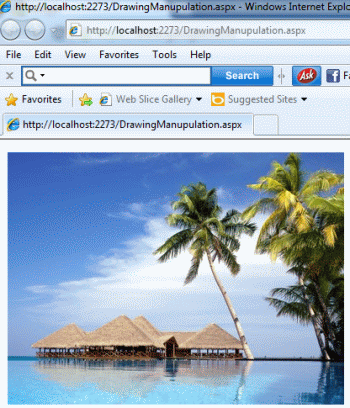

Output:


Cropping and Saving Mechanism

Step 1: The namespaces used:

using System.Drawing;
using System.Drawing.Imaging;
using System.Web;

Step 2: Usage:

protected void Page_Load(object sender, EventArgs e)
{
    SaveCroppedImageTOBrowser();
}

Step 3: Saving image to browser:

//CROP Image to Browser
public void SaveCroppedImageTOBrowser()
{
    //Set the Local image
    Bitmap bitmap = new Bitmap(Server.MapPath("scenary.jpg"));
    Bitmap croppedBitmap = CropBitmap(bitmap, 0, 0, 300, 200);
    //Get the current response
    HttpResponse response = GetHttpResponse();

    //Set the ContentType
    response.ContentType = "image/jpeg";

    //Saving Bitmap Image to
    croppedBitmap.Save(response.OutputStream, ImageFormat.Jpeg);
}

Step 4: Getting current response:

public static HttpResponse GetHttpResponse()
{
    return HttpContext.Current.Response;
}

Step 5: Full Code Snippet:

using System;
using System.Drawing;
using System.Drawing.Imaging;
using System.Web;

namespace SampleApplication
{
    public partial class DrawingManupulation : System.Web.UI.Page
    {
        protected void Page_Load(object sender, EventArgs e)
        {
            SaveCroppedImageTOBrowser();
        }

        //CROP Image to Browser
        public void SaveCroppedImageTOBrowser()
        {
            //Set the Local image
            Bitmap bitmap = new Bitmap(Server.MapPath("scenary.jpg"));
            Bitmap croppedBitmap = CropBitmap(bitmap, 0, 0, 300, 200);

            //Get the current response
            HttpResponse response = GetHttpResponse();

            //Set the ContentType
            response.ContentType = "image/jpeg";

            //Saving Bitmap Image to
            croppedBitmap.Save(response.OutputStream, ImageFormat.Jpeg);
        }

        //USed to get the current response.
        public static HttpResponse GetHttpResponse()
        {
            return HttpContext.Current.Response;
        }
        public Bitmap CropBitmap(Bitmap bitmap, int cropX, int cropY, int cropWidth, int cropHeight)
        {
            Rectangle rect = new Rectangle(cropX, cropY, cropWidth, cropHeight);
            Bitmap cropped = bitmap.Clone(rect, bitmap.PixelFormat);
            return cropped;
        }
    }
}


Original Image:

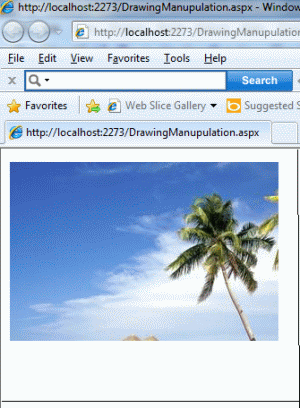

Cropped Image:

Thanks for reading this article. Have a nice day.
