Show Your Current Location on Bing Map in Windows Phone 7

Posted by Deepak Sharma Articles | Windows Phone February 12, 2012
In this article you will see how you can show your current location in Bing Map in Windows Phone 7.
Reader Level:
Download Files:


In this article you will see how you can show your current location in Bing Maps in Windows Phone 7.

Objective

The objective of this article is to get the current latitude and longitude of your phone using the Location API and passing it to the Map control to show your exact location on the map. As every Windows 7 phone is equipped with an inbuilt GPS, we can easily obtain its coordinates with high accuracy.

Step 1: Create a new Windows Phone Application.


Step 2:

Drag a Map control onto MainPage.xaml and adjust it to fit the Grid. Register for a Bing Maps API key at www.bingmapsportal.com and set the value of CredentialsProvider attribute with your key.

<my:Map Name="map1" CredentialsProvider="Your Map Key" Width="438" Height="595" HorizontalAlignment="Left" VerticalAlignment="Top"/>

Step 3:

To use Location service, we need to add a reference to System.Device dll and include System.Device.Location namespace

MainPage.xaml.cs

using System.Device.Location;
GeoCoordinateWatcher
myCoordinateWatcher;
double
Latitued, Longitude;

private void PhoneApplicationPage_Loaded(object sender, RoutedEventArgs e)
{

    Latitued = 28.3131;
    Longitude = 77.1212;
    map1.Center = new GeoCoordinate(Latitued, Longitude);
    map1.ZoomLevel = 5;
    map1.ZoomBarVisibility =Visibility.Visible;
    myCoordinateWatcher = new GeoCoordinateWatcher(GeoPositionAccuracy.High);
    myCoordinateWatcher.PositionChanged += new EventHandler<GeoPositionChangedEventArgs<GeoCoordinate>>(myCoordinateWatcher_PositionChanged);

}

Note: To add PositionChanged event, just type myCoordinateWatcher.PositionChanged += and press TAB key twice. Visual Studio will create event for you.

void myCoordinateWatcher_PositionChanged(object sender, GeoPositionChangedEventArgs<GeoCoordinate> e)
{
    if (!e.Position.Location.IsUnknown)
    {
        Latitued = e.Position.Location.Latitude;
        Longitude = e.Position.Location.Longitude;
        map1.Center = new GeoCoordinate(Latitued, Longitude);
    }
}

Code Explanation:

The System.Device.Location namespace is added to use the Location API. A GeoCordinateWatcher and two double variables are declared inside the class declaration. In the application load event default values for Latitude and Longitude are set. Map1.Center is used to set the map center to the given coordinates. Map1.ZoomLevel=5 is used to set the zoom level of the map. Map1. ZoomBarVisibility is used to show Zoom In and Zoom Out buttons. GeoCoordinateWatcher is used to get the current Latitude and Longitude of the device. GeoPositionAccuracy.High is used to ensure that we will get the coordinates with high accuracy. The PositionChanged event of GeoCoordinateWatcher is fired when the phone is moved to a different location. In the myCoordinateWatcher_PositionChanged if the Location is known then the current Latitude and Longitude is retrieved and the map is centered at that coordinates.

Unfortunately the Location service only works with a live device; it does not give any default value in the Emulator. So, I have used default coordinates to position the map to India when the application loads.

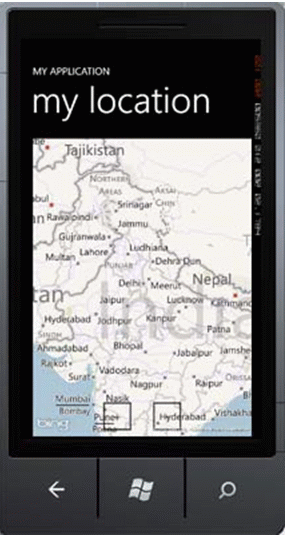

Final Output
