WCF 4.0 Service Consumed in Silverlight 4.0 with Cross Domain

Posted by Dhananjay Kumar Articles | WCF with C# September 08, 2010
This article will explain how to call WCF 4.0 service hosted in IIS 7.5 in a Silverlight application.
Reader Level:

Objective

This article will explain how to call WCF 4.0 service hosted in IIS 7.5 in a Silverlight application.  This article will explain the way to avoid cross domain problem also.

Expected Output


When user will click on + button a WCF service hosted on IIS will get called. As a input parameter to service value from two text box will be passed and result from the service will get display in result text box.


Create WCF Service

Create WCF service. Open visual studio select new project and then from WCF tab select WCF Service application to create a new WCF service.


Delete the default code created by WCF from IService1 and Service1.svc.cs
  • So delete the data contract
  • Modify the service contract as below. Just make one operation contract to return a string.
IService1.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;

namespace WcfService5
{
    [ServiceContract]
    public interface IService1
    {
        [OperationContract]
        string  GetMessage(string  number1 , string number2);
    }
}

Now implement the service as below,

Service1.svc.cs

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;

namespace WcfService5
{
    public class Service1 : IService1
    {
        public string GetMessage(string number1, string number2)
        {
            return (Convert.ToInt32(number1) + Convert.ToInt32(number2)).ToString();
        }
    }
}

Since, we are creating WCF Service for SilverLight client, so we need to modify the endpoint of the service with basicHttpBinding.

As we know SilverLight supports either basicHttpBinding or webHttpBinding.  webHttpBinding is essentially for REST based service .  We are going to use basicHttpBinding to enable SOAP based WCF service for SilverLight client.

<services>
      <service name ="WcfService3.Service1" behaviorConfiguration ="svcbh" >
        <host>
          <baseAddresses>
            <add baseAddress = "http//localhost:9000/Service1/" />
          </baseAddresses>
        </host>
        <endpoint name ="duplexendpoint"
                  address =""
                  binding ="wsDualHttpBinding"
                  contract ="WcfService3.IService1"/>
        <endpoint name ="MetaDataTcpEndpoint"
                  address="mex"
                  binding="mexHttpBinding"
                  contract="IMetadataExchange"/>
      </service>
</services>
  1. Declare the end point with basicHttpBinding.

    <
    endpoint name ="SilverLightendpoint"
              address =""
              binding ="basicHttpBinding"
              contract ="WcfService5.IService1"/>

  2. Declare the Meta data exchange end point.

    <
    endpoint name ="MetaDataSilverlightEndpoint"
              address="mex"
              binding="mexHttpBinding"
              contract="IMetadataExchange"/>

  3. Define the service behavior

    <
    serviceBehaviors>
      <behavior name ="svcbh">
        <serviceMetadata httpGetEnabled="true"/>
        <serviceDebug includeExceptionDetailInFaults="false"/>
      </behavior>
    </serviceBehaviors>
So the service will look like

<services>
  <service name ="WcfService5.Service1" behaviorConfiguration ="svcbh">
    <endpoint name ="SilverLightendpoint"
              address =""
              binding ="basicHttpBinding"
              contract ="WcfService5.IService1"/>
    <endpoint name ="MetaDataSilverlightEndpoint"
              address="mex"
              binding="mexHttpBinding"
              contract="IMetadataExchange"/>
  </service>
</services>

Web.Config

<?xml version="1.0"?>
<configuration>
  <system.web>
    <compilation debug="true" targetFramework="4.0" />
  </system.web>
  <system.serviceModel>
    <behaviors>
      <serviceBehaviors>
        <behavior name ="svcbh">
          <serviceMetadata httpGetEnabled="true"/>
          <serviceDebug includeExceptionDetailInFaults="false"/>
        </behavior>
      </serviceBehaviors>
    </behaviors>
    <services>
      <service name ="WcfService5.Service1" behaviorConfiguration ="svcbh">
        <endpoint name ="SilverLightendpoint"
                  address =""
                  binding ="basicHttpBinding"
                  contract ="WcfService5.IService1"/>
        <endpoint name ="MetaDataSilverlightEndpoint"
                  address="mex"
                  binding="mexHttpBinding"
                  contract="IMetadataExchange"/>
      </service>
    </services>
    <!--<serviceHostingEnvironment multipleSiteBindingsEnabled="true" />-->
  </system.serviceModel>
 <system.webServer>
    <modules runAllManagedModulesForAllRequests="true"/>
  </system.webServer>
</configuration>

Hosting in IIS and solving the cross domain problem


Solving cross domain problem

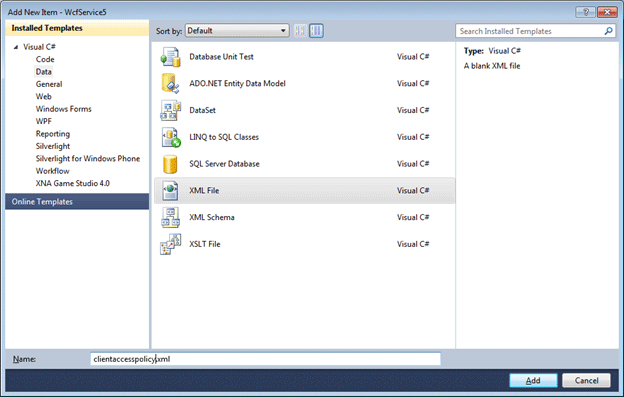

  1. Right click on WCF Service project and add new item. Select XML file from Data tab.


  2. Give the name of the XML file clientaccesspolicy.xml


  3. Add the below markup in ClientAcccessPolicy.xml  file

    <?
    xml version="1.0" encoding="utf-8" ?>
    <access-policy>
      <cross-domain-access>
        <policy>
          <allow-from http-request-headers="SOAPAction,Content-Type">
            <domain uri="*" />
          </allow-from>
          <grant-to>
            <resource path="/" include-subpaths="true"/>
          </grant-to>
        </policy>
      </cross-domain-access>
    </access-policy>

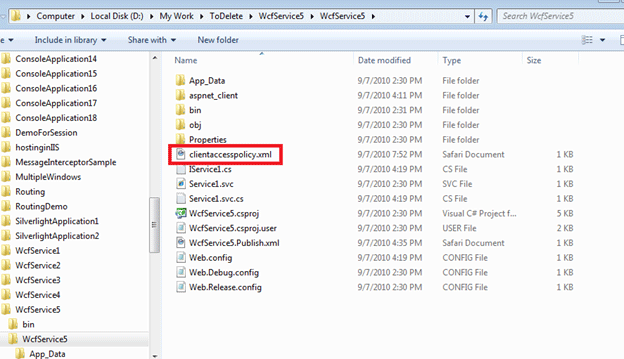

  4. Now open WCF Service project in windows explorer. To do this right clicks on the project and select open folder in Window explorer.

Copy clientaccesspolicy.xml file and paste it in C:\inetpub\wwwroot. Make sure in wwwroot folder clientaccesspolicy.xml file exist.

Consuming in SilverLight 4.0

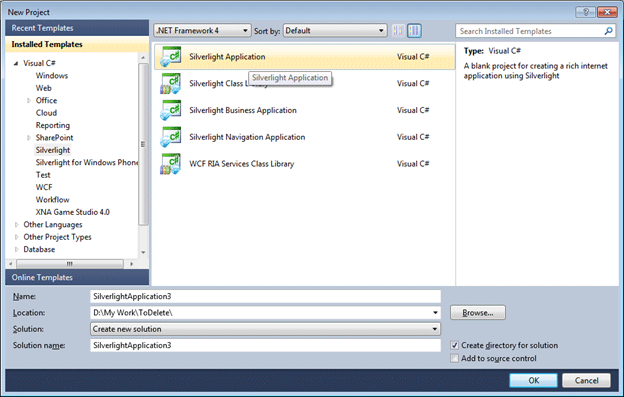

  1. Create  a Silverlight project  by  Project->new ->SilverLight -> SilverLight Application

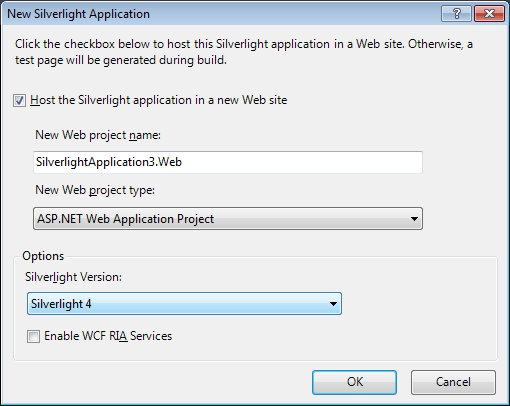

    And create a web site to host Silver light application.


  2. Now design the page in XAML.


    MainPage.xaml


    <
    UserControl x:Class="SilverlightApplication3.MainPage"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        mc:Ignorable="d">
        <Grid x:Name="LayoutRoot" Background="Gray" Height="200" Width="300">
            <Grid.RowDefinitions>
                <RowDefinition Height="*" />
                <RowDefinition Height="2*" />
            </Grid.RowDefinitions>
            <TextBox x:Name="txtResult" Height="40" Text="" Margin="12,14,22,14" />
            <StackPanel Orientation="Horizontal" Grid.Row="1" >
                <Canvas>
                <TextBox x:Name="txtNumber1" Height="40" Width="99"  Canvas.Left="20" Canvas.Top="30"/>
                    <Button x:Name="btnAdd" Height="40" Width="50" Content="+" Canvas.Left="120" Canvas.Top="30" />
                    <TextBox x:Name="txtNumber2" Height="40" Width="99"  Canvas.Left="170" Canvas.Top="30"/>
                </Canvas>
            </StackPanel>
        </Grid>
    </UserControl>

    Explanation

    a. Divided the main grid in two rows.
    b. In first row put a textbox to display the result.
    c. In second row put a stack panel with horizontal orientation.
    d. Put a canvas inside stack panel
    e. Put two text box and button in canvas.

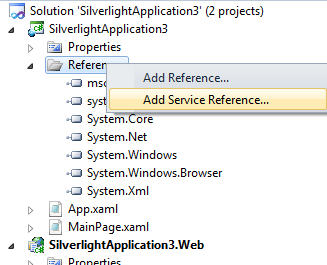

  3. Right click on SilverLight project and add Service Reference.

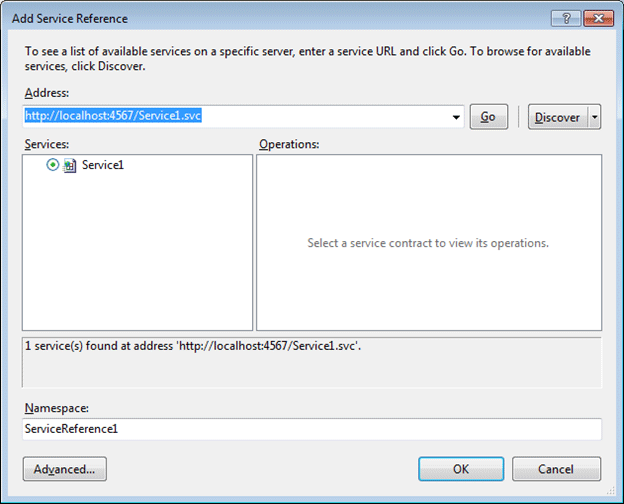

    Give the URL of the WCF service hosted in IIS in Address text box.  And then click GO.


  4. Calling the Service

    Add namespace

    using SilverlightApplication3.ServiceReference1;

    On click event of the button

    Service1Client
    proxy = new Service1Client();
    proxy.GetMessageCompleted += delegate(object sender1, GetMessageCompletedEventArgs e1) { txtResult.Text = e1.Result;};
    proxy.GetMessageAsync(txtNumber1.Text ,txtNumber2.Text);

    Explanation

    a. Silverlight calls WCF service asynchronously
    b. So first completed event is getting called. If operation contract name is GetMessage then event name will be GetMessageCompleted.
    c. After event aysnc function is being called.
MainPage.Xaml.cs

using
System;
using System.Collections.Generic;
using System.Linq;
using System.Net;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Animation;
using System.Windows.Shapes;
using SilverlightApplication3.ServiceReference1;

namespace
SilverlightApplication3
{
    public partial class MainPage : UserControl
    {
        public MainPage()
        {
            InitializeComponent();
            btnAdd.Click += new RoutedEventHandler(btnAdd_Click);
        }
        void btnAdd_Click(object sender, RoutedEventArgs e)
        {
            Service1Client proxy = new Service1Client();
            proxy.GetMessageCompleted += delegate(object sender1, GetMessageCompletedEventArgs e1) { txtResult.Text = e1.Result;};
            proxy.GetMessageAsync(txtNumber1.Text ,txtNumber2.Text);
        }
    }
}

Output


Conclusion

In this article we saw how we can consume WCF Service in Silverlight application with cross domain. I hope this article was useful. Thanks for reading. Happy Coding
