Row detail in DataGrid in Silverlight 3 Application

Posted by Diptimaya Patra Articles | XAML August 16, 2009
This article shows how to display row detail in DataGrid in Silverlight 3 application.
Reader Level:
Download Files:



Introduction

In this article we will see how we can see some detail in each row in a DataGrid.

Creating Silverlight Project

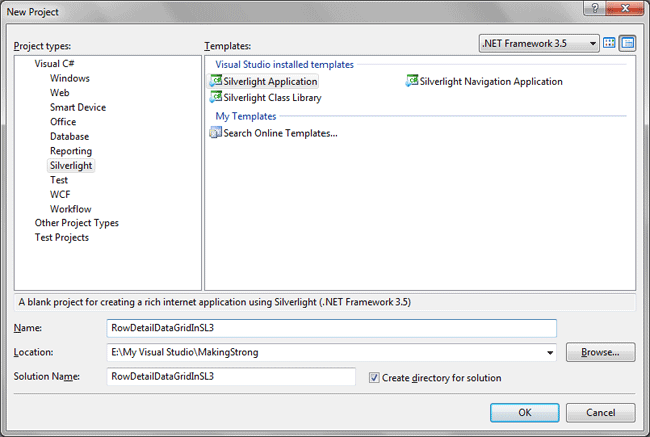

Fire up Visual Studio 2008 and create a Silverlight Application. Name it as RowDetailDataGridInSL3.

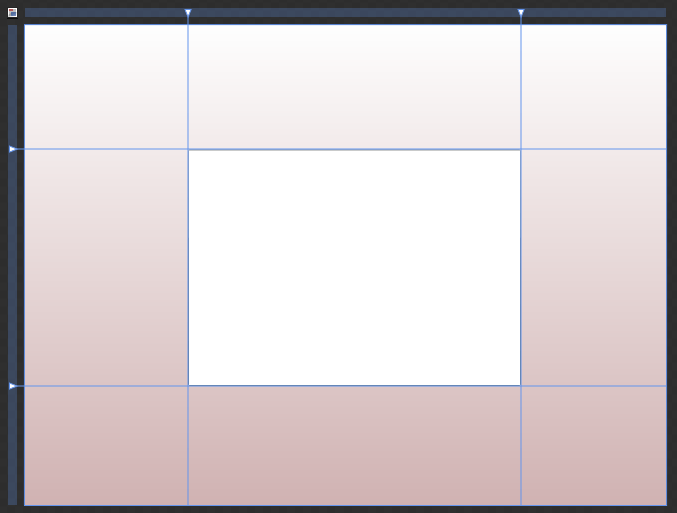

Go ahead and add a DataGrid to your application.


Now add a Class to define properties for sample data.

public
class Users: INotifyPropertyChanged
    {
        #region INotifyPropertyChanged Members
        public event PropertyChangedEventHandler PropertyChanged;

        #endregion



        #region UserName

        private string _UserName;

        public string UserName

        {

            get { return _UserName; }

            set

            {

                if (value.Length < 4)

                {

                    throw new ValidationException("User Name should contain atleast 4 chars");

                }

                _UserName = value;

                RaisePropertyChanged("UserName");

            }

        }

        #endregion



        #region Age

        private int _Age;

        public int Age

        {

            get { return _Age; }

            set

            {

              _Age = value;

            }

        }

        #endregion



        #region Gender

        private string _Gender;

        public string Gender

        {

            get { return _Gender; }

            set

            {

                _Gender = value;

            }

        }

        #endregion



        #region Country

        private string _Country;

        public string Country

        {

            get { return _Country; }

            set

            {

                _Country = value;

            }

        }

        #endregion



        private void RaisePropertyChanged(string propertyName)

        {

            if (this.PropertyChanged != null)

            {

                this.PropertyChanged(this, new PropertyChangedEventArgs(propertyName));

            }

        }

    }

Now add some sample data to a List and assign the list to the ItemSource of the DataGrid.

public
MainPage()

        {

            InitializeComponent();

            List<Users> myList = new List<Users>

            {

                new Users{ UserName="Hiro Nakamura", Age=24, Gender="M", Country="Japan"},

                new Users{ UserName="Mohinder Suresh", Age=26, Gender="M", Country="India"},

                new Users{ UserName="Claire Bennette", Age=20, Gender="F", Country="USA"},

                new Users{ UserName="Matt Parkman", Age=30, Gender="M", Country="USA"},

                new Users{ UserName="Nathan Patrelli", Age=30, Gender="M", Country="USA"},

                new Users{ UserName="Peter Patrelli", Age=26, Gender="M", Country="USA"},

                new Users{ UserName="Mica Sanders", Age=19, Gender="M", Country="USA"},

                new Users{ UserName="Linderman", Age=56, Gender="M", Country="USA"},

                new Users{ UserName="Ando", Age=24, Gender="M", Country="Japan"},

                new Users{ UserName="Maya", Age=24, Gender="F", Country="Mexico"},

                new Users{ UserName="Angela Patrelli", Age=26, Gender="F", Country="USA"},

                new Users{ UserName="Niki Sanders", Age=26, Gender="F", Country="USA"},

            };



            MyDataGrid.ItemsSource = myList;

        }

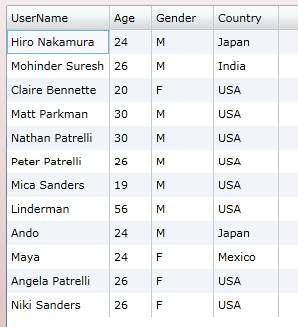

Now that you have added some sample data, you can test your application.


Now we will add RowDetail in xaml. For this you need to use the DataTemplate as follows:

<
data:DataGrid x:Name="MyDataGrid" Margin="0" Grid.Column="1" Grid.Row="1">
            <data:DataGrid.RowDetailsTemplate>

                <DataTemplate>

                    <StackPanel Background="LightBlue">

                        <StackPanel Orientation="Horizontal">

                            <TextBlock Text="This item has details." />

                        </StackPanel>

                        <StackPanel Orientation="Horizontal">

                            <TextBlock Text="Here is some data: " />

                            <TextBlock Text="{Binding UserName}" />

                            <TextBlock Text=", Age " />

                            <TextBlock Text="{Binding Age}" />

                        </StackPanel>

                    </StackPanel>

                </DataTemplate>

            </data:DataGrid.RowDetailsTemplate>

        </data:DataGrid>

As you can see from the above xaml code I have defined the RowDetailsTemplate with displaying UserName and Age.

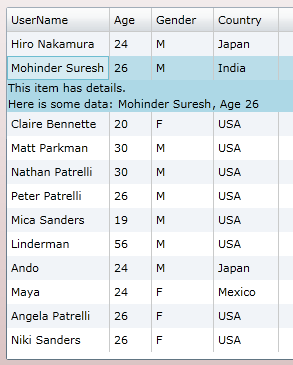

That's it now run your application. Initially when you see the Row Detail is not displayed. When you click on any Row it will display the Row Detail.


Enjoy Coding.
