Face Detection In Xamarin.Android

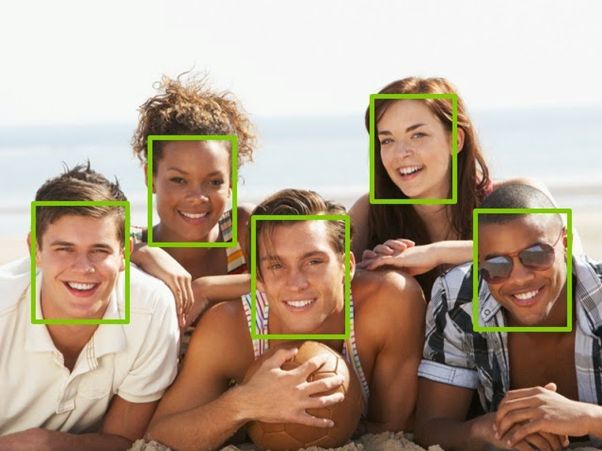

Face Detection

Firstly, we can create our main layout having a button to take a picture using camera and name it the following,

Main.axml
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:orientation="vertical"
  4.     android:layout_width="fill_parent"
  5.     android:layout_height="match_parent"
  6.     android:padding="10dip">
  7.     <TextView
  8.         android:layout_width="fill_parent"
  9.         android:layout_height="wrap_content"
  10.         android:text="Click Take a Picture button"
  11.         android:gravity="center_horizontal"
  12.         android:layout_weight="1.0" />
  13.     <Button
  14.         android:layout_width="wrap_content"
  15.         android:layout_height="wrap_content"
  16.         android:id="@+id/take_picture"
  17.         android:layout_margin="5dip"
  18.         android:text="Take Picture"
  19.         android:layout_gravity="center_horizontal" />
  20. </LinearLayout>

Now we need a layout named detectlayout.axml having an ImageView to display the picture which we had captured using camera and a Button to detect faces in that Image.
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:orientation="vertical"
  4.     android:layout_width="fill_parent"
  5.     android:layout_height="fill_parent">
  6.     <ImageView
  7.         android:layout_width="fill_parent"
  8.         android:layout_height="fill_parent"
  9.         android:id="@+id/image_view"
  10.         android:layout_weight="1.0"
  11.         android:src="@android:drawable/ic_menu_report_image" />
  12.     <Button
  13.         android:layout_width="wrap_content"
  14.         android:layout_height="wrap_content"
  15.         android:id="@+id/detect_face"
  16.         android:text="Detect Face"
  17.         android:layout_gravity="center_horizontal" />
  18. </LinearLayout>
Now let's start coding.

Firstly, we want to open an activity to take a picture.
  1. private void openCamera()
  2. {
  3.    Intent intent = new Intent (Android.Provider.MediaStore.ActionImageCapture);
  4.    StartActivityForResult (intent, TAKE_PICTURE_CODE);
  5. }
    Now we want to Process the captured picture and display it on the detectlayout.axml.
    1. private void processCameraImage(Intent intent)
    2. {
    3.     //Change layout to main Layout
    4.     SetContentView(Resource.Layout.detectlayout);
    5.
    6.     Button detect_face = FindViewById<Button> (Resource.Id.detect_face);
    7.
    8.     detect_face.Click += detect_face_Clicked;
    9.
    10.     ImageView image_view = FindViewById<ImageView> (Resource.Id.image_view);
    11.
    12.     //Set image
    13.     image_view.SetImageBitmap(cameraBitmap);
    14. }
    Add our main ingredient, here we detecting the faces on the picture and drawing a square to mark those faces.
    1. private void detectFaces(){
    2.     //first check if picture has been taken
    3.     if(null != cameraBitmap){
    4.         //get width of a picture
    5.         int width = cameraBitmap.Width;
    6.         //get height of a picture
    7.         int height = cameraBitmap.Height;
    8.         //Initialize a facedetector with the picture dimensions and the max number of faces to check
    9.         FaceDetector detector = new FaceDetector(width, height, MainActivity.MAX_FACES);
    10.         //Create an array of faces with the number of max faces to check
    11.         FaceDetector.Face[] faces = new FaceDetector.Face[MainActivity.MAX_FACES];
    12.
    13.         //create a main bitmap
    14.         Bitmap bitmap565 = Bitmap.CreateBitmap(width, height, Bitmap.Config.Rgb565);
    15.         //create a dither paint
    16.         Paint ditherPaint = new Paint();
    17.         //create a draw paint
    18.         Paint drawPaint = new Paint();
    19.
    20.         //set true dither to dither paint variable
    21.         ditherPaint.Dither = true;
    22.         //set color red for the square
    23.         drawPaint.Color = Color.Green;
    24.         //set stroke to style
    25.         drawPaint.SetStyle(Paint.Style.Stroke);
    26.         //set stroke width
    27.         drawPaint.StrokeWidth = 2;
    28.
    29.         //Create a canvas
    30.         Canvas canvas = new Canvas();
    31.         //set bitmap to canvas
    32.         canvas.SetBitmap(bitmap565);
    33.         //draw bitmap to canvas
    34.         canvas.DrawBitmap(cameraBitmap, 00, ditherPaint);
    35.
    36.         //get a number of faces detected
    37.         int facesFound = detector.FindFaces(bitmap565, faces);
    38.         //mid face point
    39.         PointF midPoint = new PointF();
    40.         //eye distance variable
    41.         float eyeDistance = 0.0f;
    42.         //confidence variable
    43.         float confidence = 0.0f;
    44.         //print numbre of faces found
    45.         System.Console.WriteLine ("Number of faces found: " + facesFound);
    46.
    47.         //check if found at least one face
    48.         if(facesFound > 0)
    49.         {
    50.             //for each face draw a red squeare
    51.             for(int index=0; index<facesFound; ++index){
    52.                 // get midpoint of a face
    53.                 faces[index].GetMidPoint(midPoint);
    54.                 //get eye distance
    55.                 eyeDistance = faces[index].EyesDistance();
    56.                 //get confidence
    57.                 confidence = faces [index].Confidence ();
    58.                 //print all parameters
    59.                 System.Console.WriteLine ("Confidence: " + confidence +
    60.                     ", Eye distance: " + eyeDistance +
    61.                     ", Mid Point: (" + midPoint.X + ", " + midPoint.Y + ")");
    62.                 //draw a square in the picture
    63.                 canvas.DrawRect((int)midPoint.X - eyeDistance ,
    64.                     (int)midPoint.Y- eyeDistance ,
    65.                     (int)midPoint.X + eyeDistance,
    66.                     (int)midPoint.Y + eyeDistance, drawPaint);
    67.             }
    68.         }
    69.
    70.         //get imageview from layout
    71.         ImageView imageView = (ImageView)FindViewById(Resource.Id.image_view);
    72.         //set image with the red squares to imageview
    73.         imageView.SetImageBitmap(bitmap565);
    74.     }
    75. }
      Now the stage is set for the show, only we need to do is just rearrange the code together in a logical way.

      Go through the attachment for the complete project.
