Creating Autocomplete Using JQuery, Ajax & WCF in ASP.Net

Create an ASP.NET application.

Add a folder named Service to the project.

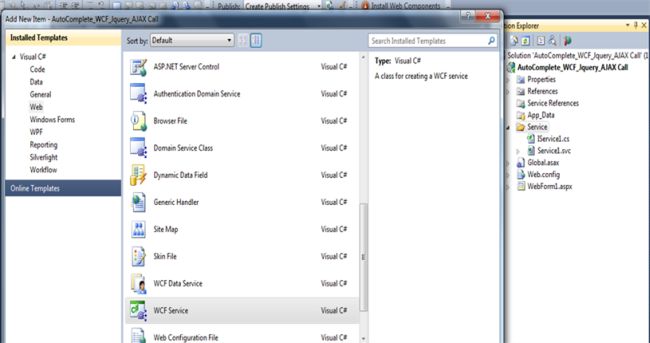

Add a WCF Service in the Service folder as in the following:

wcf service

You will see that two files are create, one has a .svc extension and the other is the interface class.

Open Iservice1.cs interface.

Add a method to get the Customer Name as in the following.

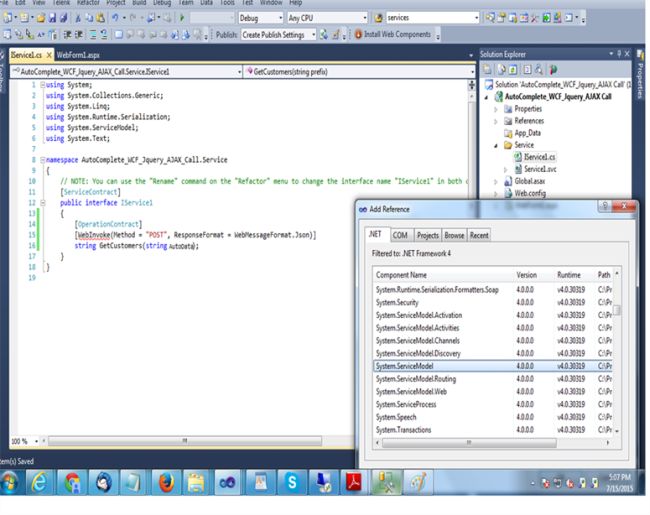

If Webinvoke is not found then add the reference from .Net as in the following:

  1. namespace AutoComplete_WCF_Jquery_AJAX_Call.Service {
  2.     // NOTE: You can use the "Rename" command on the "Refactor" menu to change the interface name "IService1" in both code and config file together.
  3.     [ServiceContract]
  4.     public interface IService1 {
  5.         [OperationContract]
  6.         [WebInvoke(Method = "POST", ResponseFormat = WebMessageFormat.Json)]
  7.         string GetCustomers(string AutoData);
  8.     }

Add Method

Add a method under the .Svc class like below. We must define a connection string in webconfig or you can define one in this class also:

  1. namespace TestAppwith_Jquery.Services {
  2.     // NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service" in code, svc and config file together.
  3.
  4.     [AspNetCompatibilityRequirements(RequirementsMode = AspNetCompatibilityRequirementsMode.Allowed)]
  5.     public class Service: IService {
  6.         public string GetCustomers(string prefix) {
  7.             List < object > customers = new List < object > ();
  8.             using(SqlConnection conn = new SqlConnection()) {
  9.                 conn.ConnectionString = ConfigurationManager.ConnectionStrings["constr"].ConnectionString;
  10.                 using(SqlCommand cmd = new SqlCommand()) {
  11.                     cmd.CommandText = "SELECT * FROM dbo.studentmaster where " +
  12.                         "StdName like @prefix + '%'";
  13.                     cmd.Parameters.AddWithValue("@prefix", prefix);
  14.                     cmd.Connection = conn;
  15.                     conn.Open();
  16.                     using(SqlDataReader sdr = cmd.ExecuteReader()) {
  17.                         while (sdr.Read()) {
  18.                             customers.Add(new {
  19.                                 Id = sdr["AdmNo"],
  20.                                 Name = sdr["StdName"]
  21.                             });
  22.                         }
  23.                     }
  24.                     conn.Close();
  25.                 }
  26.                 return (new JavaScriptSerializer().Serialize(customers));
  27.             }
  28.         }
  29.     }

To call WCF Service in aspx page add the following code:

  1. <html
  2.     xmlns="http://www.w3.org/1999/xhtml">
  3.     <head id="Head1" runat="server">
  4.         <title></title>
  5.         <style>
  6.             table, th , td {
  7.                 border: 1px solid grey;
  8.                 border-collapse: collapse;
  9.                 padding: 5px;
  10.             }
  11.             table tr:nth-child(odd) {
  12.                 background-color: #f1f1f1;
  13.             }
  14.             table tr:nth-child(even) {
  15.                 background-color: #ffffff;
  16.             }
  17.         </style>
  18.         <script src="http://ajax.googleapis.com/ajax/libs/jquery/1.11.1/jquery.min.js"></script>
  19.         <link href="http://ajax.googleapis.com/ajax/libs/jqueryui/1.8.1/themes/base/jquery-ui.css" rel="stylesheet" type="text/css"/>
  20.         <script type="text/javascript" src="http://ajax.googleapis.com/ajax/libs/jquery/1.4.2/jquery.min.js"></script>
  21.         <script type="text/javascript" src="http://ajax.googleapis.com/ajax/libs/jqueryui/1.8.1/jquery-ui.min.js"></script>
  22.         <script type = "text/javascript">
  23.         $(document).ready(function () {
  24.             $("#search12").click(function () {
  25.                 $.ajax({
  26.
  27.                     type: "POST",
  28.                     contentType: "application/json; charset=utf-8",
  29.                     url: "../Service/Service1.svc/GetCustomers",
  30.                     data: '{"AutoData": "' + $("#AutoData").val() + '"}',
  31.                     processData: false,
  32.                     dataType: "json",
  33.                     success: function (response) {
  34.                         var customers = eval(response.d);
  35.                         var html = "";
  36.                         html += "
  37.                         <table >
  38.                             <tr>
  39.                               <td>ID</td>
  40.                               <td>Name</td>
  41.                             </tr>";
  42.                             $.each(customers, function () {
  43.                                 html += "
  44.                                 <tr>
  45.                                     <td>" + this.Id + "</td>
  46.                                     <td>" + this.Name + "</td>
  47.                                 </tr>";
  48.                             });
  49.                             html += "
  50.                          </table>";
  51.                         $("#results").html(html == "" ? "No results" : html);
  52.                     },
  53.                     error: function (a, b, c) {
  54.                         alert(a.responseText);
  55.                     }
  56.                 });
  57.             });
  58.         });
  59.
  60.         </script>
  61.     </head>
  62.     <body>
  63.         <form id="form1" runat="server">
  64.             <input type = "text" id = "AutoData" />
  65.             <input id = "search12" type = "button" value = "Search" />
  66.             <div id = "results"></div>
  67.         </form>
  68.     </body>
  69. </html>

Change in the web config as in the following code to add your Service Name and contract Name:

  1. <system.serviceModel>
  2.     <behaviors>
  3.         <serviceBehaviors>
  4.             <behavior name="ServiceBehavior">
  5.                 <serviceMetadata httpGetEnabled="true"/>
  6.                 <serviceDebug includeExceptionDetailInFaults="true"/>
  7.             </behavior>
  8.         </serviceBehaviors>
  9.         <endpointBehaviors>
  10.             <behavior name="ServiceAspNetAjaxBehavior">
  11.                 <enableWebScript/>
  12.             </behavior>
  13.         </endpointBehaviors>
  14.     </behaviors>
  15.     <serviceHostingEnvironment aspNetCompatibilityEnabled="true"/>
  16.     <services>
  17.         <service behaviorConfiguration="ServiceBehavior" name="AutoComplete_WCF_Jquery_AJAX_Call.Service.Service1">
  18.             <endpoint address="" binding="webHttpBinding" contract="AutoComplete_WCF_Jquery_AJAX_Call.Service.IService1" behaviorConfiguration="ServiceAspNetAjaxBehavior">
  19.                 <identity>
  20.                     <dns value="localhost"/>
  21.                 </identity>
  22.             </endpoint>
  23.             <endpoint address="mex" binding="mexHttpBinding" contract="IMetadataExchange"/>
  24.         </service>
  25.     </services>
  26. </system.serviceModel>

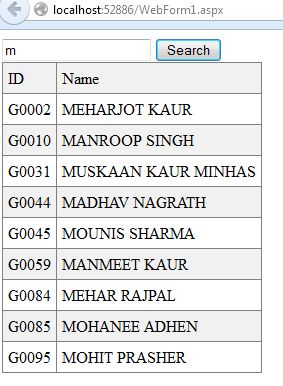

The output will be like the following:

list
