Get Comma Separated Values From SQL Server Using Entity Framework (EF)

Overview


Here I will explain a scenario in which a student can join multiple courses. To do this I am creating three tables, two master and one transaction. The tables are named Student, Course, and trnjCourse_Studnet. The Student table has student information. The Course table has a course name and course ID. The transaction table contains information about a student and courses in a one-to-many relationship. For Table, scripts click here.

Now I need to write a LINQ query for students joining multiple courses, then the entire course name that is joined by that student should be displayed, separated by a comma with the unique student information. Let's see how to do it.

Step 1

Right-click on the project then select Add new item then select EF model as in the following:

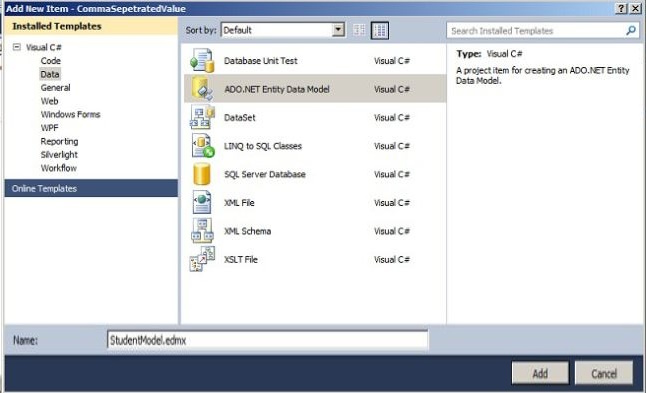

add new item

Step 2

Provide the name of the FE model and click add and select Generate from DB.

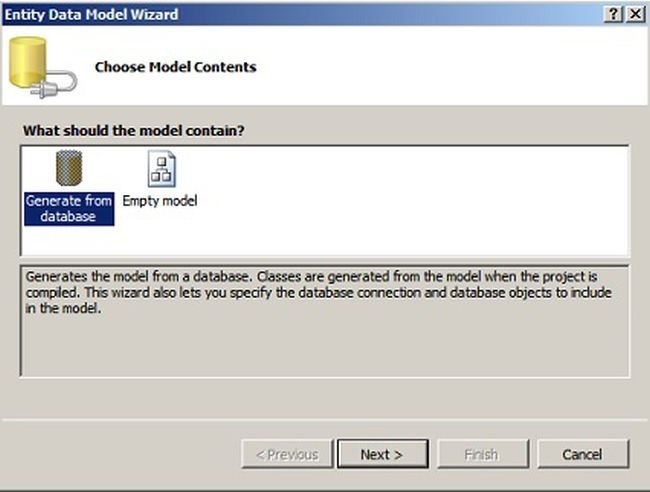

FE Model

Step 3

Click Next.

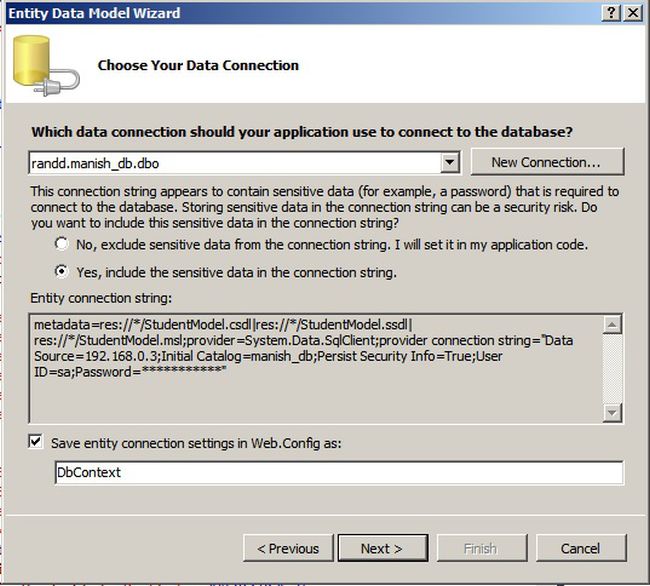

Entity data model wizard

Step 4

Select the table.

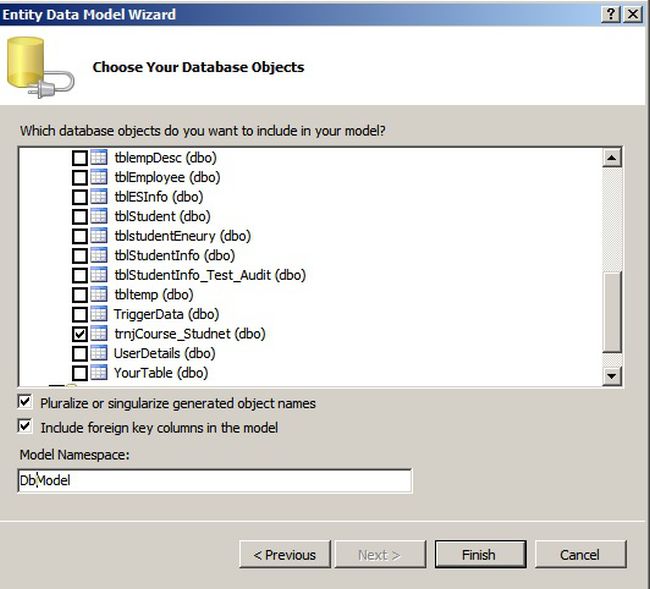

choose your database objects

Step 5

After clicking Finish we will get an entity model like:

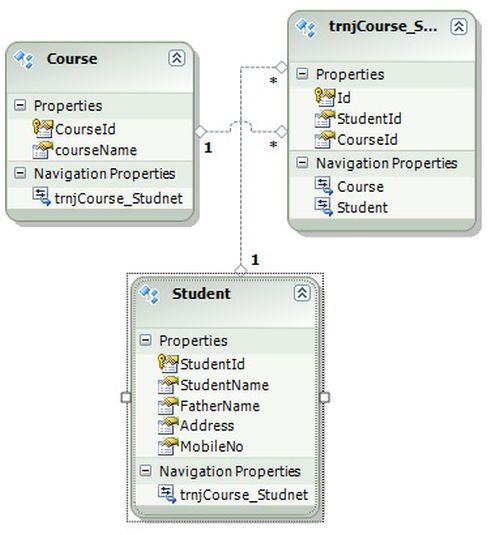

Class Diagram

Now right-click on the project and add a web form having 1 TextBox, 1 button and a grid view for displaying the data. Copy and paste the following code to your web form for that.

  1. <div style ="font-family:Arial ">
Student Name
  1. <asp:TextBox ID="txtstudentName" runat="server"></asp:TextBox>
  2. <asp:Button ID="Search" runat="server" onclick="Button1_Click" Text="Search" />
  3. <br />
  4. <br />
  5. <asp:GridView ID="gvstudents" runat="server" CellPadding="4" ForeColor="#333333" GridLines="None" AutoGenerateColumns="False">
  6.     <AlternatingRowStyle BackColor="White" ForeColor="#284775" />
  7.     <Columns>
  8.         <asp:BoundField DataField="StudentId" HeaderText="Id" />
  9.         <asp:BoundField DataField="StudentName" HeaderText="Name" />
  10.         <asp:BoundField DataField="FatherName" HeaderText="Fasther Name" />
  11.         <asp:BoundField DataField="ContactNo" HeaderText="Contact No" />
  12.         <asp:BoundField DataField="Address" HeaderText="Address" />
  13.         <asp:BoundField DataField="courseName" HeaderText="Courses" />
  14.     </Columns>
  15.     <EditRowStyle BackColor="#999999" />
  16.     <FooterStyle BackColor="#5D7B9D" Font-Bold="True" ForeColor="White" />
  17.     <HeaderStyle BackColor="#5D7B9D" Font-Bold="True" ForeColor="White" />
  18.     <PagerStyle BackColor="#284775" ForeColor="White" HorizontalAlign="Center" />
  19.     <RowStyle BackColor="#F7F6F3" ForeColor="#333333" />
  20.     <SelectedRowStyle BackColor="#E2DED6" Font-Bold="True" ForeColor="#333333" />
  21.     <SortedAscendingCellStyle BackColor="#E9E7E2" />
  22.     <SortedAscendingHeaderStyle BackColor="#506C8C" />
  23.     <SortedDescendingCellStyle BackColor="#FFFDF8" />
  24.     <SortedDescendingHeaderStyle BackColor="#6F8DAE" />
  25. </asp:GridView>
  26. <br />
  27. </div>
    Then add a new class for storing student information as in the following:
    1. public class StudentResult
    2. {
    3.     public int StudentId { getset; }
    4.     public string StudentName { getset; }
    5.     public string FatherName { getset; }
    6.     public string ContactNo { getset; }
    7.     public string Address { getset; }
    8.     public string courseName { getset; }
    9. }
    Then in the code behind write the following function to get the student info with a comma-separated course list.
    1. private IEnumerable <StudentResult> GetStudentsWithCourseList()
    2. {
    3.     using (DbContext1 db = new DbContext1())
    4.     {
    5.         IEnumerable<StudentResult> studentsList =
    6.         db.trnjCourse_Studnet
    7.         .Join(
    8.         db.Students,
    9.         tCS => tCS.StudentId,
    10.         s => s.StudentId,
    11.         (tCS, s) =>
    12.         new
    13.         {
    14.             tCS = tCS,
    15.             s = s
    16.         }
    17.         )
    18.         .Join(
    19.         db.Courses,
    20.         x => x.tCS.CourseId,
    21.         c => c.CourseId,
    22.         (x, c) =>
    23.         new
    24.         {
    25.             x = x,
    26.             c = c
    27.         }
    28.         )
    29.         .GroupBy(
    30.         y =>
    31.         new
    32.         {
    33.             StudentId = y.x.tCS.StudentId,
    34.             StudentName = y.x.s.StudentName,
    35.             FatherName = y.x.s.FatherName,
    36.             Address = y.x.s.Address,
    37.             MobileNo = y.x.s.MobileNo
    38.         },
    39.         y => y.c.courseName
    40.         )
    41.         .Select(
    42.         g =>
    43.         new
    44.         {
    45.             StudentId = g.Key.StudentId,
    46.             StudentName = g.Key.StudentName,
    47.             FatherName = g.Key.FatherName,
    48.             Address = g.Key.Address,
    49.             ContactNo = g.Key.MobileNo,
    50.             courseName = g.Select(e => e).Distinct()
    51.         }
    52.         ).ToList().Select(l =>
    53.         new StudentResult()
    54.         {
    55.             StudentId = l.StudentId,
    56.             StudentName =l.StudentName,
    57.             FatherName = l.FatherName,
    58.             Address = l.Address,
    59.             ContactNo = l.ContactNo,
    60.             courseName = string.Join(", ", l.courseName.ToArray())
    61.         });
    62.         return studentsList;
    63.     }
    64. }
    Write another function to bind this result to the grid view when the form loads.
    1. private void GetCStudentWithCourse()
    2. {
    3.     gvstudents.DataSource = GetStudentsWithCourseList().ToList();
    4.     gvstudents.DataBind();
    5.     gvstudents.EmptyDataText = "No Data Found";
    6. }
    Call this function on form load and we will get the student list.

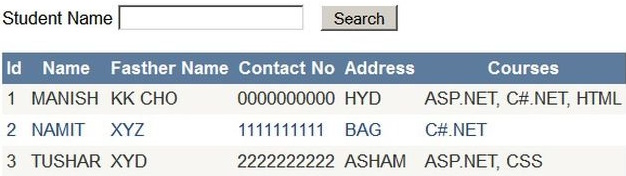

    student list

    Now create a function to search for a student depending on the name and call that function on the button click of the search button.
    1. private void SearchStudentByName()
    2. {
    3.     IEnumerable<StudentResult> result = GetStudentsWithCourseList().Where(x => x.StudentName.ToUpper().StartsWith(txtstudentName.Text.Tri    m().ToUpper())).ToList();
    4.     gvstudents.DataSource = result;
    5.     gvstudents.DataBind();
    6.     gvstudents.EmptyDataText = "No Data Found";
    7. }
    That's all for entering the name of the student in a TextBox and click Search.


    Summary

    This article showed how to separate a record with commas from a SQL Server table having a 1-to-many relationship using Entity Framework (EF).

    Thanks.

    I would like to have feedback from my readers. Please post your feedback, question, or comments about this article.
