MongoDB CRUD Operations Using C#

In MongoDB articles series I discussed the basic concepts of MongoDB database. Today, I will explain how to perform MongoDB crud operation with C#.

Let’s start today’s session, first we learn how to connect MongoDB with ASP.NET and after that we perform MongoDB crud operation using C#.

Prerequisites

  • MongoDB
  • Visual Studio
  • MongoDB drivers for C#

We perform the MongoDB crud operation using ASP.NET website. So follow these Steps.

Step 1: Open Visual Studio.

Click on “New WebSite” and select an ASP.NET Empty Web Site.

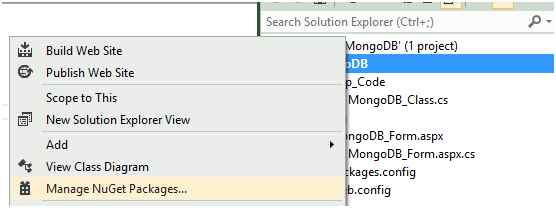

Step 2: Now right click on Project Name and select “Manage NuGet Packages”.

newget package

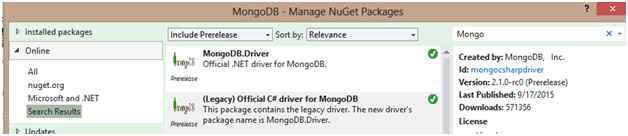

Step 3: Now select Online option and download the following drivers.

select Online option

Now check the Bin folder you will find that the following libraries has been added.

Bin folder

Step 4: Add a new Web Form and provide the following name to the web from “MongoDB_Form” after that copy the following code into that Web from.

  1. <form id="form1" runat="server">
  2.     <div>
  3.         <div style="background-color:azure;width:100%; height:100px">
  4.             <span style="margin-top:10px; margin-left:200px;font-size:40px;color:coral"> MongoDB CRUD Operations</span>
  5.         </div>
  6.
  7.         <div style="margin-top:40px;margin-left:200px">
  8.             <asp:GridView ID="GridView1" runat="server" CellPadding="4" ForeColor="#333333" GridLines="None" AutoGenerateColumns="False">
  9.                 <AlternatingRowStyle BackColor="White" />
  10.                 <Columns>
  11.                     <asp:BoundField DataField="_id" HeaderText="ObjectID" SortExpression="Eval("_id")">
  12.                         <ItemStyle Font-Size="X-Large" />
  13.                     </asp:BoundField>
  14.                     <asp:BoundField DataField="Student_ID" HeaderText="Student_ID" ReadOnly="True">
  15.                         <ControlStyle BackColor="#6699FF" />
  16.                         <ItemStyle Font-Size="X-Large" />
  17.                     </asp:BoundField>
  18.                     <asp:BoundField DataField="Name" HeaderText="Student_Name">
  19.                         <ItemStyle Font-Size="X-Large" />
  20.                     </asp:BoundField>
  21.                     <asp:BoundField DataField="Class" HeaderText="Student_Class">
  22.                         <ItemStyle Font-Size="X-Large" />
  23.                     </asp:BoundField>
  24.                     <asp:BoundField DataField="Subject" HeaderText="Student_Subject" SortExpression="Subject">
  25.                         <ItemStyle Font-Size="X-Large" />
  26.                     </asp:BoundField>
  27.                     <asp:TemplateField>
  28.                     </asp:TemplateField>
  29.                 </Columns>
  30.                 <EditRowStyle BackColor="#7C6F57" />
  31.                 <FooterStyle BackColor="#1C5E55" Font-Bold="True" ForeColor="White" />
  32.                 <HeaderStyle BackColor="#1C5E55" Font-Bold="True" ForeColor="White" />
  33.                 <PagerStyle BackColor="#666666" ForeColor="White" HorizontalAlign="Center" />
  34.                 <RowStyle BackColor="#E3EAEB" />
  35.                 <SelectedRowStyle BackColor="#C5BBAF" Font-Bold="True" ForeColor="#333333" />
  36.                 <SortedAscendingCellStyle BackColor="#F8FAFA" />
  37.                 <SortedAscendingHeaderStyle BackColor="#246B61" />
  38.                 <SortedDescendingCellStyle BackColor="#D4DFE1" />
  39.                 <SortedDescendingHeaderStyle BackColor="#15524A" />
  40.             </asp:GridView>
  41.         </div>
  42.         <div style="background-color:blanchedalmond;width:100%; height:50px;margin-top:10px;text-align:justify">
  43.             <span style="margin-top:10px; margin-left:200px;font-size:40px;color:chocolate">Select A Operation</span>
  44.         </div>
  45.         <div style="margin-top:30px">
  46.
  47.             <div runat="server" id="Save">
  48.                 <table>
  49.                     <tr>
  50.                         <td style="padding-left:200px;font-size:25px">
  51.                             <asp:Label runat="server" Text="ObjectID"></asp:Label>
  52.                         </td>
  53.                         <td style="padding-left:122px">
  54.                             <asp:TextBox runat="server" width="400px" Height="25px" ID="txtObjectID"></asp:TextBox>
  55.                         </td>
  56.                         <td style="padding-left:200px">
  57.                             <asp:Button runat="server" Text="Submit" Height="35px" Width="100px" BackColor="WindowFrame" Font-Bold="true" ID="Button1" OnClick="Submit"></asp:Button>
  58.                         </td>
  59.                     </tr>
  60.
  61.                 </table>
  62.             </div>
  63.
  64.             <table>
  65.                 <tr>
  66.                     <td style="padding-left:200px;font-size:25px">
  67.                         <asp:Label runat="server" Text="Student_ID"></asp:Label>
  68.                     </td>
  69.                     <td style="padding-left:50px">
  70.                         <asp:TextBox runat="server" width="400px" Height="25px" ID="txtStudentID"></asp:TextBox>
  71.                     </td>
  72.                     <td style="padding-left:200px">
  73.                         <asp:Button runat="server" Text="Insert" Height="35px" Width="100px" BackColor="Green" Font-Bold="true" ID="Insert" OnClick="Insert_Record"></asp:Button>
  74.                     </td>
  75.                 </tr>
  76.                 <tr>
  77.                     <td style="padding-left:200px;font-size:25px">
  78.                         <asp:Label runat="server" Text="Student_Name"></asp:Label>
  79.                     </td>
  80.                     <td style="padding-left:50px">
  81.                         <asp:TextBox runat="server" width="400px" Height="25px" ID="txtStudentName"></asp:TextBox>
  82.                     </td>
  83.                     <td style="padding-left:200px;">
  84.                         <asp:Button runat="server" Text="Update" Height="35px" Width="100px" BackColor="Teal" Font-Bold="true" OnClick="Update_Record"></asp:Button>
  85.                     </td>
  86.                 </tr>
  87.                 <tr>
  88.                     <td style="padding-left:200px;font-size:25px">
  89.                         <asp:Label runat="server" Text="Student_Class"></asp:Label>
  90.                     </td>
  91.                     <td style="padding-left:50px">
  92.                         <asp:TextBox runat="server" width="400px" Height="25px" ID="txtStudentClass"></asp:TextBox>
  93.                     </td>
  94.                     <td style="padding-left:200px">
  95.                         <asp:Button runat="server" Text="Save" Height="35px" Width="100px" BackColor="Thistle" Font-Bold="true" OnClick="Save_Record"></asp:Button>
  96.                     </td>
  97.                 </tr>
  98.                 <tr>
  99.                     <td style="padding-left:200px;font-size:25px">
  100.                         <asp:Label runat="server" Text="Student_Subject"></asp:Label>
  101.                     </td>
  102.                     <td style="padding-left:50px">
  103.                         <asp:TextBox runat="server" width="400px" Height="25px" ID="txtStudentSubject"></asp:TextBox>
  104.                     </td>
  105.                     <td style="padding-left:200px">
  106.                         <asp:Button runat="server" Text="Delete" Height="35px" Width="100px" BackColor="Red" Font-Bold="true" OnClick="Delete_Record"></asp:Button>
  107.                     </td>
  108.                 </tr>
  109.             </table>
  110.         </div>
  111. </form>
Now add the following code in MongoDB_Form.aspx.cs file.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using MongoDB.Driver;
  8. using MongoDB.Bson;
  9. using System.Data;
  10. using System.Configuration;
  11.
  12. namespace WebApplication1 {
  13.     public partial class MongoDBForm: System.Web.UI.Page {
  14.         MongoDB_Class _Obj = MongoDB_Class.GetObject();
  15.         Student_Info StuObj_;
  16.         protected void Page_Load(object sender, EventArgs e) {
  17.             if (!IsPostBack) {
  18.                 Page.FindControl("Save").Visible = false;
  19.                 Load_Data();
  20.             }
  21.         }
  22.
  23.         public void Load_Data() {
  24.             try {
  25.
  26.                 List < Student_Info > Student_List = new List < Student_Info > ();
  27.                 Student_List = _Obj.Retrieve_Student_Information();
  28.                 GridView1.DataSource = Student_List;
  29.                 GridView1.DataBind();
  30.             } catch (Exception Exp) {
  31.                 Response.Write(Exp.Message);
  32.             }
  33.
  34.         }
  35.
  36.
  37.
  38.         protected void Insert_Record(object sender, EventArgs e) {
  39.             try {
  40.
  41.                 StuObj_ = new Student_Info();
  42.                 StuObj_.Student_ID = int.Parse(txtStudentID.Text.ToString().Trim());
  43.                 StuObj_.Name = txtStudentName.Text.ToString().Trim();
  44.                 StuObj_.Class = int.Parse(txtStudentClass.Text.ToString().Trim());
  45.                 StuObj_.Subject = txtStudentSubject.Text.ToString().Trim();
  46.                 _Obj.Insert_Student_Information(StuObj_);
  47.                 Load_Data();
  48.             } catch (Exception Exp) {
  49.                 Response.Write(Exp.Message);
  50.             }
  51.         }
  52.
  53.         protected void Update_Record(object sender, EventArgs e) {
  54.             StuObj_ = new Student_Info();
  55.             StuObj_.Student_ID = int.Parse(txtStudentID.Text.ToString().Trim());
  56.             StuObj_.Name = txtStudentName.Text.ToString().Trim();
  57.             StuObj_.Class = int.Parse(txtStudentClass.Text.ToString().Trim());
  58.             StuObj_.Subject = txtStudentSubject.Text.ToString().Trim();
  59.             _Obj.Update_Student_Information(StuObj_);
  60.             Load_Data();
  61.         }
  62.
  63.         protected void Save_Record(object sender, EventArgs e) {
  64.             Page.FindControl("Save").Visible = true;
  65.
  66.         }
  67.
  68.
  69.
  70.         protected void Delete_Record(object sender, EventArgs e) {
  71.
  72.             StuObj_ = new Student_Info();
  73.             StuObj_.Student_ID = int.Parse(txtStudentID.Text.ToString().Trim());
  74.             _Obj.Delete_Student_Infromation(StuObj_);
  75.             Load_Data();
  76.         }
  77.
  78.         protected void Submit(object sender, EventArgs e) {
  79.             StuObj_ = new Student_Info();
  80.             StuObj_._id = ObjectId.Parse(txtObjectID.Text.ToString().Trim());
  81.             StuObj_.Student_ID = int.Parse(txtStudentID.Text.ToString().Trim());
  82.             StuObj_.Name = txtStudentName.Text.ToString().Trim();
  83.             StuObj_.Class = int.Parse(txtStudentClass.Text.ToString().Trim());
  84.             StuObj_.Subject = txtStudentSubject.Text.ToString().Trim();
  85.             _Obj.Save_Student_Information(StuObj_);
  86.             Load_Data();
  87.             Page.FindControl("Save").Visible = false;
  88.         }
  89.
  90.
  91.
  92.
  93.     }
  94. }
Step 5: Now we add a class and write all the CRUD operations for MongoDB in this class.

So add a class and provide MongoDB_Class” name to that class after that copy the following code into this class.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. using MongoDB.Driver;
  8. using MongoDB.Bson;
  9. using System.Data;
  10. using MongoDB.Shared;
  11. using MongoDB.Driver.Builders;
  12. using MongoDB.Bson.Serialization;
  13.
  14. /// <summary>
  15. /// Summary description for MongoDB_Class
  16. /// </summary>
  17. public class Student_Info {
  18.     public ObjectId _id {
  19.         get;
  20.         set;
  21.     }
  22.
  23.     public Int32 Student_ID {
  24.         get;
  25.         set;
  26.     }
  27.     public String Name {
  28.         get;
  29.         set;
  30.     }
  31.     public int Class {
  32.         get;
  33.         set;
  34.     }
  35.     public String Subject {
  36.         get;
  37.         set;
  38.     }
  39. }
  40. public class MongoDB_Class {
  41.     MongoServerSettings Settings_;
  42.     MongoServer server;
  43.     MongoDatabase Database_;
  44.     public static MongoDB_Class _Obj;
  45.     public static MongoDB_Class GetObject() {
  46.         if (_Obj == null) {
  47.             _Obj = new MongoDB_Class();
  48.         }
  49.
  50.         return _Obj;
  51.     }
  52.
  53.     public MongoDB_Class() {
  54.         Settings_ = new MongoServerSettings();
  55.         Settings_.Server = new MongoServerAddress("localhost", 27017);
  56.         server = new MongoServer(Settings_);
  57.         Database_ = server.GetDatabase("Temp");
  58.
  59.
  60.     }
  61.
  62.     public List < Student_Info > Retrieve_Student_Information() {
  63.         try {
  64.             server.Connect();
  65.             List < Student_Info > Student_List = new List < Student_Info > ();
  66.             var StuInfo = Database_.GetCollection < Student_Info > ("Student_Information");
  67.
  68.             foreach(Student_Info Stu in StuInfo.FindAll()) {
  69.                 Student_List.Add(Stu);
  70.             }
  71.
  72.             return Student_List;
  73.         } catch {
  74.             throw;
  75.         } finally {
  76.             server.Disconnect();
  77.         }
  78.     }
  79.
  80.     public void Insert_Student_Information(Student_Info _Obj) {
  81.         try {
  82.             server.Connect();
  83.             MongoCollection < Student_Info > Collection_ = Database_.GetCollection < Student_Info > ("Student_Information");
  84.             BsonDocument Stu_Doc = new BsonDocument {
  85.                 {
  86.                     "Student_ID", _Obj.Student_ID
  87.                 }, {
  88.                     "Name", _Obj.Name
  89.                 }, {
  90.                     "Class", _Obj.Class
  91.                 }, {
  92.                     "Subject", _Obj.Subject
  93.                 }
  94.
  95.             };
  96.             Collection_.Insert(Stu_Doc);
  97.         } catch {
  98.             throw;
  99.         } finally {
  100.             server.Disconnect();
  101.         }
  102.     }
  103.
  104.     public void Delete_Student_Infromation(Student_Info _Obj) {
  105.         try {
  106.             server.Connect();
  107.             MongoCollection < Student_Info > Collection_ = Database_.GetCollection < Student_Info > ("Student_Information");
  108.             IMongoQuery Marker = Query.EQ("Student_ID", _Obj.Student_ID);
  109.             Collection_.Remove(Marker);
  110.         } catch {
  111.             throw;
  112.         } finally {
  113.             server.Disconnect();
  114.         }
  115.     }
  116.
  117.     public void Update_Student_Information(Student_Info _Obj) {
  118.         try {
  119.             server.Connect();
  120.             MongoCollection < Student_Info > Collection_ = Database_.GetCollection < Student_Info > ("Student_Information");
  121.             IMongoQuery Marker = Query.EQ("Student_ID", _Obj.Student_ID);
  122.
  123.
  124.             IMongoUpdate Update_ = MongoDB.Driver.Builders.Update.Set("Name", _Obj.Name)
  125.                 .Set("Class", _Obj.Class)
  126.                 .Set("Subject", _Obj.Subject);
  127.             Collection_.Update(Marker, Update_);
  128.         } catch {
  129.             throw;
  130.         } finally {
  131.             server.Disconnect();
  132.         }
  133.
  134.     }
  135.
  136.     public void Save_Student_Information(Student_Info _Obj) {
  137.         try {
  138.             server.Connect();
  139.             MongoCollection < Student_Info > Collection_ = Database_.GetCollection < Student_Info > ("Student_Information");
  140.             BsonDocument Stu_Doc = new BsonDocument()
  141.                 .Add("_id", _Obj._id)
  142.                 .Add("Student_ID", _Obj.Student_ID)
  143.                 .Add("Name", _Obj.Name)
  144.                 .Add("Class", _Obj.Class)
  145.                 .Add("Subject", _Obj.Subject);
  146.
  147.             Collection_.Save(Stu_Doc);
  148.
  149.         } catch {
  150.             throw;
  151.         } finally {
  152.             server.Disconnect();
  153.         }
  154.     }
  155. }
After completion of above setup now we perform CRUD operation.

Database

For this project we create a collection with “Student_Information” name and insert the following record into this collection.
  1. /* 1 */
  2. {
  3.     "_id": ObjectId("55fa5661f8677d20935445a0"),
  4.     "Student_ID": 1001,
  5.     "Name""Pankaj Choudhary",
  6.     "Class": 10,
  7.     "Subject""Hindi"
  8. }
  9.
  10. /* 2 */
  11. {
  12.     "_id": ObjectId("55fa5cc3f8677d20935445a1"),
  13.     "Student_ID": 1002,
  14.     "Name""Sandeep Jangid",
  15.     "Class": 11,
  16.     "Subject""English"
  17. }
  18.
  19. /* 3 */
  20. {
  21.     "_id": ObjectId("55fa5ce2f8677d20935445a2"),
  22.     "Student_ID": 1003,
  23.     "Name""Sanjeev Baldia",
  24.     "Class": 12,
  25.     "Subject""English"
  26. }
  27.
  28. /* 4 */
  29. {
  30.     "_id": ObjectId("55fa5cf6f8677d20935445a3"),
  31.     "Student_ID": 1004,
  32.     "Name""Rahul Prajapat",
  33.     "Class": 11,
  34.     "Subject""Hindi"
  35. }
  36.
  37. /* 5 */
  38. {
  39.     "_id": ObjectId("55fa5d15f8677d20935445a4"),
  40.     "Student_ID": 1005,
  41.     "Name""Nitin Yadav",
  42.     "Class": 12,
  43.     "Subject""Math"
  44. }
  45.
  46. /* 6 */
  47. {
  48.     "_id": ObjectId("55fa5d2ff8677d20935445a5"),
  49.     "Student_ID": 1007,
  50.     "Name""Sonu",
  51.     "Class": 12,
  52.     "Subject""Punjabi"
  53. }
  54.
  55. /* 7 */
  56. {
  57.     "_id": ObjectId("55fa5d5cf8677d20935445a6"),
  58.     "Student_ID": 1008,
  59.     "Name""Pradeep Yadav",
  60.     "Class": 12,
  61.     "Subject""Math"
  62. }
Firstly, we start a MongoDB server, for this open a command prompt and run “mongod” command.

MongoDB server

Now run the project in any browser . MongoDB_Form.aspx page looks like the following:

MongoDB

Now we read all CRUD operations.

Select Command

To retrieve the record from “Student_Infromation” collection we are using the following code.
  1. public MongoDB_Class() {
  2.     Settings_ = new MongoServerSettings();
  3.     Settings_.Server = new MongoServerAddress("localhost", 27017);
  4.     server = new MongoServer(Settings_);
  5.     Database_ = server.GetDatabase("Temp");
  6.
  7.
  8. }
  9.
  10. public List < Student_Info > Retrieve_Student_Information() {
  11.     try {
  12.         server.Connect();
  13.         List < Student_Info > Student_List = new List < Student_Info > ();
  14.         var StuInfo = Database_.GetCollection < Student_Info > ("Student_Information");
  15.
  16.         foreach(Student_Info Stu in StuInfo.FindAll()) {
  17.             Student_List.Add(Stu);
  18.         }
  19.
  20.         return Student_List;
  21.     } catch {
  22.         throw;
  23.     } finally {
  24.         server.Disconnect();
  25.     }
  26. }
In above code first we created a setup for MongoDB connection. In this setup we provide server address and name of the database. In Retrieve_Student_Information method we created a list of Student_Info type and used this list to store the data of Student_Information collection.

Insert Command
  1. MongoCollection < Student_Info > Collection_ = Database_.GetCollection < Student_Info > ("Student_Information");
  2. BsonDocument Stu_Doc = new BsonDocument {
  3.     {
  4.         "Student_ID", _Obj.Student_ID
  5.     }, {
  6.         "Name", _Obj.Name
  7.     }, {
  8.         "Class", _Obj.Class
  9.     }, {
  10.         "Subject", _Obj.Subject
  11.     }
  12.
  13. };
  14. Collection_.Insert(Stu_Doc);
In this code section we created a MongoDB collection that is “Collection_” , this collection represent the “Student_Information” collection. We also created a Bson document(Stu_Doc) for “Student_Information” collection and insert the value in Stu_Doc document that is retrieved from “MongoDB_Form” page into Collection_.

Let us take an example.

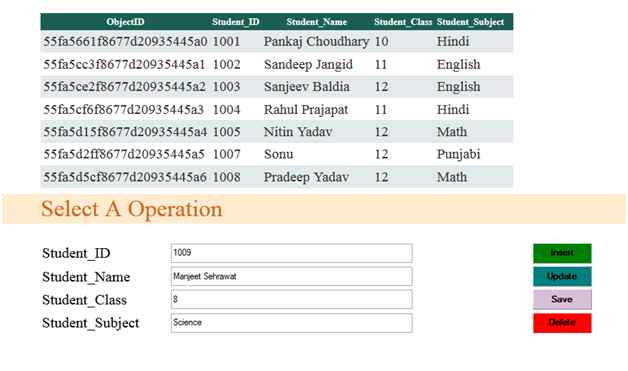

Firstly, we create a document.

create a document

Now check the “Student_Information” collection.

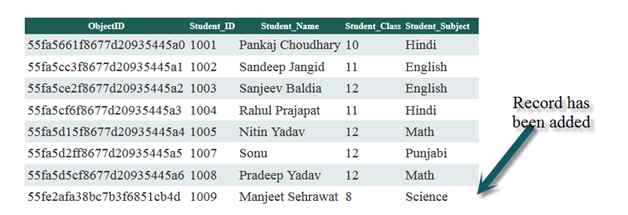

record

We can see the item has been added successfully.

Remove Command

We write the following code to perform the delete operation.
  1. MongoCollection<Student_Info> Collection_ = Database_.GetCollection<Student_Info>("Student_Information");
  2. IMongoQuery Marker = Query.EQ("Student_ID", _Obj.Student_ID);
  3. Collection_.Remove(Marker);
In above code we create a MongoCollection and a IMongoQuery Marker, this marker represent the MongoDB match query. We write the the following code or marker:
  1. IMongoQuery Marker = Query.EQ("Student_ID", _Obj.Student_ID)
  2. Collection_.Remove(Marker);
Above code removes (delete) all the documents from “Student_Information” collection that match the value of Student_ID field.

Example

We try to delete the record where Student_ID is equal to 1005.

We can see the record of student doesn’t exist whose “Student_ID” is 1005.

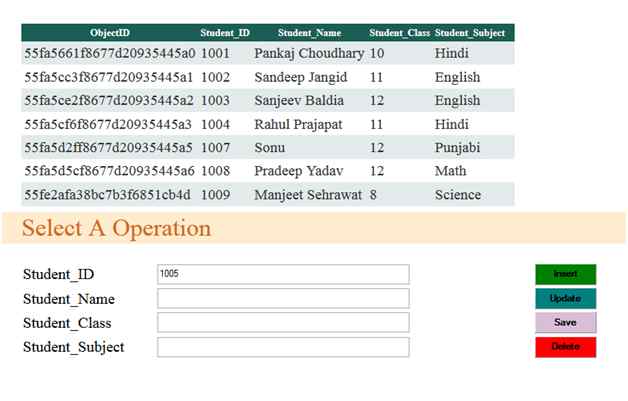

record of student
Update Command
  1. MongoCollection<Student_Info> Collection_ = Database_.GetCollection<Student_Info>("Student_Information");
  2. IMongoQuery Marker = Query.EQ("Student_ID", _Obj.Student_ID);
  3.
  4.
  5. IMongoUpdate Update_ = MongoDB.Driver.Builders.Update.Set("Name", _Obj.Name)
  6. .Set("Class", _Obj.Class)
  7. .Set("Subject", _Obj.Subject);
  8. Collection_.Update(Marker, Update_);
We know that Update command in MongoDB mainly take two types parameters match and set parameters.

db.Collection_Name({Match_Parameters},{Set_Parameters})

In above query we send Marker works as Match parameter and Update_ document works as set parameters.

Example

Now we update value for Student_ID 1002.

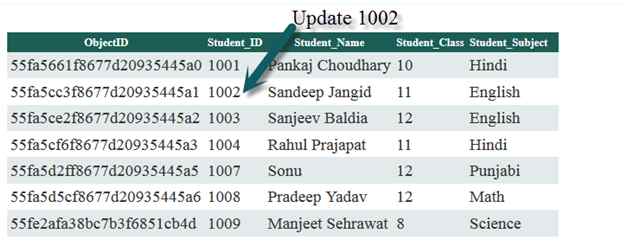

select a option

Document after update.

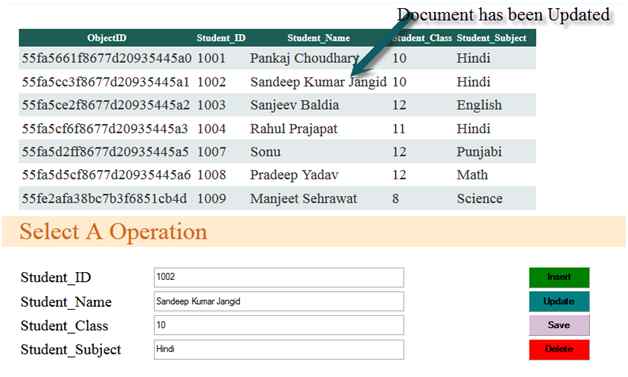

update

Save Command
  1. MongoCollection<Student_Info> Collection_ = Database_.GetCollection<Student_Info>("Student_Information");
  2. BsonDocument Stu_Doc = new BsonDocument()
  3. .Add("_id", _Obj._id)
  4. .Add("Student_ID", _Obj.Student_ID)
  5. .Add("Name", _Obj.Name)
  6. .Add("Class", _Obj.Class)
  7. .Add("Subject", _Obj.Subject);
  8.
  9. Collection_.Save(Stu_Doc);
Save command first match the _id field for all document if a document contain same _id value then it will update the fields, otherwise insert a new document in the collection. Now we take both the cases. For save command we must send the value of _id field.

Case 1(_id Already Exist)

We try to save the value where _id is equal to “55fa5d5cf8677d20935445a6”.

Record of “55fa5d5cf8677d20935445a6” id is:

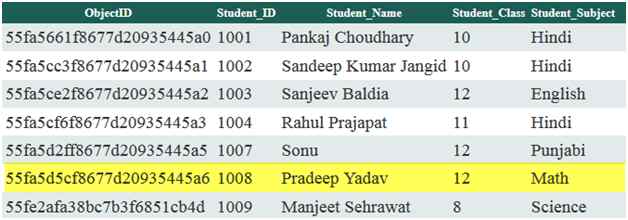

document hasbeen saved

Now we execute Save command and examine the result.

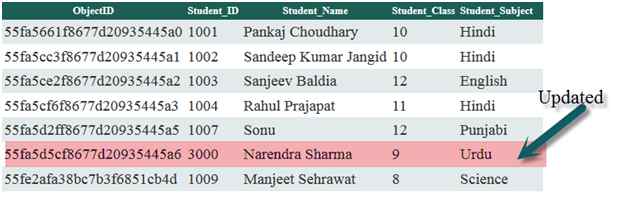

Save command

Case 2: (_id doesn’t Exist)

Now we try to save the value where _id is equal to “55fa5d5cf8677d2093544100”, as we know that this _id doesn’t exist so a new document will insert .

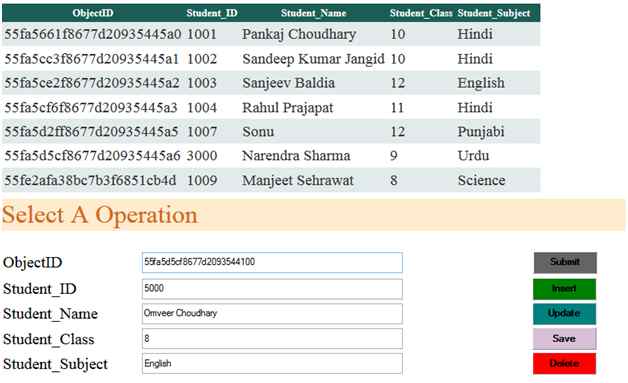

document

Collection after Save command.

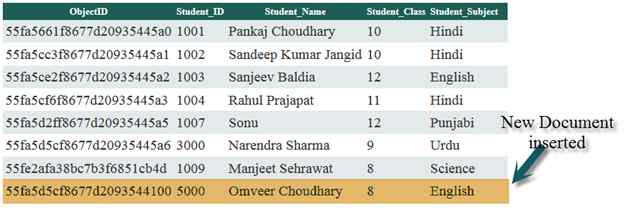

new document

Summary

Today we learned how to connect MongoDB using C#. We also learn some basic command. In next article I will explain some advance CRUD operation for MongoDB using C#.

Thanks for reading reading the article.
