Recovery Scenario Manager Dialog Box in QTP in Testing

The Recovery Scenario Manager dialog box enables you to create recovery scenarios and save them in recovery files. You create recovery scenarios using the recovery scenario wizard, which leads you through the process of defining each of the stages of the recovery scenario. You then save the recovery scenarios in a recovery file and associate them with specific tests or components.

Creating a Recovery File

You save your recovery scenarios in a recovery file. A recovery file is a convenient way to organize and store multiple recovery scenarios together. You can create a new recovery file or edit an existing one.

To create a recovery file:

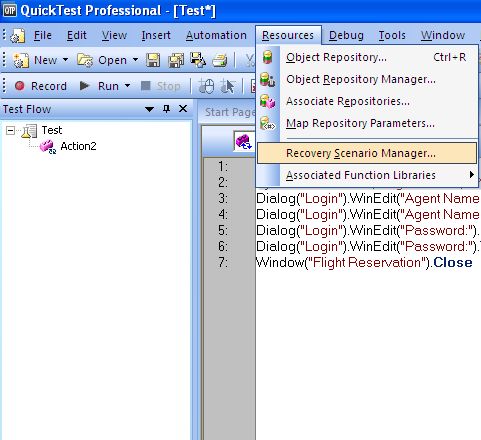

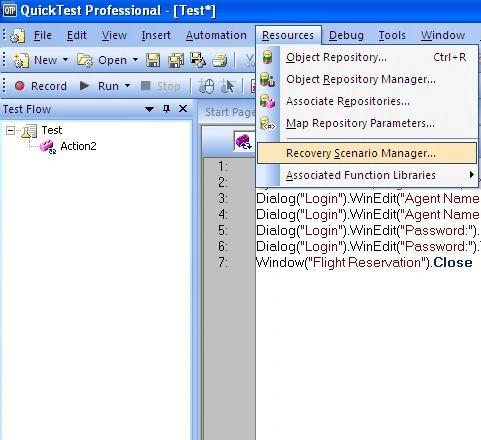

  1. Choose Resources > Recovery Scenario Manager.

    resources-recovery scenario manager.jpg

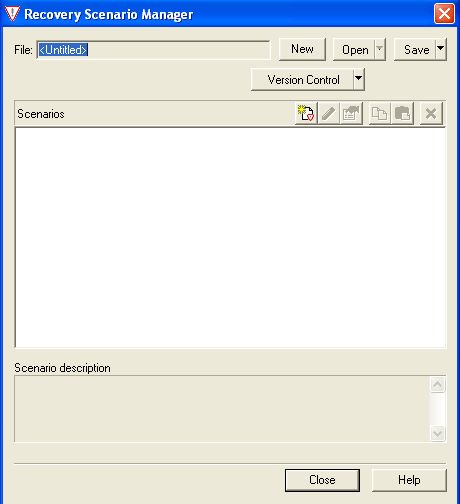

  2. On clicking on Recovery Scenario Manager, it display the Recovery Scenario Manager dialog box.

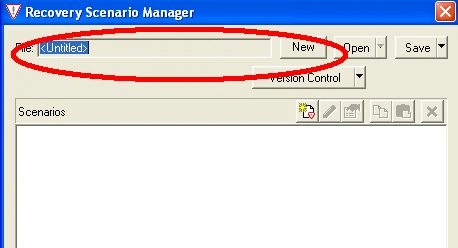

  3. By default, the Recovery Scenario Manager dialog box opens with a new recovery file. You can either use this new file or click the open button to choose an existing recovery file. Alternatively you can click the arrow next to the open button to select a recently used recovery file from the list.


  4. The Recovery Scenario Manager dialog box enables you to create and edit recovery files and create and manage recovery scenarios. The Recovery Scenario Manager dialog box displays the name of the currently open recovery file, a list of the scenarios saved in the recovery file and a description of each scenario.

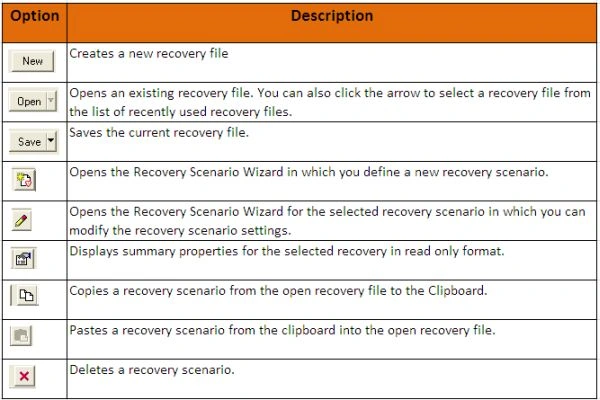

  5. The Recovery Scenario Manager dialog box contains the following toolbar buttons:
