Today Windows always appear with a rectangular shape. What if you could have a window that was shaped like a circle, a square or a triangle or any shape you want.
  • 0
  • 0
  • 7178
Download Files:


Today Windows always appear with a rectangular shape. What if you could have a window that was shaped like a circle, a square or a triangle or any shape you want.

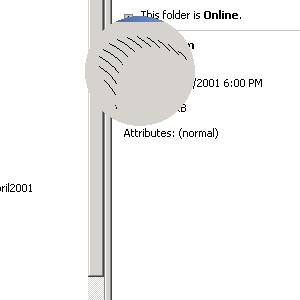

I discovered tonight you could use regions to in effect clip a window to any shape you want. The effect is almost to look like an active desktop component as you cannot move these shaped windows. Having done this and created some animation on your desktop I wonder if you could load a bitmap as the basis for your windows. Note you lose the titlebars etc but it looks like a useful technique.

Here is the source code. Apologies if its messy but its been a long night searching for how to do this. I have attached the exe as well for Beta 2

Source Code:

using System;
using System.Drawing;
using System.Collections;
using System.ComponentModel;
using System.Windows.Forms;
using System.Data;
using System.Drawing.Drawing2D;
namespace ShapedForm
{
/// <summary>
/// Summary description for Form1.
/// </summary>
public class Form1 : System.Windows.Forms.Form
{
private System.Windows.Forms.Timer timer1;
private System.ComponentModel.IContainer components;
public float f;
public Form1()
{
//
// Required for Windows Form Designer support
//
InitializeComponent();
//
// TODO: Add any constructor code after InitializeComponent
call
//
}
/// <summary>
/// Clean up any resources being used.
/// </summary>
protected override void Dispose( bool disposing )
{
if( disposing )
{
if (components != null)
{
components.Dispose();
}
}
base.Dispose( disposing );
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.components = new System.ComponentModel.Container();
this.timer1 = new System.Windows.Forms.Timer(this.components);
//
// timer1
//
this.timer1.Enabled = true;
this.timer1.Interval = 50;
this.timer1.Tick += new System.EventHandler(this.timer1_Tick);
//
// Form1
//
this.AutoScaleBaseSize = new System.Drawing.Size(5, 13);
this.ClientSize = new System.Drawing.Size(292, 273);
this.Name = "Form1";
this.Text = "Form1";
}
#endregion
/// <summary>
/// The main entry point for the application.
/// </summary>
[STAThread]
static void Main ()
{
Application.Run(
new Form1());
}
private void timer1_Tick(object sender, System.EventArgs e)
{
this.Refresh();
}
protected override void OnPaint(PaintEventArgs e)
{
GraphicsPath gp =
new GraphicsPath();
gp.AddEllipse(20,20,110,110);
//gp.AddLine(30,30,110,110);
Matrix RotationTransform = new Matrix(1,0, 0,1,1,1); // rotation matrix
//Matrix TranslationTransform = new Matrix(1, 0, 0, 1, 0, 0); // translation matrix
PointF TheRotationPoint = new PointF(110.0f, 110.0f); // rotation point
// rotate the rotation transformation matrix f degrees around TheRotationPoint
RotationTransform.RotateAt(f, TheRotationPoint);
//Call the Transform method of the Graphics Path in order to multiply it by the rotation matrix and rotate the balloon
gp.Transform(RotationTransform);
e.Graphics.DrawPath(Pens.Black, gp);
f=f+10;
this.Region=new Region(gp);
}
}
}
