ASP.NET 2.0 MultiView Control

A View control is a container of multiple controls and a MultiView control works as a container of groups of View controls. In this article, I will discuss how to work with View and Multiview controls.

The MultiView and View controls are new addition to ASP.NET 2.0. If you have ever created a Tab Control in ASP.NET, you will find MultiView and View control very familiar.

A View control works as a container of common controls and a MutliView control works as a container of several View controls. In this step by step tutorial, I will show you how to create a MultiView control and generate different views depending on the selection.

First of all, I create three links and drop one MultiView control on the page. My page looks like Figure 1. So idea here is if I click on My Websites link, I should see a list of web sites. When I click on My Schedule, I should see a calendar control, and when I click on Upload Photo link, I should see something where I can upload a photo. As you can see, this is very similar to a Tab Control and Tab Pages.

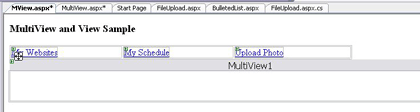

Figure 1. MiltiView

Now I drop three View controls on MultiView control as you can see in Figure 2.

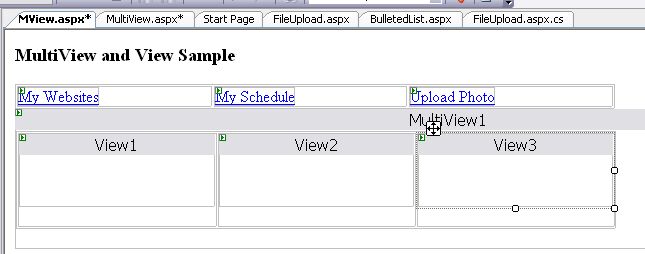

Figure 2. MultiView with three Views

Now next thing I want to do is design my Views. As you can see from Figure 3, I put a BulletedList with hyper links on it. On second view, I put a Calendar control and on third View, I drop a File UpLoad control.

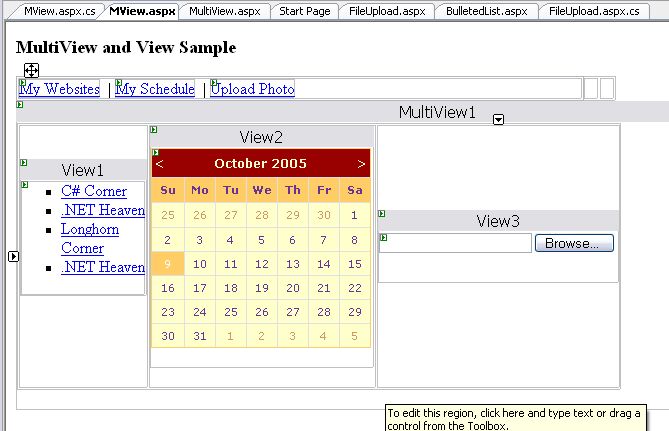

Figure 3. Multiview with three Views and controls

MultiView's ActiveViewIndex property decides which view is active. So now I am going to add my hyperlinks click event handlers. As you see in the following code, I simply set the ActiveViewIndex property to 0, 1, and 2 respectively, which represents first, second, and third Views respectively.

protected void MyWebSitesLink_Click(object sender, EventArgs e)
{
MultiView1.ActiveViewIndex = 0;
}

protected void MyScheduleLink_Click(object sender, EventArgs e)
{
MultiView1.ActiveViewIndex = 1;
}

protected void UploadPhotoLink_Click(object sender, EventArgs e)
{
MultiView1.ActiveViewIndex = 2;
}

The View control has a TabIndex (remember I said View works as a Tab Page ;-) ), which sets the TabInxex of a View. The TabIndex is mapped with the ActiveViewIndex of MultiView control.

Now I simply run my sample and click on My Websites, My Schedule, and Upload Photo links and it loads different views.

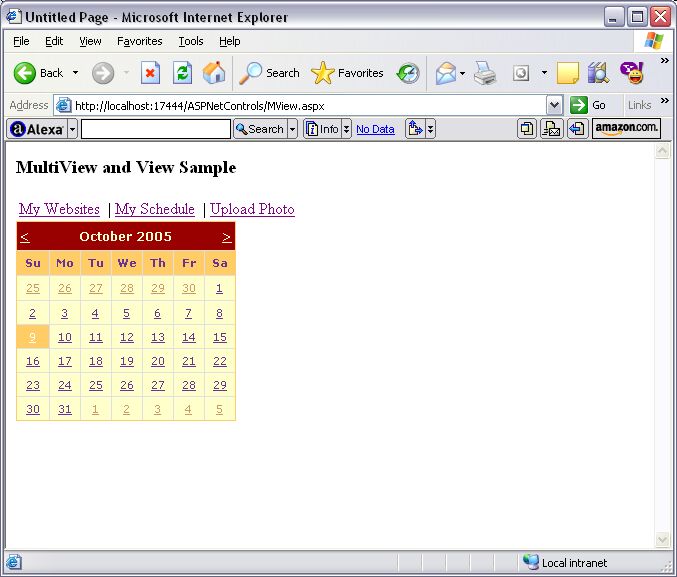

Figure 4. MultiView in Action
