XAML RadioButton Code Example

The <RadioButton> element in XAML is used to create a radio button control in a WPF app.

This article has moved here - Working with a WPF Radio Button Control

The following code example creates a radio button and sets the name, height and width of a RadioButton control. The code also sets the horizontal alignment to left and the vertical alignment to top.
  1. <RadioButton Margin="10,10,0,13" Name="RadioButton1" HorizontalAlignment="Left" VerticalAlignment="Top" Width="150" Height="15" Backgroun      d="Yellow " Foreground="Blue">
  2.       C# Corner
  3. </RadioButton>
The RadioButton looks as in following:

XAML RadioButton
Figure 1. RadioButton

The GroupName property of a RadioButton assigns a RadioButton to a group. Only one RadioButton can be in the selected states at once and by selecting a new RadioButton unselects the previous selected RadioButton.

The following code assigns four RadioButton controls to a group called MCSites.
  1. <RadioButton Margin="10,5,0,0" GroupName="MCSites" Background="Yellow" Foreground="Blue" >
  2.     C# Corner
  3. </RadioButton>
  4. <RadioButton Margin="10,5,0,0" GroupName="MCSites" Background="Yellow" Foreground="Orange" >
  5.     VB.NET Heaven
  6. </RadioButton>
  7. <RadioButton Margin="10,5,0,0" GroupName="MCSites" Background="Yellow" Foreground="Green" >
  8.     Longhorn Corner
  9. </RadioButton>
  10. <RadioButton Margin="10,5,0,0" GroupName="MCSites" Background="Yellow" Foreground="Purple" >
  11.     Mindcracker
  12. </RadioButton>

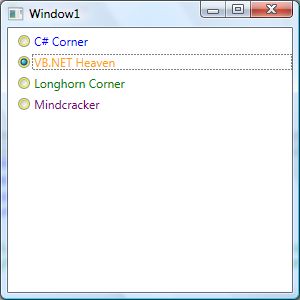

The output looks as in Figure 2. If you select one RadioButton, the previous RadioButton will be unselected.

XAML RadioButton
Figure 2

RadioButton control has Checked event as default event and raised when you check a radio button. The following code snippet adds the event handler.
  1. <RadioButton Name="Btn1" Margin="10,5,0,0" GroupName="MCSites"
  2.    Background="Yellow" Foreground="Blue" Checked="Btn1_Checked">
The following checked event handler sets the foreground and background color of the checked RadioButton and sets black and white for the rest of them.
  1. private void Btn1_Checked(object sender, RoutedEventArgs e)
  2. {
  3.     Btn1.Foreground = Brushes.Blue;
  4.     Btn1.Background = Brushes.Yellow;
  5.     Btn2.Foreground = Brushes.Black;
  6.     Btn2.Background = Brushes.White;
  7.     Btn3.Foreground = Brushes.Black;
  8.     Btn3.Background = Brushes.White;
  9.     Btn4.Foreground = Brushes.Black;
  10.     Btn4.Background = Brushes.White;
  11. }
New RadioButton group looks as in Figure 3.

XAML RadioButton
Figure 3

The IsChecked property of RadioButton represents whether or not a RadioButton is checked. The following code snippet on a button click event handler finds the text of the selected RadioButton in a group.
  1. private void button1_Click(object sender, RoutedEventArgs e)
  2. {
  3.    if( Btn1.IsChecked == true)
  4.        MessageBox.Show(Btn1.Content.ToString());
  5.    else if (Btn2.IsChecked == true)
  6.        MessageBox.Show(Btn2.Content.ToString());
  7.    else if (Btn3.IsChecked == true)
  8.        MessageBox.Show(Btn3.Content.ToString());
  9.    else
  10.        MessageBox.Show(Btn4.Content.ToString());
  11. }
This article has moved here: Working with a WPF Radio Button Control
