Code First Approach in MVC With Entity Framework With Primary and Foreign Key Creation

In my previous article I explained what Code First Approach in MVC with Entity Framework is. Now in this article I will show how to create a Primary Key and Foreign Key using the code first approach in MVC with Entity Framework.

Here I will create 2 tables, Students and Course. Both tables will have a Primary Key and the Student table will reference the course table with CourseID as the Foreign Key.

Now open Visual Studio 2012 and select New Project.

mvc 4 web application

internet application

Now right-click on the project in the Solution Explorer then click on Manage NuGet Packages.

manage nuget package

Now here in this project I will create 2 tables, one is the Student table and the second one is the Course table. Both tables will have a Primary Key and the Student and Course tables will have a Foreign Key, CourseID. So here I will create 2 clasess in the Model Folder.

Student.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.ComponentModel.DataAnnotations.Schema;
  5. using System.Linq;
  6. using System.Web;
  7.
  8. namespace CodeFirstApproachWithPrimaryForeignKey.Models
  9. {
  10.     public class Student
  11.     {
  12.         public Student()
  13.         {
  14.
  15.         }
  16.         [Key]
  17.         public int Id { get; set; }
  18.         public string Name { get; set; }
  19.
  20.         [DataType(DataType.Date),
  21.          DisplayFormat(DataFormatString = "{0:dd/MM/yy}",
  22.          ApplyFormatInEditMode = true)]
  23.         public DateTime? DateOfBirth { get; set; }
  24.         public string EmailId { get; set; }
  25.         public string Address { get; set; }
  26.         public string City { get; set; }
  27.         public int CourseId { get; set; }
  28.
  29.         public Course Course { get; set; } // Navigation Property
  30.
  31.         [NotMapped]
  32.         public string CourseName { get; set; }
  33.
  34.     }
  35. }
Here CourseName will not be a field because I set it as NotMapped.

Now Course.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations;
  4. using System.Linq;
  5. using System.Web;
  6.
  7. namespace CodeFirstApproachWithPrimaryForeignKey.Models
  8. {
  9.     public class Course
  10.     {
  11.         public Course()
  12.         {
  13.
  14.         }
  15.         [Key]
  16.         public int CourseId { get; set; }
  17.         public string CourseName { get; set; }
  18.
  19.         public List<Student> Students { get; set; } // Navigation property
  20.     }
  21. }
Now again right-click on the Model folder and add the new class StudentDBContext.cs.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.ComponentModel.DataAnnotations.Schema;
  4. using System.Data.Entity;
  5. using System.Linq;
  6. using System.Web;
  7.
  8. namespace CodeFirstApproachWithPrimaryForeignKey.Models
  9. {
  10.     public class StudentDBContext : DbContext
  11.     {
  12.         public StudentDBContext()
  13.             : base("StudentDbContext")
  14.         {
  15.         }
  16.
  17.         public DbSet<Student> Students { get; set; }
  18.         public DbSet<Course> Courses { get; set; }
  19.
  20.         protected override void OnModelCreating(DbModelBuilder modelBuilder)
  21.         {
  22.             modelBuilder.Entity<Course>().HasKey(p => p.CourseId);
  23.             modelBuilder.Entity<Course>().Property(c => c.CourseId)
  24.                 .HasDatabaseGeneratedOption(DatabaseGeneratedOption.Identity);
  25.
  26.             modelBuilder.Entity<Student>().HasKey(b => b.Id);
  27.             modelBuilder.Entity<Student>().Property(b => b.Id)
  28.                 .HasDatabaseGeneratedOption(DatabaseGeneratedOption.Identity);
  29.
  30.             modelBuilder.Entity<Student>().HasRequired(p => p.Course)
  31.                 .WithMany(b => b.Students).HasForeignKey(b => b.CourseId);
  32.
  33.             base.OnModelCreating(modelBuilder);
  34.         }
  35.     }
  36. }

Here In this StudentDBContext.cs you can see I am using OnModelCreating. Here I define what will be the Primary Key and what will be the Foreign Key.

Now right-click on Controller then select Add -> Controller -> Student.

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using CodeFirstApproachWithPrimaryForeignKey.Models;
  7.
  8. namespace CodeFirstApproachWithPrimaryForeignKey.Controllers
  9. {
  10.     public class StudentController : Controller
  11.     {
  12.         //
  13.         // GET: /Student/
  14.
  15.         StudentDBContext objContext;
  16.
  17.         public StudentController()
  18.         {
  19.             objContext = new StudentDBContext();
  20.         }
  21.
  22.         #region List and Details student
  23.
  24.         public ActionResult Index()
  25.         {
  26.             var students = (from p in objContext.Students
  27.                             join f in objContext.Courses
  28.                         on p.CourseId equals f.CourseId
  29.                             select new
  30.                             {
  31.                                 Id = p.Id,
  32.                                 Name = p.Name,
  33.                                 DateOfBirth = p.DateOfBirth,
  34.                                 EmailId = p.EmailId,
  35.                                 Address = p.Address,
  36.                                 City = p.City,
  37.                                 CourseName = f.CourseName
  38.                             }).ToList()
  39.                       .Select(x => new Student()
  40.                       {
  41.                           Id = x.Id,
  42.                           Name = x.Name,
  43.                           DateOfBirth = x.DateOfBirth,
  44.                           EmailId = x.EmailId,
  45.                           Address = x.Address,
  46.                           City = x.City,
  47.                           CourseName = x.CourseName
  48.                       });
  49.             return View(students.ToList());
  50.         }
  51.
  52.         public ViewResult Details(int id)
  53.         {
  54.             //Student student = objContext.Students.Where(x => x.Id == id).SingleOrDefault();
  55.             var student = (from p in objContext.Students
  56.                             join f in objContext.Courses
  57.                         on p.CourseId equals f.CourseId
  58.                         where (p.Id==id)
  59.                             select new
  60.                             {
  61.                                 Id = p.Id,
  62.                                 Name = p.Name,
  63.                                 DateOfBirth = p.DateOfBirth,
  64.                                 EmailId = p.EmailId,
  65.                                 Address = p.Address,
  66.                                 City = p.City,
  67.                                 CourseName = f.CourseName
  68.                             }).ToList()
  69.                      .Select(x => new Student()
  70.                      {
  71.                          Id = x.Id,
  72.                          Name = x.Name,
  73.                          DateOfBirth = x.DateOfBirth,
  74.                          EmailId = x.EmailId,
  75.                          Address = x.Address,
  76.                          City = x.City,
  77.                          CourseName = x.CourseName
  78.                      }).SingleOrDefault();
  79.             return View(student);
  80.         }
  81.
  82.         #endregion
  83.
  84.         #region Create student
  85.
  86.         public ActionResult Create()
  87.         {
  88.             var data = from p in objContext.Courses
  89.                        select new
  90.                        {
  91.                            CourseID = p.CourseId,
  92.                            CourseName = p.CourseName
  93.                        };
  94.
  95.             SelectList list = new SelectList(data, "CourseID", "CourseName");
  96.             ViewBag.Roles = list;
  97.
  98.             return View(new Student());
  99.         }
  100.
  101.         [HttpPost]
  102.         public ActionResult Create(Student student)
  103.         {
  104.             objContext.Students.Add(student);
  105.             objContext.SaveChanges();
  106.             return RedirectToAction("Index");
  107.         }
  108.
  109.         #endregion
  110.
  111.         #region Edit student
  112.
  113.         public ActionResult Edit(int id)
  114.         {
  115.             var data = from p in objContext.Courses
  116.                        select new
  117.                        {
  118.                            CourseID = p.CourseId,
  119.                            CourseName = p.CourseName
  120.                        };
  121.
  122.             SelectList list = new SelectList(data, "CourseID", "CourseName");
  123.             ViewBag.Roles = list;
  124.
  125.             Student student = objContext.Students.Where(x => x.Id == id).SingleOrDefault();
  126.             return View(student);
  127.         }
  128.
  129.
  130.         [HttpPost]
  131.         public ActionResult Edit(Student model)
  132.         {
  133.             Student student = objContext.Students.Where(x => x.Id == model.Id).SingleOrDefault();
  134.             if (student != null)
  135.             {
  136.                 objContext.Entry(student).CurrentValues.SetValues(model);
  137.                 objContext.SaveChanges();
  138.                 return RedirectToAction("Index");
  139.             }
  140.
  141.             return View(model);
  142.         }
  143.
  144.         #endregion
  145.
  146.         #region Delete student
  147.
  148.         public ActionResult Delete(int id)
  149.         {
  150.             Student student = objContext.Students.Find(id);
  151.             return View(student);
  152.         }
  153.
  154.         [HttpPost]
  155.         public ActionResult Delete(int id, Student model)
  156.         {
  157.             var student = objContext.Students.Where(x => x.Id == id).SingleOrDefault();
  158.             if (student != null)
  159.             {
  160.                 objContext.Students.Remove(student);
  161.                 objContext.SaveChanges();
  162.             }
  163.             return RedirectToAction("Index");
  164.         }
  165.         #endregion
  166.     }
  167. }
Views Are for Create/Read/Details/Edit/Delete

Index.cshtml
  1. <h2>Showing All Students</h2>
  2.
  3. <p>
  4.     @Html.ActionLink("Create New", "Create")
  5. </p>
  6. <table style="width:100%;">
  7.    <tr>
  8.         <th >
  9.             @Html.DisplayNameFor(model => model.Name)
  10.         </th>
  11.        <th style="width:20%;">
  12.             @Html.DisplayNameFor(model => model.DateOfBirth)
  13.         </th>
  14.         <th style="width:20%;">
  15.             @Html.DisplayNameFor(model => model.EmailId)
  16.         </th>
  17.        <th>
  18.             @Html.DisplayNameFor(model => model.Address)
  19.         </th>
  20.         <th>
  21.             @Html.DisplayNameFor(model => model.City)
  22.         </th>
  23.       <th>
  24.             @Html.DisplayNameFor(model => model.CourseName)
  25.         </th>
  26.         <th></th>
  27.     </tr>
  28.
  29. @foreach (var item in Model) {
  30.     <tr>
  31.         <td>
  32.             @Html.DisplayFor(modelItem => item.Name)
  33.         </td>
  34.         <td>
  35.             @Html.DisplayFor(modelItem => item.DateOfBirth)
  36.         </td>
  37.         <td>
  38.             @Html.DisplayFor(modelItem => item.EmailId)
  39.         </td>
  40.         <td>
  41.             @Html.DisplayFor(modelItem => item.Address)
  42.         </td>
  43.         <td>
  44.             @Html.DisplayFor(modelItem => item.City)
  45.         </td>
  46.         <td>
  47.             @Html.DisplayFor(modelItem => item.CourseName)
  48.         </td>
  49.         <td>
  50.             @Html.ActionLink("Edit", "Edit", new { id=item.Id }) |
  51.             @Html.ActionLink("Details", "Details", new { id=item.Id }) |
  52.             @Html.ActionLink("Delete", "Delete", new { id=item.Id })
  53.         </td>
  54.     </tr>
  55. }
  56.
  57. </table>
Create.cshtml
  1. @model CodeFirstApproachWithPrimaryForeignKey.Models.Student
  2.
  3. @{
  4.     ViewBag.Title = "Create";
  5. }
  6.
  7. <h2>Create</h2>
  8.
  9. @using (Html.BeginForm())
  10. {
  11.     @Html.ValidationSummary(true)
  12.
  13.     <fieldset>
  14.         <legend>Student</legend>
  15.
  16.         <div class="editor-label">
  17.             @Html.LabelFor(model => model.Name)
  18.         </div>
  19.         <div class="editor-field">
  20.             @Html.EditorFor(model => model.Name)
  21.             @Html.ValidationMessageFor(model => model.Name)
  22.         </div>
  23.
  24.         <div class="editor-label">
  25.             @Html.LabelFor(model => model.DateOfBirth)
  26.         </div>
  27.         <div class="editor-field">
  28.             @Html.EditorFor(model => model.DateOfBirth)
  29.             @Html.ValidationMessageFor(model => model.DateOfBirth)
  30.         </div>
  31.
  32.         <div class="editor-label">
  33.             @Html.LabelFor(model => model.EmailId)
  34.         </div>
  35.         <div class="editor-field">
  36.             @Html.EditorFor(model => model.EmailId)
  37.             @Html.ValidationMessageFor(model => model.EmailId)
  38.         </div>
  39.
  40.         <div class="editor-label">
  41.             @Html.LabelFor(model => model.Address)
  42.         </div>
  43.         <div class="editor-field">
  44.             @Html.EditorFor(model => model.Address)
  45.             @Html.ValidationMessageFor(model => model.Address)
  46.         </div>
  47.
  48.         <div class="editor-label">
  49.             @Html.LabelFor(model => model.City)
  50.         </div>
  51.         <div class="editor-field">
  52.             @Html.EditorFor(model => model.City)
  53.             @Html.ValidationMessageFor(model => model.City)
  54.         </div>
  55.
  56.         <div class="editor-label">
  57.             @Html.LabelFor(model => model.CourseId)
  58.         </div>
  59.         <div class="editor-field">
  60.             @Html.DropDownListFor(m=>m.CourseId, ViewBag.Roles as SelectList, "Select ...", new { @class = "myClass", style = "width: 250px;" })
  61.
  62.            @* @Html.EditorFor(model => model.CourseId)*@
  63.             @Html.ValidationMessageFor(model => model.CourseId)
  64.         </div>
  65.
  66.         <p>
  67.             <input type="submit" value="Create" />
  68.         </p>
  69.     </fieldset>
  70. }
  71.
  72. <div>
  73.     @Html.ActionLink("Back to List", "Index")
  74. </div>
  75.
  76. @section Scripts {
  77.     @Scripts.Render("~/bundles/jqueryval")
  78. }

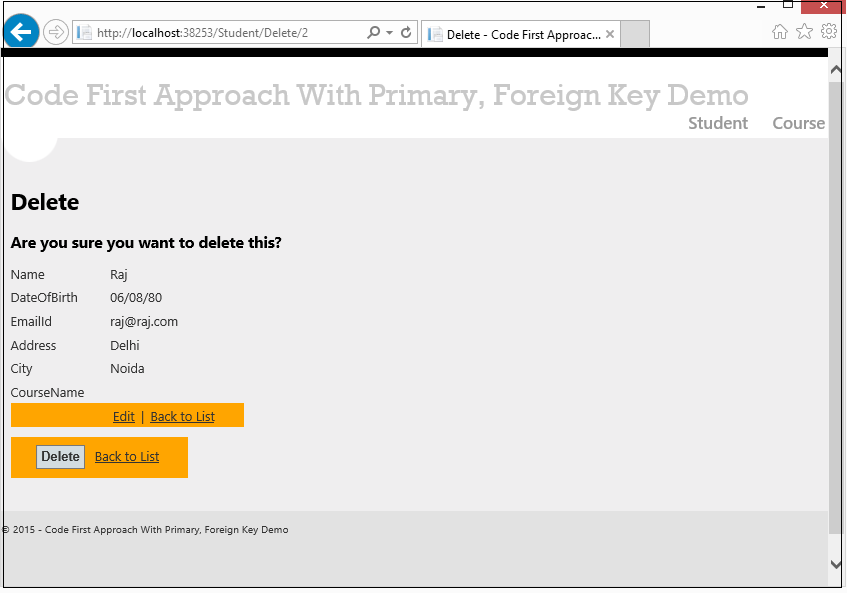

Delete.cshtml
  1. @model CodeFirstApproachWithPrimaryForeignKey.Models.Student
  2.
  3. @{
  4.     ViewBag.Title = "Delete";
  5. }
  6.
  7. <h2>Delete</h2>
  8.
  9. <h3>Are you sure you want to delete this?</h3>
  10. <table>
  11.     <tr>
  12.         <td>@Html.DisplayNameFor(model => model.Name)</td>
  13.         <td>@Html.DisplayFor(model => model.Name)</td>
  14.     </tr>
  15.     <tr>
  16.         <td>@Html.DisplayNameFor(model => model.DateOfBirth)</td>
  17.         <td>@Html.DisplayFor(model => model.DateOfBirth)</td>
  18.     </tr>
  19.     <tr>
  20.         <td>@Html.DisplayNameFor(model => model.EmailId)</td>
  21.         <td>@Html.DisplayFor(model => model.EmailId)</td>
  22.     </tr>
  23.     <tr>
  24.         <td>@Html.DisplayNameFor(model => model.Address)</td>
  25.         <td>@Html.DisplayFor(model => model.Address)</td>
  26.     </tr>
  27.     <tr>
  28.         <td>@Html.DisplayNameFor(model => model.City)</td>
  29.         <td>@Html.DisplayFor(model => model.City)</td>
  30.     </tr>
  31.     <tr>
  32.         <td>@Html.DisplayNameFor(model => model.CourseName)</td>
  33.         <td>@Html.DisplayFor(model => model.CourseName)</td>
  34.     </tr>
  35.
  36.     <tr style="background-color: orange; padding: 25px;">
  37.         <td></td>
  38.         <td>@Html.ActionLink("Edit", "Edit", new { id = Model.Id }) |
  39.     @Html.ActionLink("Back to List", "Index")</td>
  40.
  41.     </tr>
  42. </table>
  43.
  44. @using (Html.BeginForm())
  45. {
  46.     <table>
  47.         <tr style="background-color: orange; padding: 25px;">
  48.             <td></td>
  49.             <td>
  50.                 <input type="submit" value="Delete" />
  51.
  52.                 @Html.ActionLink("Back to List", "Index")
  53.             </td>
  54.
  55.         </tr>
  56.     </table>
  57. }
Details.cshtml
  1. @model CodeFirstApproachWithPrimaryForeignKey.Models.Student
  2.
  3. @{
  4.     ViewBag.Title = "Details";
  5. }
  6.
  7. <h2>Details Of Student</h2>
  8.
  9.
  10. <table>
  11.     <tr>
  12.         <td>@Html.DisplayNameFor(model => model.Name)</td>
  13.         <td>@Html.DisplayFor(model => model.Name)</td>
  14.     </tr>
  15.     <tr>
  16.         <td>@Html.DisplayNameFor(model => model.DateOfBirth)</td>
  17.         <td>@Html.DisplayFor(model => model.DateOfBirth)</td>
  18.     </tr>
  19.     <tr>
  20.         <td>@Html.DisplayNameFor(model => model.EmailId)</td>
  21.         <td>@Html.DisplayFor(model => model.EmailId)</td>
  22.     </tr>
  23.     <tr>
  24.         <td>@Html.DisplayNameFor(model => model.Address)</td>
  25.         <td>@Html.DisplayFor(model => model.Address)</td>
  26.     </tr>
  27.     <tr>
  28.         <td>@Html.DisplayNameFor(model => model.City)</td>
  29.         <td>@Html.DisplayFor(model => model.City)</td>
  30.     </tr>
  31.     <tr>
  32.         <td>@Html.DisplayNameFor(model => model.CourseName)</td>
  33.         <td>@Html.DisplayFor(model => model.CourseName)</td>
  34.     </tr>
  35.
  36.     <tr style="background-color: orange; padding: 25px;">
  37.         <td></td>
  38.         <td>@Html.ActionLink("Edit", "Edit", new { id = Model.Id }) |
  39.     @Html.ActionLink("Back to List", "Index")</td>
  40.
  41.     </tr>
  42. </table>
Edit.cshtml
  1. @model CodeFirstApproachWithPrimaryForeignKey.Models.Student
  2.
  3. @{
  4.     ViewBag.Title = "Edit";
  5. }
  6.
  7. <h2>Edit</h2>
  8.
  9. @using (Html.BeginForm()) {
  10.     @Html.ValidationSummary(true)
  11.
  12.     <fieldset>
  13.         <legend>Student</legend>
  14.
  15.         @Html.HiddenFor(model => model.Id)
  16.
  17.         <div class="editor-label">
  18.             @Html.LabelFor(model => model.Name)
  19.         </div>
  20.         <div class="editor-field">
  21.             @Html.EditorFor(model => model.Name)
  22.             @Html.ValidationMessageFor(model => model.Name)
  23.         </div>
  24.
  25.         <div class="editor-label">
  26.             @Html.LabelFor(model => model.DateOfBirth)
  27.         </div>
  28.         <div class="editor-field">
  29.             @Html.EditorFor(model => model.DateOfBirth)
  30.             @Html.ValidationMessageFor(model => model.DateOfBirth)
  31.         </div>
  32.
  33.         <div class="editor-label">
  34.             @Html.LabelFor(model => model.EmailId)
  35.         </div>
  36.         <div class="editor-field">
  37.             @Html.EditorFor(model => model.EmailId)
  38.             @Html.ValidationMessageFor(model => model.EmailId)
  39.         </div>
  40.
  41.         <div class="editor-label">
  42.             @Html.LabelFor(model => model.Address)
  43.         </div>
  44.         <div class="editor-field">
  45.             @Html.EditorFor(model => model.Address)
  46.             @Html.ValidationMessageFor(model => model.Address)
  47.         </div>
  48.
  49.         <div class="editor-label">
  50.             @Html.LabelFor(model => model.City)
  51.         </div>
  52.         <div class="editor-field">
  53.             @Html.EditorFor(model => model.City)
  54.             @Html.ValidationMessageFor(model => model.City)
  55.         </div>
  56.
  57.         <div class="editor-label">
  58.             @Html.LabelFor(model => model.CourseId)
  59.         </div>
  60.         <div class="editor-field">
  61.              @Html.DropDownListFor(m=>m.CourseId, ViewBag.Roles as SelectList, "Select ...", new { @class = "myClass", style = "width: 250px;" })
  62.
  63.            @* @Html.EditorFor(model => model.CourseId)*@
  64.             @Html.ValidationMessageFor(model => model.CourseId)
  65.         </div>
  66.
  67.         <p>
  68.             <input type="submit" value="Save" />
  69.         </p>
  70.     </fieldset>
  71. }
  72.
  73. <div>
  74.     @Html.ActionLink("Back to List", "Index")
  75. </div>
  76.
  77. @section Scripts {
  78.     @Scripts.Render("~/bundles/jqueryval")
  79. }

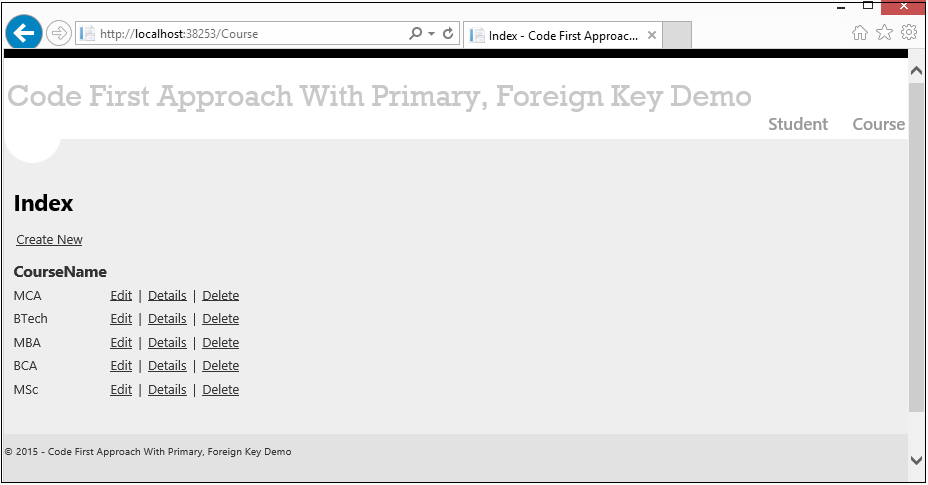

Now again right-click on Controller then select Add-> Controller -> Course.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using CodeFirstApproachWithPrimaryForeignKey.Models;
  7.
  8. namespace CodeFirstApproachWithPrimaryForeignKey.Controllers
  9. {
  10.     public class CourseController : Controller
  11.     {
  12.         //
  13.         // GET: /Course/
  14.
  15.         StudentDBContext objContext;
  16.         public CourseController()
  17.         {
  18.             objContext = new StudentDBContext();
  19.         }
  20.
  21.         #region List and Details course
  22.
  23.         public ActionResult Index()
  24.         {
  25.             var courses = objContext.Courses.ToList();
  26.             return View(courses);
  27.         }
  28.
  29.         public ViewResult Details(int id)
  30.         {
  31.             Course course = objContext.Courses.Where(x => x.CourseId == id).SingleOrDefault();
  32.             return View(course);
  33.         }
  34.
  35.         #endregion
  36.
  37.         #region Create course
  38.
  39.         public ActionResult Create()
  40.         {
  41.             return View(new Course());
  42.         }
  43.
  44.         [HttpPost]
  45.         public ActionResult Create(Course course)
  46.         {
  47.             objContext.Courses.Add(course);
  48.             objContext.SaveChanges();
  49.             return RedirectToAction("Index");
  50.         }
  51.
  52.         #endregion
  53.
  54.         #region edit course
  55.
  56.         public ActionResult Edit(int id)
  57.         {
  58.             Course course = objContext.Courses.Where(x => x.CourseId == id).SingleOrDefault();
  59.             return View(course);
  60.         }
  61.
  62.
  63.         [HttpPost]
  64.         public ActionResult Edit(Course model)
  65.         {
  66.             Course course = objContext.Courses.Where(x => x.CourseId == model.CourseId).SingleOrDefault();
  67.             if (course != null)
  68.             {
  69.                 objContext.Entry(course).CurrentValues.SetValues(model);
  70.                 objContext.SaveChanges();
  71.                 return RedirectToAction("Index");
  72.             }
  73.
  74.             return View(model);
  75.         }
  76.
  77.       #endregion
  78.
  79.         #region Delete course
  80.         public ActionResult Delete(int id)
  81.         {
  82.             Course course = objContext.Courses.Find(id);
  83.             return View(course);
  84.         }
  85.
  86.         [HttpPost]
  87.         public ActionResult Delete(int id, Course model)
  88.         {
  89.             var course = objContext.Courses.Where(x => x.CourseId == id).SingleOrDefault();
  90.             if (course != null)
  91.             {
  92.                 objContext.Courses.Remove(course);
  93.                 objContext.SaveChanges();
  94.             }
  95.             return RedirectToAction("Index");
  96.         }
  97.         #endregion
  98.
  99.     }
  100. }
View for Course
Index.cshtml
  1. @model IEnumerable<CodeFirstApproachWithPrimaryForeignKey.Models.Course>
  2.
  3. @{
  4.     ViewBag.Title = "Index";
  5. }
  6.
  7. <h2>Index</h2>
  8.
  9. <p>
  10.     @Html.ActionLink("Create New", "Create")
  11. </p>
  12. <table>
  13.     <tr>
  14.         <th>
  15.             @Html.DisplayNameFor(model => model.CourseName)
  16.         </th>
  17.         <th></th>
  18.     </tr>
  19.
  20. @foreach (var item in Model) {
  21.     <tr>
  22.         <td>
  23.             @Html.DisplayFor(modelItem => item.CourseName)
  24.         </td>
  25.         <td>
  26.             @Html.ActionLink("Edit", "Edit", new { id=item.CourseId }) |
  27.             @Html.ActionLink("Details", "Details", new { id=item.CourseId }) |
  28.             @Html.ActionLink("Delete", "Delete", new { id=item.CourseId })
  29.         </td>
  30.     </tr>
  31. }
  32.
  33. </table>
Create.cshtml
  1. @model CodeFirstApproachWithPrimaryForeignKey.Models.Course
  2.
  3. @{
  4.     ViewBag.Title = "Create";
  5. }
  6.
  7. <h2>Create</h2>
  8.
  9. @using (Html.BeginForm()) {
  10.     @Html.ValidationSummary(true)
  11.
  12.     <fieldset>
  13.         <legend>Course</legend>
  14.
  15.         <div class="editor-label">
  16.             @Html.LabelFor(model => model.CourseName)
  17.         </div>
  18.         <div class="editor-field">
  19.             @Html.EditorFor(model => model.CourseName)
  20.             @Html.ValidationMessageFor(model => model.CourseName)
  21.         </div>
  22.
  23.         <p>
  24.             <input type="submit" value="Create" />
  25.         </p>
  26.     </fieldset>
  27. }
  28.
  29. <div>
  30.     @Html.ActionLink("Back to List", "Index")
  31. </div>
  32.
  33. @section Scripts {
  34.     @Scripts.Render("~/bundles/jqueryval")
  35. }
Delete.cshtml
  1. model CodeFirstApproachWithPrimaryForeignKey.Models.Course
  2.
  3. @{
  4.     ViewBag.Title = "Delete";
  5. }
  6.
  7. <h2>Delete</h2>
  8.
  9. <h3>Are you sure you want to delete this?</h3>
  10. <fieldset>
  11.     <legend>Course</legend>
  12.
  13.     <div class="display-label">
  14.          @Html.DisplayNameFor(model => model.CourseName)
  15.     </div>
  16.     <div class="display-field">
  17.         @Html.DisplayFor(model => model.CourseName)
  18.     </div>
  19. </fieldset>
  20. @using (Html.BeginForm()) {
  21.     <p>
  22.         <input type="submit" value="Delete" /> |
  23.         @Html.ActionLink("Back to List", "Index")
  24.     </p>
  25. }
Details.cshtml
  1. @model CodeFirstApproachWithPrimaryForeignKey.Models.Course
  2.
  3. @{
  4.     ViewBag.Title = "Details";
  5. }
  6.
  7. <h2>Details</h2>
  8.
  9. <fieldset>
  10.     <legend>Course</legend>
  11.
  12.     <div class="display-label">
  13.          @Html.DisplayNameFor(model => model.CourseName)
  14.     </div>
  15.     <div class="display-field">
  16.         @Html.DisplayFor(model => model.CourseName)
  17.     </div>
  18. </fieldset>
  19. <p>
  20.     @Html.ActionLink("Edit", "Edit", new { id=Model.CourseId }) |
  21.     @Html.ActionLink("Back to List", "Index")
  22. </p>
Edit.cshtml
  1. @model CodeFirstApproachWithPrimaryForeignKey.Models.Course
  2.
  3. @{
  4.     ViewBag.Title = "Edit";
  5. }
  6.
  7. <h2>Edit</h2>
  8.
  9. @using (Html.BeginForm()) {
  10.     @Html.ValidationSummary(true)
  11.
  12.     <fieldset>
  13.         <legend>Course</legend>
  14.
  15.         @Html.HiddenFor(model => model.CourseId)
  16.
  17.         <div class="editor-label">
  18.             @Html.LabelFor(model => model.CourseName)
  19.         </div>
  20.         <div class="editor-field">
  21.             @Html.EditorFor(model => model.CourseName)
  22.             @Html.ValidationMessageFor(model => model.CourseName)
  23.         </div>
  24.
  25.         <p>
  26.             <input type="submit" value="Save" />
  27.         </p>
  28.     </fieldset>
  29. }
  30.
  31. <div>
  32.     @Html.ActionLink("Back to List", "Index")
  33. </div>
  34.
  35. @section Scripts {
  36.     @Scripts.Render("~/bundles/jqueryval")
  37. }
Run the Application

create

Now see your database:

database

Click on Course then select Create New.

create new

Showing All Course List:

course list

Click on Edit Course:

edit course

Details of a course:

course detail

Delete an existing Course:

delete course

Now click on Student-> Create New.

student create new

List of all students.

student list

Edit any student record:

edit student

Details of any student:

student detail

Delete any student record:

delete student

Now see your database. See the records in both tables and see the Primary Key and Foreign Key existence:

check database

If you want to run this application in your machine then just change the connection string in the web.config file.


Similar Articles
