Issue While Returning DataTable Through WCF Service

Rohatash Kumar

Issue While Returning DataTable Through WCF Service

Problem

In the previous article, I faced a common problem when returning a DataTable through a WCF Service. I'm receiving that error message when using one of my webmethods on my WCF webservice.

"The underlying connection was closed: The connection was closed unexpectedly."

This error only occurs when returning a DataTable. If I return some primitive type or even a Dictionary<string, string>, it returns no problem.

Iservice1.cs File

Now we create a function in the OperationContract section of the Iservice1.cs file:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
using System.Data ;
namespace WCFServiceWith_ReturnTable
{
[ServiceContract]
public interface IService1
{
[OperationContract]
DataTable SelectUserDetails();
}
// Use a data contract as illustrated in the sample below to add composite types to service operations.
[DataContract]
public class UserDetails
{
[DataMember]
public DataTable UserRecord
{
get;
set;
}
}
}

Service.svc.cs File

In this file we define the function SelectUserDetails(UserDetails userInfo).

And replace the code with the following:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
using System.Data.SqlClient;
using System.Data;
namespace WCFServiceWith_ReturnTable
{
// NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.
public class Service1 : IService1
{
public DataTable SelectUserDetails()
{
SqlConnection con = new SqlConnection("Data Source=.;Initial Catalog=registration;User ID=sa;Password=wintellect");
con.Open();
SqlCommand cmd = new SqlCommand("Select * from RegistrationTable", con);
SqlDataAdapter sda = new SqlDataAdapter(cmd);
DataTable dt = new DataTable();
sda.Fill(dt);
cmd.ExecuteNonQuery();
con.Close();
return dt;
}
}
}

Add a Service Reference to the WCF service in the Web Application using the Add Service Reference dialog box:

Write following code in the web Application:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using ServiceReference1;
using System.IO;
using System.Data;
using System.Xml;
public partial class _Default : System.Web.UI.Page
{
ServiceReference1.Service1Client objServiceClientobjService = new ServiceReference1.Service1Client();
protected void Page_Load(object sender, EventArgs e)
{
DataTable dt = new DataTable();
dt=objServiceClientobjService.SelectUserDetails();
GridView1.DataSource = dt;
GridView1.DataBind();
}
}

Now run the application. The following error will occur:

Returning DataTable in WCF

This is a serialization issue with WCF. Your Datacontract contains a type which the DataContractSerializer is not able to serialize. Here, we will introduce how to return a DataTable using a WCF service from C# code. To return a DataTable using a WCF service, we must do the following 3 things:

Create Database Table
Create WCF Service
Create a Web Application

In the first step we will create a table in SQL Server; after that we create a simple function to return the table from the database using a WCF service. In a web application, add a reference of the service and data to be returned which will be sent to the web services function. Let's take a look at a practical example. The example application is developed in Visual Studio 2010 and SQL Server 2008.

Step 1: Creating Database Table

Database name: Registration
Database table name: RegistrationTable

RegistrationTable Table

CREATE TABLE [dbo].[RegistrationTable]
(
[UserName] [varchar](100) NOT NULL,
[Password] [varchar](20) NOT NULL,
[Country] [varchar](100) NOT NULL,
[Email] [varchar](200) NOT NULL
)

Step 2: Creating WCF Service

Now you have to create a WCF Service:

Go to Visual Studio 2010
New -> Select a project

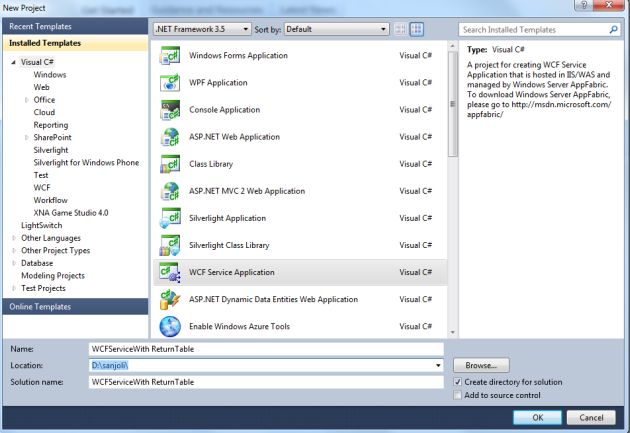

Now click on the project and select WCF Service Application and provide a name for the service:

Now click on the Ok Button. Then you will get 3 files in the Solution Explorer:

IService.cs
Service.svc
Service.svc.cs

The following image shows the following files:

For inserting data into the database you need to write the following code in the IService1.cs file which contains the two sections:

OperationContract
DataContract

The OperationContract section is used to add service operations and the DataContract is used to add types to service operations.

Iservice1.cs File

Now we create a function in the OperationContract section of the Iservice1.cs file:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
using System.Data ;
namespace WCFServiceWith_ReturnTable
{
[ServiceContract]
public interface IService1
{
[OperationContract]
UserDetails SelectUserDetails();
}
[DataContract]
public class UserDetails
{
[DataMember]
public DataTable UserRecord
{
get;
set;
}
}
}

Service.svc.cs File

In this file we define the definition of the function SelectUserDetails(UserDetails userInfo).

And replace the code with the following:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Runtime.Serialization;
using System.ServiceModel;
using System.ServiceModel.Web;
using System.Text;
using System.Data.SqlClient;
using System.Data;
namespace WCFServiceWith_ReturnTable
{
// NOTE: You can use the "Rename" command on the "Refactor" menu to change the class name "Service1" in code, svc and config file together.
public class Service1 : IService1
{
public UserDetails SelectUserDetails()
{
UserDetails ObjUserDetail = new UserDetails();
SqlConnection con = new SqlConnection("Data Source=.;Initial Catalog=registration;User ID=sa;Password=wintellect");
con.Open();
SqlCommand cmd = new SqlCommand("Select * from RegistrationTable", con);
SqlDataAdapter sda = new SqlDataAdapter(cmd);
DataTable dt = new DataTable("TableName");
sda.Fill(dt);
ObjUserDetail.UserRecord = dt;
cmd.ExecuteNonQuery();
con.Close();
return ObjUserDetail;
}
}
}

Step 3: Create web Application (Accessing the Service)

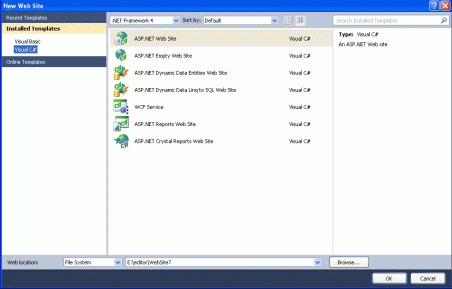

Now, you have to create a web site.

Go to Visual Studio 2010
New -> Select a website application
Click OK

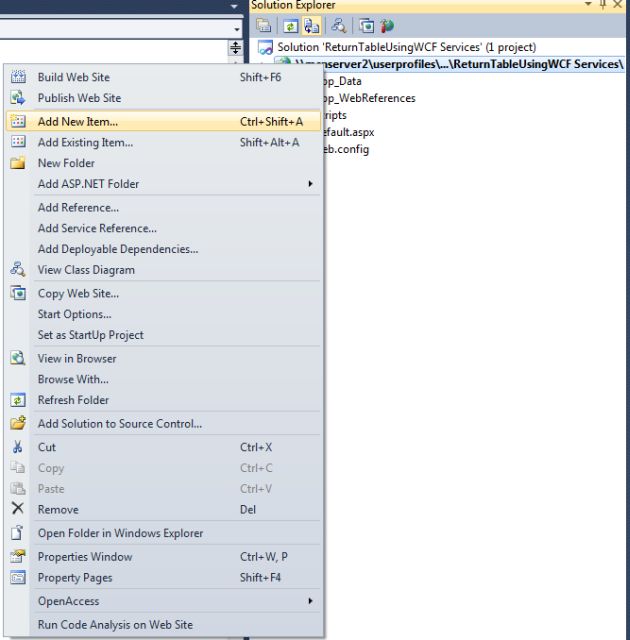

Now add a new page to the website:

Go to the Solution Explorer
Right-click on the project name
Select add new item
Add new web page and give it a name
Click OK

Add the service reference in web application

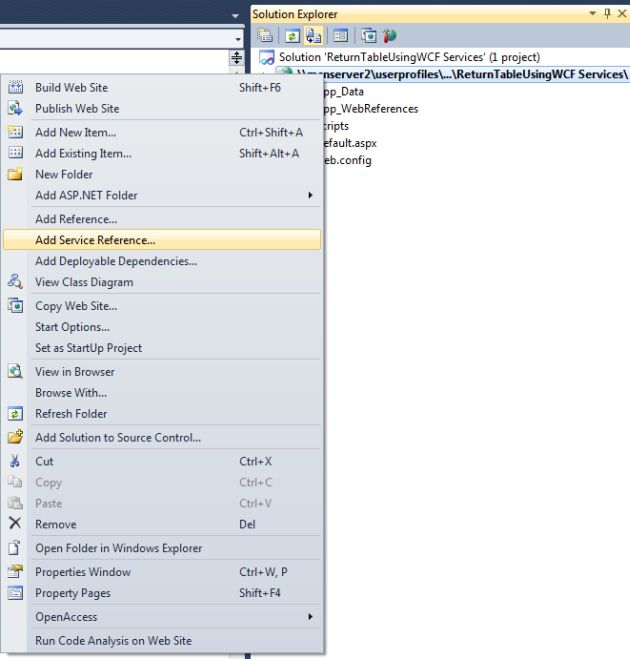

Now add the service reference.

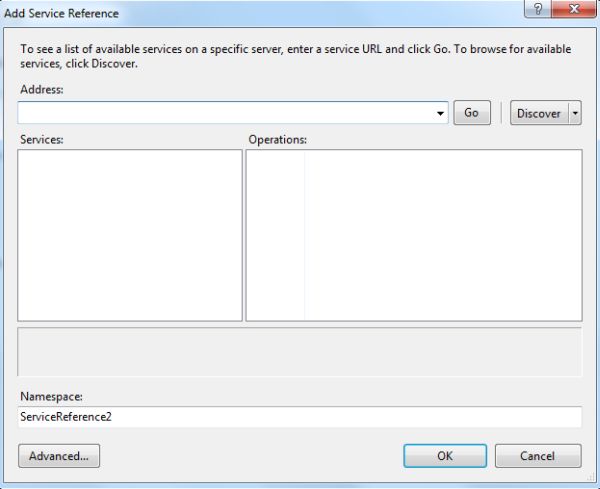

When we click on the add the service reference the following window will be opened:

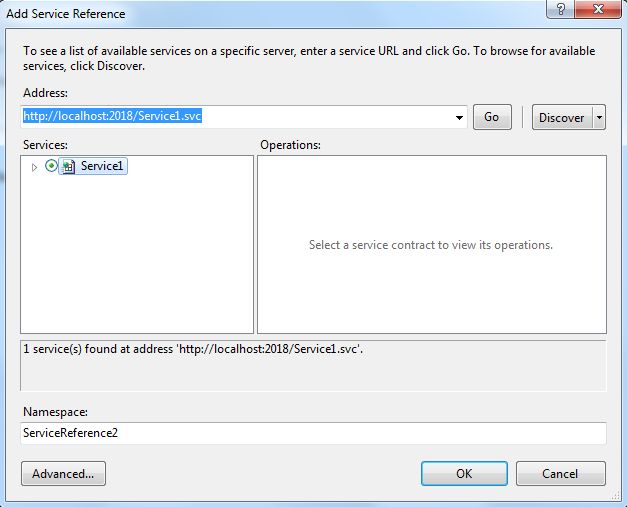

Now paste the above URL in the address and click on the go button.

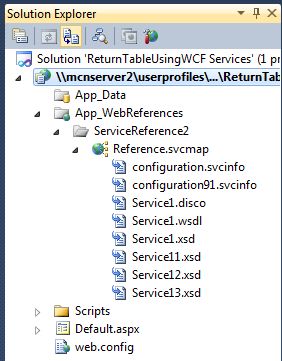

Click on the ok Button. Now the reference has been added in the Solution Explorer.

Double-click the on the form and add the following code on the page load event:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Web.UI;
using System.Web.UI.WebControls;
using ServiceReference2;
using System.IO;
using System.Data;
public partial class _Default : System.Web.UI.Page
{
ServiceReference2.Service1Client objServiceClientobjService = new ServiceReference2.Service1Client();
ServiceReference2.UserDetails emp =
new ServiceReference2.UserDetails();
protected void Page_Load(object sender, EventArgs e)
{
DataTable dt = new DataTable();
emp=objServiceClientobjService.SelectUserDetails();
dt = emp.UserRecord;
}
}

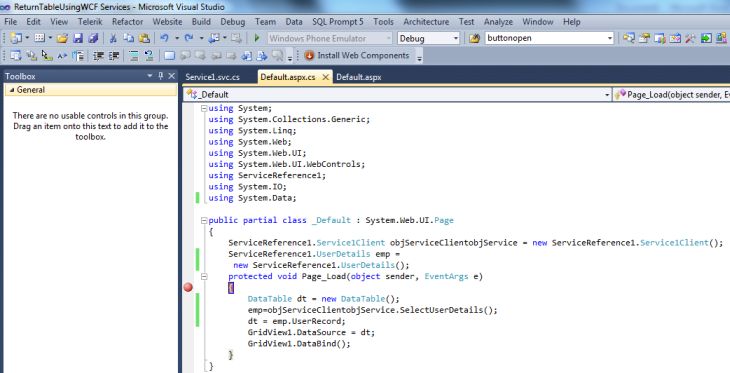

Now use a breakpoint to show the database value in the table.

Now press F5 to start debugging.

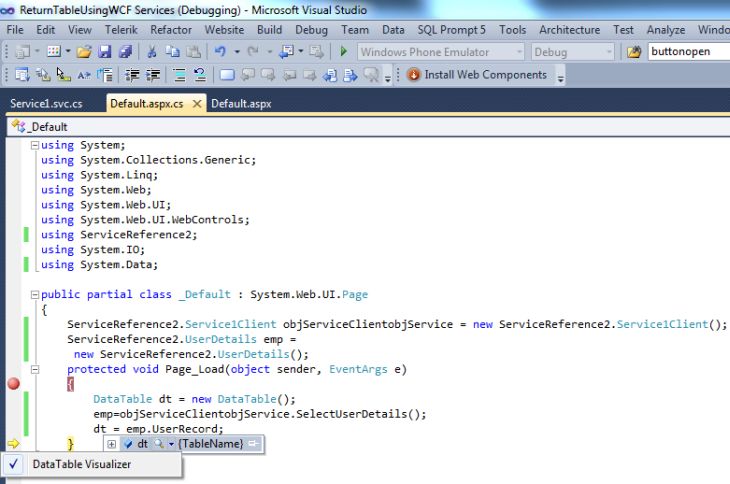

Now click on the DataTable Visualizer to see the table.

It works fine.
