Merge Statement in SQL Server 2012

Here, you will see how to perform insert, update, or delete operations on a target table based on the results of a join with a source table. Using the Merge statement you can easily perform the operations insert, update, and delete logic to handle criteria for maintaining a table. The Merge statement is also used to minimize the code in comparison to stored procedures. The MERGE statement handles all the joining of the source and target. So let's take a look at a practical example. The example is developed in SQL Server 2012 using the SQL Server Management Studio.

The following is a sample of how to use the merge statement with source and target tables:

MERGE [INTO] <target table>
USING <source table>
ON <join/merge predicate> (semantics similar to outer join)
WHEN MATCHED <statement to run when match found in target>
WHEN [TARGET] NOT MATCHED <statement to run when no match found in target>
In the preceding merge statement, there are two tables, one is the source table the other one is the target table. You will perform updates or inserts to a target table based on a source table.

Source Table - The source table will contain the records you either want to insert or update.

Target table - The target table will be the table where the inserts or updates will actually be performed.

 Important points to remember while using the MERGE statement are:

  1. The merge statement must be terminated by a semicolon otherwise an error will occur.
  2. When there is a MATCH clause used along with some condition, it must be specified first amongst all other WHEN MATCH clauses.

Creating source table in SQL Server Database

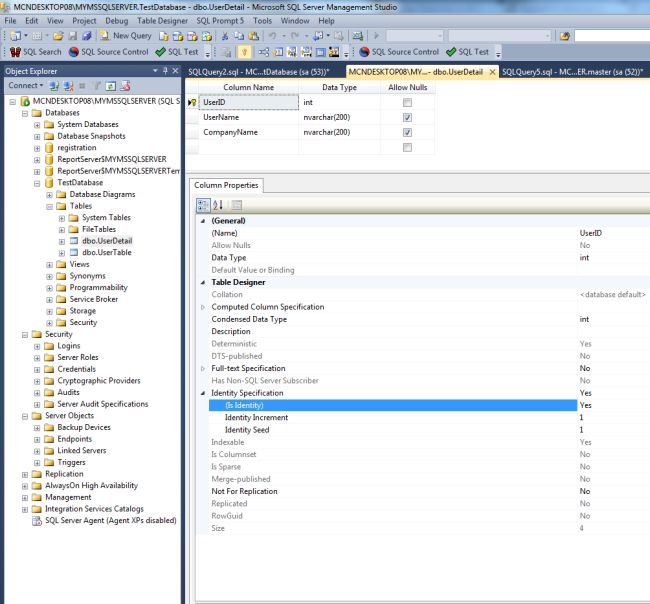

Now create a table named UserDetail with the columns UserID, UserName and CompanyName. Set the identity property=true for UserID. The table looks as in the following:

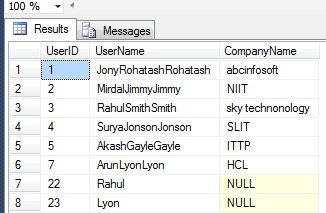

Now insert some values in this table. The table looks like this:


Creating target table in SQL Server Database

Now create a table named UserTable with the columns UserID, UserName. Set the identity property=true for UserID. The table looks as in the following:


The following is the MERGE statement:

MERGE Usertable AS T

USING userdetail AS S

ON  s.UserID = T.UserID

WHEN MATCHED THEN

  UPDATE SET T.UserName = S.UserName

WHEN NOT MATCHED THEN

  INSERT (UserName)

          VALUES (S.UserName

          )

WHEN NOT MATCHED BY SOURCE THEN

  DELETE;

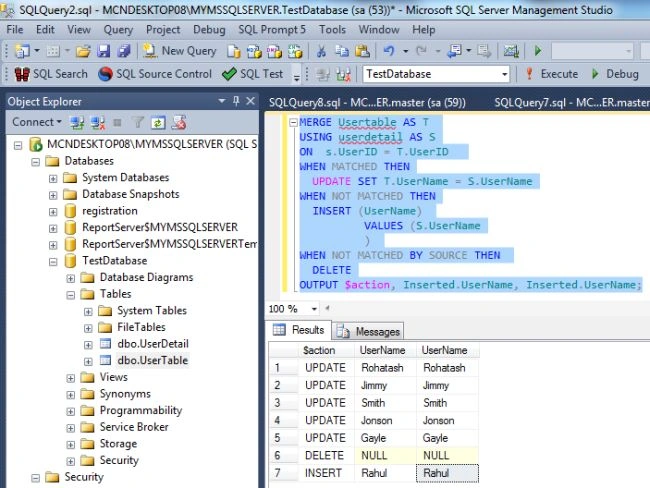

Now using OUTPUT clause



The OUTPUT clause itself first specifies the built-in $action variable, which returns one of three nvarchar(10) values INSERT, UPDATE, or DELETE. The variable is available only to the MERGE statement.



MERGE Usertable AS T

USING userdetail AS S

ON  s.UserID = T.UserID

WHEN MATCHED THEN

  UPDATE SET T.UserName = S.UserName

WHEN NOT MATCHED THEN

  INSERT (UserName)

          VALUES (S.UserName

          )

WHEN NOT MATCHED BY SOURCE THEN

  DELETE

OUTPUT $action, Inserted.UserName, Inserted.UserName;



Now Press F5 to see the result.
