Owner Draw Menus in VB.NET

Posted by Shripad Kulkarni Articles | Visual Basic .NET November 10, 2012
This article and attached source code shows you how to build MDI Windows Forms applications in VB.NET.
Reader Level:
Download Files:


A Windows application, which focuses mainly on its GUI aspects, can make use of the ownerdraw properties of the various forms components. Once such component that allows us to define our own drawing and painting of items is the Menu component of Windows Forms.

This article will explain to you how we can draw our own menu items with our own fonts, pictures, background color and other graphics objects.

Step 1: Create a simple windows form application.

Click File - > New -> Project - > Create new application OD_Menu.

In the designer view for the default form created, add a new "Main Menu" component from the Windows Forms Toolbox.

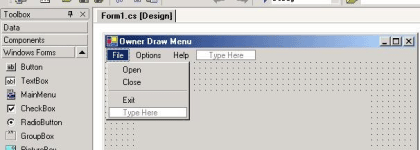

Using the designer, create menu and menu items.


We need to ownerdraw not only the top-level menu items, but also all the submenu items.

For every menu item select the "Properties" and set the OwnerDraw option to "True".

For every owerdraw menu item the application will call 2 functions..

DrawItem: This function will do the actual painting and drawing of the intended menu item.

Measure Item: This function is called to set the height / width of the menu item.
We need to add these 2 events from the "Events" tab of the menu properties.

Select the properties for the "File" menu item.

Click on the Events tab.

Double Click the Draw Item option. It will add a default handler to handle the drawing of the "File" menu item.

private sub menuItem1_DrawItem(sender as object ,e as System.Windows.Forms.DrawItemEventArgs )

Double Click the MeasureItem otpion. It will add a default handler

private sub menuItem1_MeasureItem(sender as object ,e as System.Windows.Forms.MeasureItemEventArgs )
end sub

Now we need to add the sametype of DrawItem and MeasureItem for the sub menu items. We are creating a different event handler for the subitems , since we need to do some more fancy stuff with the sub items like drawing icons or bitmaps.

Select the first subitem "Open" and add the same 2 events for this item.

private sub menuItem1_MeasureItem(sender as object ,e as System.Windows.Forms.MeasureItemEventArgs )
private sub menuItem2_DrawItem(sender as object ,e as System.Windows.Forms.DrawItemEventArgs )

Important: Since we need to have a DrawItem and MeasureItem for each and every item, it does not make sense to duplicate the events for every menu item. We can have the mainmenu items (File / Options / Help) be handle via a common event handler and we can have the submenu items like (Open /Close ... About) be routed through another common event handler.

Here is how to do this.

For every other main menu item like "Options and Help", select the item in designer.

  • Click proerties. Click the Events tab.
  • Click the listbox next to the DrawItem and select the menuItem1_DrawItem option from the list.
  • Click the listbox next to the MeasureItem and select the menuItem1_MeasureItem option from the list.

For every other sub menu items like "Close / Exit / Security / Network / About".

  • Click proerties. Click the Events tab.
  • Click the listbox next to the DrawItem and select the menuItem2_DrawItem option from the list.
  • Click the listbox next to the MeasureItem and select the menuItem2_MeasureItem option from the list.

We are all set to add our own code the handle the drawing and paiting of the TopLevel Menu Items and the SubItems.

Here is the code for the Sub menu Items.

Private Sub menuItem1_DrawItem(sender As Object, e As System.Windows.Forms.DrawItemEventArgs) '
Dim rc As New Rectangle(e.Bounds.X + 1, e.Bounds.Y + 1, e.Bounds.Width - 5, e.Bounds.Height - 1)
e.Graphics.FillRectangle(New SolidBrush(Color.LightGray), rc)
Dim s As MenuItem = CType(sender, MenuItem)
Dim s1 As String = s.Text
Dim sf As New StringFormat()
sf.Alignment = StringAlignment.Center
e.Graphics.DrawString(s1, New Font("Ariel", 10), New SolidBrush(Color.Black), rc, sf)
Console.WriteLine(e.State.ToString())
If e.State =(DrawItemState.NoAccelerator Or DrawItemState.Selected) Or e.State =(DrawItemState.NoAccelerator Or DrawItemState.HotLight) Then
e.Graphics.FillRectangle(
New SolidBrush(Color.CornflowerBlue), rc)
e.Graphics.DrawString(s1, New Font("Veranda", 10), New SolidBrush(Color.Black), rc, sf)
e.Graphics.DrawRectangle(New Pen(New SolidBrush(Color.Black)), rc)
End If
e.DrawFocusRectangle()
e.Graphics.DrawRectangle(New Pen(New SolidBrush(Color.Black), 2), rc)
End Sub 'menuItem1_DrawItem
Private Sub menuItem1_MeasureItem(sender As Object, e As System.Windows.Forms.MeasureItemEventArgs)
e.ItemWidth = 75
e.ItemHeight = 25
End Sub 'menuItem1_MeasureItem

Here is the code for the Sub menu Items.

Private Sub menuItem2_DrawItem(sender As Object, e As System.Windows.Forms.DrawItemEventArgs)
Dim rc As New Rectangle(e.Bounds.X, e.Bounds.Y, e.Bounds.Width, e.Bounds.Height)
e.Graphics.FillRectangle(New SolidBrush(Color.LightGray), rc)
Dim s As MenuItem = CType(sender, MenuItem)
Dim s1 As String = s.Text
Dim sf As New StringFormat()
sf.Alignment = StringAlignment.Far
sf.LineAlignment = StringAlignment.Center
Dim rcText As Rectangle = rc
rcText.Width -= 5
e.Graphics.DrawString(s1, New Font("Veranda", 10), New SolidBrush(Color.Blue), rcText, sf)
e.Graphics.DrawRectangle(New Pen(New SolidBrush(Color.LightGray)), rc)
If e.State =(DrawItemState.NoAccelerator Or DrawItemState.Selected) Then
e.Graphics.FillRectangle(
New SolidBrush(Color.CornflowerBlue), rc)e.Graphics.DrawString(s1, New Font("Veranda", 10, FontStyle.Bold Or FontStyle.Underline), New SolidBrush(Color.Yellow), rcText, sf)
e.Graphics.DrawRectangle(New Pen(New SolidBrush(Color.Black)), rc)
e.DrawFocusRectangle()
End If
Dim
useImage As Image = Nothing
If
s1 = "Open" Then
useImage = img_fileopen
End If
If
s1 = "Close" Then
useImage = img_close
End If
If
s1 = "Exit" Then
useImage = img_exit
End If
If
s1 = "Security" Then
useImage = img_security
End If
If
s1 = "Network" Then
useImage = img_network
End If
If
s1 = "About" Then
useImage = img_about
End If
If
Not (useImage Is Nothing) Then
Dim
sz As SizeF = useImage.PhysicalDimension
e.Graphics.DrawImage(useImage, e.Bounds.X + 5,(e.Bounds.Bottom + e.Bounds.Top) / 2 - sz.Height / 2)
End If
End
Sub 'menuItem2_DrawItem
Private Sub menuItem2_MeasureItem(sender As Object, e As System.Windows.Forms.MeasureItemEventArgs)
e.ItemWidth = 75
e.ItemHeight = 25
End Sub 'menuItem2_MeasureItem

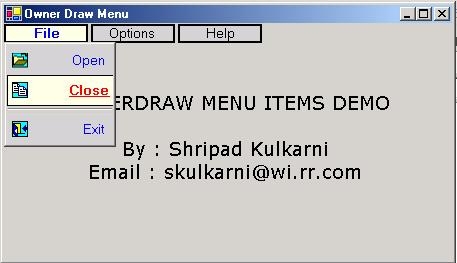

Compile and execute the application.
