An Overview Of Bootstrap Grid System

Prerequisites

  • Bootstrap package
  • Notepad or Notepad++
  • Any browser
Bootstrap Grid System
  • In graphic designing, a Grid is a structure (usually two-dimensional) of intersecting straight lines (horizontal, vertical).
  • In web design, it is a very effective method to create a consistent layout rapidly and effectively using HTML and CSS.

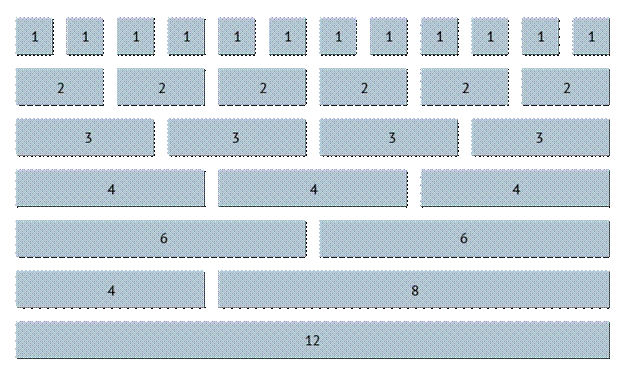

  • Bootstrap Grid system allows the developers to use a maximum of 12 columns in a web page. All 12 columns are used individually or grouped to create a wide column. If you want to split the columns as per your wish, still you can't split them in more than 12 columns.
Bootstrap
  • Grid System is responsive and the columns are re-arranged automatically according to the screen size.
Grid Classes

There are four classes that are used in Bootstrap Grid System.

  • xs ( mobiles phone viewport)
  • sm ( tablets viewport)
  • md( desktops or laptops viewport)
  • lg( big screen desktops viewport)

You can combine the above classes to create more dynamic and flexible layouts.

Basic structure of a Bootstrap Grid

  1. <div class="row">
  2.   <div class="col-*-*"></div>
  3. </div>
  4. <div class="row">
  5.   <div class="col-*-*"></div>
  6.   <div class="col-*-*"></div>
  7.   <div class="col-*-*"></div>
  8. </div>
  9. <div class="row">
  10.   ...
  11. </div>

Instructions while creating a Bootstrap Grid
  • Create a row (<div class="row">).
  • To add the number of columns and the type of class you want (tags with appropriate .col-*-* classes), the 1st star position is to create what type of class you want. The 2nd star position is used to create how many columns you want.

Important keywords

  • Well -  Well is used to make the Grid visible
  • Without well - the normal View of Grid ( grid not visible)
  • Container- fluid - the Grid fillss the entire screen with the help of this keyword
  • Container - it shows the Grid with some margin at right and left side.

Coding for extra small devices

  1. <!DOCTYPE html>
  2. <html >
  3. <head>
  4.         <title>Bootstrap Grid system</title>
  5.         <meta charset="utf-8">
  6.         <meta name="viewport" content="width=device-width, initial scale=1">
  7.         <link rel="stylesheet" type="text/css" href="css/bootstrap.min.css">
  8.     </head>
  9. <body>
  10. <div class="container">
  11.      <div class="row">
  12.         <div class="col-sm-9 well">col-9</div>
  13.          <div class="col-sm-3 well">col-3</div>
  14.      </div>
  15.    </div>
  16.  <div class="container">
  17.      <div class="row">
  18. <strong>With background colour</strong>
  19.          <div class="col-sm-9 well"  style="background-color:pink">col-9</div>
  20.         <div class="col-sm-3 well"  style="background-color:cyan">col-9</div>
  21.     </div>
  22.    </div>
  23. <script type="text/javascript" src="js/bootstrap.min.js"></script>
  24.     <script type="text/css" src="js/jquery"></script>
  25. </body>
  26. </html>

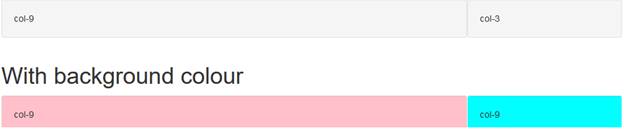

Output

Bootstrap

Coding for medium sized devices

  1. <!DOCTYPE html>
  2. <html >
  3. <head>
  4.         <title>Bootstrap grid system</title>
  5.         <meta charset="utf-8">
  6.         <meta name="viewport" content="width=device-width, initial scale=1">
  7.         <link rel="stylesheet" type="text/css" href="css/bootstrap.min.css"
  8.     </head>
  9. <body>
  10. <div class="container-fluid">
  11.     <div class="row">
  12. <div class="col-md-6 well">col-6</div>
  13.          <div class="col-md-6 well">col-6</div>
  14.      </div>
  15.    </div>
  16.     <div class="container">
  17.     <div class="row">
  18.         <div class="col-md-9 well">col-6</div>
  19.   <div class="col-md-3 well">col-6</div>
  20.     </div>
  21.    </div>
  22.   <div class="container">
  23.   <div class="row">
  24. <strong>With background colour</strong>
  25.          <div class="col-md-6 well"  style="background-color:pink">col-6</div>
  26.          <div class="col-md-6 well"  style="background-color:cyan">col-6</div>
  27.     </div>
  28.    </div>
  29. <script type="text/javascript" src="js/bootstrap.min.js"></script>
  30. <script type="text/css" src="js/jquery"></script>
  31. </body>
  32. </html>

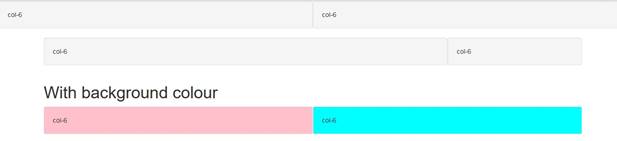

Output

Bootstrap

Coding for large devices

  1. <!DOCTYPE html>
  2. <html >
  3. <head>
  4.         <title>Bootstrap grid system</title>
  5.         <meta charset="utf-8">
  6.         <meta name="viewport" content="width=device-width, initial scale=1">
  7.         <link rel="stylesheet" type="text/css" href="css/bootstrap.min.css"
  8.     </head>
  9. <body>
  10. <div class="container-fluid">
  11.   <div class="row">
  12. <div class="col-lg-12 well">col-12</div>
  13.     </div>
  14.    </div>
  15.     <div class="container">
  16.     <div class="row">
  17.         <div class="col-lg-12 well">col-12</div>
  18.     </div>
  19.    </div>
  20.   <div class="container">
  21.     <div class="row">
  22. <strong>With background colour</strong>
  23.         <div class="col-lg-12 well"  style="background-color:pink">col-12</div>
  24.     </div>
  25.    </div>
  26. <script type="text/javascript" src="js/bootstrap.min.js"></script>
  27. <script type="text/css" src="js/jquery"></script>
  28. </body>
  29. </html>

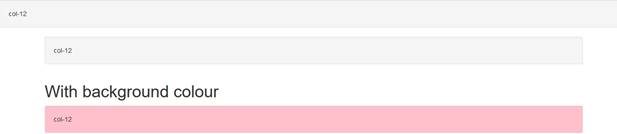

Output

Bootstrap

Extra small size

  • It is used for a mobile phone viewport
  • Screen size below 768px
  • No maximum container width
  • Class prefix .col-xs-*
  • Maximum column width auto

Coding

  1. <!DOCTYPE html>
  2. <html >
  3. <head>
  4.         <title>Bootstrap grid system</title>
  5.         <meta charset="utf-8">
  6.         <meta name="viewport" content="width=device-width, initial scale=1">
  7.         <link rel="stylesheet" type="text/css" href="css/bootstrap.min.css"
  8.     </head>
  9. <body>
  10. <div class="container-fluid">
  11.     <div class="row">
  12. <div class="col-xs-1 well">col-1</div>
  13.          <div class="col-xs-1 well">col-1</div>
  14.          <div class="col-xs-1 well">col-1</div>
  15.          <div class="col-xs-1 well">col-1</div>
  16.         <div class="col-xs-1 well">col-1</div>
  17.          <div class="col-xs-1 well">col-1</div>
  18.          <div class="col-xs-1 well">col-1</div>
  19.          <div class="col-xs-1 well">col-1</div>
  20.          <div class="col-xs-1 well">col-1</div>
  21.          <div class="col-xs-1 well">col-1</div>
  22.         <div class="col-xs-1 well">col-1</div>
  23.          <div class="col-xs-1 well">col-1</div>
  24.     </div>
  25.    </div>
  26.    <script type="text/javascript" src="js/bootstrap.min.js"></script>
  27. <script type="text/css" src="js/jquery"></script>
  28. </body>
  29. </html>

Output

Bootstrap

To create an equal and unequal Grid system, use all the classes.

Coding

  1. <!DOCTYPE html>
  2. <html >
  3. <head>
  4.         <title>Bootstrap Grid System</title>
  5.         <meta charset="utf-8">
  6.         <meta name="viewport" content="width=device-width, initial scale=1">
  7.         <link rel="stylesheet" type="text/css" href="css/bootstrap.min.css"
  8.     </head>
  9. <body>
  10.
  11. <div class="container">
  12.   <div class="row">
  13.   <div class="col-xs-1 well">col-1</div>
  14.          <div class="col-xs-1 well">col-1</div>
  15.         <div class="col-xs-1 well">col-1</div>
  16.         <div class="col-xs-1 well">col-1</div>
  17.         <div class="col-xs-1 well">col-1</div>
  18.         <div class="col-xs-1 well">col-1</div>
  19.          <div class="col-xs-1 well">col-1</div>
  20.         <div class="col-xs-1 well">col-1</div>
  21.          <div class="col-xs-1 well">col-1</div>
  22.          <div class="col-xs-1 well">col-1</div>
  23.          <div class="col-xs-1 well">col-1</div>
  24. <div class="col-xs-1 well">col-1</div>
  25.      </div>
  26.   </div>
  27.     <div class="container">
  28.         <div class="row">
  29.   <div class="col-sm-2 well">col-2</div>
  30.              <div class="col-sm-2 well">col-2</div>
  31.             <div class="col-sm-2 well">col-2</div>
  32.              <div class="col-sm-2 well">col-2</div>
  33.   <div class="col-sm-2 well">col-2</div>
  34.   <div class="col-sm-2 well">col-2</div>
  35.         </div>
  36.   </div>
  37.
  38. <div class="container">
  39.      <div class="row">
  40.  <div class="col-md-4 well">col-4</div>
  41.          <div class="col-md-4 well">col-4</div>
  42.         <div class="col-md-4 well">col-4</div>
  43.    </div>
  44.  </div>
  45.  <div class="container">
  46.         <div class="row">
  47.              <div class="col-xs-6 well">col-6</div>
  48.              <div class="col-xs-6 well">col-6</div>
  49.          </div>
  50.   </div>
  51.
  52.   <div class="container">
  53.         <div class="row">
  54.             <div class="col-ls-12 well">col-12</div>
  55.           </div>
  56.   </div>
  57.
  58.
  59. <div class="container">
  60.     <div class="row">
  61.          <div class="col-md-9 well">col-9</div>
  62.   <div class="col-xs-3 well">col-3</div>
  63.       </div>
  64.   </div>
  65.
  66.   <div class="container">
  67.         <div class="row">
  68.             <div class="col-md-7 well">col-7</div>
  69.   <div class="col-sm-5 well">col-5</div>
  70.          </div>
  71.     </div>
  72.   <script type="text/javascript" src="js/bootstrap.min.js"></script>
  73. <script type="text/css" src="js/jquery"></script>
  74. </body>
  75. </html>

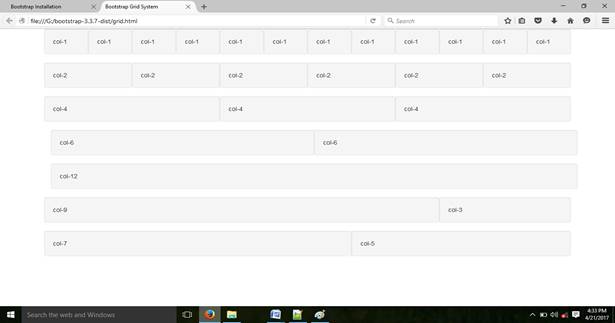

Output

Bootstrap

Conclusion

I hope, now you understand how to create a Bootstrap Grid system. Stay tuned for more on Bootstrap.
