Binding DropDown List Using Tuple In ASP MVC

In this article, we are going to learn how to bind drop-down list using Tuple in ASP MVC.

Before that, we should know wha Tuple is and what is the usage of a tuple.

What is Tuple?

Tuple is a generic static class that was added to C# 4.0 and it can hold any amount of elements, and they can be any type we want. So using a tuple, we can return multiple values.One great use of tuple might be returning multiple values from a method. It provides an alternative to "ref" or "out" if you have a method that needs to return multiple new objects as part of its response.

A tuple allows you to combine multiple values of possibly different types into a single object without having to create a custom class. This can be useful if you want to write a method that for example returns three related values but you don't want to create a new class.

To know more about Tuple, please refer Here

Let's see the step by step process to implement Binding drop down using Tuple,

Step 1

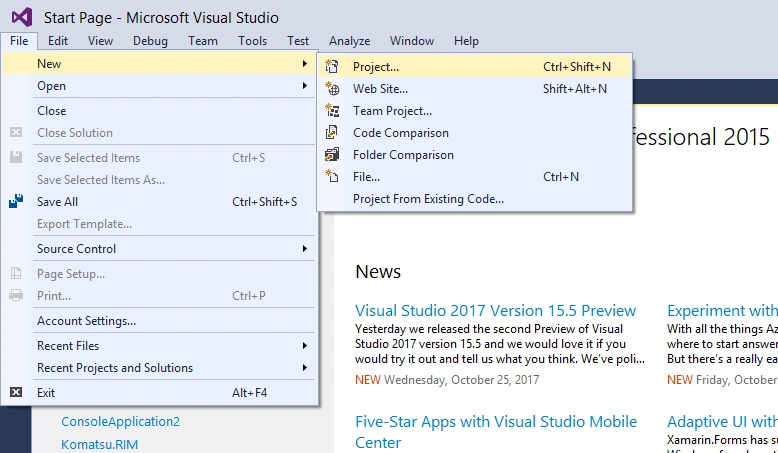

Let's create a simple mvc project in Visual studio. To do -> go to Visual Studio -> select File -> New - > Project -> click-> a new dialog window will open

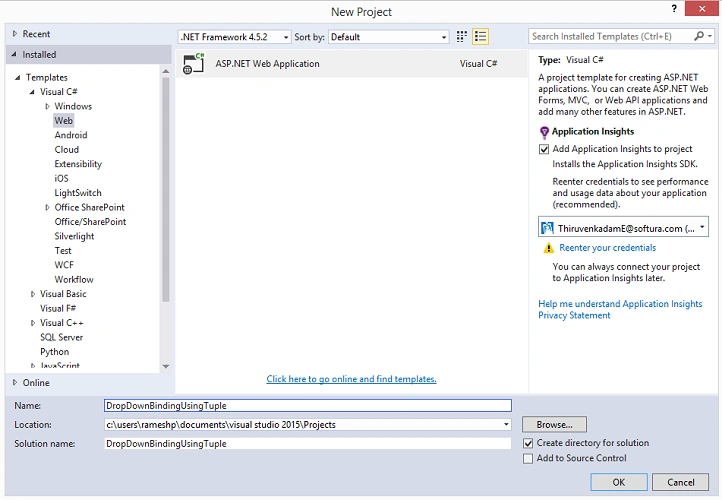

Select "web" in the left pane and select "ASP.NET Web Application"  main window.Then give a name for your project and click ok. Here, I have named my project as "BindingDropDownUsingTuple".

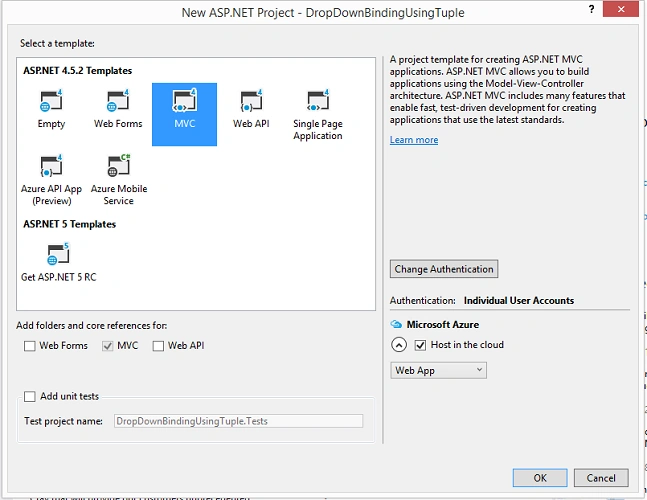

Now, a new dialog window will appear again. In that, select MVC and click ok.

Please find the below images for your references.






Step 2

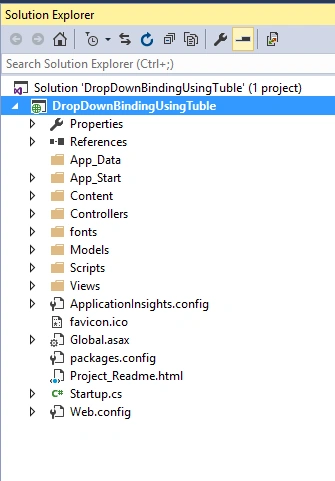

Once the project has been created, you can see more folders in the solution file.



Step 3

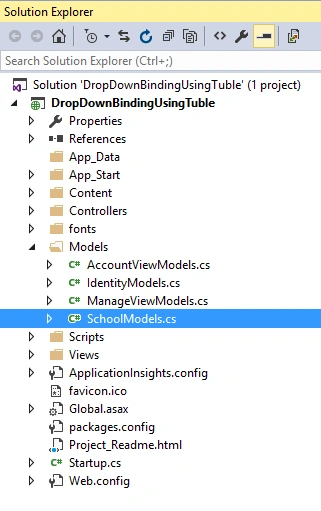

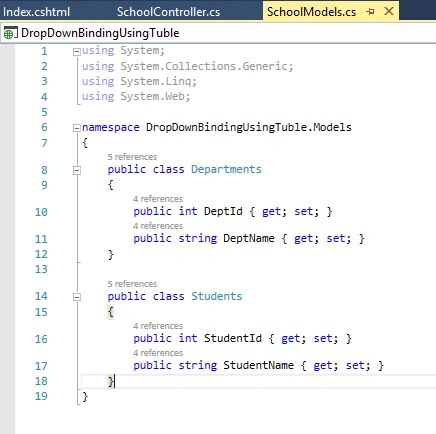

Next, let's create a simple class under models folders. Here, I have created a class and named it as "SchoolModels".




Here's the sample code for your reference.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5.
  6. namespace DropDownBindingUsingTuple.Models
  7. {
  8.     public class Departments
  9.     {
  10.         public int DeptId { getset; }
  11.         public string DeptName { getset; }
  12.     }
  13.
  14.     public class Students
  15.     {
  16.         public int StudentId { getset; }
  17.         public string StudentName { getset; }
  18.     }
  19. }
Explanation of View Model

Here, I have created two classes such as "Departments" and "Students". The Departments class is used to bind the Department drop-down list and Students class is used to bind the Students' drop-down list.

Step 4

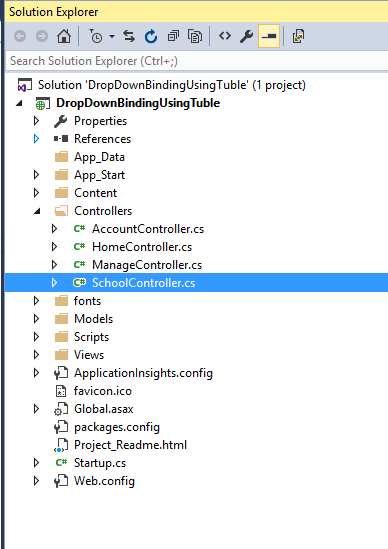

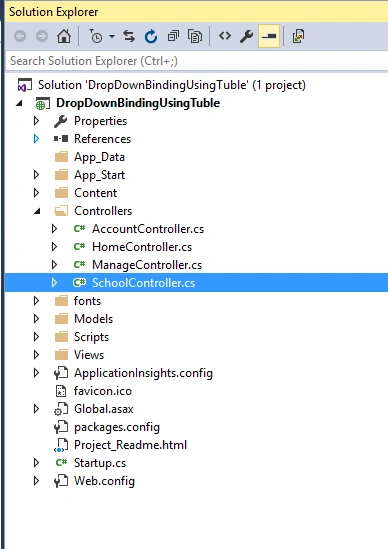

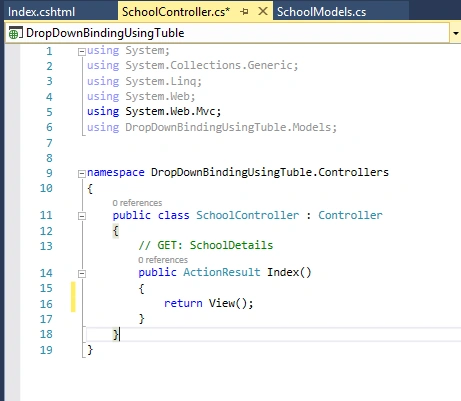

Next, let's create a simple controller under Controllers folder. Here, I have created a simple controller and named it as "SchoolController".




Step 5

Let's create a "Departments" and "Students" list to bind it to the drop-down list. Just add the below code in your index method.
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using DropDownBindingUsingTuble.Models;
  7.
  8.
  9. namespace DropDownBindingUsingTuble.Controllers
  10. {
  11.     public class SchoolController : Controller
  12.     {
  13.         // GET: SchoolDetails
  14.         public ActionResult Index()
  15.         {
  16.             List<Departments> DeptList = new List<Departments>();  //List of Departments
  17.             List<Students> StudentList = new List<Students>();   // List of Students
  18.             DeptList.Add(new Departments
  19.             {
  20.                 DeptId=1,
  21.                 DeptName="BCA"
  22.             }); //adding list to DeptList Object
  23.             DeptList.Add(new Departments
  24.             {
  25.                 DeptId = 2,
  26.                 DeptName = "BSC"
  27.             });
  28.             DeptList.Add(new Departments
  29.             {
  30.                 DeptId = 3,
  31.                 DeptName = "MCA"
  32.             });
  33.             StudentList.Add(new Students
  34.             {
  35.                StudentId=1,
  36.                StudentName="Ramesh"
  37.             }); // adding list to StudentList Object
  38.             StudentList.Add(new Students
  39.             {
  40.                 StudentId = 2,
  41.                 StudentName = "Kannan"
  42.             });
  43.             StudentList.Add(new Students
  44.             {
  45.                 StudentId = 3,
  46.                 StudentName = "Vimal"
  47.             });
  48.             List<SelectListItem> DeptListNew = new List<SelectListItem>();  // Creating SelectListItem List
  49.             List<SelectListItem> StudentListNew = new List<SelectListItem>();
  50.             DeptListNew = DeptList.Select(x => new SelectListItem
  51.             {
  52.                 Text=x.DeptName,
  53.                 Value=x.DeptId.ToString()
  54.             }).ToList(); //Binding DeptList to SelectListItem DeptListNew
  55.             StudentListNew = StudentList.Select(x => new SelectListItem
  56.             {
  57.                 Text = x.StudentName,
  58.                 Value = x.StudentId.ToString()
  59.             }).ToList(); //Binding StudentList to SelectListItem StudentListNew
  60.             var TubleList = Tuple.Create<List<SelectListItem>,List<SelectListItem>>(DeptListNew,StudentListNew); //creating Tuple and passing two select list item in that.
  61.             return View(TubleList); //passing Tuple to view.
  62.         }
  63.     }
  64. }
Step 6

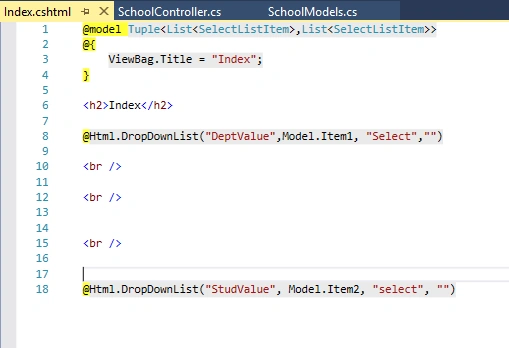

Next, let us create a simple View for our Index action result. To create a View, right-click Index action result -> Add View -> just click OK.

Please find the below image and code for your reference.


  1. @model Tuple<List<SelectListItem>,List<SelectListItem>>
  2. @{
  3.     ViewBag.Title = "Index";
  4. }
  5. <h2>Index</h2>
  6. @Html.DropDownList("DeptValue",Model.Item1, "Select","")  @*Getting Tuple first list using Model.Item1*@
  7. <br />
  8. <br />
  9. <br />
  10. @Html.DropDownList("StudValue", Model.Item2, "select""")  @*Getting Tuple second list using Model.Item2*@
Step 7

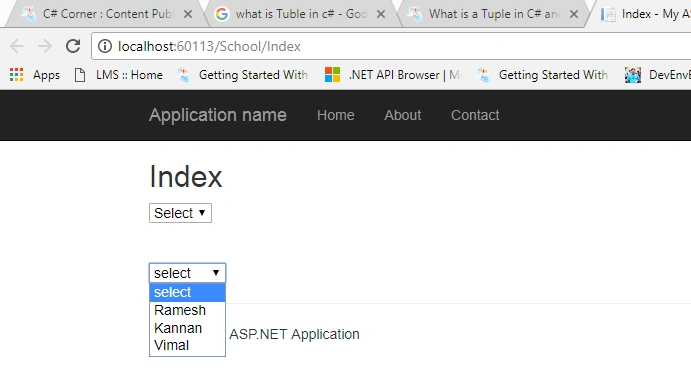

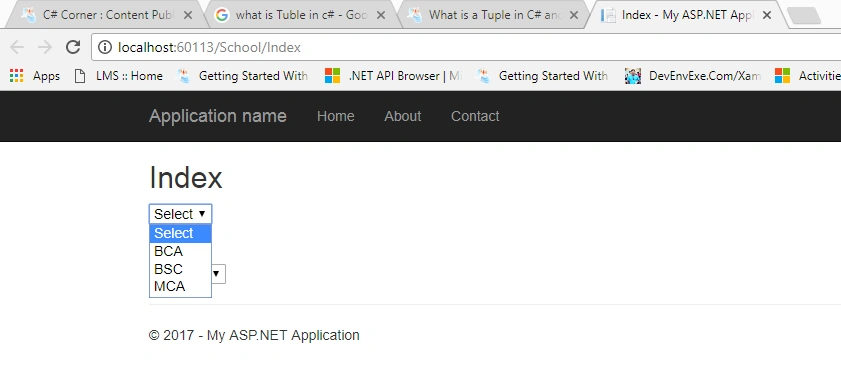

Run the application and see the expected result. Please find the sample result below.
