Building Mobile Apps Using Xamarin.Forms With .NET Standard

Introduction

The .NET Standard Library is a formal specification of .NET APIs that are intended to be available on all .NET runtimes. It is a single library with a uniform API for all .NET Platforms including .NET Core. You just create a single .NET Standard Library and use it from any runtime that supports .NET Standard Platform.

You can refer to the following table which lists all the versions of .NET Standard and the platforms supported

Xamarin

In this article, you will learn how to create mobile cross platform applications using Xamarin Forms with .NET Standard libraries and maximize code sharing.

Create New Xamarin Forms

Let’s start create new Xamarin Forms application, In Windows machine > Go to Run (Windows key +R) > type Devenv.exe for open Visual Studio and select New project from File menu > New Project (ctrl +Shift+N) or click More project template from VS Start screen.

Xamarin

Click on Ok > You will get following screen. Select Blank App > Select Xamarin Forms UI Technology > Select Code sharing as PCL or Share Project and click on Ok

Xamarin

After click on Ok, VS will automatically create PCL,iOS,Android ,UWP projects .

Create .Net Standard Class library

You can follow below steps for create .Net Standard library,

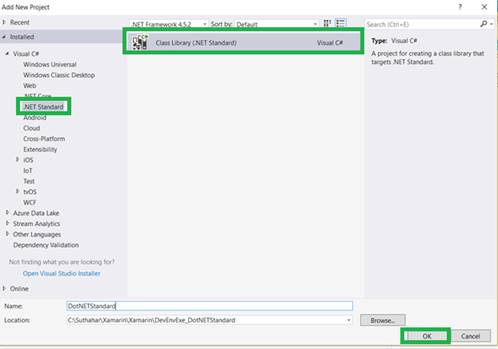

Right Click on solutions > Add new project > Create Class library (.Net Standard) that targets .net Standard and click on Ok

Xamarin

Install Xamarin Forms in .Net Standard library

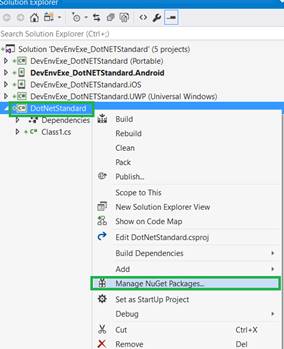

The Xamarin.Forms 2.3.5-prerelease will support with .NET Standard. Right Click on .net Standard library > Select on Manage Nuget package

Xamarin

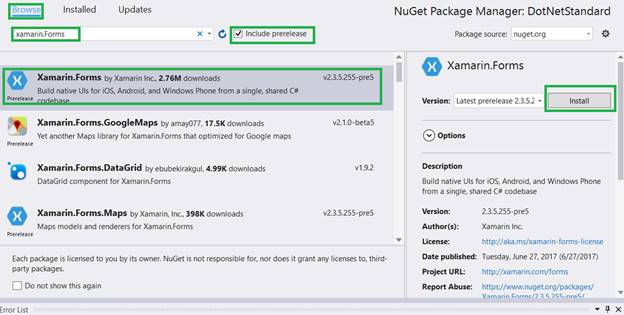

Select on Browse tab > Search text ‘ Xamarin.Forms ‘ > Select Include prerelease and select Xamarin Forms and click on Install

Xamarin

Customize the Application

You can follow below steps for customize the platform specific project and .net standard library.

Step 1

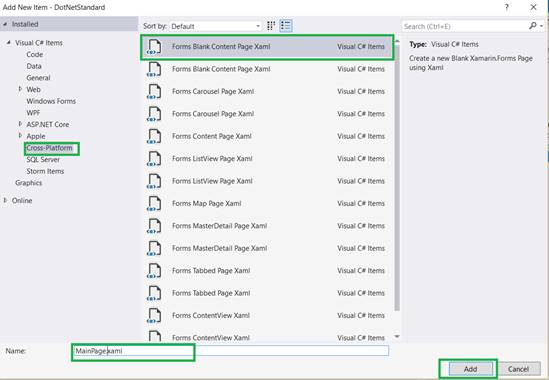

Right Click on .Net Standard library > Click on Add Item > Select Cross -Platform >Forms Blank Content Page Xaml > Provide name as MainPage.xaml

Xamarin

Step 2

You can add UI design as per your requirement in MainPage.xaml .

  1. <?xml version="1.0" encoding="utf-8" ?>
  2. <ContentPage xmlns="http://xamarin.com/schemas/2014/forms" xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml" x:Class="DotNetStandard.MainPage">
  3.     <Label Text="Welcome to Xamarin.Forms Apps with .NET Standard!" VerticalOptions="Center" HorizontalOptions="Center" />
  4. </ContentPage>

Step 3

Copy App.cs and App.xaml from PCL or Shared project and paste into .net Standard library and change the namespace from xaml and c# page

Xamarin

Step 4

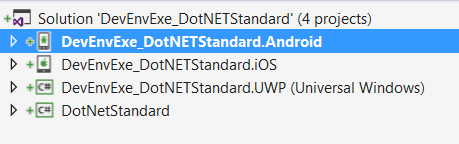

Remove Shared or PCL Project and Remove PCl project reference from all iOS,Android,UWP project. Now the solution looks like below

Xamarin

Step 5

Add your .Net Standard class library reference to iOS,Android,UWP project.

Step 6

Change namespace from the following project

  • In UWP project, updated the namespace from mainPage.cs
    LoadApplication(new DotNetStandard.App());
  • In Android Project , Update the name space from Main Activity
    LoadApplication(new DotNetStandard.App());
  • In iOS Project , Update the namespace from Appdelegate
    LoadApplication(new DotNetStandard .App());

Step 7

If you get the following error while building  the project

Xamarin

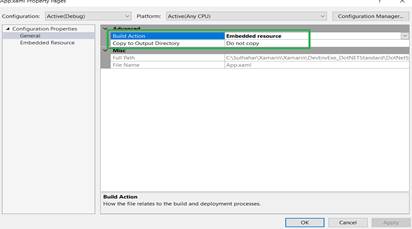

You can follow below for resolution. Right Click on Xaml page > Select property and Build Action Should be Embedded Resource

Xamarin

Run the Application

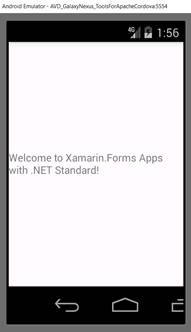

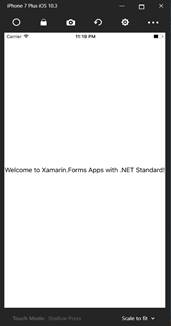

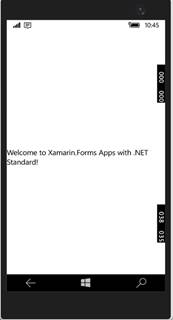

You can run the application (iOS,Android ,Windows) to all the platforms

XamarinXamarinXamarin

Summary

In this article, you learned how to create mobile cross platform applications using Xamarin Forms with .NET Standard libraries.

If you have any questions/ feedback/ issues, please write in the comment box.
