Adding Check Box Functionality In An Android App Using Android Studio

Introduction


In this article, I will show you how to create an Android app using Android Studio that uses Checkbox. Android Checkbox is a type of two state button - either checked or unchecked. There can be a lot of uses for checkboxes. For example, it can be used to learn the hobby of the user or to activate/deactivate the specific action, etc.

Requirements
Steps to be followed

Follow these steps to create the aforementioned app. I have included the source code in the attachment.

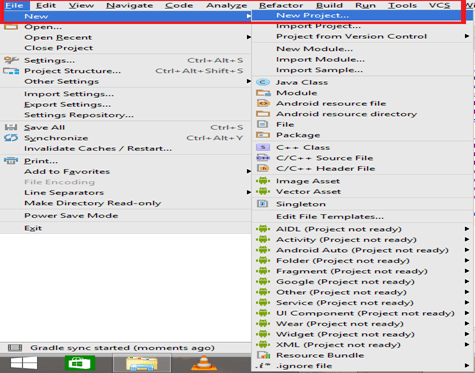

Step 1

Open Android Studio and start a new Android Studio Project.

Android

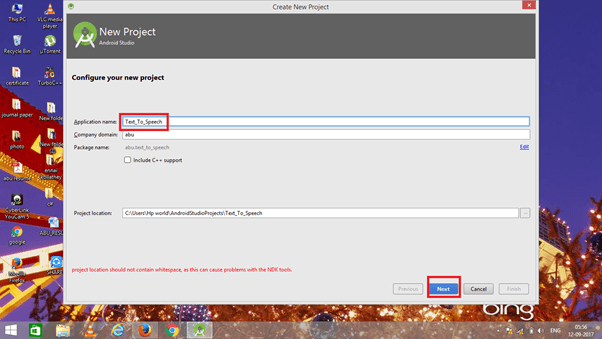

Step 2

You can choose your application name and choose where your project is stored. If you wish to use C++ for coding the project, mark the "Include C++ support", and click the "Next" button.

Android

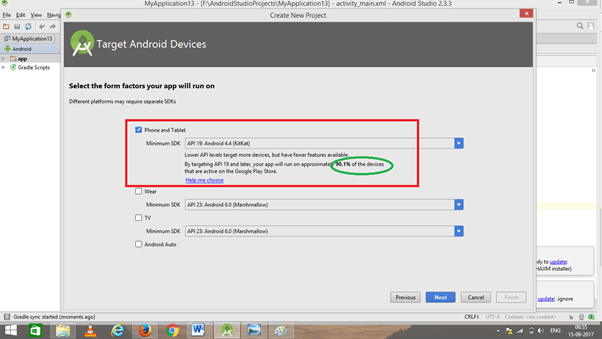

Step 3

Now, select the version of Android and select the target Android devices. We need to choose the SDK level which plays an important role in running the application.

Android

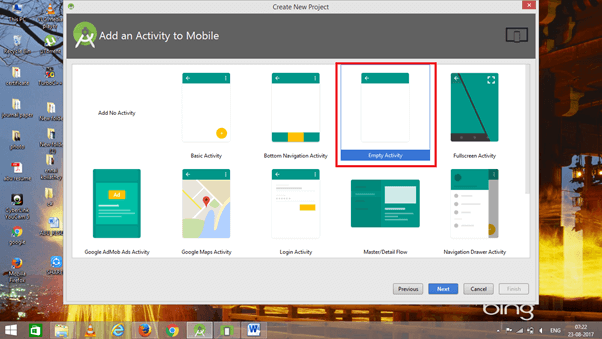

Step 4

Now, add the activity and click the "Next" button.

Android

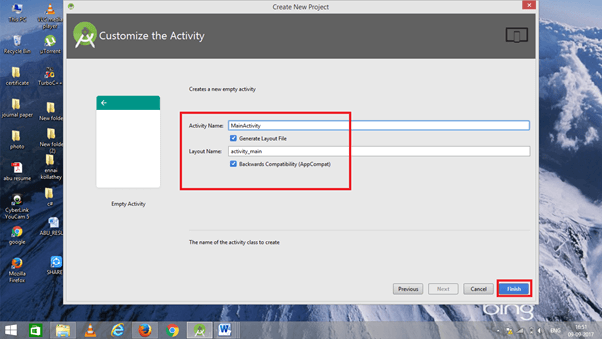

Step 5

Add Activity name and click "Finish".

Android

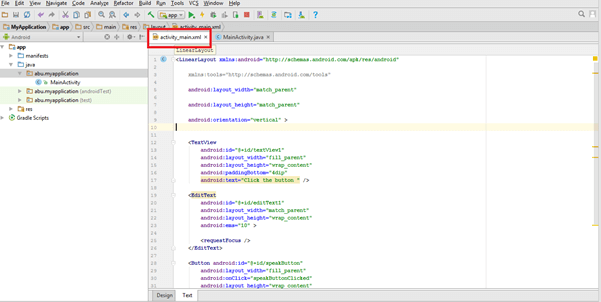

Step 6

Go to activity_main.xml. This XML file contains the designing code for your Android app.

Android

The XML code is given below.
  1. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:tools="http://schemas.android.com/tools"
  3.     android:layout_width="match_parent"
  4.     android:layout_height="match_parent"
  5.     tools:context=".MainActivity" >
  6.     <TextView
  7.
  8.         android:id="@+id/textView1"
  9.         android:layout_width="wrap_content"
  10.         android:layout_height="wrap_content"
  11.         android:text=" Pizza Hut"
  12.         android:textSize="44dp"
  13.         android:layout_alignParentTop="true"
  14.         android:layout_alignParentStart="true"
  15.         android:layout_marginTop="13dp" />
  16.
  17.     <CheckBox
  18.         android:id="@+id/checkBox1"
  19.         android:layout_width="wrap_content"
  20.         android:layout_height="wrap_content"
  21.         android:text="Pizza"
  22.         android:layout_below="@+id/textView1"
  23.         android:layout_alignStart="@+id/checkBox2"
  24.         android:layout_marginTop="95dp" />
  25.
  26.     <CheckBox
  27.         android:id="@+id/checkBox2"
  28.         android:layout_width="wrap_content"
  29.         android:layout_height="wrap_content"
  30.         android:text="Coffe"
  31.         android:layout_marginTop="62dp"
  32.         android:layout_below="@+id/checkBox1"
  33.         android:layout_alignStart="@+id/checkBox3" />
  34.
  35.     <CheckBox
  36.         android:id="@+id/checkBox3"
  37.         android:layout_width="wrap_content"
  38.         android:layout_height="wrap_content"
  39.         android:text="Burger"
  40.         android:layout_below="@+id/checkBox2"
  41.         android:layout_alignEnd="@+id/button1"
  42.         android:layout_marginTop="43dp" />
  43.
  44.     <Button
  45.         android:id="@+id/button1"
  46.         android:layout_width="wrap_content"
  47.         android:layout_height="wrap_content"
  48.         android:text="Order"
  49.         android:layout_marginBottom="61dp"
  50.         android:layout_alignParentBottom="true"
  51.         android:layout_centerHorizontal="true" />
  52.
  53. </RelativeLayout>
Step 7

Go to Main Activity.java. This Java program is the backend language for Android apps.

Android

The java code is given below.
  1. package abu.checkbox;
  2.
  3. import android.os.Bundle;
  4. import android.app.Activity;
  5. import android.view.Menu;
  6. import android.view.View;
  7. import android.view.View.OnClickListener;
  8. import android.widget.*;
  9.
  10. public class MainActivity extends Activity {
  11.     CheckBox pizza,coffe,burger;
  12.     Button buttonOrder;
  13.     @Override
  14.     protected void onCreate(Bundle savedInstanceState) {
  15.         super.onCreate(savedInstanceState);
  16.         setContentView(R.layout.activity_main);
  17.         addListenerOnButtonClick();
  18.     }
  19.     public void addListenerOnButtonClick(){
  20.        pizza=(CheckBox)findViewById(R.id.checkBox1);
  21.         coffe=(CheckBox)findViewById(R.id.checkBox2);
  22.         burger=(CheckBox)findViewById(R.id.checkBox3);
  23.         buttonOrder=(Button)findViewById(R.id.button1);
  24.         buttonOrder.setOnClickListener(new OnClickListener(){
  25.
  26.             @Override
  27.             public void onClick(View view) {
  28.                 int totalamount=0;
  29.                 StringBuilder result=new StringBuilder();
  30.                 result.append("Selected Items:");
  31.                 if(pizza.isChecked()){
  32.                     result.append("\nPizza 100Rs");
  33.                     totalamount+=100;
  34.                 }
  35.                 if(coffe.isChecked()){
  36.                     result.append("\nCoffe 50Rs");
  37.                     totalamount+=50;
  38.                 }
  39.                 if(burger.isChecked()){
  40.                     result.append("\nBurger 120Rs");
  41.                     totalamount+=120;
  42.                 }
  43.                 result.append("\nTotal: "+totalamount+"Rs");
  44.
  45.                 Toast.makeText(getApplicationContext(), result.toString(), Toast.LENGTH_LONG).show();
  46.             }
  47.
  48.         });
  49.     }
  50.     @Override
  51.     public boolean onCreateOptionsMenu(Menu menu) {.
  52.         getMenuInflater().inflate(R.menu.activity_main, menu);
  53.         return true;
  54.     }
  55.
  56. }

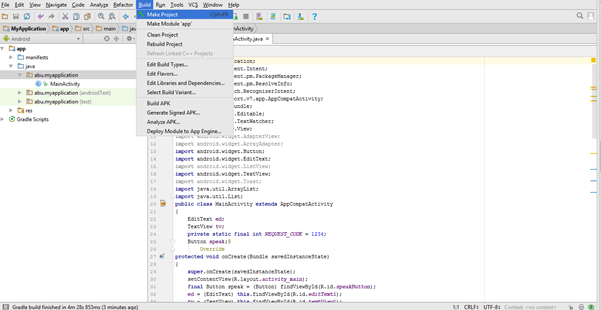

Step 8

Now, go to the menu bar and click "Make Project" or press ctrl+f9 to debug the error.

Android

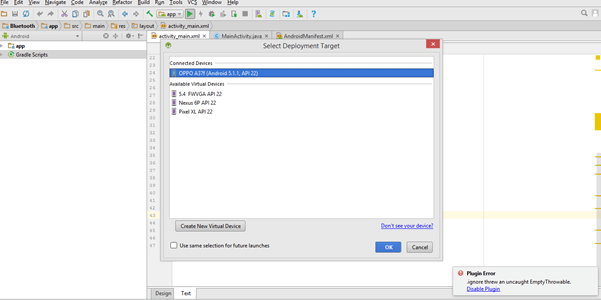

Step 9

Then, click the "Run" button or press shift+f10 To run the project. And choose the virtual machine and click OK.

Android

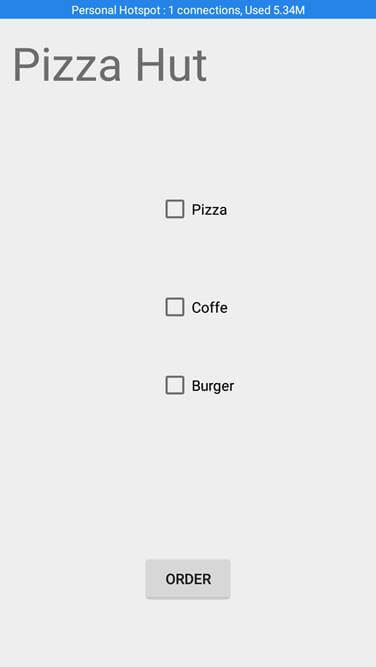

Conclusion


We have successfully created a Checkbox Android application using Android Studio.

Android

Android
