Components In React Native Apps

react

What we have understood so far from the previous articles:

  1. Basics of react native
  2. React Native Component and code walk through
  3. http://www.c-sharpcorner.com/article/routing-navigation-in-react-native-app/

This article will cover the React Native components:

Let’s start with the following components:

  1. TabBarIOS: This is one of the very interesting features in most of the apps which provides a separation of concern amongst the UI. Each module/screen is represented by a tab on the mobile screen which makes an appealing user experience and clears the goal of individual tabs. As we can see in the following figure, this screen has four tab bars, starting from left, Search, Favorites, History, and more.

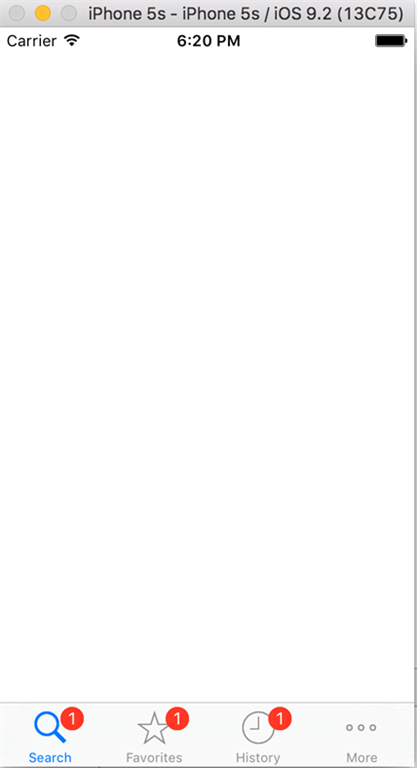

    TabBarIOS

Each tab holds valuable content as per the module. Using this control, you can achieve the following output.

output

Let’s see some code in action for how we can create a tab bar easily for any mobile application in a short span of time.

Step 1.

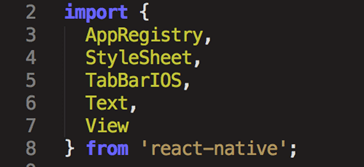

code
Import TabBarIOS from react-native as per the screenshot at #5.

Step 2.

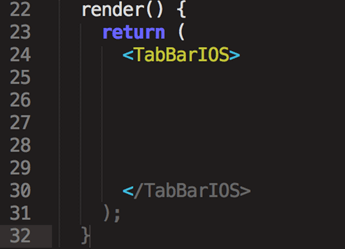

code

  • Empty <TabBarIOS></TabBarIOS> will just draw an empty bar with no tabs defined, as expected. Now, it's time to add the Tabbar items.
Step 3: Adding Tabitems/bars using <TabBarIOS.Item>. Lines # 25 – 38 create three tabs named search, history, and bookmark.

code

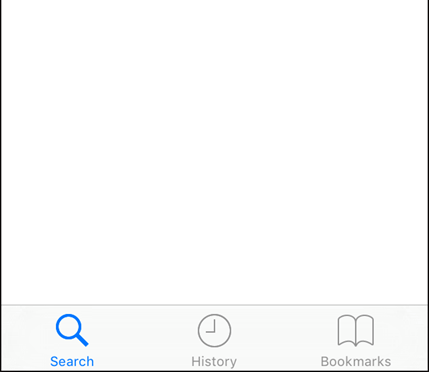

Output:

Output

Now, a few things need to be considered. React native provides us few system icons out of the box, as listed down.
  • bookmarks
  • contacts
  • downloads
  • favorites
  • featured
  • history
  • more
  • most-recent
  • most-viewed
  • recent
  • search
  • top-rated

systemIcon comes with predefined icon text which you see under the icon.

It doesn’t mean that we can’t add our custom icons and text. Let's see in action how we can add custom icon and text under icon.

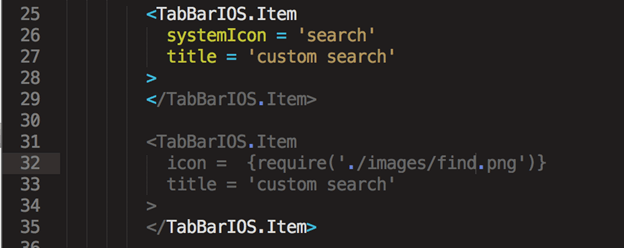

code

Lines #25-29 draw a search tabbar using systemIcon. In this code, we don’t need to add any title. Whereas Lines #31-34 draw custom search tabbar with custom icon and title. Let's see the following output.

output

Now, once the tabs are configured and displayed properly, let's see how we can set event for them, showing what if any tab is pressed.

For that, onPress() event needs to be set.

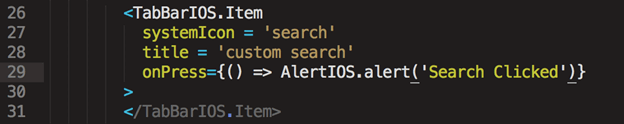

code

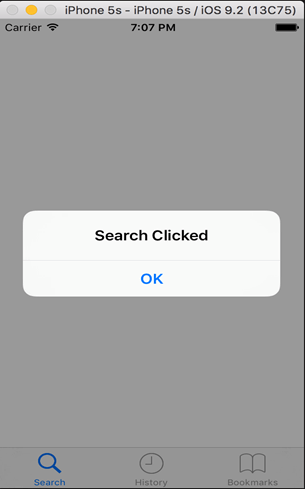

Line #29 registers onPress() event, so that when search tab bar is pressed, an alert will be displayed on the screen, as follows:

display

Similarly, you can register functions as per your need, using onPress event.

In this article, we tried to understand one of the React Native components called TabBarIOS with various configurations, like setting system and custom icon along with handling events for any particular tab.

In the next article, we will see other React Native components. I hope you enjoyed reading this article. Please provide your valuable feedback.
