Create A Simple Calculator With Ardunio Mega 2560

Introduction

In this article I have explained about creating a simple calculator with Arduino Mega 2560. It can be used to calculate for Addition, Multiplication, Division, and Substraction. The result will be displayed in the LCD.

Parts Of Lists
  • Arduino Mega 2560
  • LEDs
  • Push Button
  • Potentiometer
  • LCD Display
  • Bread Board
  • Hookup Wires
Potentiometer
  • It can have three terminals.
  • It can have sliding or rotating contact that forms a adjustable voltage divider.
  • It act as a variable resistor (or) rheostat.

                                             Figure 1: Potentiometer

LCD Display
  • LCD is Liquid Crystal Display (LCD).
  • It can have flat-panel or electronic display
  • It is used in hospital, showrooms, buses, railway station, airport, etc.

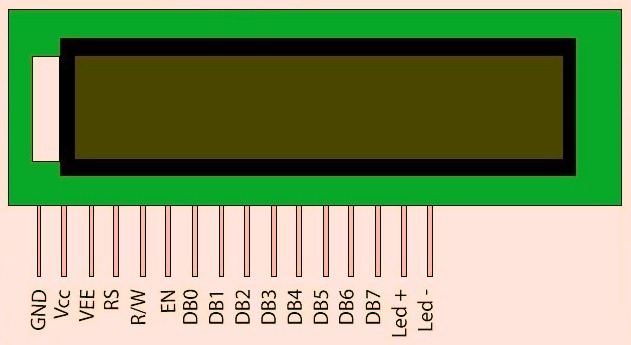

                                        Figure 2: LCD Display

Push Button
  • The push button connects the two points.
  • The first pin in the push button is connected to 5Vc.
  • The second pin in the push button is connected to gnd.

                                             Figure 3: Push Button
Connection

Step 1: Connection from Arduino Mega 2560 to LCD Display.
  • Fix the LCD in the 16 to 2 in the bread board.
  • The 16 pin to the Gnd
  • The 15 pin to the Vcc
  • The 14 pin to the Digital pin 12
  • The 13 pin to the Digital pin 11
  • The 12 pin to the Digital pin 05
  • The 11 pin to the Digital pin 04
  • The 01 pin to the Gnd.
  • The 02 pin to the Vcc.
  • The 03 pin to the potentiometer.
  • The 04 pin to the Digital pin 03.
  • The 05 pin to the Gnd.
  • The 06 pin to the Digital pin 02.

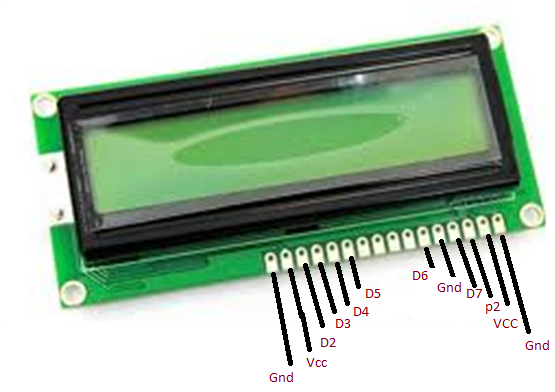

                     Figure 4: LCD Display connection

Step 2: Connection from Push Button to ArduinoMega2560

Push button 1:
  • The first pin in the push button is connected to 5Vc and 12 of board
  • The second pin in the push button is connected to gnd.
Push button 2:
  • The first pin in the push button is connected to 5Vc and 13 of board
  • The second pin in the push button is connected to gnd.
Push button 3:
  • The first pin in the push button is connected to 5Vc and 14 of board
  • The second pin in the push button is connected to gnd.
Push button 4:
  • The first pin in the push button is connected to 5Vc and 15 of board
  • The second pin in the push button is connected to gnd.
Push button 5:
  • The first pin in the push button is connected to 5Vc and 16 of board
  • The second pin in the push button are connected to gnd.
Push button 6:
  • The first pin in the push button is connected to 5Vc and 17 of board
  • The second pin in the push button is connected to gnd.
Push button 7:
  • The first pin in the push button is connected to 5Vc and 18 of  board
  • The second pin in the push button is connected to gnd.
Push button 8:
  • The first pin in the push button is connected to 5Vc and 19 of board
  • The second pin in the push button is connected to gnd.
Push button 9:
  • The first pin in the push button is connected to 5Vc and 20 of board
  • The second pin in the push button is connected to gnd.
Push button 10:
  • The first pin in the push button is connected to 5Vc and 21 of board
  • The second pin in the push button is connected to gnd.
Push button 11:
  • The first pin in the push button is connected to 5Vc and 22 of board
  • The second pin in the push button is connected to gnd.
Push button 12:
  • The first pin in the push button is connected to 5Vc and 23 of board
  • The second pin in the push button is connected to gnd.
Programming:
  1. // include the library code:
  2. #include <LiquidCrystal.h>
  3.
  4. #define key0 12
  5. #define key1 13
  6. #define key2 14
  7. #define key3 15
  8. #define key4 16
  9. #define key5 17
  10. #define key6 18
  11. #define key7 19
  12. #define key8 20
  13. #define key9 21
  14. #define DEL  22
  15. #define ENTER 23
  16. #define MAXVALUE 99999
  17.
  18. // initialize the library with the numbers of the interface pins
  19. LiquidCrystal lcd(12, 11, 5, 4, 3, 2);
  20.
  21. long number_1 = 0;
  22. long number_2 = 0;
  23. int control = 0;
  24. boolean error = false;
  25. long result = 0;
  26. float result_div = 0.0;
  27.
  28. void insertNumb () {
  29.   for (int i = 0; i <= 9; i++) {
  30.     //whithout this delay, the selection button pressed could become the first digit
  31.     delay (200);
  32.     lcd.clear();
  33.     lcd.setCursor(0, 0);
  34.     lcd.print("FIRST NUMBER");
  35.     control = readKey ();
  36.     //statement needed to catch the first digit
  37.     if ( i == 0 ) {
  38.       //statement needed to check if the pressed button is the special key OK
  39.       //if yes "i" becomes 5 and the algorithm goes to the next for loop
  40.       if ( control == 11 ) {
  41.         i = 5;
  42.       }
  43.       //statement needed to check if the pressed button is the special key DEL
  44.       //if yes "i" becomes 10 and the algorithm goes from both for loops
  45.       //resetting the calculator
  46.       else if ( control == 10) {
  47.         i = 10;
  48.         error = true;
  49.         lcd.clear();
  50.         lcd.setCursor(0, 0);
  51.         lcd.print("CANCELLED!");
  52.         delay(2000);
  53.       }
  54.       else {
  55.         //stores the most significant digit
  56.         number_1 = control;
  57.         lcd.clear();
  58.         lcd.setCursor(0, 1);
  59.         lcd.print(control);
  60.         delay(500);
  61.       }
  62.     }
  63.     //statement needed to catch the remaining four digits
  64.     //the following conditional statements have the same purpose of the ones described above
  65.     else {
  66.       if ( control == 11 ) {
  67.         i = 5;
  68.       }
  69.       else if ( control == 10) {
  70.         i = 10;
  71.         error = true;
  72.         lcd.clear();
  73.         lcd.setCursor(0, 0);
  74.         lcd.print("CANCELLED!");
  75.         delay(2000);
  76.       }
  77.       else {
  78.         number_1 = (number_1 * 10) + control;
  79.         //check if number_1 is negative or is greater than MAXVALUE printing an error if yes
  80.         if ((number_1 < 0) || (number_1 > MAXVALUE)) {
  81.           error = true;
  82.           i = 10;
  83.           lcd.clear();
  84.           lcd.setCursor(0, 0);
  85.           lcd.print("ERROR!");
  86.           lcd.setCursor(0, 1);
  87.           lcd.print("MAX VALUE " + (String)MAXVALUE);
  88.           delay(2000);
  89.         }
  90.         else {
  91.           lcd.clear();
  92.           lcd.setCursor(0, 1);
  93.           lcd.print(control);
  94.           lcd.setCursor(0, 0);
  95.           lcd.print(number_1);
  96.           delay(500);
  97.         }
  98.       }
  99.     }
  100.     if (i >= 4 && i <= 9) {
  101.       //the following for loop catches the digits of the second number
  102.       //and basically does the same thing as the previous one
  103.       for (int j = 0; j <= 4; j++) {
  104.         delay (200);
  105.         lcd.clear();
  106.         lcd.setCursor(0, 0);
  107.         lcd.print("SECOND NUMBER");
  108.         control = readKey ();
  109.         i++;
  110.         if ( j == 0 ) {
  111.           if ( control == 11 ) {
  112.             i = 10;
  113.             j = 5;
  114.           }
  115.           else if ( control == 10 ) {
  116.             error = true;
  117.             j = 5;
  118.             i = 10;
  119.             lcd.clear();
  120.             lcd.setCursor(0, 0);
  121.             lcd.print("CANCELLED!");
  122.             delay(2000);
  123.           }
  124.           else {
  125.             number_2 = control;
  126.             lcd.clear();
  127.             lcd.setCursor(0, 1);
  128.             lcd.print(control);
  129.             delay(500);
  130.           }
  131.         }
  132.         else {
  133.           if ( control == 11 ) {
  134.             j = 5;
  135.             i = 10;
  136.           }
  137.           else if ( control == 10 ) {
  138.             error = true;
  139.             j = 5;
  140.             i = 10;
  141.             lcd.clear();
  142.             lcd.setCursor(0, 0);
  143.             lcd.print("CANCELLED!");
  144.             delay(2000);
  145.           }
  146.           else {
  147.             number_2 = (number_2 * 10) + control;
  148.             //check if number_2 is negative or is greater than MAXVALUE printing an error if yes
  149.             if ((number_2 < 0) || (number_2 > MAXVALUE)) {
  150.               error = true;
  151.               j = 5;
  152.               i = 10;
  153.               lcd.clear();
  154.               lcd.setCursor(0, 0);
  155.               lcd.print("ERROR!");
  156.               lcd.setCursor(0, 1);
  157.               lcd.print("MAX VALUE " + (String)MAXVALUE);
  158.               delay(2000);
  159.             }
  160.             else {
  161.               lcd.clear();
  162.               lcd.setCursor(0, 1);
  163.               lcd.print(control);
  164.               lcd.setCursor(0, 0);
  165.               lcd.print(number_2);
  166.               delay(500);
  167.             }
  168.           }
  169.         }
  170.       }
  171.     }
  172.   }
  173.
  174. }
  175.
  176. void wait () {
  177.   while (digitalRead(key0) == LOW &&
  178.          digitalRead(key1) == LOW &&
  179.          digitalRead(key2) == LOW &&
  180.          digitalRead(key3) == LOW &&
  181.          digitalRead(key4) == LOW &&
  182.          digitalRead(key5) == LOW &&
  183.          digitalRead(key6) == LOW &&
  184.          digitalRead(key7) == LOW &&
  185.          digitalRead(key8) == LOW &&
  186.          digitalRead(key9) == LOW &&
  187.          digitalRead(DEL) == LOW &&
  188.          digitalRead(ENTER) == LOW
  189.         );
  190. }
  191.
  192. void setup() {
  193.   //initializes push-buttons
  194.   pinMode(key0, INPUT);
  195.   pinMode(key1, INPUT);
  196.   pinMode(key2, INPUT);
  197.   pinMode(key3, INPUT);
  198.   pinMode(key4, INPUT);
  199.   pinMode(key5, INPUT);
  200.   pinMode(key6, INPUT);
  201.   pinMode(key7, INPUT);
  202.   pinMode(key8, INPUT);
  203.   pinMode(key9, INPUT);
  204.   pinMode(DEL, INPUT);
  205.   pinMode(ENTER, INPUT);
  206.   // set up the LCD's number of columns and rows:
  207.   lcd.begin(16, 2);
  208. }
  209.
  210. int readKey () {
  211.   wait();
  212.   int operand = 0;
  213.   if (digitalRead(key0) == HIGH) {
  214.     operand = 0;
  215.   }
  216.   else if (digitalRead(key1) == HIGH) {
  217.     operand = 1;
  218.   }
  219.   else if (digitalRead(key2) == HIGH) {
  220.     operand = 2;
  221.   }
  222.   else if (digitalRead(key3) == HIGH) {
  223.     operand = 3;
  224.   }
  225.   else if (digitalRead(key4) == HIGH) {
  226.     operand = 4;
  227.   }
  228.   else if (digitalRead(key5) == HIGH) {
  229.     operand = 5;
  230.   }
  231.   else if (digitalRead(key6) == HIGH) {
  232.     operand = 6;
  233.   }
  234.   else if (digitalRead(key7) == HIGH) {
  235.     operand = 7;
  236.   }
  237.   else if (digitalRead(key8) == HIGH) {
  238.     operand = 8;
  239.   }
  240.   else if (digitalRead(key9) == HIGH) {
  241.     operand = 9;
  242.   }
  243.   else if (digitalRead(DEL) == HIGH) {
  244.     operand = 10;
  245.   }
  246.   else if (digitalRead(ENTER) == HIGH) {
  247.     operand = 11;
  248.   }
  249.   delay(100);
  250.   return operand;
  251. }
  252.
  253. //SUM function
  254. long sum (long number_1, long number_2) {
  255.   return number_1 + number_2;
  256. }
  257.
  258. //SUBtraction function
  259. long subtraction (long number_1, long number_2) {
  260.   return number_1 - number_2;
  261. }
  262.
  263. //MULtiplication function
  264. long multiplication (long number_1, long number_2) {
  265.   return number_1 * number_2;
  266. }
  267.
  268. //DIVsion FUNCTION
  269. float division (long number_1, long number_2) {
  270.   return (float)number_1 / (float)number_2;
  271. }
  272.
  273. void loop() {
  274.   number_1 = 0;
  275.   number_2 = 0;
  276.   delay (200);
  277. //asks which calculation you want to do
  278.   lcd.clear();
  279.   lcd.setCursor(0, 0);
  280.   lcd.print("SUM,SUB,MUL,DIV");
  281.   lcd.setCursor(0, 1);
  282.   lcd.print("0  ,1  ,2  ,3  ");
  283. //waits into the following loop till the user press a key
  284.   wait();
  285.   //"operation" is the variable needed to control the flow of the sketch
  286.   int operation = readKey();
  287. //SUM
  288.   if (operation == 0) {
  289.     insertNumb();
  290.     if (error == true) {
  291.       lcd.clear();
  292.       lcd.setCursor(0, 0);
  293.       lcd.print("DEL TO CONTINUE");
  294.     }
  295.     else {
  296.       lcd.clear();
  297.       lcd.setCursor(0, 0);
  298.       lcd.print("DEL TO CONTINUE");
  299.       lcd.setCursor(0, 1);
  300.       lcd.print("SUM = ");
  301.       lcd.setCursor(7, 1);
  302.       result = sum(number_1, number_2);
  303.       if (result < MAXVALUE) {
  304.         lcd.print(result);
  305.       } else {
  306.         lcd.clear();
  307.         lcd.setCursor(0, 0);
  308.         lcd.print("ERROR!");
  309.         lcd.setCursor(0, 1);
  310.         lcd.print("MAX VALUE " + (String)MAXVALUE);
  311.         delay(4000);
  312.         lcd.clear();
  313.         lcd.setCursor(0, 0);
  314.         lcd.print("DEL TO CONTINUE");
  315.       }
  316.     }
  317.     while (readKey() != 10);
  318.   }
  319.   else if (operation == 1) {
  320.     insertNumb();
  321.     if (error == true) {
  322.       lcd.clear();
  323.       lcd.setCursor(0, 0);
  324.       lcd.print("DEL TO CONTINUE");
  325.     } else {
  326.       lcd.clear();
  327.       lcd.setCursor(0, 0);
  328.       lcd.print("DEL TO CONTINUE");
  329.       lcd.setCursor(0, 1);
  330.       lcd.print("SUB = ");
  331.       lcd.setCursor(7, 1);
  332.       result = subtraction(number_1, number_2);
  333.       if (result < MAXVALUE) {
  334.         lcd.print(result);
  335.       } else {
  336.         lcd.clear();
  337.         lcd.setCursor(0, 0);
  338.         lcd.print("ERROR!");
  339.         lcd.setCursor(0, 1);
  340.         lcd.print("MAX VALUE " + (String)MAXVALUE);
  341.         delay(4000);
  342.         lcd.clear();
  343.         lcd.setCursor(0, 0);
  344.         lcd.print("DEL TO CONTINUE");
  345.       }
  346.     }
  347.     while (readKey() != 10);
  348.   }
  349.   else if (operation == 2) {
  350.     insertNumb();
  351.     if (error == true) {
  352.       lcd.clear();
  353.       lcd.setCursor(0, 0);
  354.       lcd.print("DEL TO CONTINUE");
  355.     } else {
  356.       lcd.clear();
  357.       lcd.setCursor(0, 0);
  358.       lcd.print("DEL TO CONTINUE");
  359.       lcd.setCursor(0, 1);
  360.       lcd.print("MUL = ");
  361.       lcd.setCursor(7, 1);
  362.       result = multiplication(number_1, number_2);
  363.       if (result < MAXVALUE) {
  364.         lcd.print(result);
  365.       } else {
  366.         lcd.clear();
  367.         lcd.setCursor(0, 0);
  368.         lcd.print("ERROR!");
  369.         lcd.setCursor(0, 1);
  370.         lcd.print("MAX VALUE " + (String)MAXVALUE);
  371.         delay(4000);
  372.         lcd.clear();
  373.         lcd.setCursor(0, 0);
  374.         lcd.print("DEL TO CONTINUE");
  375.       }
  376.     }
  377.     while (readKey() != 10);
  378.   }
  379.   else if (operation == 3)  {
  380.     insertNumb();
  381.     if (error == true) {
  382.       lcd.clear();
  383.       lcd.setCursor(0, 0);
  384.       lcd.print("DEL TO CONTINUE");
  385.     } else {
  386.       lcd.clear();
  387.       lcd.setCursor(0, 0);
  388.       lcd.print("DEL TO CONTINUE");
  389.       lcd.setCursor(0, 1);
  390.       lcd.print("DIV = ");
  391.       lcd.setCursor(7, 1);
  392.       result_div = division(number_1, number_2);
  393.       if (result < MAXVALUE) {
  394.         lcd.print(result_div, 7);
  395.       } else {
  396.         lcd.clear();
  397.         lcd.setCursor(0, 0);
  398.         lcd.print("ERROR!");
  399.         lcd.setCursor(0, 1);
  400.         lcd.print("MAX VALUE " + (String)MAXVALUE);
  401.         delay(4000);
  402.         lcd.clear();
  403.         lcd.setCursor(0, 0);
  404.         lcd.print("DEL TO CONTINUE");
  405.       }
  406.     }
  407.     while (readKey() != 10);
  408.   } else {
  409.     lcd.clear();
  410.     lcd.setCursor(0, 0);
  411.     lcd.print("ERROR!");
  412.     lcd.setCursor(0, 1);
  413.     lcd.print("PRESS 0,1,2 or 3");
  414.     delay(2000);
  415.   }
  416.   int  control = 0;
  417.
  418. }
Explanation
  • This calculator can be used to calculate the for loop() function. It can be used to display one by one condition i.e addition/ subtraction/ multiplexing/ division.

  • The result can be displayed in the LCD display screen. If we made any mistake, press del to continue.

Output

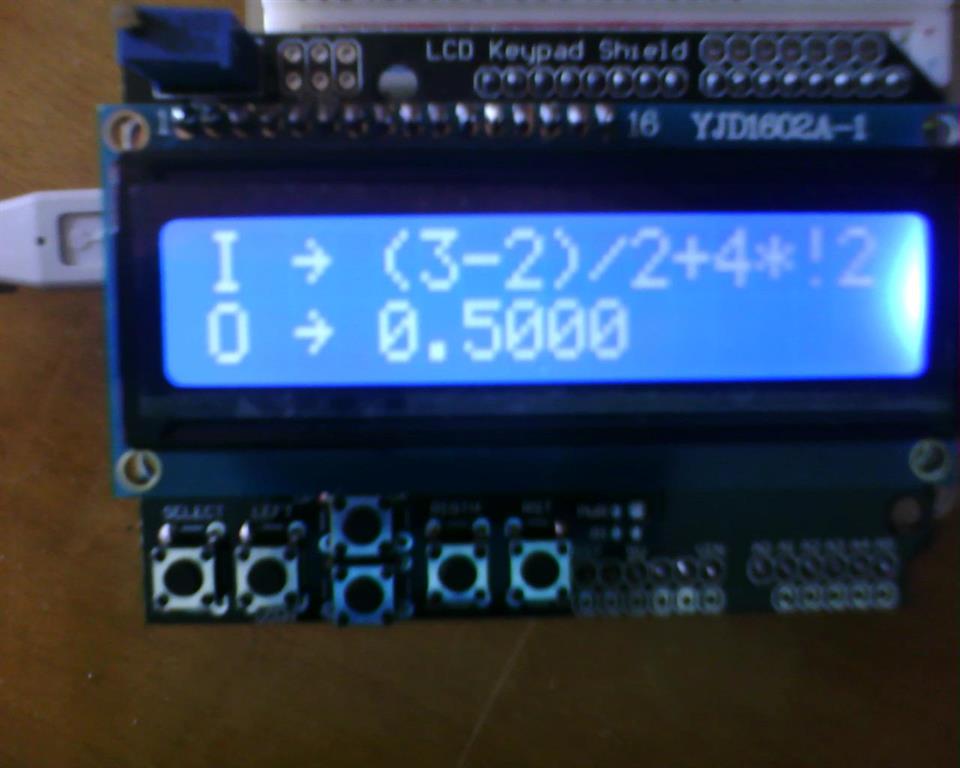

                                                Figure 5: Output
