Create Bluetooth Android Application Using Android Studio

Introduction


Android is one of the most popular operating systems for mobile. In this article, I will show you how to create Bluetooth Android applications using Android Studio.

Requirements
Steps to be followed

Follow these steps to create a Bluetooth Android application. I have included the source code in the attachment.

Step 1

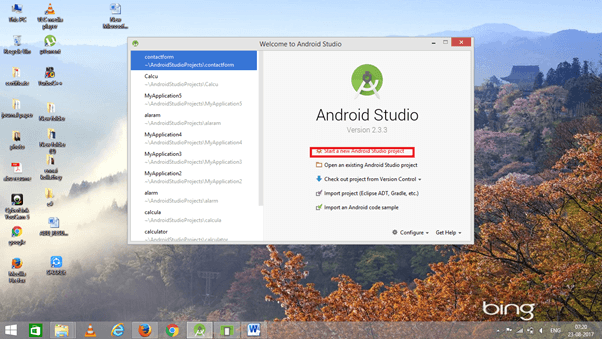

Open Android Studio and start a new Android Studio Project.

Android

Step 2

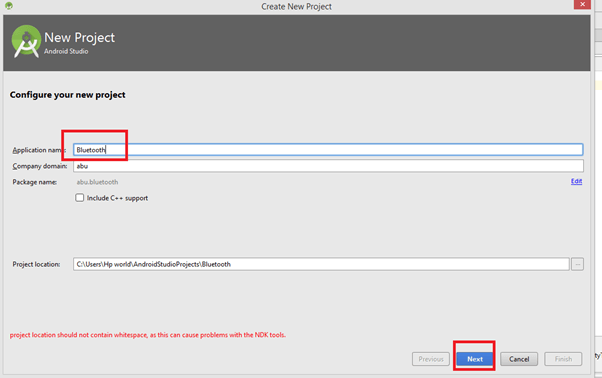

You can choose your application name and choose where your project is to be stored. If you wish to use C++ for coding the project, mark the "Include C++ support", and click the "Next" button.

Android

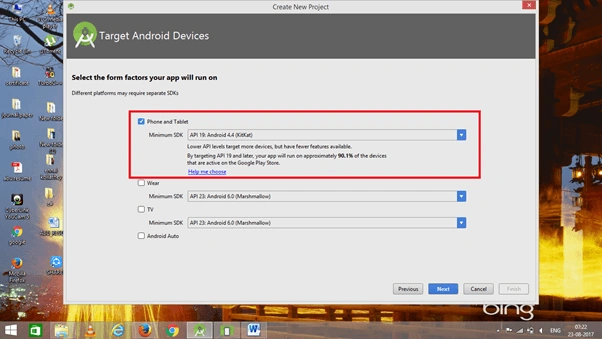

Now, select the version of Android and select the target Android devices.

Android

Step 3

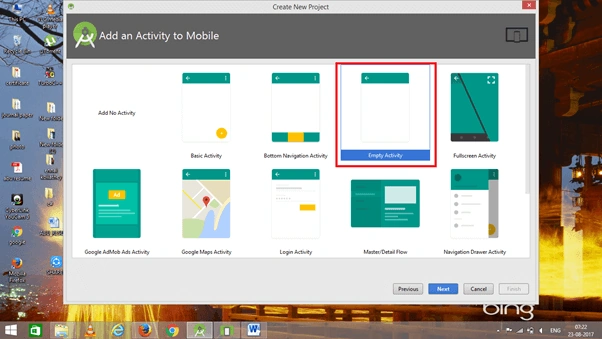

Now, add the activity and click the "Next" button.

Android

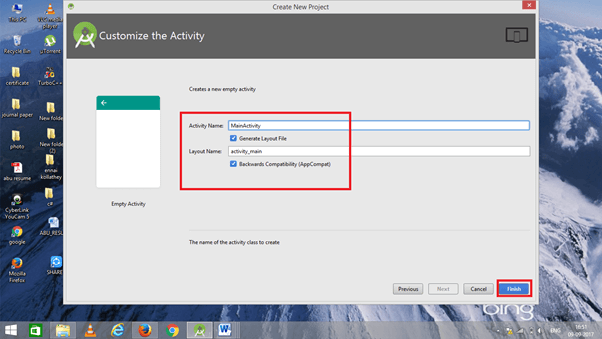

Add activity name and click "Finish".

Android

Step 4

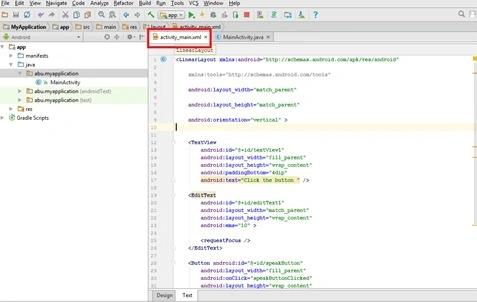

Go to activity_main.xml. This XML file contains the designing code for your Android app.

Android

The XML code is given below.
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:app="http://schemas.android.com/apk/res-auto"
  4.     xmlns:tools="http://schemas.android.com/tools"
  5.     android:layout_width="match_parent"
  6.     android:layout_height="match_parent"
  7.
  8.     tools:context="abu.bluetooth.MainActivity" >
  9.     <RelativeLayout
  10.         android:layout_width="match_parent"
  11.         android:layout_height="wrap_content"
  12.         android:orientation="vertical">
  13.         <TextView
  14.             android:text=""
  15.             android:id="@+id/out"
  16.             android:layout_width="wrap_content"
  17.             android:layout_height="wrap_content"></TextView>
  18.
  19.         <Button
  20.             android:id="@+id/button1"
  21.             android:layout_width="wrap_content"
  22.             android:layout_height="wrap_content"
  23.             android:layout_alignParentLeft="true"
  24.             android:layout_alignParentTop="true"
  25.             android:layout_marginLeft="30dp"
  26.             android:layout_marginTop="49dp"
  27.             android:text="ON" />
  28.         <Button
  29.             android:id="@+id/button2"
  30.             android:layout_width="wrap_content"
  31.             android:layout_height="wrap_content"
  32.             android:layout_alignLeft="@+id/button1"
  33.             android:layout_below="@+id/button1"
  34.             android:layout_marginTop="27dp"
  35.             android:text="COVERAGE" />
  36.         <Button
  37.             android:id="@+id/button3"
  38.             android:layout_width="wrap_content"
  39.             android:layout_height="wrap_content"
  40.             android:layout_alignLeft="@+id/button2"
  41.             android:layout_below="@+id/button2"
  42.             android:layout_marginTop="28dp"
  43.             android:text="OFF" />
  44.     </RelativeLayout>
  45.
  46. </android.support.constraint.ConstraintLayout>
Step 5

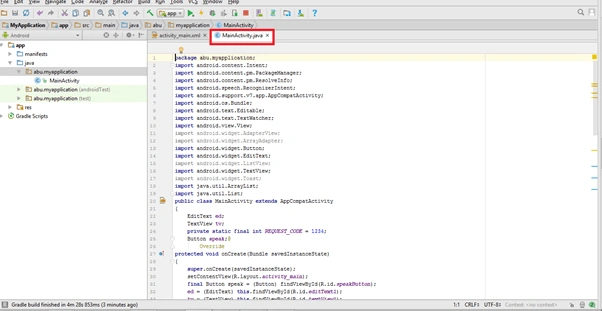

Go to  Main Activity.java. This Java program is the backend language for your app.

Android

The Java code is given below.
  1. package abu.bluetooth;
  2.
  3. import android.os.Bundle;
  4. import android.app.Activity;
  5. import android.view.Menu;
  6. import android.app.Activity;
  7. import android.bluetooth.BluetoothAdapter;
  8. import android.content.Context;
  9. import android.content.Intent;
  10. import android.os.Bundle;
  11. import android.util.Log;
  12. import android.view.View;
  13. import android.widget.Button;
  14. import android.widget.TextView;
  15. import android.widget.Toast;
  16.
  17. public class MainActivity extends Activity {
  18.     private static final int REQUEST_ENABLE_BT = 0;
  19.     private static final int REQUEST_DISCOVERABLE_BT = 0;
  20.
  21.     @Override
  22.     protected void onCreate(Bundle savedInstanceState) {
  23.         super.onCreate(savedInstanceState);
  24.         setContentView(R.layout.activity_main);
  25.         final TextView out = (TextView) findViewById(R.id.out);
  26.         final Button button1 = (Button) findViewById(R.id.button1);
  27.         final Button button2 = (Button) findViewById(R.id.button2);
  28.         final Button button3 = (Button) findViewById(R.id.button3);
  29.         final BluetoothAdapter mBluetoothAdapter = BluetoothAdapter.
  30.                 getDefaultAdapter();
  31.         if (mBluetoothAdapter == null) {
  32.             out.append("device not supported");
  33.         }
  34.         button1.setOnClickListener(new View.OnClickListener() {
  35.             public void onClick(View v) {
  36.                 if (!mBluetoothAdapter.isEnabled()) {
  37.                     Intent enableBtIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_ENABLE);
  38.                     startActivityForResult(enableBtIntent, REQUEST_ENABLE_BT);
  39.                 }
  40.             }
  41.         });
  42.         button2.setOnClickListener(new View.OnClickListener() {
  43.             @Override
  44.             public void onClick(View arg0) {
  45.                 if (!mBluetoothAdapter.isDiscovering()) {
  46.                     Context context = getApplicationContext();
  47.                     CharSequence text = "MAKING YOUR DEVICE DISCOVERABLE";
  48.                     int duration = Toast.LENGTH_SHORT;
  49.                     Toast toast = Toast.makeText(context, text, duration);
  50.                     toast.show();
  51.                     Intent enableBtIntent = new Intent(BluetoothAdapter.ACTION_REQUEST_DISCOVERABLE);
  52.                     startActivityForResult(enableBtIntent, REQUEST_DISCOVERABLE_BT);
  53.                 }
  54.             }
  55.         });
  56.         button3.setOnClickListener(new View.OnClickListener() {
  57.             @Override
  58.             public void onClick(View arg0) {
  59.                 mBluetoothAdapter.disable();
  60.                 Context context = getApplicationContext();
  61.                 CharSequence text = "TURNING_OFF BLUETOOTH";
  62.                 int duration = Toast.LENGTH_LONG;
  63.                 Toast toast = Toast.makeText(context, text, 15);
  64.                 toast.show();
  65.             }
  66.         });
  67.     }
  68.
  69.     @Override
  70.     public boolean onCreateOptionsMenu(Menu menu) {
  71.         // Inflate the menu; this adds items to the action bar if it is present.
  72.         getMenuInflater().inflate(R.menu.activity_main, menu);
  73.         return true;
  74.     }
  75.
  76. }
Step 6

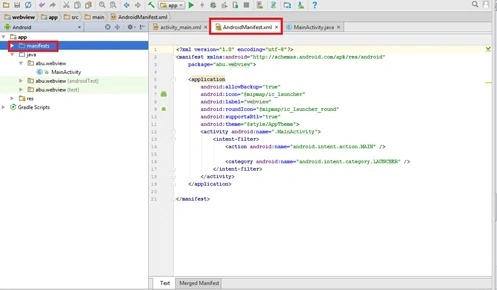

We need to make a Bluetooth request. So, add the Bluetooth permission in AndroidManifest.xml.

Android

The AndroidManifest.xml code is given below.
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <manifest xmlns:android="http://schemas.android.com/apk/res/android"
  3.     package="abu.bluetooth">
  4.
  5.     <uses-permission android:name="android.permission.BLUETOOTH" />
  6.     <uses-permission android:name="android.permission.BLUETOOTH_ADMIN" />
  7.     <application
  8.         android:allowBackup="true"
  9.         android:icon="@mipmap/ic_launcher"
  10.         android:label="@string/app_name"
  11.         android:roundIcon="@mipmap/ic_launcher_round"
  12.         android:supportsRtl="true"
  13.         android:theme="@style/AppTheme">
  14.         <activity android:name=".MainActivity">
  15.             <intent-filter>
  16.                 <action android:name="android.intent.action.MAIN" />
  17.
  18.                 <category android:name="android.intent.category.LAUNCHER" />
  19.             </intent-filter>
  20.         </activity>
  21.     </application>
  22.
  23. </manifest>
Step 7

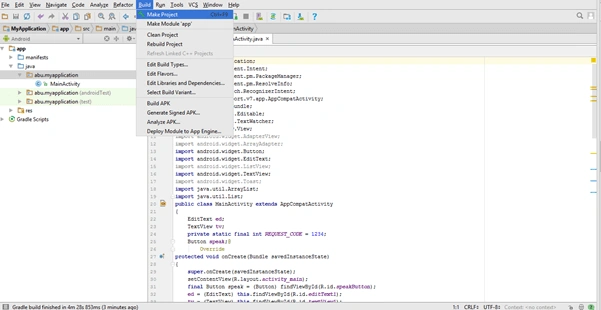

Now, go to the menu bar and click "Make Project" or press ctrl+f9 to debug the app from errors.

Android

Step 8

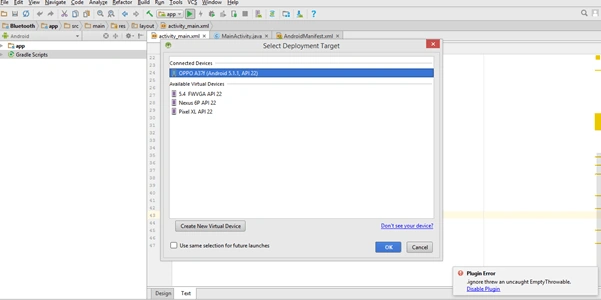

Then, click the "Run" button or press shift+f10 to finally run the project. And, choose the "virtual machine" option and click OK.

Android

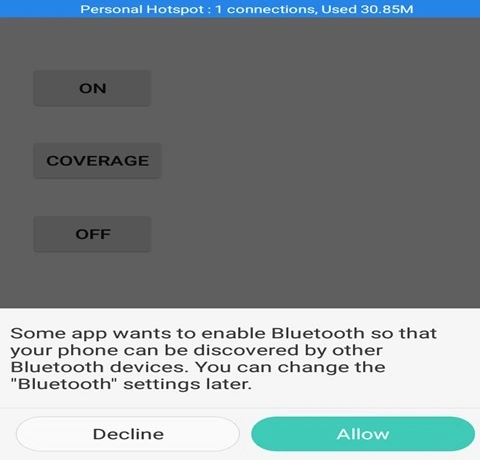

Conclusion

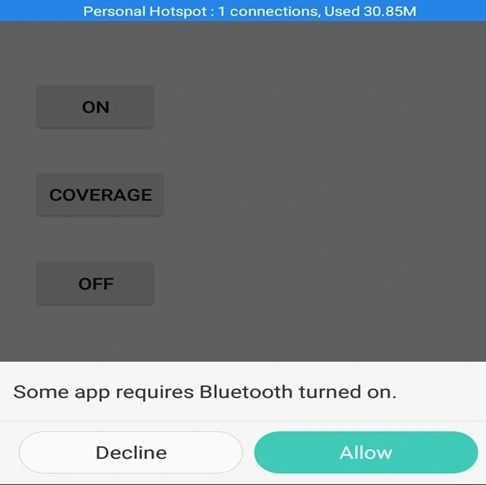

We have successfully created a Bluetooth Android application using Android Studio.

Android

Android

Android
