Creating Custom ListView In Xamarin Android App

Introduction

In this article, we are going to learn about how to create a custom ListView in Xamarin Android app.

Solution

Here are the steps to add tabs in an Android app.

Step 1

Create/ open your Android solution in Visual Studio or Xamarin Studio.

Step 2

Create the ListView inside your AXML file, as shown below.

(File Name: main.axml)

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:orientation="vertical"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent">
  6.     <ListView
  7.         android:id="@+id/listView"
  8.         android:layout_width="match_parent"
  9.         android:layout_height="wrap_content"
  10.         android:fastScrollEnabled="true" />
  11. </LinearLayout>

Step 3: Initialize ListView in MainActivity, as shown below.

 (File Name: MainActivity.cs)

  1. public class MainActivity : Activity
  2.     {
  3.         //Intialize ListView
  4.         ListView myList;
  5.         protected override void OnCreate(Bundle bundle)
  6.         {
  7.             base.OnCreate(bundle);
  8.
  9.             // Set our view from the "main" layout resource
  10.             SetContentView(Resource.Layout.Main);
  11.
  12.             myList = FindViewById<ListView>(Resource.Id.listView);
  13.
  14.         }
  15.     }

Step 4

Now, create the row for the ListView cell to show the details of the user as Name, Image and Department.

(FileName: userRow.axml)

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     android:orientation="horizontal"
  4.     android:layout_width="fill_parent"
  5.     android:layout_height="fill_parent"
  6.     android:minWidth="25px"
  7.     android:minHeight="25px"
  8.     android:paddingBottom="4dp">
  9.     <ImageView
  10.         android:id="@+id/photoImageView"
  11.         android:layout_width="60dp"
  12.         android:layout_height="60dp"
  13.         android:layout_alignParentLeft="true"
  14.         android:layout_centerVertical="true"
  15.         android:padding="5dp" />
  16.     <TextView
  17.         android:id="@+id/nameTextView"
  18.         android:layout_toRightOf="@id/photoImageView"
  19.         android:text="Name"
  20.         android:textAppearance="?android:attr/textAppearanceLarge"
  21.         android:layout_width="wrap_content"
  22.         android:layout_height="wrap_content"
  23.         android:paddingLeft="5dp" />
  24.     <TextView
  25.         android:id="@+id/departmentTextView"
  26.         android:layout_toRightOf="@id/photoImageView"
  27.         android:layout_below="@id/nameTextView"
  28.         android:text="Department"
  29.         android:textAppearance="?android:attr/textAppearanceSmall"
  30.         android:layout_width="wrap_content"
  31.         android:layout_height="wrap_content"
  32.         android:paddingLeft="5dp" />
  33. </RelativeLayout>

Step 5

Create User Model, as shown below.

(File Name: User.cs)

  1. public class User
  2.     {
  3.         public string Name { get; set; }
  4.         public string ImageUrl { get; set; }
  5.         public string Department { get; set; }
  6.         public string Details { get; set; }
  7.
  8.         public override string ToString()
  9.         {
  10.             return Name + " " + Department;
  11.         }
  12.     }

Step 6

To bind the row, we required ListView Adapter, so create a Custom Adapter, as shown below.

 (File Name: MyCustomListAdapter.cs)

  1. public class MyCustomListAdapter : BaseAdapter<User>
  2.     {
  3.         List<User> users;
  4.
  5.         public MyCustomListAdapter(List<User> users)
  6.         {
  7.             this.users = users;
  8.         }
  9.
  10.         public override User this[int position]
  11.         {
  12.             get
  13.             {
  14.                 return users[position];
  15.             }
  16.         }
  17.
  18.         public override int Count
  19.         {
  20.             get
  21.             {
  22.                  return users.Count;
  23.             }
  24.         }
  25.
  26.         public override long GetItemId(int position)
  27.         {
  28.             return position;
  29.         }
  30.
  31.         public override View GetView(int position, View convertView, ViewGroup parent)
  32.         {
  33.             var view = convertView;
  34.
  35.             if(view==null)
  36.             {
  37.                 view = LayoutInflater.From(parent.Context).Inflate(Resource.Layout.userRow, parent, false);
  38.
  39.                 var photo = view.FindViewById<ImageView>(Resource.Id.photoImageView);
  40.                 var name = view.FindViewById<TextView>(Resource.Id.nameTextView);
  41.                 var department = view.FindViewById<TextView>(Resource.Id.departmentTextView);
  42.
  43.                 view.Tag = new ViewHolder() { Photo = photo, Name = name, Department = department };
  44.             }
  45.
  46.             var holder = (ViewHolder)view.Tag;
  47.
  48.             holder.Photo.SetImageDrawable(ImageManager.Get(parent.Context, users[position].ImageUrl));
  49.             holder.Name.Text = users[position].Name;
  50.             holder.Department.Text = users[position].Department;
  51.
  52.
  53.             return view;
  54.
  55.         }
  56.     }

The Custom Adapter is extended by the Base Adapter and it has some Abstract methods, as shown below.

  • Count- This method returns the count of the list items.
  • GetItemId- It returns the position of the item.
  • GetView- This method is used to bind the view to the ListView row, it will bind the data with the row.

Step 7

Now, create the Image Manager class, which is used to bind the images with the ImageView, as shown below.

(File Name: ImageManager.cs)

  1. public static class ImageManager
  2.     {
  3.         static Dictionary<string, Drawable> cache = new Dictionary<string, Drawable>();
  4.
  5.         public static Drawable Get(Context context, string url)
  6.         {
  7.             if (!cache.ContainsKey(url))
  8.             {
  9.                 var drawable = Drawable.CreateFromStream(context.Assets.Open(url), null);
  10.
  11.                 cache.Add(url, drawable);
  12.             }
  13.
  14.             return cache[url];
  15.         }
  16.     }

In the code given above, the images are boud with the Assets folder. (Add the images to the Image folder accordingly).

Step 8

Now, we require data source for the list, so we will create UserData file to provide the data to the list, as shown below.

(File Name: UserData.cs)

  1. public static class UserData
  2.     {
  3.         public static List<User> Users { get; private set; }
  4.
  5.         static UserData()
  6.         {
  7.             var temp = new List<User>();
  8.
  9.             AddUser(temp);
  10.             AddUser(temp);
  11.             AddUser(temp);
  12.
  13.             Users = temp.OrderBy(i => i.Name).ToList();
  14.         }
  15.
  16.         static void AddUser(List<User> users)
  17.         {
  18.             users.Add(new User()
  19.             {
  20.                 Name = "aVirendra Thakur",
  21.                 Department = "Xamarin Android & Xamarin Forms Development",
  22.                 ImageUrl = "images/image.png",
  23.                 Details = "Virendra has over 2 years of experience developing mobile applications,"
  24.             });
  25.
  26.             users.Add(new User()
  27.             {
  28.                 Name = "bVirendra Thakur",
  29.                 Department = "Xamarin Android & Xamarin Forms Development",
  30.                 ImageUrl = "images/image2.png",
  31.                 Details = "Virndra has over 2 years of experience developing mobile applications; specializing in Android & C# cross platform development."
  32.
  33.             });
  34.             users.Add(new User()
  35.             {
  36.                 Name = "bVirendra Thakur",
  37.                 Department = "Xamarin Android & Xamarin Forms Development",
  38.                 ImageUrl = "images/image.png",
  39.                 Details = "Virndra has over 2 years of experience developing mobile applications; specializing in Android & C# cross platform development."
  40.
  41.             });
  42.
  43.             users.Add(new User()
  44.             {
  45.                 Name = "aVirendra Thakur",
  46.                 Department = "Xamarin Android & Xamarin Forms Development",
  47.                 ImageUrl = "images/image2.png",
  48.                 Details = "Virndra has over 2 years of experience developing mobile applications; specializing in Android & C# cross platform development."
  49.
  50.             }); users.Add(new User()
  51.             {
  52.                 Name = "dVirendra Thakur",
  53.                 Department = "Xamarin Android & Xamarin Forms Development",
  54.                 ImageUrl = "images/image.png",
  55.                 Details = "Virndra has over 2 years of experience developing mobile applications; specializing in Android & C# cross platform development."
  56.
  57.            });
  58. }

Step 9

Create ViewHolder Class, which holds the controls of the view. It will only create the controls and reuse it in ListView, which saves the memory.

(File Name: ViewHolder.cs)

  1. public class ViewHolder: Java.Lang.Object
  2.     {
  3.         public ImageView Photo { get; set; }
  4.         public TextView Name { get; set; }
  5.         public TextView Department { get; set; }
  6.     }

Step 10

Now, go to MyCustomListAdapter and add the few lines of code to bind the data, as shown below.

(File Name: MyCustomListAdapter.cs)

  1. public override View GetView(int position, View convertView, ViewGroup parent)
  2.         {
  3.             var view = convertView;
  4.
  5.             if(view==null)
  6.             {
  7.                 view = LayoutInflater.From(parent.Context).Inflate(Resource.Layout.userRow, parent, false);
  8.
  9.                 var photo = view.FindViewById<ImageView>(Resource.Id.photoImageView);
  10.                 var name = view.FindViewById<TextView>(Resource.Id.nameTextView);
  11.                 var department = view.FindViewById<TextView>(Resource.Id.departmentTextView);
  12.
  13.                 view.Tag = new ViewHolder() { Photo = photo, Name = name, Department = department };
  14.             }
  15.
  16.             var holder = (ViewHolder)view.Tag;
  17.
  18.             holder.Photo.SetImageDrawable(ImageManager.Get(parent.Context, users[position].ImageUrl));
  19.             holder.Name.Text = users[position].Name;
  20.             holder.Department.Text = users[position].Department;
  21.
  22.
  23.             return view;
  24.
  25.         }

Step 11

Add the Custom Adapter to the ListView in MainActivity, as shown below.

  1. protected override void OnCreate(Bundle bundle)
  2.         {
  3.             base.OnCreate(bundle);
  4.
  5.             // Set our view from the "main" layout resource
  6.             SetContentView(Resource.Layout.Main);
  7.
  8.             myList = FindViewById<ListView>(Resource.Id.listView);
  9.
  10.             myList.Adapter = new MyCustomListAdapter(UserData.Users);
  11.         }

Output

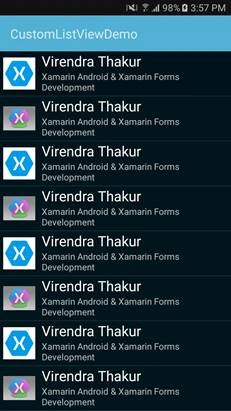

Now, run the Application and you will see the output given below.
