How To Add Android Exit Dialog To Android App Using Android Studio

Introduction


Android is one of the most popular operating systems for mobile. In this article, I will show you how to add Android Exit Dialog to Android App using Android Studio

Requirements
Steps to be followed

Follow these steps to add Android Exit Dialog to Android App. I have included the source code in the attachment.

Step 1

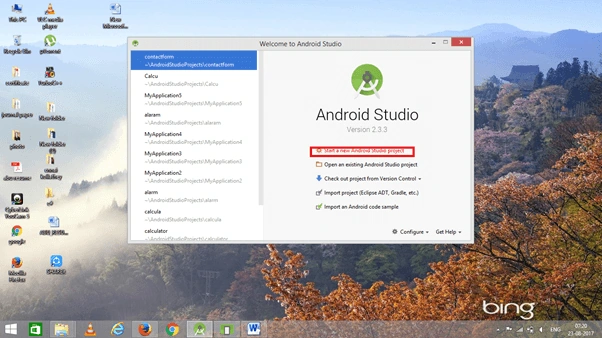

Open Android Studio and start a new Android Studio Project.

Android

Step 2

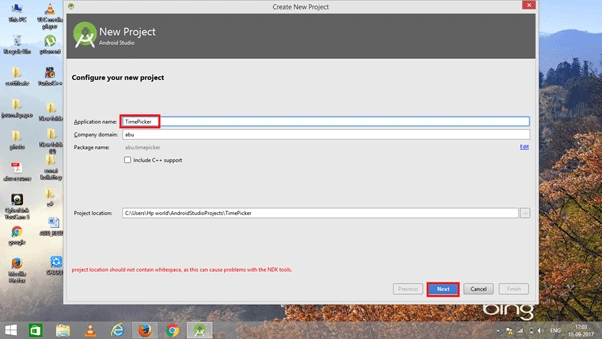

You can choose your application name and location where your project is stored. If you wish to use C++ for coding the project, mark the "Include C++ support" box, and click the "Next" button.

Android

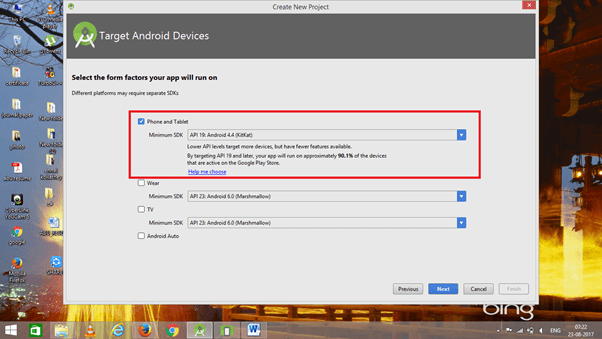

Now, select the version of Android and select the target Android devices.

Android

Step 3

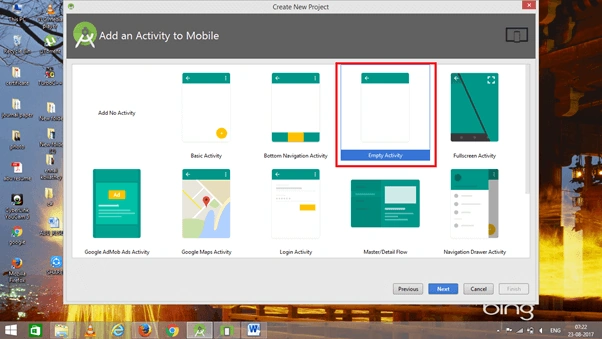

Now, add the activity and click the "Next" button.

Android

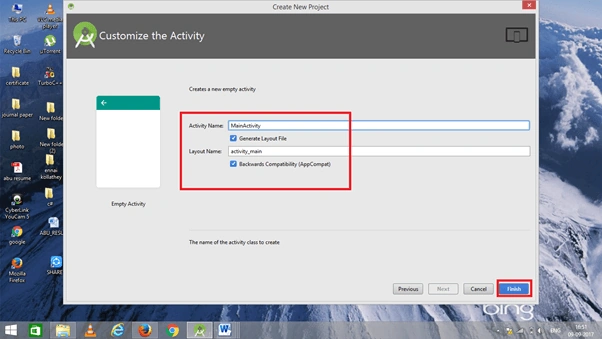

Add the Activity name and click "Finish".

Android

Step 4

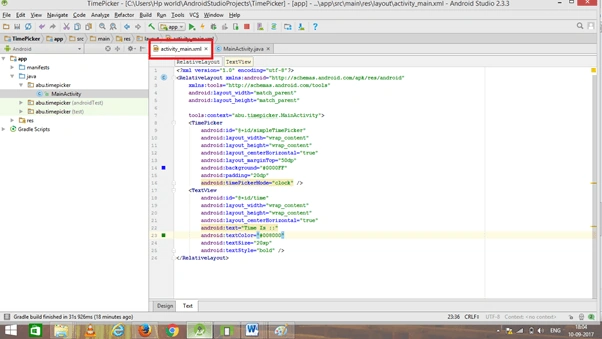

Go to activity_main.xml. This XML file contains the designing code for your Android app.

Android

The XML code is given below.
  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3.     xmlns:app="http://schemas.android.com/apk/res-auto"
  4.     xmlns:tools="http://schemas.android.com/tools"
  5.     android:layout_width="match_parent"
  6.     android:layout_height="match_parent"
  7.     tools:context="abu.exitnotification.MainActivity">
  8.
  9.     <TextView
  10.         android:layout_width="wrap_content"
  11.         android:layout_height="wrap_content"
  12.         android:text="EXIT NOTIFICATION APP!"
  13.         app:layout_constraintBottom_toBottomOf="parent"
  14.         app:layout_constraintLeft_toLeftOf="parent"
  15.         app:layout_constraintRight_toRightOf="parent"
  16.         app:layout_constraintTop_toTopOf="parent" />
  17.
  18. </android.support.constraint.ConstraintLayout>
Step 5

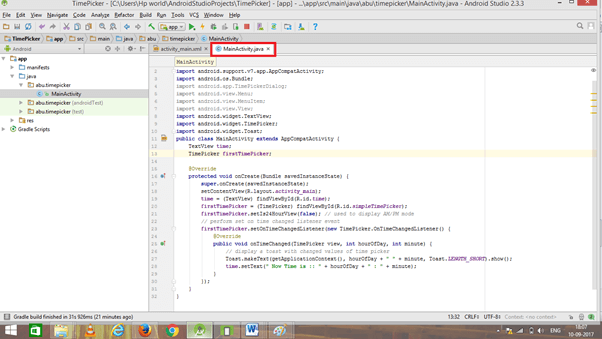

Go to  Main Activity.java. This Java program is the back-end language for your Android app.

Android

The Java code is given below.
  1. package abu.exitnotification;
  2.
  3. import android.support.v7.app.AppCompatActivity;
  4. import android.os.Bundle;
  5. import android.support.v7.app.AlertDialog;
  6. import android.content.DialogInterface;
  7.
  8. public class MainActivity extends AppCompatActivity {
  9.
  10.     @Override
  11.     protected void onCreate(Bundle savedInstanceState) {
  12.         super.onCreate(savedInstanceState);
  13.         setContentView(R.layout.activity_main);
  14.     }
  15.     @Override
  16.     public void onBackPressed() {
  17.
  18.         AlertDialog.Builder builder = new AlertDialog.Builder(MainActivity.this);
  19.         builder.setTitle(R.string.app_name);
  20.         builder.setIcon(R.mipmap.ic_launcher);
  21.         builder.setMessage("Do you want to exit?")
  22.                 .setCancelable(false)
  23.                 .setPositiveButton("Yes"new DialogInterface.OnClickListener() {
  24.                     public void onClick(DialogInterface dialog, int id) {
  25.                         finish();
  26.                     }
  27.                 })
  28.                 .setNegativeButton("No"new DialogInterface.OnClickListener() {
  29.                     public void onClick(DialogInterface dialog, int id) {
  30.                         dialog.cancel();
  31.                     }
  32.                 });
  33.         AlertDialog alert = builder.create();
  34.         alert.show();
  35.
  36.     }
  37. }
Step 6

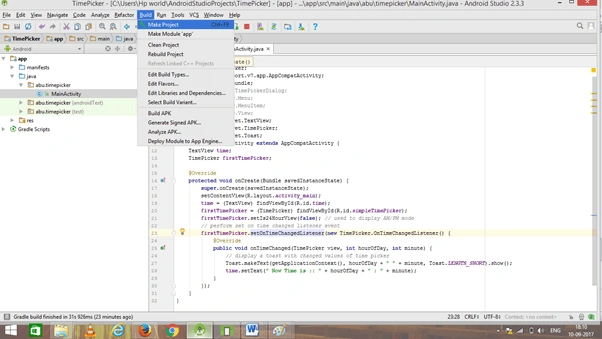

Now, go to the menu bar and click "Make Project" or press ctrl+f9 in order to debug the app from errors.

Android

Step 7

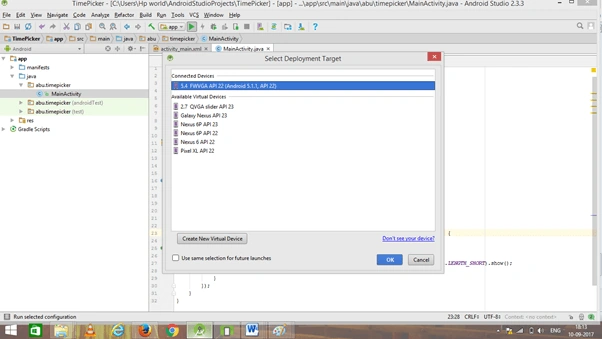

Then, click the "Run" button or press shift+f10 to run the project. Select "virtual machine" and click OK.

Android


Conclusion


We have successfully added Android Exit Dialog to the Android App.
