How To Create Simple SSRS Report

Tools required for SSRS report

  1. Visual Studio with SQL Server Data Tool.
  2. SQL Server.

The steps given below are required to create SSRS report.

Open Visual Studio => File = > Project.

SQL Server

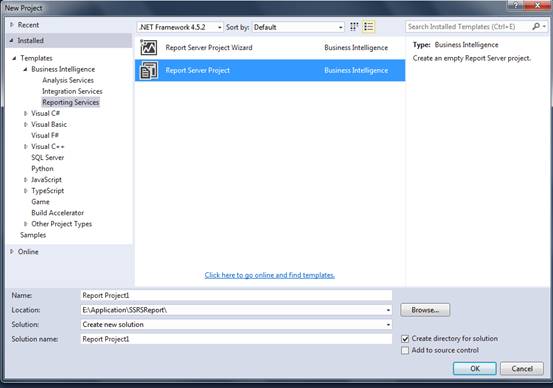

Select Reporting Services = > Report Server Project = > Set Location & Project Name, followed by clicking OK button.

SQL Server

Select Solution Explorer

SQL Server

The folders will be available there.

  1. Shared Data Sources
    The purpose of Shared Data Sources is that it allows us to use same data source for all the reports within the project, which includes configuration details (For e.g SQL connection string). The Data Source contains multiple Datasets.
    • Shared Datasets
      The purpose of Shared Datasets is that it allows us to use the same dataset for all reports within the project.
    • Reports
      Where we can add our report file.

Hence, first we will add one Shared Data Source.

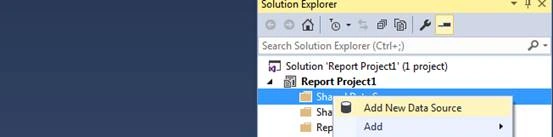

Right click on Share Data Source => Add New Data Source.

SQL Server

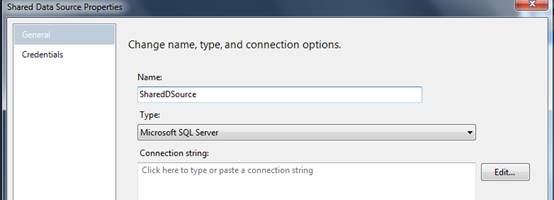

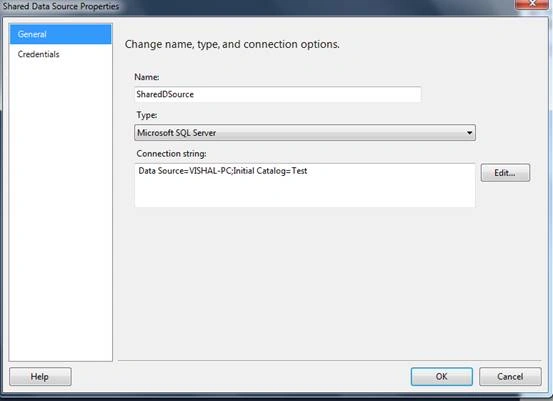

The Window given below will be opened, followed by renaming Data Source name (e.g SharedDSource).

SQL Server

Click Edit button and the Window given below will open. Select Server name and the database name. Now, click Test connection button. The successful message popup given below will be displayed.

SQL Server

SQL Server

Now, click OK button.

SQL Server

If you will check the solution DSources.rds, the file will be added in Shared Data Source folder.

SQL Server

Now, we are done with all configuration related part. Now we will move to actual reporting part.

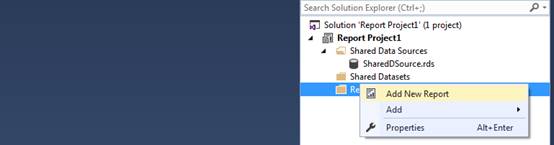

Right click on Reports folder => Add New Report

SQL Server

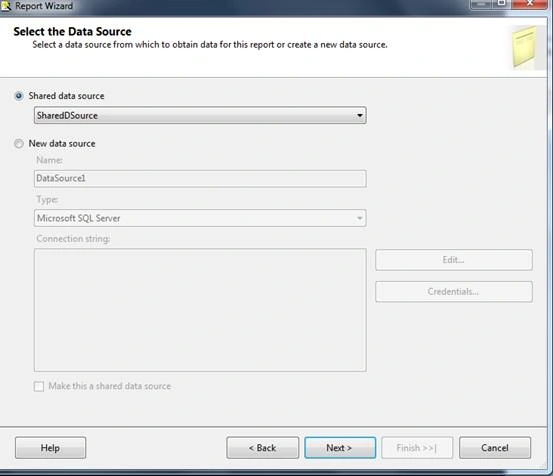

The Window given below will open. Now, don’t change anything and click Next button. If you find the default SharedDSource, it needs to be selected. If you have not added Shared Data Source, then you need to add New Data Source for the specific report.

SQL Server

Click Query Builder button

SQL Server

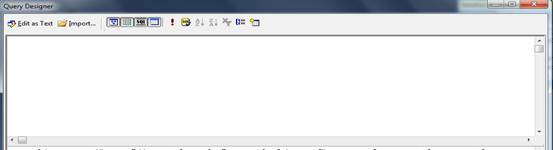

After Click Query Builder button, the Window given below will open. Now, click Edit as Text option.

SQL Server

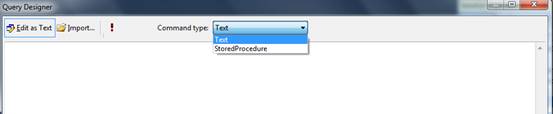

In the Window given below, you will get two options for the retrieval of your data, where one is Text and second is Stored Procedure.

Text:- In Text, you need to add your select query.

Stored Procedure:- In Text, you need to add your procedure.

SQL Server

Now, I am using stored procedure because all the stuff and complexity can be written in stored procedure.

SQL Server

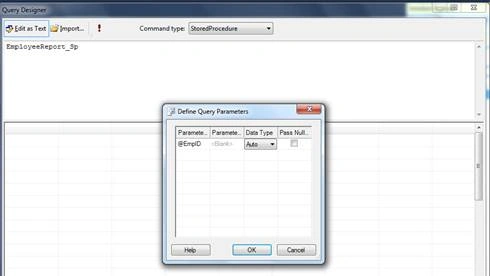

Now click “!” symbol. The Window given below will open. Currently, I am using procedure, so in my procedure; there is one parameter @EmpID, which is available. Now, I am passing null value for the time being. Just click Pass Null check box, select and then click OK button.

SQL Server

The output given below will be displayed. Now, click OK button.

SQL Server

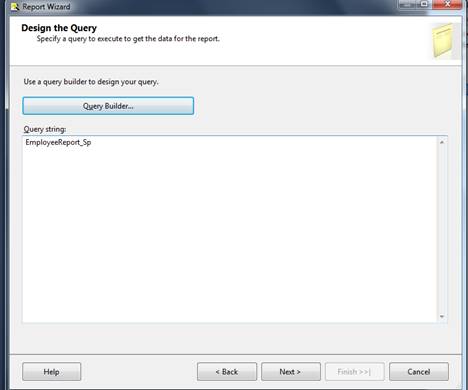

Click Next button.

SQL Server

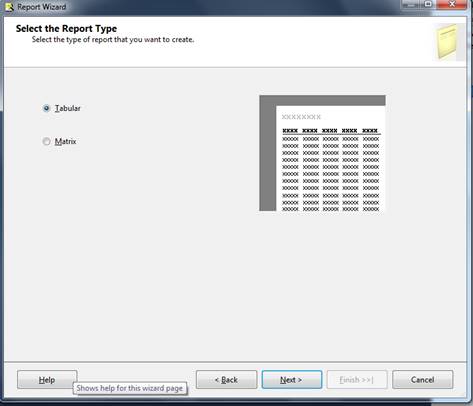

Continue with Tabular and click Next button.

SQL Server

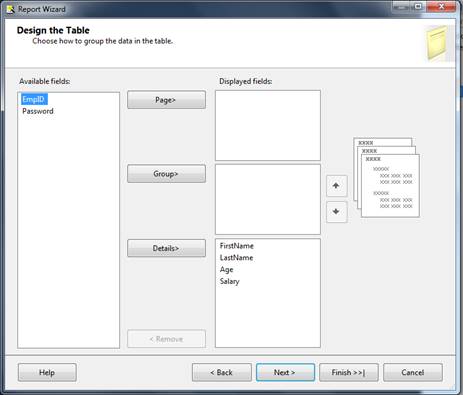

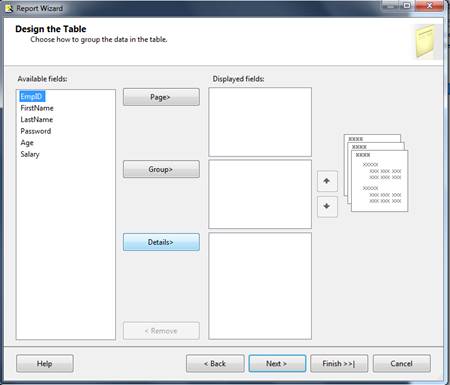

In this Window, you need to select available fields and add to Display Fields content by clicking Details button.

SQL Server

Now, click Next button.

SQL Server

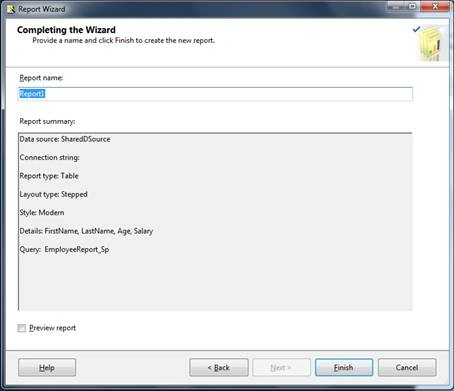

Click Finish button.

SQL Server

The report given below will be displayed.

SQL Server

There are options, which are available; which has one design; where you can modify your report as per your requirement and another one is Preview, where you can see your report preview.

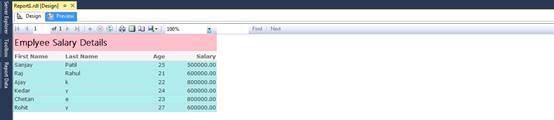

The final output is given below.

SQL Server

I hope, you enjoyed this article. Please provide your valuable feedback & suggestions.
