How To Create A Camera Application In Android Using Android Studio

Introduction

Android is one of the most popular operating systems for mobiles. In this article, I will show you how to start the camera application in Android using Android Studio.

Requirements

Steps to be followed

Follow these steps to create an application that starts the camera in Android. I have included the source code below.

Step 1

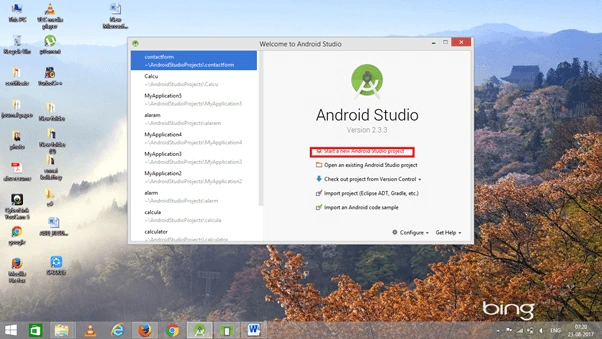

Open Android Studio and start a new Android Studio Project.

Android

Step 2

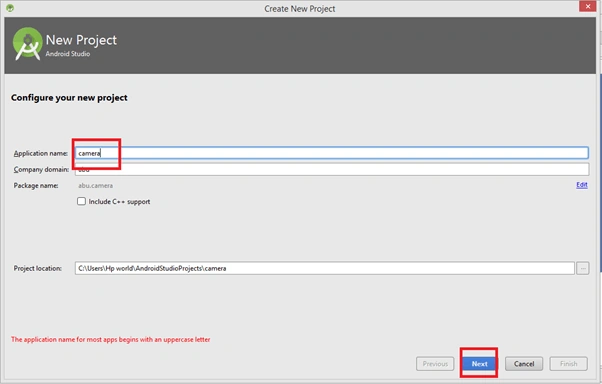

You can choose your application name and choose where your project is stored on the location. If you wish to use C++ for coding the project, mark the "Include C++ support", and click "Next" button.

Android

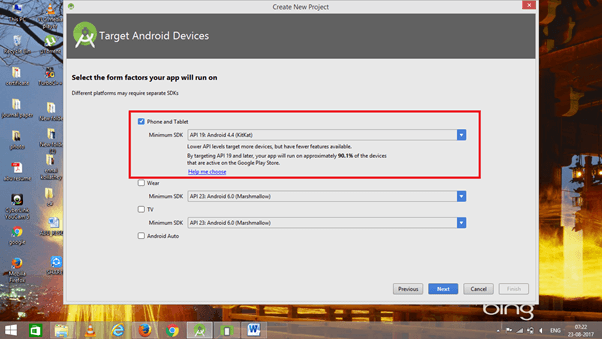

Now, select the version of Android and select the target Android devices.

Android

Step 3

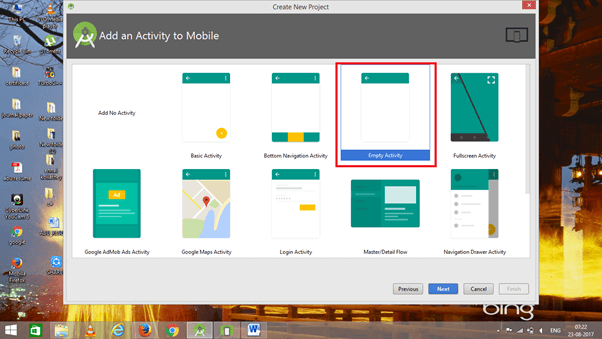

Now, add the activity and click "Next" button.

Android

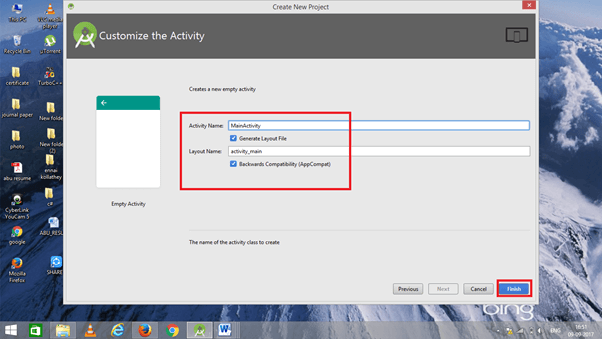

Add activity name and click "Finish".

Android

Step 4

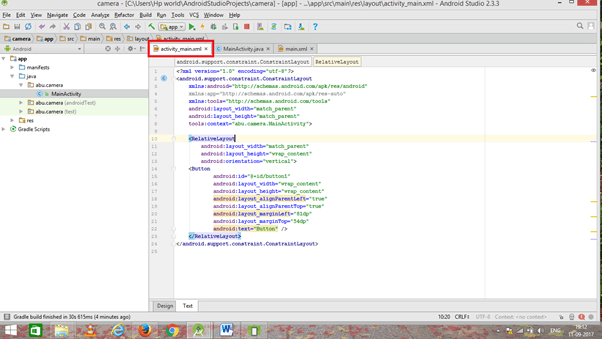

Go to activity_main.xml, This XML file contains the designing code for your Android app.

Android

The XML code is given below.

  1. <?xml version="1.0" encoding="utf-8"?>
  2. <android.support.constraint.ConstraintLayout
  3.     xmlns:android="http://schemas.android.com/apk/res/android"
  4.     xmlns:app="http://schemas.android.com/apk/res-auto"
  5.     xmlns:tools="http://schemas.android.com/tools"
  6.     android:layout_width="match_parent"
  7.     android:layout_height="match_parent"
  8.     tools:context="abu.camera.MainActivity">
  9.
  10.     <RelativeLayout
  11.         android:layout_width="match_parent"
  12.         android:layout_height="wrap_content"
  13.         android:orientation="vertical">
  14.     <Button
  15.             android:id="@+id/button1"
  16.             android:layout_width="wrap_content"
  17.             android:layout_height="wrap_content"
  18.             android:layout_alignParentLeft="true"
  19.             android:layout_alignParentTop="true"
  20.             android:layout_marginLeft="81dp"
  21.             android:layout_marginTop="54dp"
  22.             android:text="Button" />
  23.     </RelativeLayout>
  24. </android.support.constraint.ConstraintLayout>

Step 5

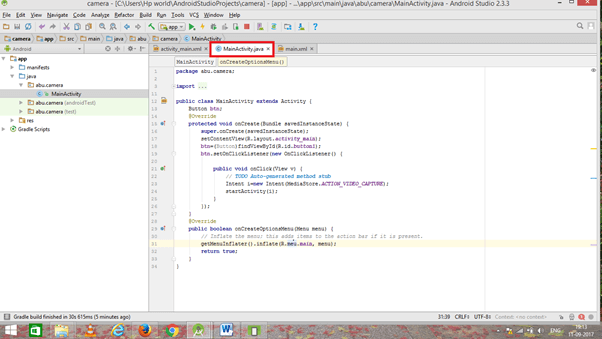

Go to  Main Activity.java. This Java program is the backend language for Android app.

Android

The Java code is given below.

  1. package abu.camera;
  2.
  3. import android.app.Activity;
  4. import android.content.Intent;
  5. import android.os.Bundle;
  6. import android.provider.MediaStore;
  7. import android.view.Menu;
  8. import android.view.View;
  9. import android.view.View.OnClickListener;
  10. import android.widget.Button;
  11.
  12. public class MainActivity extends Activity {
  13.     Button btn;
  14.     @Override
  15.     protected void onCreate(Bundle savedInstanceState) {
  16.         super.onCreate(savedInstanceState);
  17.         setContentView(R.layout.activity_main);
  18.         btn=(Button)findViewById(R.id.button1);
  19.         btn.setOnClickListener(new OnClickListener() {
  20.
  21.             public void onClick(View v) {
  22.                 // TODO Auto-generated method stub
  23.                 Intent i=new Intent(MediaStore.ACTION_VIDEO_CAPTURE);
  24.                 startActivity(i);
  25.             }
  26.         });
  27.     }
  28.     @Override
  29.     public boolean onCreateOptionsMenu(Menu menu) {
  30.         // Inflate the menu; this adds items to the action bar if it is present.
  31.         getMenuInflater().inflate(R.menu.main, menu);
  32.         return true;
  33.     }
  34. }

Step 6

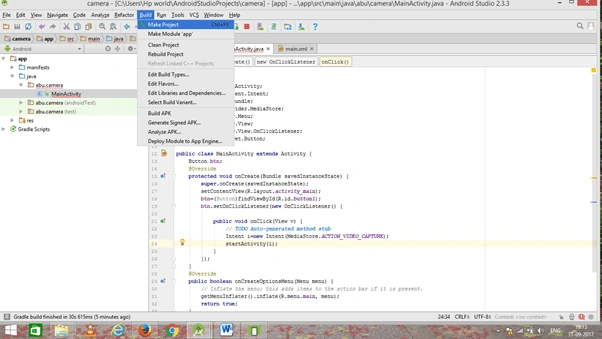

Now, go to menu bar and click "Make Project" or press ctrl+f9 to debug the errors.

Android

Step 7

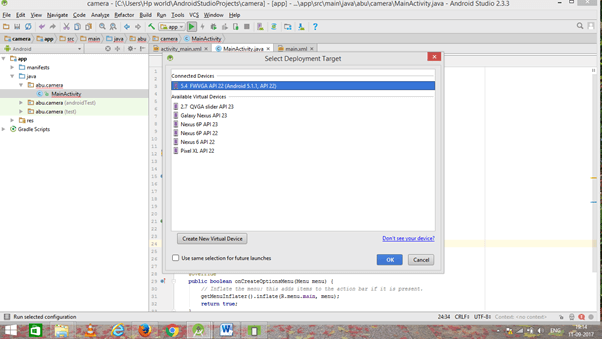

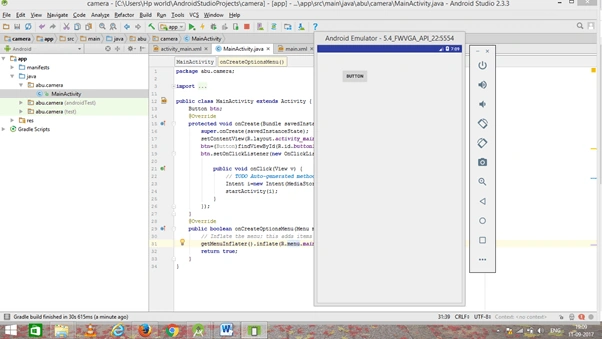

Then, click "Run" button or press shift+f10 to run the project. Choose the "virtual machine" option and click OK.

Android

Conclusion

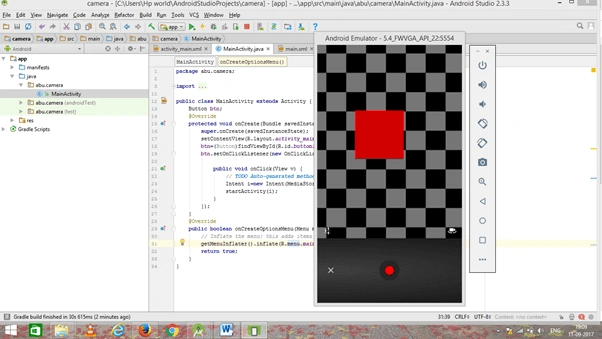

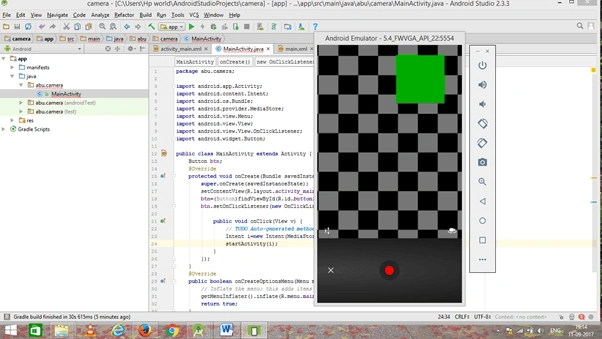

We have successfully created an app that starts the camera in Android.

Android

Android

Android
