Introduction To Accelerated Mobile Pages (AMP) - Part Two

Before getting into the details of this article, please go through my earlier article on Accelerated Mobile Pages (AMP):

AMP Markup

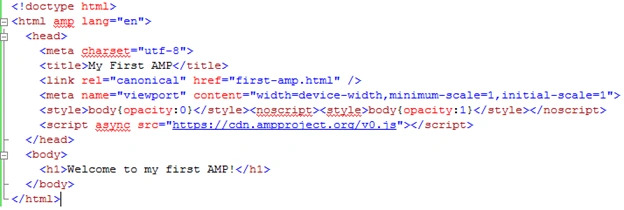

In my earlier article on this series, I explained why AMP is making a difference for the mobile web experience. Now let's look at the very basic markup for AMP page,

code

  • Every AMP document should start with <!DOCTYPE html>
  • HTML tag should contain 'amp' as <html ?> or it can be <html amp>
  • <head> and <link> are our standard HTML tags
  • <style> tag is in line as per AMP restrictions. Whatever styles we need, all need to be inline under <head> tag. To add a custom style the following tag can be used,
    1. <style amp-custom>
    2.     amp-img
    3.     {
    4.         border: 2px solid grey;
    5.     }
    6. </style>
  • <script> tag is showing 'async' meaning external JS file needed for AMP custom attributes need to be loaded asynchronously. This is the key requirement for AMP pages for non-blocking loading of page e.g.
    1. <script async custom-element="amp-twitter" src="https://cdn.ampproject.org/v0/amp-twitter-0.1.js"></script>

Now let's explore some of the key AMP tags with some real examples,

  • Suppose you want to show a banner Image on a page then it can be referred with tag <amp-img>,
    1. <amp-img src="banner.jpg" alt="Banner" height="400" width="800"></amp-img>
  • Let's assume we are playing some video and along with video, we also need to display ads on a page. Video can be just displayed using <amp-video> and Ad can be displayed using <amp-ad> tag,

    Refer the following code snippet and screenshot for the same from mobile,
    1. <!doctype html>
    2. <html amp lang="en">
    3.
    4. <head>
    5.     <meta charset="utf-8">
    6.     <title>My First AMP</title>
    7.     <link rel="canonical" href="first-amp.html" />
    8.     <meta name="viewport" content="width=device-width,minimum-scale=1,initial-scale=1">
    9.     <style>
    10.         body
    11.         {
    12.             opacity: 0
    13.         }
    14.     </style><noscript><style>body{opacity:1}</style></noscript>
    15.     <script async src="https://cdn.ampproject.org/v0.js"></script>
    16. </head>
    17.
    18. <body>
    19.     <h1>
    20. Welcome to my first AMP!</h1>
    21.     </br>
    22.     <h2>
    23. AMP Ad with AdSense</h2>
    24.     <amp-ad width="300" height="200" type="adsense" data-ad-client="ca-pub-8125901705757971" data-ad-slot="7783467241">
    25.     </amp-ad>
    26.     <h2>
    27. AMP Video</h2>
    28.     <amp-video width="15" height="10" src="OSP204.mp4" layout="responsive" controls>
    29.     </amp-video>
    30. </body>
    31.
    32. </html>

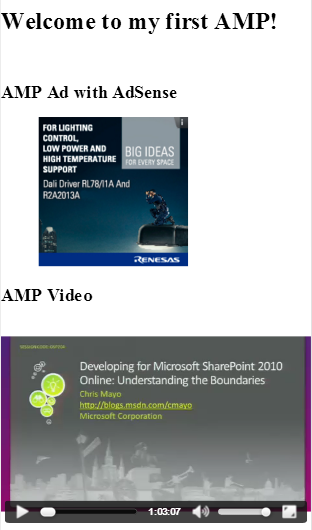

    Output of the above code snippet can be seen as below,

    output

  • Twitter: Let's now think of displaying Twitter information in a Twitter like interface,
    Important: First of all add the following script tag under our head tag for Twitter display,
    1. <script async custom-element="amp-twitter" src="https://cdn.ampproject.org/v0/amp-twitter-0.1.js"></script>
    Entire code snippet can be seen as below,
    1. <!doctype html>
    2. <html amp lang="en">
    3.
    4. <head>
    5.     <meta charset="utf-8">
    6.     <title>My First AMP</title>
    7.     <link rel="canonical" href="first-amp.html" />
    8.     <meta name="viewport" content="width=device-width,minimum-scale=1,initial-scale=1">
    9.     <style>
    10.         body
    11.         {
    12.             opacity: 0
    13.         }
    14.     </style><noscript><style>body{opacity:1}</style></noscript>
    15.     <script async src="https://cdn.ampproject.org/v0.js"></script>
    16.     <script async custom-element="amp-twitter" src="https://cdn.ampproject.org/v0/amp-twitter-0.1.js"></script>
    17. </head>
    18.
    19. <body>
    20.     <h1>
    21. Welcome to my first AMP!</h1>
    22.     </br>
    23.     <h2>Twitter</h2>
    24.     <amp-twitter width=486 height=657 media="(min-width: 401px)" layout="responsive" data-tweetID="699784934026715137">
    25.     </amp-twitter>
    26. </body>
    27.
    28. </html>

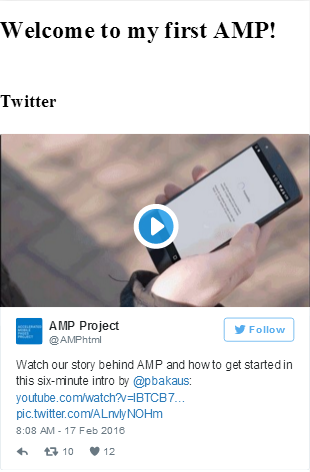

    Output of above code snippet can be seen as below,

    OUTPUT

  • Just like Twitter, now I would like to pull Instagram feed as well as a part of my AMP page.

    Just add reference to amp-instagram.js as below,
    1. <script async custom-element="amp-instagram" src="https://cdn.ampproject.org/v0/amp-instagram-0.1.js"></script>
    And under <body> tag include below tag,
    1. <h2>Instagram</h2>
    2. <amp-instagram data-shortcode="_-CJrcwrKd" width="320" height="392" layout="responsive">
    3. </amp-instagram>

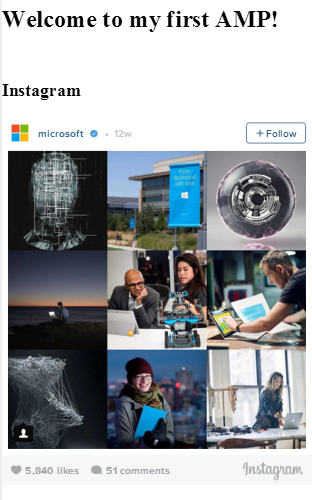

    Output for above code snippet will be,

    output
Hope you now have a better understanding of some of the key tags from AMP.

In the next article, I would like to summarize the above tags and demonstrate from my mobile device wit a faster mobile web experience.
